ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC897
Audio output channels Features - 7.1 channels
BIOS - BIOS type - UEFI AMI
BIOS memory size BIOS - 256 Mbit
BIOS type BIOS - EFI AMI
Cables included Packaging content - SATA
Category Code - MBI
Category_1 - Motherboards
Category_2 - Płyty główne - Intel 1851
Compatible processor series Processor - Intel Core Ultra (Series 2)
Component for Features - PC
CPU fan connector Internal I/O - Yes
Depth Weight & dimensions - 244 mm
Description - Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard. Optimized for stability, durability, and efficiency. It combines reliable performance, user-friendly features and streamlined style for daily computing tasks. Hi-Density Power Connector
CPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors, providing a more stable system and reducing the risk of fire during heavy overclocking. 10+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. 6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance! DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all. PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs. DIY Friendly Design
M.2 Bottom Heatsink
The M.2 bottom heatsink is able to dissipate heat of the M.2 SSD efficiently through the motherboard PCB, maximize performance while maintaining system stability. Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly. Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility. Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now. Reinforced Steel Slot
[PCIe 5.0 Version]
The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.Supports Intel® Core™ Ultra Processors (Series 2)(LGA1851)10+1+1+1+1 Power Phase, Dr.MOS for VCore+GT+SA4 x DDR5 DIMMsSupports Dual Channel, up to 8666+ (OC)1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 M.2 Key E for WiFiGraphics Output Options: 1 HDMI, 1 DisplayPortRealtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio4 SATA31 Blazing M.2 (PCIe Gen5x4)2 Hyper M.2 (PCIe Gen4x4)1 USB 3.2 Gen2x2 Type-C (Rear)1 USB 3.2 Gen1 Type-C (Front)8 USB 3.2 Gen1 (6 Rear, 2 Front)6 USB 2.0 (2 Rear, 4 Front)Realtek 2.5G LANSupports BIOS Flashback, M.2 Bottom Heatsink
dimensionalWeight - 1458
DisplayPorts quantity Rear panel I/O ports - 1
DisplayPort version Rear panel I/O ports - 1.4
EAN_code - 4711581490222
EPS power connector (8-pin) Internal I/O - Yes
Ethernet interface type Network - 2.5 Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - Intel B860
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Operating system architecture - 64-bit
Features - Windows operating systems supported - Windows 11
Front panel audio connector Internal I/O - Yes
HDMI ports quantity Rear panel I/O ports - 1
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB Type-C ports quantity - 1
LAN controller Network - Dragon RTL8125BG
Line-in Rear panel I/O ports - Yes
Manufacturer - Asrock
Manufacturer_code - 90-MXBRM0-A0UAYZ
Maximum internal memory Memory - 256 GB
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8666 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Microphone in Rear panel I/O ports - Yes
Model - B860 Pro RS
Motherboard chipset family Features - Intel
Motherboard chipset Features - Intel B860
Motherboard form factor Features - ATX

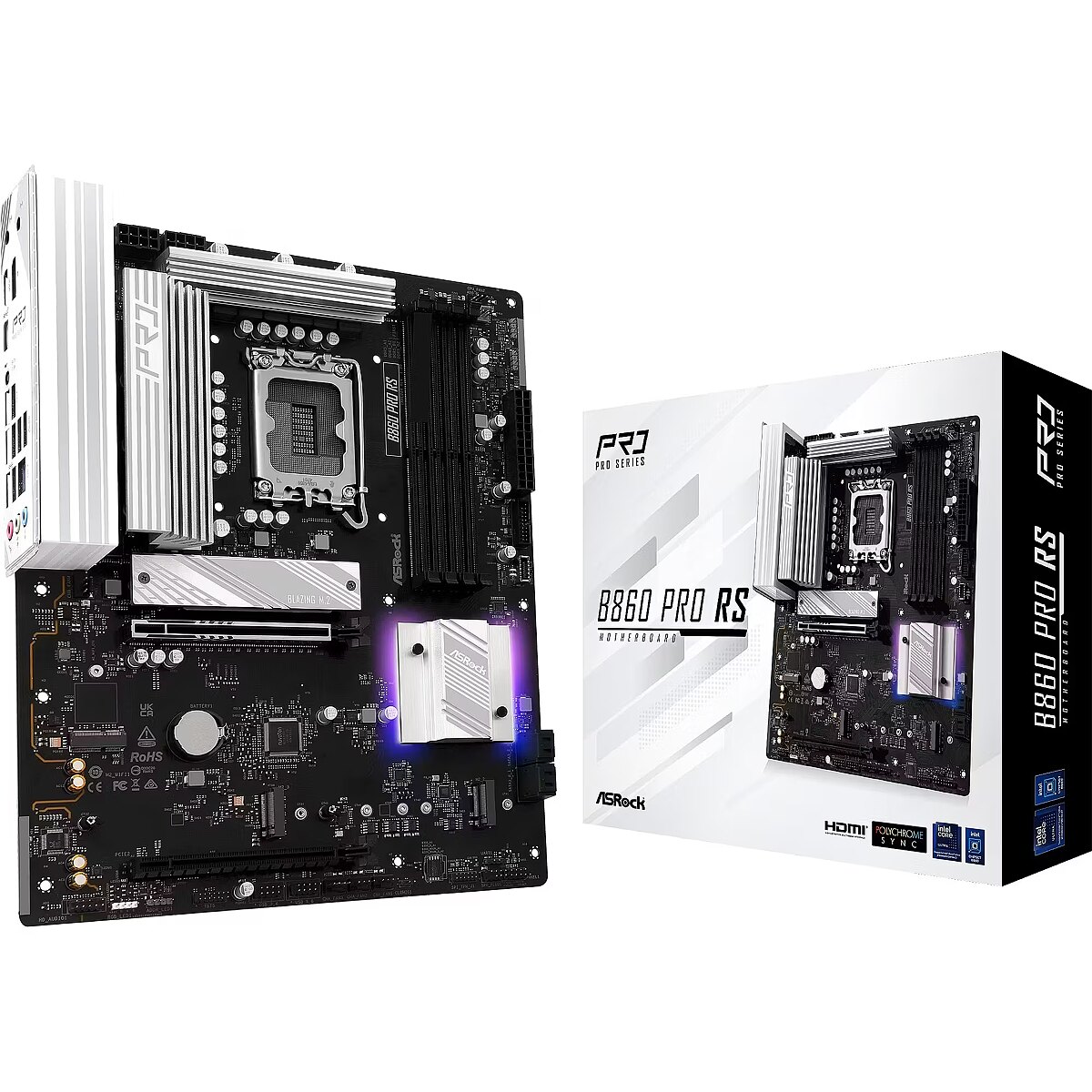

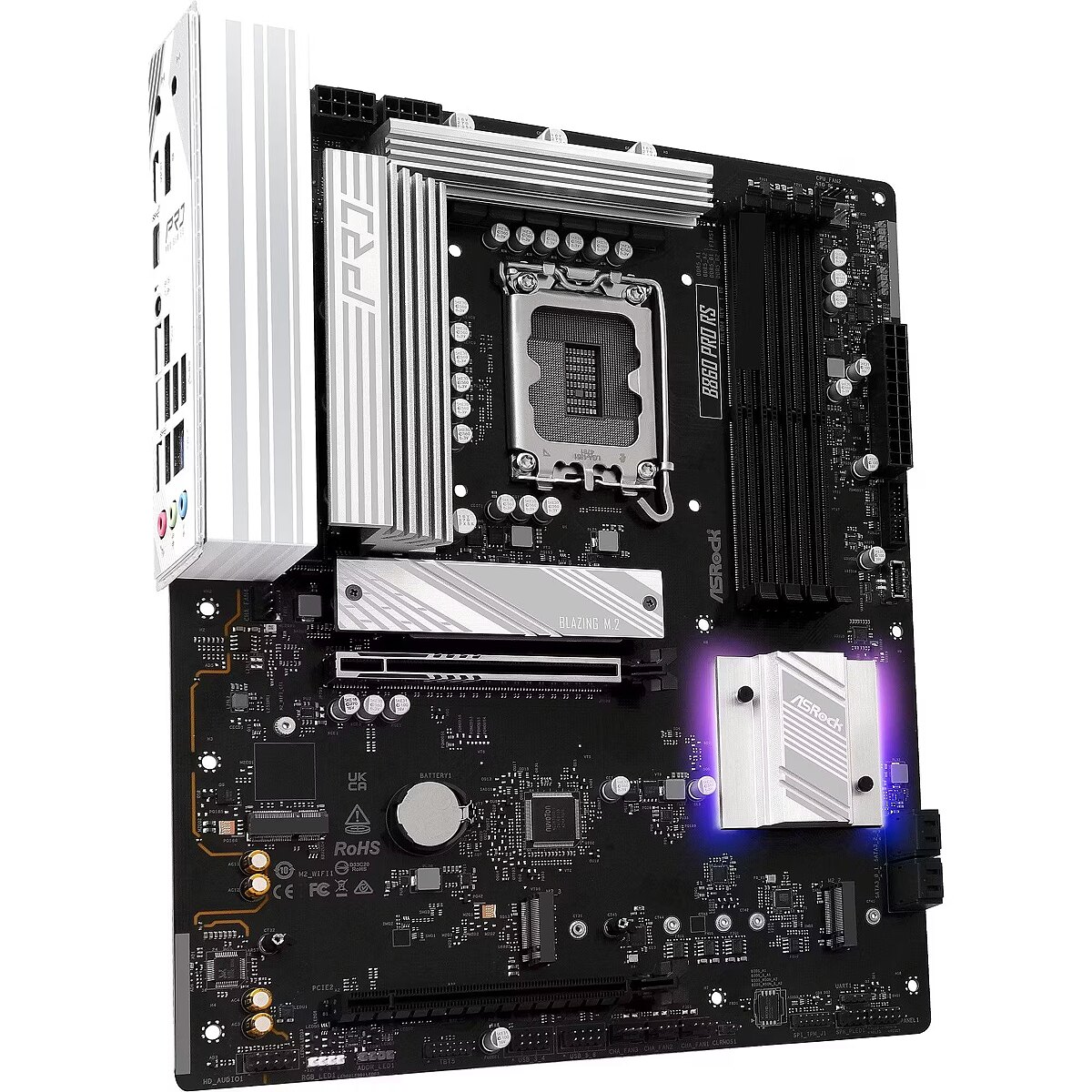

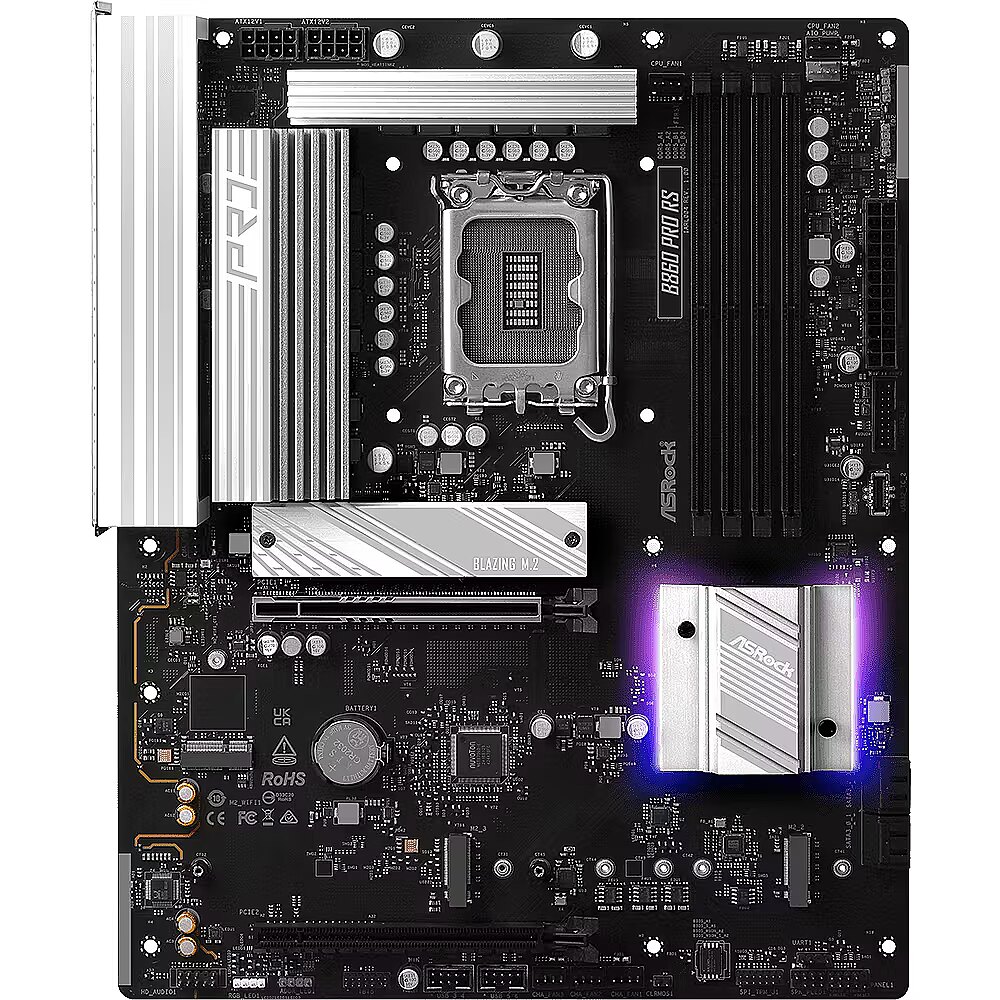

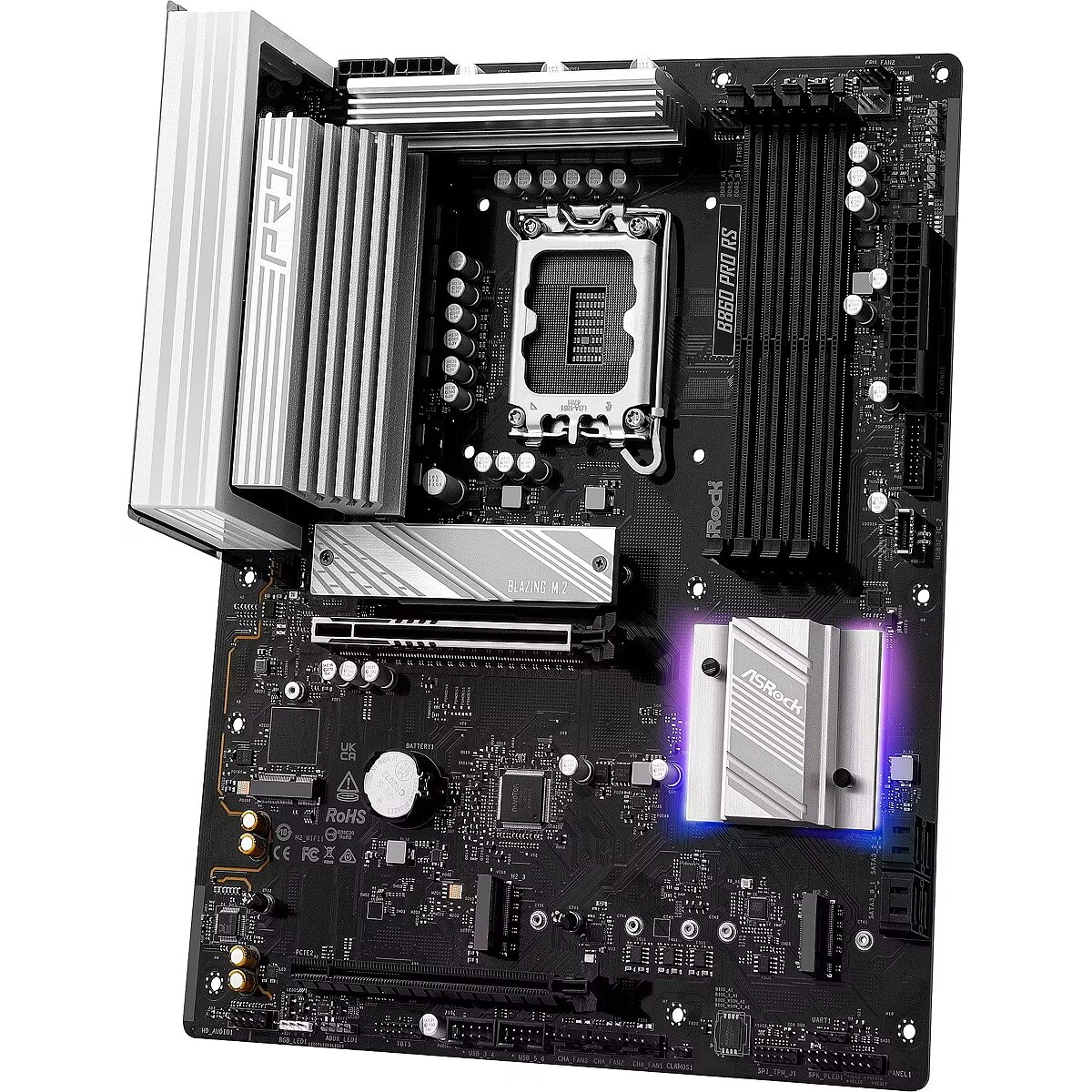

Name - ASRock B860 Pro RS - Socket 1851 - motherboard (white)
Network - Bluetooth - No
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Dragon RTL8125BG
Network - Wi-Fi - No
Number of chassis fan connectors Internal I/O - 4
Number of CPU fan connectors Internal I/O - 2
Number of EPS power connectors (8-pin) Internal I/O - 1
Number of M.2 (M) slots Expansion slots - 1
Number of memory slots Memory - 4
Number of SATA III connectors Internal I/O - 4
PCI Express x16 (Gen 4.x) slots Expansion slots - 1
PCI Express x16 (Gen 5.x) slots Expansion slots - 1
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA1851
Processor manufacturer Processor - Intel
Processor socket Processor - LGA 1851 (Socket V1)
producerCode - B860 Pro RS
productName - Motherboard - ASRock B860 Pro RS
Product Net Weight - 1.3 kg
productSize - Normal
RAID levels Storage controllers - 0/1/10/5
RAID support Storage controllers - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - MIC input - 1
Rear panel I/O ports - Number of USB 2.0 Type-A ports - 2
Rear panel I/O ports - Number of Wi-Fi antenna ports - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 6
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
RGB LED pin header Internal I/O - Yes
Safety warning - Warnings - Avoid contact with liquids to prevent electronic damage.
Safety warning - Warnings - Dispose of in accordance with local regulations for electronic waste.
Safety warning - Warnings - Do not disassemble to avoid damage to internal components and loss of warranty.
sizeX - 346
sizeY - 281
sizeZ - 75
Storage controllers - RAID rebuild - Yes
Storage controllers - Supported RAID configuration - 0,1,5,10
Summary - Asrock B860 Pro RS. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
Supported memory clock speed (max) Memory - 8666 MHz
Supported memory types Memory - DDR5-SDRAM
Supported storage drive interfaces Storage controllers - M.2,SATA III
Supported storage drive types Storage controllers - HDD & SSD
TPM connector Internal I/O - Yes
Unbuffered memory Memory - Yes
Unit Box Height - 0.075
Unit Box Length - 0.35
Unit Box Width - 0.28
Unit Calculated Volume - 0.008784 cubm
Unit Calculated Weight - 1.94 kg
Units per Shipping Box - 5
USB 2.0 connectors Internal I/O - 2
USB 2.0 ports quantity Rear panel I/O ports - 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 6
USB 3.2 Gen 2x2 Type-C ports quantity Rear panel I/O ports - 1
Vendor Homepage - https://www.asrock.com/MB/Intel/B860%20Pro%20RS/index.asp#Specification
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 1,71
weight - 1700
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
Wi-Fi Network - No
Width Weight & dimensions - 305 mm
Windows operating systems supported Features - Windows 11 x64
