Accessories included -
Audio port Input/Output connectors - 2
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Bluetooth Interface - Yes

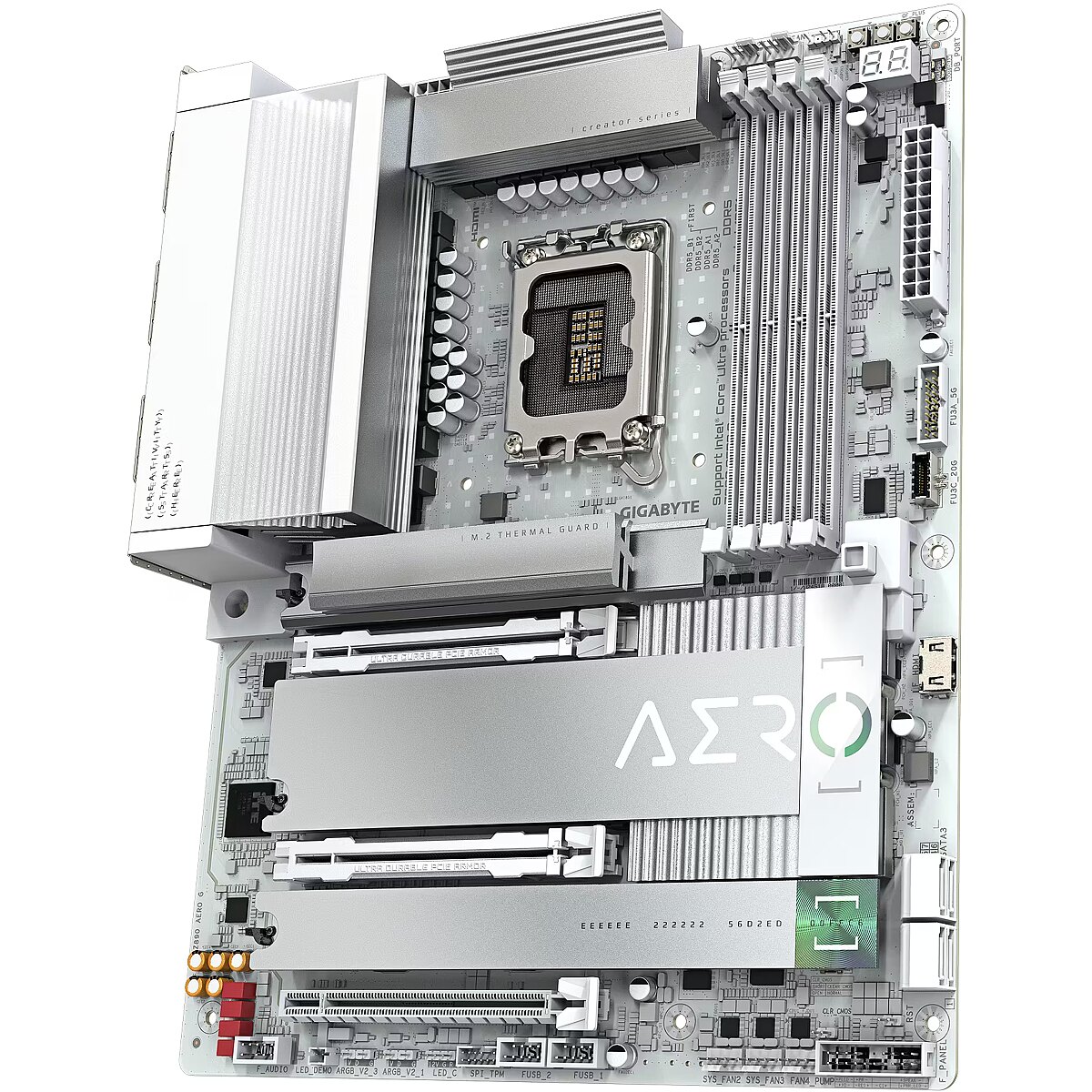

Brand - GIGABYTE
BrandPartCode - Z890 AERO G
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - other
Chipset - Intel Z890
Chipset manufacturer - Intel
Chipset type - Intel Z890 Express Chipset
code - Z890 AERO G
COM connector / port - No
CPU socket - LGA1851
Description - Creativity Starts Here
AERO series motherboards are an innovative solution for content creators, enabling them to tackle demanding creative tasks such as 3D rendering and long-form video editing. Superior Connectivity Expandable Graphics Ultra-Fast Storage Supports Intel Core Ultra (Series 2) Processors VisionLINK/TB: One USB-C port for video, data, and charging Maximum Scalability: 2 PCIe x16 slots for multiple GPUs Expanded Connectivity: THUNDERBOLT 4 Type-C with DP-Alt, HDMI Ultra-Fast Storage: 5 M.2 slots, including 1 PCIe 5.0 x4 Lightning-fast Networking: Daul 2.5GbE LAN and Wi-Fi 7 with ultra-high gain directional antenna 16+1+2 Phase Digital Dual VRM Solution EZ-Plug WIFI: Quick and easy design for Wi-Fi antenna installation EZ-Latch Plus: Quick-release PCIe and M.2 slots with screwless design EZ-Latch Click: M.2 heatsinks with screwless design Sensor Panel Link: Built-in video port for hassle-free panel setup in the case User-friendly UI: Multi-Theme, AIO fan control and auto Q-Flash scanning in BIOS and software D5 Bionic Corsa for infinite memory performance AI Perfdrive: Provides users with optimal and customized BIOS setting profile Premium-class compatibility: 4*DDR5 with XMP memory module support Efficient cooling: Thermal Armor Advanced VRM and M.2 Thermal Guard L High-resolution audio: ALC1220 and audiophile-grade WIMA capacitors PCIe UD X slot: PCIe 5.0 x16 slot with 10X more durability for graphics card Ultra-durable PCIe shield: Metal backplate for PCIe x16 slot for increased durability
Description - Z890 AERO G Supports Intel® Core™ Ultra processors (Series 2) VisionLINK/TB : One USB-C® Port for Video, Data Transfer and Charging Ultimate Scalibility : 2*PCIe x16 slots for Multi-GPU Extended Connectivity : THUNDERBOLT™ 4 Type-C®with DP-Alt, HDMI Ultra-Fast Storage : 5*M.2 slots, including 1* PCIe 5.0 x4 Blazing Fast Networks : Daul 2.5 GbE LAN and Wi-Fi 7 with directional Ultra-high gain antenna Digital twin 16+1+2 phases VRM solution WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design EZ-Latch Click : M.2 heatsinks with screwless design Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW D5 Bionic Corsa for Infinite Memory Performance AI Perfdrive : Provides optimal and customized BIOS preset profile for users Premium Compatibility : 4*DDR5 with XMP Memory Module Support Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L High-Res Audio : ALC1220 & WIMA Audiophile Grade Capacitors PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
Designation - CE+WEEE
Detailed data on disk/drive interfaces - CPU:
- 1 x M.2 connector (Socket 3, M-key, Type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M-key, Type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M-key, Type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M-key, Type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 1 x M.2 connector (Socket 3, M Key, Type 2280 SATA and PCIe 4.0 x4/x2 SSD support (M2M_SB)
- 4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10 for NVMe SSD storage devices
Support for RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
dimension depth - 80 mm
dimension height - 340 mm
Dimensions - 30.5 cm x 24.4 cm
dimension weight - 2335 g
dimension width - 275 mm
ean - 4719331865139
EAN - 4719331865139
EAN_code - 4719331865139
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 5.0 x 8
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 2 x M.2
Expansion slots - Number of M.2 (M) slots - 5
External connectors - 1 x HDMI
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x S/PDIF
External connectors - 1 x Thunderbolt 4
External connectors - 2 x RJ-45
External connectors - 2 x SMA
External connectors - 2 x USB 2.0
External connectors - 2 x USB 3.2 Gen 2 Type-A
External connectors - 4 x USB 3.2 Gen 1 Type-A
Features - Audio chip - Realtek ALC1220
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z890 Express
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - PC health monitoring - Fan, Temperature, Voltage
Features - Product colour - White
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/8800/8933/9066/9200 MHz
Full Description Line - Intel Z890|LGA1851|ATX|DDR5|9200/9066/8933/8800/8600/8400/8266/8200/8000/7950/7900/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600 MHz|Memory slots 4|1xPCI-Express 4.0 4x |1xPCI-Express 5.0 8x|1xPCI-Express 5.0 16x|5xM.2|1xHDMI|2xUSB 2.0|4xUSB 3.2|1xUSB-C w/Thunderbolt|1xOptical S/PDIF|2xRJ45|2xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC1220|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header
Graphics - Integrated Graphics Processor - Intel HD Graphics support:
- 1 x Intel Thunderbolt 4 connector (USB4 USB Type-C port), supporting DisplayPort and Thunderbolt video output
When a Thunderbolt monitor is installed, the maximum supported resolution is 5120x2880@60 Hz with 24 bpp (single display output).
When a USB4 USB Type-C monitor is installed, the maximum supported resolution is 3840x2160@240 Hz (single display output).
* Due to the limited I/O resources of the computer architecture, the number of Thunderbolt devices that can be used depends on the number of PCI Express devices installed. (For more information, refer to 2-6 Back Panel Connectors.)
* Support for DisplayPort 2.1 and HDCP 2.3
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 and HDCP 2.3.
- 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30Hz
* Support HDMI version 1.4.
(Graphics specification may vary depending on CPU support.)
Support up to three displays simultaneously
Graphics - DirectX version - 12.0
Gross Weight Kg - 3,54
GTIN - 4719331865139
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC1220
Integrated CPU - Yes
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Total number of SATA connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
LongProductName - Z890 AERO G Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 16+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 4xPCIe 4.0,Wi-Fi 7, 2.5GbE LAN, Thunderbolt 4
LongSummaryDescription - GIGABYTE Z890 AERO G Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 16+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 4xPCIe 4.0,Wi-Fi 7, 2.5GbE LAN, Thunderbolt 4. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
LPT connector / port - No
M.2 Expansion slots - 5
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer Code - Z890 AERO G
Manufacturer Name - Gigabyte
Manufacturer_code - Z890 AERO G
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8800 MHz
Memory - Supported memory clock speeds - 5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,8800 MHz
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Memory - Supported memory types - DDR5-SDRAM
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7400 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory bus frequency - 7900 MHz
Memory bus frequency - 7950 MHz
Memory bus frequency - 8000 MHz
Memory bus frequency - 8200 MHz
Memory bus frequency - 8266 MHz
Memory bus frequency - 8400 MHz
Memory bus frequency - 8600 MHz
Memory bus frequency - 8800 MHz
Memory bus frequency - 8933 MHz
Memory bus frequency - 9066 MHz
Memory bus frequency - 9200 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - Z890 AERO G
MPN - Z890 AERO G
name - GIGABYTE Z890 AERO G, Intel Z890 Mainboard - Sockel LGA 1851 - DDR5
Name - GIGABYTE Z890 AERO G - Socekt 1851 - motherboard
Name - GIGA Z890 AERO G S1851/DDR5/ATX
name - Motherboard Z890 AERO
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Network - WLAN controller model - Intel Wi-Fi 7 BE202
Network interface - 2 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - LAN 2 x Intel 2.5GbE LAN (2.5Gbps/1Gbps/100Mbps) Wireless communication module Intel Wi-Fi 7 BE202 (BE200NGW M) 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Supports 11be 160MHz wireless standard
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 5
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x HDMI
Onboard connectors - 1 x Power button
Onboard connectors - 1 x Q-Flash Plus button
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x Reset jumper
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.2 Gen 1 Type-A
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x 4pin Chassis fan
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 5 x M.2
Optical S/PDIF Input/Output connectors - 1
Other features - Weight - 2.29 kg
Other information -
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton® Internet Security (OEM version)
LAN bandwidth management software
Packaging data - Package depth - 270 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 2.61 kg
Packaging data - Package width - 335 mm
PCI-Express 4.0 4x Expansion slots - 1
PCI-Express 5.0 8x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor - Supported processor sockets - LGA 1851
Processor family - Intel Core Ultra
producer - Gigabyte
ProductName - Z890 AERO G Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 16+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 4xPCIe 4.0,Wi-Fi 7, 2.5GbE LAN, Thunderbolt 4
Product Net Weight - 2 kg
RAID - SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - Thunderbolt ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
RJ45 Input/Output connectors - 2
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 44.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 37.5 cm
Shipping Box Weight Shipping/Package Box Dimensions - 13.26 kg
Shipping Box Width Shipping/Package Box Dimensions - 30.5 cm
Short description - GIGA Z890 AERO G S1851/DDR5/ATX
ShortSummaryDescription - GIGABYTE Z890 AERO G Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 16+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 4xPCIe 4.0,Wi-Fi 7, 2.5GbE LAN, Thunderbolt 4, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), LGA 1851, DDR5-SDRAM, 256 GB
Socket - LGA1851
Software - Norton Internet Security (OEM version) LAN bandwidth management software
Sound card - Realtek ALC1220 CODEC
* The line-out jack on the rear panel supports DSD audio.
High-Resolution Audio
2/4/5.1/7.1-channel
* The audio jack functionality can be changed via audio software. To configure 7.1-channel audio, you must access the audio software for audio settings.
S/PDIF output support
Special functions -
Storage controllers - Number of HDDs supported - 9
Storage controllers - Number of storage drives supported - 4
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Technical details - Warranty period - 3 year(s)
Title - GIGABYTE Z890 AERO G Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 16+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 4xPCIe 4.0,Wi-Fi 7, 2.5GbE LAN, Thunderbolt 4
TPM - Header
Unit Calculated Volume - 0.01018 cubm
Unit Calculated Weight - 2.65 kg
Units per Shipping Box - 5
URL - https://www.gigabyte.com/
USB-C Interface - Yes
USB-C w/Thunderbolt Input/Output connectors - 1
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 4
USB 3.2 Interface - Yes
USB ports at back panel - 9
USB ports on motherboard - 8
Vendor Homepage - www.gigabyte.com/Motherboard/Z890-AERO-G#kf
vendpn - Z890 AERO G
Warranty - 36 months
WarrantyInfo - 3 years
Weight - 2,33
Weight - 2.35
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
