Audio port Input/Output connectors - 5
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
Brand - ASUS
BrandPartCode - 90MB1HD0-M0EAY0
Category - Motherboards
Category Code - MBI
Chipset - Intel B760 Express
Code - 90MB1HD0-M0EAY0
Description - TUF GAMING B760M-PLUS II takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
dimensionalWeight - 1197
DisplayPort Input/Output connectors - 1
EAN - 4711387469798
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x4 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel B760
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11
Features - Windows operating systems supported - Windows 11
Form Factor - Micro-ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800 MHz
Full Description Line - Intel B760 Express|LGA1700|Micro-ATX|7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|3xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|5xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Video Depending on CPU|LAN 2.5 Gigabit|RAID SATA 0, 1, 5, 10|TPM Header
Graphics - Parallel processing technology support - Not supported
GTIN - 4711387469798
HDMI Input/Output connectors - 1
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 3
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 3
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA-600 (RAID), 3 x M.2
LongDesc - TUF GAMING B760M-PLUS IITUF GAMING B760M-PLUS II takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.INTELLIGENT CONTROLThe TUF GAMING B760M motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play.All-Around Energy EfficiencyThe Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
LongProductName - Intel Socket LGA1700, Intel B760 Chipset, 4 x DIMM slots, Max. 192GB, DDR5, micro-ATX Form Factor
LongSummaryDescription - ASUS TUF GAMING B760M-PLUS II. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
M.2 Expansion slots - 3
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7800 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5000
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6800
Memory - Supported memory clock speeds - 7000
Memory - Supported memory clock speeds - 7200
Memory - Supported memory clock speeds - 7400
Memory - Supported memory clock speeds - 7600 MHz
Memory - Supported memory clock speeds - 7800
Memory - Supported memory clock speeds - 7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - 4 DIMM slots - DDR5, non-ECC, on-die ECC, unbuffered
Memory slots - 4
Model - TUF GAMING B760M-PLUS II
Name - ASUS TUF GAMING B760M-PLUS II | Processor family Intel B760 | Processor socket 1 x LGA1700 Socket | 4 DIMM slots - DDR5, non-ECC, on-die ECC, unbuffered | Supported hard disk drive interfaces SATA-600 (RAID), 3 x M.2 | Number of SATA connectors 4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Optical S/PDIF Input/Output connectors - 1
Other features - Weight - 982 g
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 305.00 mm
Package features > Gross height (mm) - 100.00 mm
Package features > Gross width (mm) - 234.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 121 pc(s)
Package features > Paper/Pasteboard - 80.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.10 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - SATA
Packaging content - Screws included - Yes
Packaging data - Package depth - 265 mm
Packaging data - Package height - 71 mm
Packaging data - Package weight - 1.65 kg
Packaging data - Package width - 280 mm
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 4.0 4x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel B760
Processor > Processor socket - 1 x LGA1700 Socket
producerCode - 90MB1HD0-M0EAY0
productName - ASUS TUF GAMING B760M-PLUS II Intel B760 LGA 1700 micro ATX
ProductName - TUF GAMING B760M-PLUS II
productSize - Normal
RAID - SATA 0, 1, 5, 10

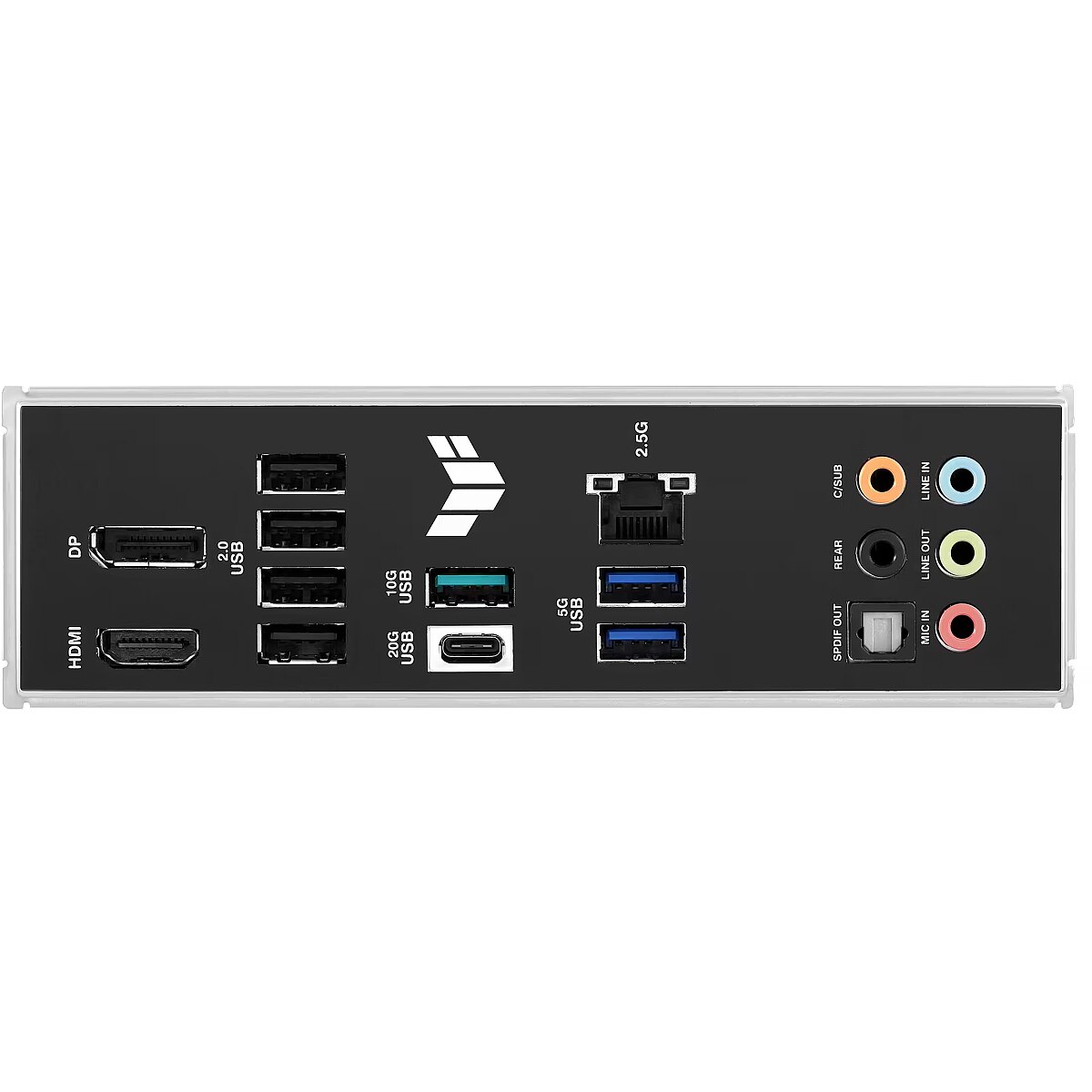

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 57 cm
Shipping Box Height Shipping/Package Box Dimensions - 30 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 15.9 kg
Shipping Box Width Shipping/Package Box Dimensions - 36.5 cm
ShortSummaryDescription - ASUS TUF GAMING B760M-PLUS II, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™..., LGA 1700, DDR5-SDRAM, 192 GB
sizeX - 285
sizeY - 300
sizeZ - 70
Socket - LGA1700
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 7
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details > Gross weight - 0.88 kg
Technical details > Net weight - 0.78 kg
Technical details > Producer - Asus
Title - ASUS TUF GAMING B760M-PLUS II Intel B760 LGA 1700 micro ATX
TPM - Header
Unit Box Height - 0.3
Unit Box Length - 0.57
Unit Box Width - 0.0365
Unit Brutto Volume - 0.006241 cubm
Unit Gross Weight - 1.59 kg
Unit Net Weight - 1.2 kg
URL - https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b760m-plus-ii/
USB-C Input/Output connectors - 1
USB-C Interface - Yes
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 3
USB 3.2 Interface - Yes
Vendor Homepage - www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b760m-plus-ii/
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 1500
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 50 mm
Weight & dimensions - Width - 244 mm
