ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC897
Audio output channels Features - 7.1 channels
BIOS - BIOS type - UEFI AMI
BIOS memory size BIOS - 128 Mbit
BIOS type BIOS - UEFI AMI
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
category_en - Computers & Components > Computer components > Motherboards > Intel motherboards
category_lv - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
category_ru - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
Component for Features - PC
CPU fan connector Internal I/O - Yes
Dane techniczne: Chipset płyty głównej - Intel H610
Dane techniczne: Grupa produktowa - Płyty główne ASRock
Dane techniczne: Gwarancja - 2 lata w serwisie sprzedawcy
Dane techniczne: Producent - ASRock
Dane techniczne: Przeznaczenie - Intel
Dane techniczne: Standard płyty - micro-ATX
Depth Weight & dimensions - 193 mm
Description - 6+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers. POLYCHROME RGB
This motherboard features an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. Ultra M.2 32Gb/s (PCIe Gen3 x4)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. USB 3.2 Gen1 Type-C
USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case. Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done! 3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo. HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)6+1+1 Power PhaseSupports DDR5 5600MHz*1 PCIe 4.0 x16, 1 PCIe 3.0 x1Graphics Output Options: HDMI, DisplayPort, D-SubRealtek ALC897 7.1 CH HD Audio Codec4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)1 USB 3.2 Gen1 Type-C (Rear)3 USB 3.2 Gen1 Type-A (1 Rear, 2 Front)6 USB 2.0 (4 Rear, 2 Front)Realtek Gigabit LAN

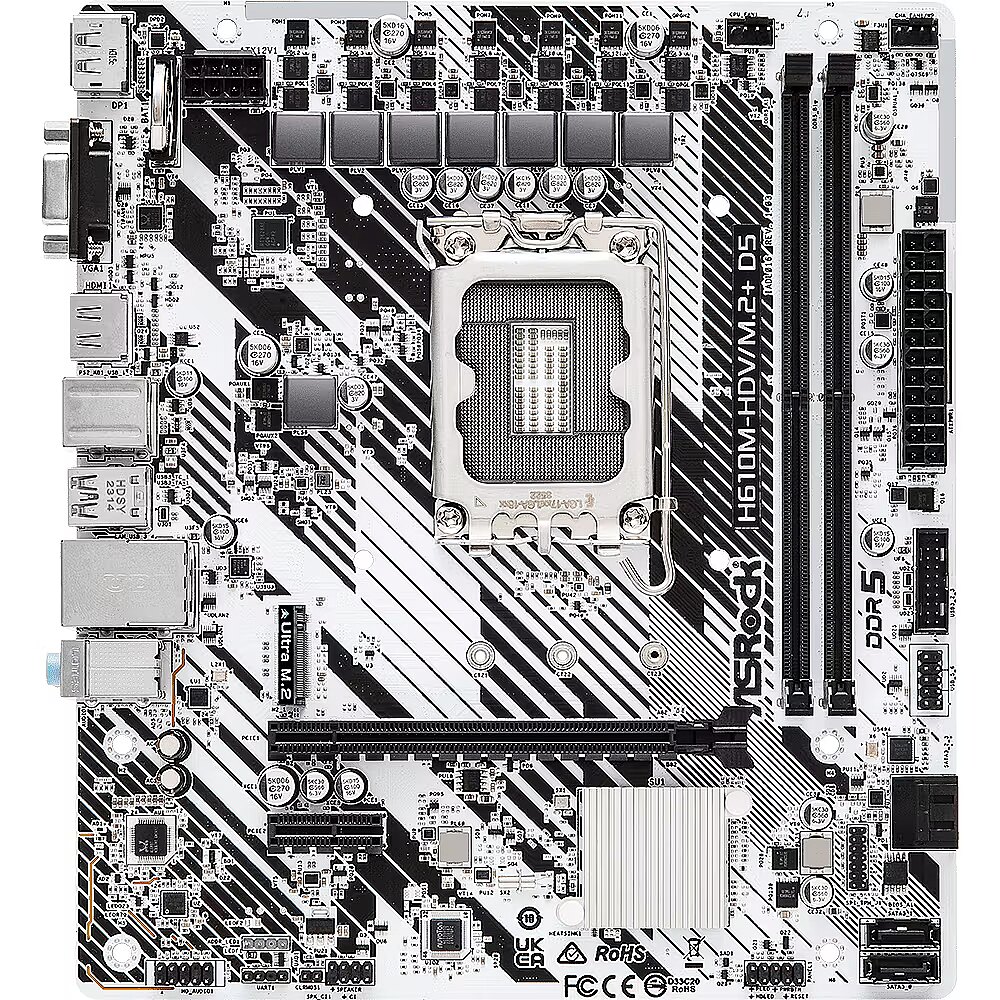

description_en - The Asrock H610M-HDV M.2+ D5 motherboard is designed for Intel 12th, 13th and 14th Gen CPUs, supporting DDR5 memory and M.2 PCIe storage. Its compact Micro-ATX format suits home and office builds, offering HDMI and VGA outputs, PCIe expansion slots, Gigabit LAN and essential connectivity.
SpecificationsModel: Asrock H610M-HDV M.2+ D5Device type: motherboardChipset: Intel H610Socket: LGA1700Form factor: Micro-ATXCPU support: Intel Core 12th / 13th / 14th GenArchitectures: Alder Lake, Raptor LakeIntegrated graphics support: depends on CPU
MemoryType: DDR5Slots: 2Max capacity: depends on versionSupported speeds: DDR5 (module dependent)Channel mode: dual-channel
Storage1 × M.2 PCIe NVMePCIe support: depends on board versionSATA support: yes
Expansion slots1 × PCIe x161 × PCIe x1
Video outputsHDMIVGA
AudioIntegrated audio controllerMulti-channel support (version dependent)
NetworkGigabit LAN
USB portsConfiguration varies by version
Other parametersPCB: multilayerPCB colour: variesBIOS: UEFI
Physical parametersWeight: 0.65 kgGross weight: 1.10 kgPackage dimensionsLength, m: 0.2900Height, m: 0.0700Width, m: 0.2400
description_lv - Asrock H610M-HDV M.2+ D5 mātesplate ir piemērota sistēmām ar Intel 12., 13. un 14. paaudzes procesoriem. Tā atbalsta DDR5 atmiņu un M.2 PCIe datu nesējus, padarot to piemērotu mūsdienu biroja un mājas datoriem. Plate nodrošina HDMI un VGA video izvades, Gigabit LAN tīklu un nepieciešamos paplašināšanas slotus.
RaksturlielumiModelis: Asrock H610M-HDV M.2+ D5Ierīces tips: mātesplateČipsets: Intel H610Ligzda: LGA1700Formfaktors: Micro-ATXProcesoru atbalsts: Intel Core 12./13./14. paaudzeArhitektūras: Alder Lake, Raptor LakeGrafikas atbalsts: atkarīgs no procesora
AtmiņaTips: DDR5Sloti: 2Maksimālā ietilpība: atkarīga no versijasAtbalstītie ātrumi: DDR5 (atkarīgs no moduļiem)Kanālu režīms: divkanālu
Datu glabāšana1 × M.2 PCIe NVMePCIe režīms: atkarīgs no versijasSATA atbalsts: ir
Paplašināšanas sloti1 × PCIe x161 × PCIe x1
Video izejasHDMIVGA
AudioIntegrēts audio kontrolieris
TīklsGigabit LAN
USB portiKonfigurācija atkarīga no piegādes
Citi parametriPCB: daudzslāņuPCB krāsa: atkarīga no versijasBIOS: UEFI
Fiziskie parametriSvars: 0.65 kgBruto svars: 1.10 kgIepakojuma izmēriGarums, m: 0.2900Augstums, m: 0.0700Platums, м: 0.2400
description_ru - Материнская плата Asrock H610M-HDV M.2+ D5 создана для систем на базе процессоров Intel Core 12-го, 13-го и 14-го поколений. Форм-фактор Micro-ATX обеспечивает совместимость с компактными корпусами, а поддержка DDR5 и накопителей M.2 PCIe позволяет собирать современные конфигурации для дома и офиса. Модель оснащена видеовыходами HDMI и VGA, гигабитной сетевой картой, слотами PCIe и необходимыми интерфейсами для периферии.
ХарактеристикиМодель: Asrock H610M-HDV M.2+ D5Тип устройства: материнская платаЧипсет: Intel H610Сокет: LGA1700Форм-фактор: Micro-ATXПоддержка процессоров: Intel Core 12-го / 13-го / 14-го поколенияПоддерживаемые архитектуры: Alder Lake, Raptor LakeПоддержка графики: зависит от процессора
ПамятьТип памяти: DDR5Количество слотов: 2Максимальный объём: зависит от версииПоддерживаемые частоты: зависит от модуля DDR5Режим работы: двухканальный
Хранение данныхM.2 слот: 1 × M.2 PCIe NVMeПоддержка PCIe: зависит от версии (3.0 / 4.0)Поддержка SATA: есть
Слоты расширения1 × PCIe x161 × PCIe x1
ВидеовыходыHDMIVGA
АудиосистемаИнтегрированный аудиоконтроллерМногоканальная поддержка (зависит от версии поставки)
СетьGigabit LAN
USB портыНабор портов зависит от партии поставки
Прочие параметрыМатериал PCB: многослойныйЦвет платы: зависит от партииBIOS: UEFI
Физические параметрыВес: 0.65 кгВес брутто: 1.10 кгРазмеры упаковкиДлина, м: 0.2900Высота, м: 0.0700Ширина, м: 0.2400
dimensionalWeight - 940
DisplayPorts quantity Rear panel I/O ports - 1
DisplayPort version Rear panel I/O ports - 1.4
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek ALC897 7.1)
EAN - 4710483943478
Eans - 4710483943478
ECC ?ompatibility Memory - Non-ECC
Ethernet interface type Network - Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Features - Audio chip - Realtek ALC897
Features - Motherboard chipset - Intel H610
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - CPU
Features - PC health monitoring - Fan
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
Front panel audio connector Internal I/O - Yes
Graphics - HDCP - Yes
Graphics - Maximum resolution - 7680 x 4320 pixels
Graphics - Parallel processing technology support - Not supported
gross_weight - 1.1 kg
HDMI ports quantity Rear panel I/O ports - 1
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Number of chassis fan connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Komunikacja: Zintegrowana karta sieciowa - tak (Realtek RTL8111H)
LAN controller Network - Realtek RTL8111H
Manufacturer - ASRock
Maximum internal memory Memory - 96 GB
Maximum number of SMP processors Processor - 1
Memory - Maximum internal memory - 96 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 5600
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Model -
Model - H610M-HDV/M.2+ D5
Motherboard chipset family Features - Intel
Motherboard chipset Features - Intel H610
Motherboard form factor Features - micro ATX
MPN - 90-MXBM50-A0UAYZ
Name - ASRock H610M-HDV/M.2+ D5
Name - ASROCK H610M-HDV/M.2+ D5 (1700) (D)
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek 8111H
Network - Wake-on-LAN ready - Yes
Network - Wi-Fi - No
Number of memory slots Memory - 2
Number of SATA III connectors Internal I/O - 4
Number of storage drives supported Storage controllers - 5
Packaging content - Cables included - SATA
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 2 szt.
Pamięć: Maks. pojemność pamięci - 96 GB
Pamięć: Obsługiwana pamięć - DDR5
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5000 (PC5-40000)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci - DDR5-5400 (PC5-43200)
Pamięć: Typ obsługiwanej pamięci - DDR5-5600 (PC5-44800)
PCI Express x1 (Gen 3.x) slots Expansion slots - 1
PCI Express x16 (Gen 4.x) slots Expansion slots - 1
Procesor: Gniazdo procesora - Socket 1700
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - Intel Celeron G6XXX
Procesor: Obsługiwane typy procesorów - Intel Core i3-12XXX
Procesor: Obsługiwane typy procesorów - Intel Core i3-13XXX
Procesor: Obsługiwane typy procesorów - Intel Core i3-14XXX
Procesor: Obsługiwane typy procesorów - Intel Core i5-12XXX
Procesor: Obsługiwane typy procesorów - Intel Core i5-13XXX
Procesor: Obsługiwane typy procesorów - Intel Core i5-14XXX
Procesor: Obsługiwane typy procesorów - Intel Core i7-12XXX
Procesor: Obsługiwane typy procesorów - Intel Core i7-13XXX
Procesor: Obsługiwane typy procesorów - Intel Core i7-14XXX
Procesor: Obsługiwane typy procesorów - Intel Core i9-12XXX
Procesor: Obsługiwane typy procesorów - Intel Core i9-13XXX
Procesor: Obsługiwane typy procesorów - Intel Core i9-14XXX
Procesor: Obsługiwane typy procesorów - Intel Pentium G7XXX
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium®
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor manufacturer Processor - Intel
Processor socket Processor - LGA 1700
Producent: Nazwa producenta / importera - ASRockASRock Europe B.V.Bijsterhuizen 11-116546 AR NijmegenHolandiaEmail: sales@asrock.nl
Producer - ASRock
producerCode - H610M-HDV/M.2+ D5
ProducerCode - H610M-HDV/M.2+D5
productName - Asrock H610M-HDV/M.2+ D5 Intel H610 LGA 1700 micro ATX
Product Net Weight - 0.6 kg
productSize - Normal
PS/2 ports quantity Rear panel I/O ports - 1
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
Safety warning - Warnings - Avoid direct contact with electronics to prevent electrostatic damage.
Safety warning - Warnings - Before starting any maintenance or installation, disconnect the product from the power supply.
Safety warning - Warnings - Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
ShortDescription - Socket 1700 | Chipset Intel H610 | DDR5 |
sizeX - 60
sizeY - 280
sizeZ - 280
Storage controllers - RAID support - No
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Summary - Asrock H610M-HDV/M.2+ D5. Processor manufacturer: Intel, Processor socket: LGA 1700. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Supported memory types Memory - DDR5-SDRAM
Supported storage drive interfaces Storage controllers - SATA III
title_en - Asrock H610M-HDV M.2+ D5 Motherboard Micro-ATX / Intel H610 / LGA1700 / DDR5
title_lv - Asrock H610M-HDV M.2+ D5 Mātesplate Micro-ATX / Intel H610 / LGA1700 / DDR5
title_ru - Asrock H610M-HDV M.2+ D5 Материнская плата Micro-ATX / Intel H610 / LGA1700 / DDR5
TPM connector Internal I/O - Yes
Unbuffered memory Memory - No
Unit Box Height - 0.06
Unit Box Length - 0.275
Unit Box Width - 0.24
Unit Calculated Volume - 0.004268 cubm
Unit Calculated Weight - 0.78 kg
Units per Shipping Box - 20
USB 2.0 connectors Internal I/O - 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Rear panel I/O ports - 1
Vendor Homepage - https://www.asrock.com/MB/Intel/H610M-HDVM.2+%20D5/index.asp#Overview
VGA (D-Sub) ports quantity Rear panel I/O ports - 1
Warranty - 36 months
warrantyLength - 24
warrantyType - G
weight - 0.65 kg
Weight - 0.72
weight - 750
Weight & dimensions - Depth - 193 mm
Weight & dimensions - Width - 220 mm
Wi-Fi Network - No
Width Weight & dimensions - 220 mm
Windows operating systems supported Features - Windows 10 x64/Windows 11 x64
Wymiary: Szerokość - 193 mm
Wymiary: Wysokość - 220 mm
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 1 x Display Port
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 1 x PS/2
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 1 x VGA
Złącza: Złącza na tylnym panelu - 2 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 4 x USB
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x1
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x16
