Accessories included - Instrukcja obsługi 2 x Kabel do transmisji danych SATA 4 x Śruby do gniazda M.2 Dystans do gniazda M.2
BIOS - 256Mb AMI UEFI Legal BIOS z obsługą GUI
BIOS - BIOS type - UEFI AMI
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
category_en - Computers & Components > Computer components > Motherboards > AMD motherboards
category_lv - Datortehnika > Datoru komponentes > Pamatplates > AMD mātesplates
category_ru - Datortehnika > Datoru komponentes > Pamatplates > AMD mātesplates
Chipset - AMD B650
Chipset manufacturer - AMD
Chipset type - AMD B650
code - 90-MXBLP0-A0UAYZ
COM connector / port - No
CPU socket - Socket AM5
Dane techniczne: Chipset płyty głównej - AMD B650
Dane techniczne: Grupa produktowa - Płyty główne ASRock
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - ASRock
Dane techniczne: Przeznaczenie - AMD
Dane techniczne: Standard płyty - micro-ATX
Description - B650M Pro RS Obsługuje procesory AMD Socket AM5 Ryzen z serii 8000 i 7000 8+2+1 Power Phase, Dr.MOS 4 x DDR5 DIMMs Obsługa Dual Channel, up to 7200+ (OC) 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key E for WiFi Wyjścia graficzne: HDMI, DisplayPort Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4) 1 Hyper M.2 (PCIe Gen4 x4) 1 M.2 (PCIe Gen4 x2) 1 USB 3.2 Gen2 Type A+C (Tył) 1 USB 3.2 Gen1 Type-C (Przód) 6 USB 3.2 Gen1 Type-A (2 Tył, 4 Przód) Dragon 2.5G LAN
Description - Supports AMD Socket AM5 Ryzen™ 7000 Series Processors 8+2+1 Power Phase, Dr.MOS Supports DDR5 6000+ MHz (OC) 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key E for WiFi Graphics Output Options: HDMI, DisplayPort Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4); 1 Hyper M.2 (PCIe Gen4 x4); 1 M.2 (PCIe Gen4 x2) 1 USB 3.2 Gen2 Type A+C (Rear); 1 USB 3.2 Gen1 Type-C (Front); 6 USB 3.2 Gen1 Type-A (2 Rear, 4 Front) Dragon 2.5G LAN

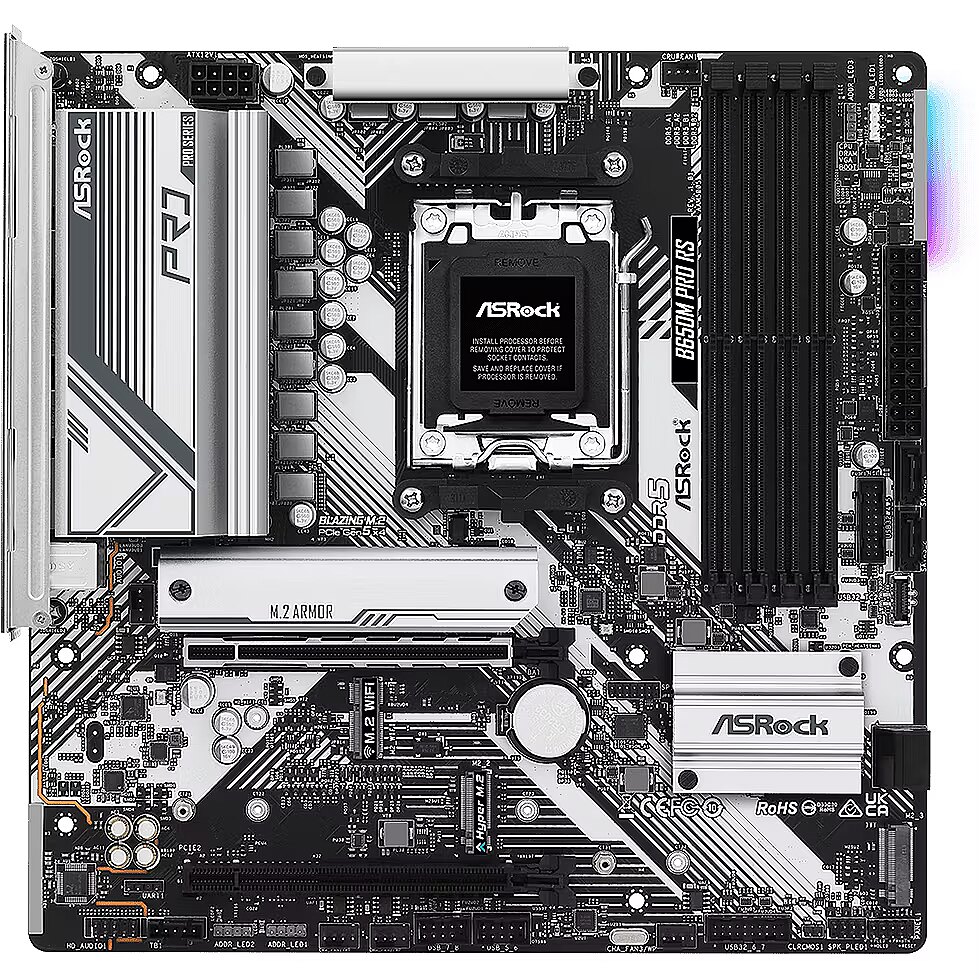

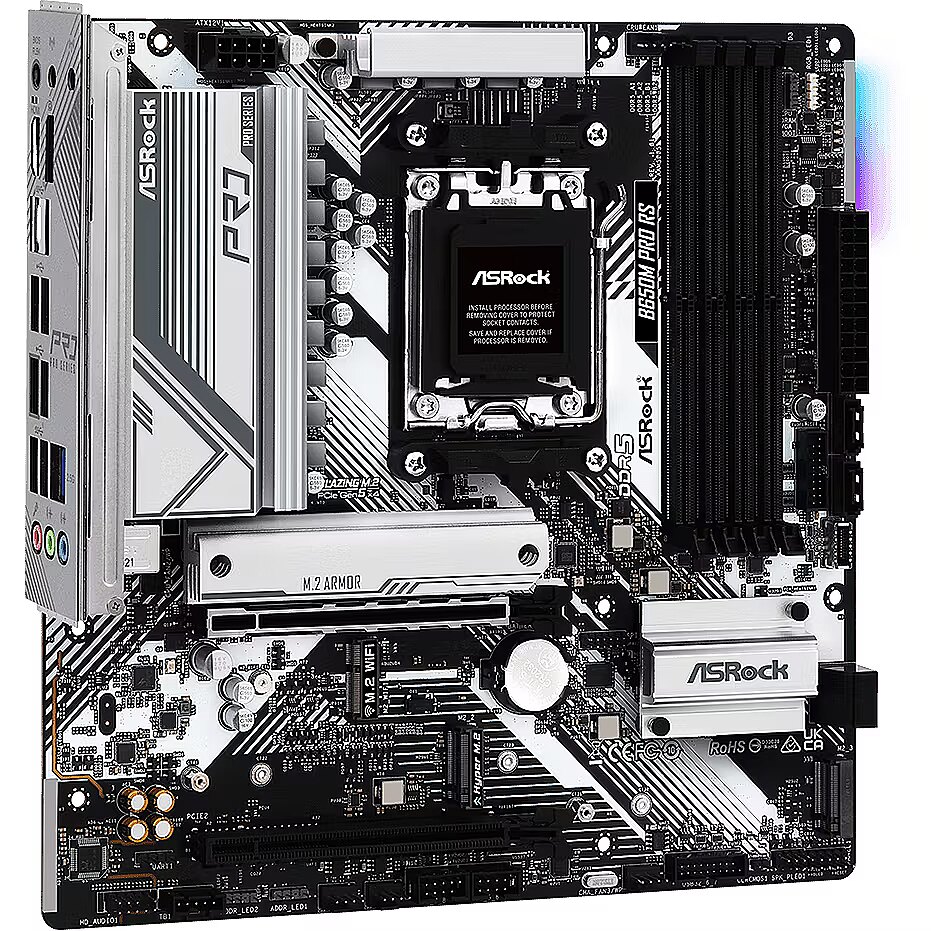

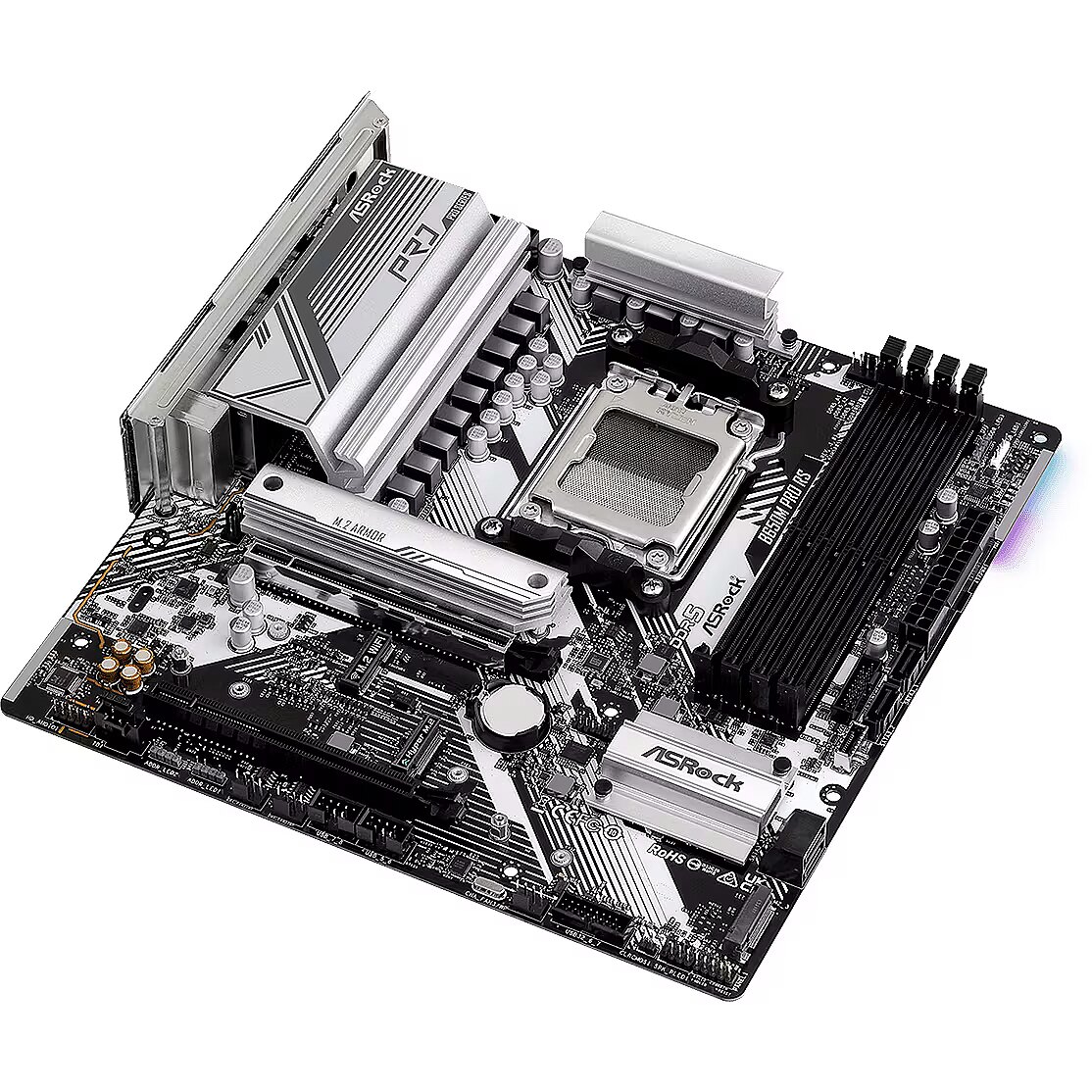

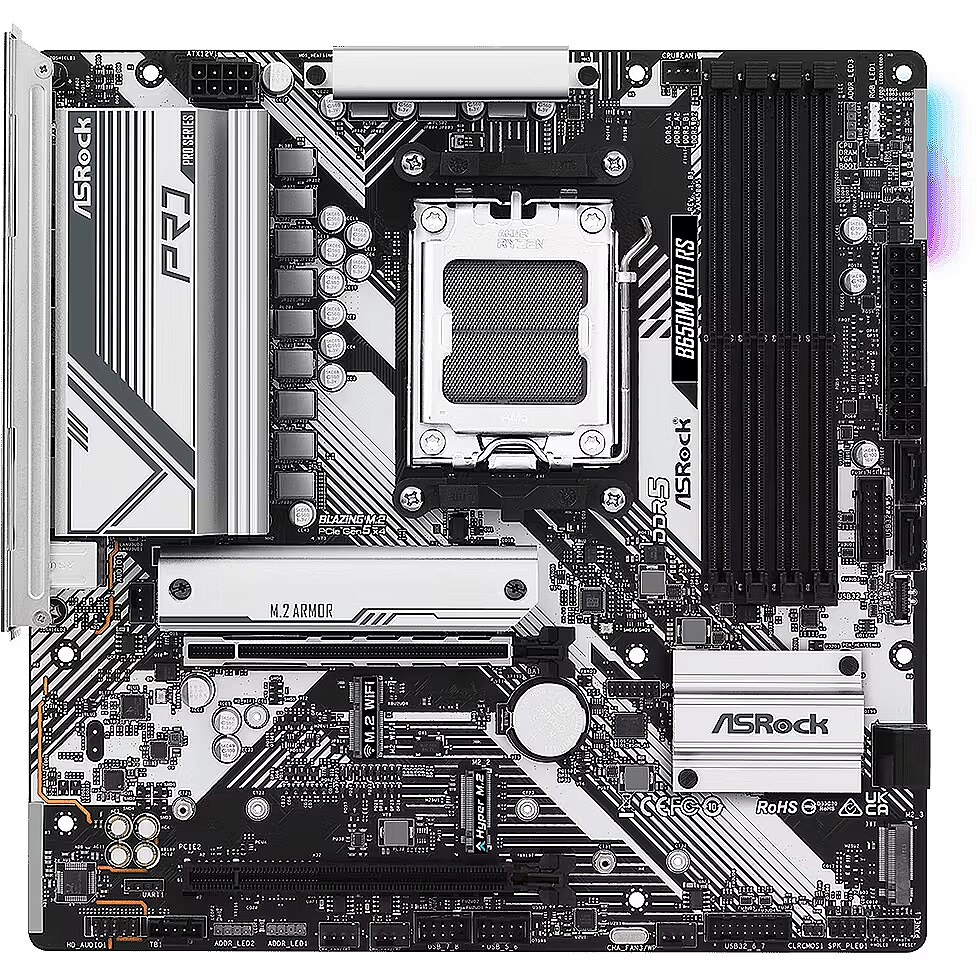

description_en - ASRock B650M PRO RS Motherboard – Specifications
General Information: Model: B650M PRO RS
Form Factor: Micro ATX
Dimensions: 24.4 x 24.4 cm
Socket: AM5
Chipset: AMD B650
Processor Compatibility: AMD Ryzen (No integrated CPU) Memory: Type: DDR5
Slots: 4
Max Frequency: 7200 MHz
Max Capacity: 192 GB Expansion & Storage: PCIe Slots: 1 x PCIe 3.0 x16
1 x PCIe 4.0 x16 M.2 Slots: 4
SATA Devices Support: Up to 4
RAID Support: Yes Connectivity & Networking: LAN: 1 x 10/100/1000/2500 Mbps
Rear I/O USB Ports: 8
Onboard USB Ports: 9
USB Breakdown: USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0: 7
USB 3.2 Gen 2 / USB 3.1 Gen 2: 2

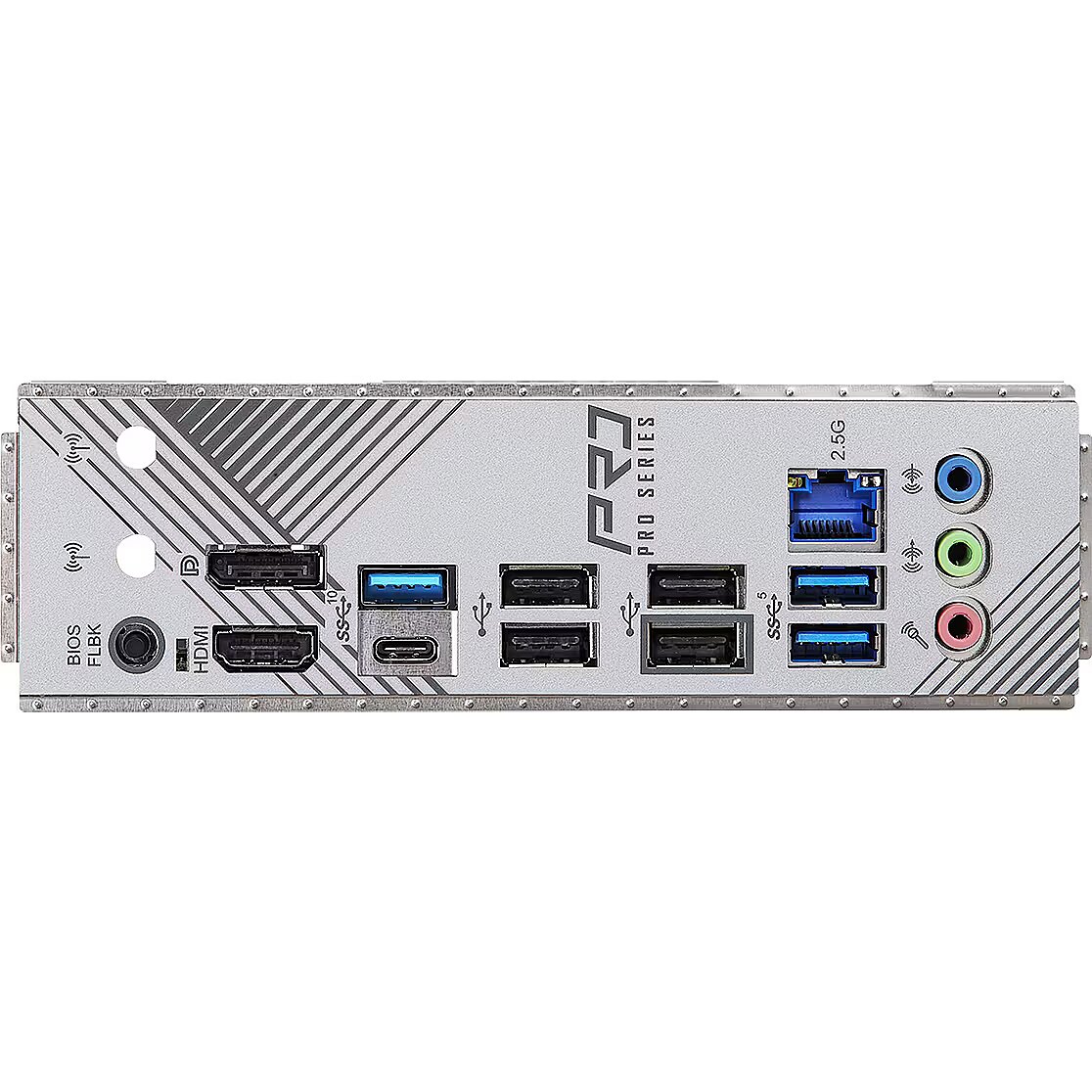

USB Type-C: 1 External Connectors: 1 x DisplayPort
1 x HDMI
1 x RJ-45 (LAN)
1 x Line In, Line Out, MIC
4 x USB 2.0
2 x USB 3.0
1 x USB 3.1
1 x USB 3.1 Type-C
2 x SMA (Antenna Connectors)
1 x Flash BIOS Button Internal Connectors: Cooling & Power: 1 x 4-pin CPU Fan
1 x 4-pin CPU/Water Pump Fan
3 x 4-pin Chassis Fans
1 x 8-pin 12V Power
1 x 24-pin ATX Power Storage & USB: 4 x M.2 Slots
4 x SATA III (6Gb/s)
4 x USB 2.0 / 1.1 Headers
4 x USB 3.0 Headers
1 x USB-C Header
1 x Thunderbolt Header Miscellaneous: 1 x TPM Header
1 x Front Panel Audio Header
1 x Power LED Header
1 x RGB LED Strip Header
3 x Addressable LED Headers
description_lv - ASRock B650M PRO RS Motherboard – Specifications
General Information: Model: B650M PRO RS
Form Factor: Micro ATX
Dimensions: 24.4 x 24.4 cm
Socket: AM5
Chipset: AMD B650
Processor Compatibility: AMD Ryzen (No integrated CPU) Memory: Type: DDR5
Slots: 4
Max Frequency: 7200 MHz
Max Capacity: 192 GB Expansion & Storage: PCIe Slots: 1 x PCIe 3.0 x16
1 x PCIe 4.0 x16 M.2 Slots: 4
SATA Devices Support: Up to 4
RAID Support: Yes Connectivity & Networking: LAN: 1 x 10/100/1000/2500 Mbps
Rear I/O USB Ports: 8
Onboard USB Ports: 9
USB Breakdown: USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0: 7
USB 3.2 Gen 2 / USB 3.1 Gen 2: 2
USB Type-C: 1 External Connectors: 1 x DisplayPort
1 x HDMI
1 x RJ-45 (LAN)
1 x Line In, Line Out, MIC
4 x USB 2.0
2 x USB 3.0
1 x USB 3.1
1 x USB 3.1 Type-C
2 x SMA (Antenna Connectors)
1 x Flash BIOS Button Internal Connectors: Cooling & Power: 1 x 4-pin CPU Fan
1 x 4-pin CPU/Water Pump Fan
3 x 4-pin Chassis Fans
1 x 8-pin 12V Power
1 x 24-pin ATX Power Storage & USB: 4 x M.2 Slots
4 x SATA III (6Gb/s)
4 x USB 2.0 / 1.1 Headers
4 x USB 3.0 Headers
1 x USB-C Header
1 x Thunderbolt Header Miscellaneous: 1 x TPM Header
1 x Front Panel Audio Header
1 x Power LED Header
1 x RGB LED Strip Header
3 x Addressable LED Headers
description_ru - ASRock B650M PRO RS Motherboard – Specifications
General Information: Model: B650M PRO RS
Form Factor: Micro ATX
Dimensions: 24.4 x 24.4 cm
Socket: AM5
Chipset: AMD B650
Processor Compatibility: AMD Ryzen (No integrated CPU) Memory: Type: DDR5
Slots: 4
Max Frequency: 7200 MHz
Max Capacity: 192 GB Expansion & Storage: PCIe Slots: 1 x PCIe 3.0 x16
1 x PCIe 4.0 x16 M.2 Slots: 4
SATA Devices Support: Up to 4
RAID Support: Yes Connectivity & Networking: LAN: 1 x 10/100/1000/2500 Mbps
Rear I/O USB Ports: 8
Onboard USB Ports: 9
USB Breakdown: USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0: 7
USB 3.2 Gen 2 / USB 3.1 Gen 2: 2
USB Type-C: 1 External Connectors: 1 x DisplayPort
1 x HDMI
1 x RJ-45 (LAN)
1 x Line In, Line Out, MIC
4 x USB 2.0
2 x USB 3.0
1 x USB 3.1
1 x USB 3.1 Type-C
2 x SMA (Antenna Connectors)
1 x Flash BIOS Button Internal Connectors: Cooling & Power: 1 x 4-pin CPU Fan
1 x 4-pin CPU/Water Pump Fan
3 x 4-pin Chassis Fans
1 x 8-pin 12V Power
1 x 24-pin ATX Power Storage & USB: 4 x M.2 Slots
4 x SATA III (6Gb/s)
4 x USB 2.0 / 1.1 Headers
4 x USB 3.0 Headers
1 x USB-C Header
1 x Thunderbolt Header Miscellaneous: 1 x TPM Header
1 x Front Panel Audio Header
1 x Power LED Header
1 x RGB LED Strip Header
3 x Addressable LED Headers
Designation - CE+WEEE
Detailed data on disk/drive interfaces - Sloty CPU: 1 x gniazdo PCIe 4.0 x16 (PCIE1), obsługuje tryb x16 1 x gniazdo PCIe 3.0 x16 (PCIE2), obsługuje tryb x4 Chipset: 1 x gniazdo M.2 (Klucz E), obsługuje moduł Wi-Fi typu 2230 WiFi/BT PCIe Obsługuje AMD CrossFire Złoty styk 15u w gnieździe VGA PCIe (PCIE1) Przechowywanie CPU: 1 x gniazdo Blazing M.2 (M2_1, klucz M), obsługuje tryb 2260/2280 PCIe Gen5x4 (128 Gb/s) Chipset: 1 x gniazdo Hyper M.2 (M2_2, klucz M), obsługuje tryb 2260/2280 PCIe Gen4x4 (64 Gb/s) 1 x gniazdo M.2 (M2_3, klucz M), obsługuje tryb 2260/2280 PCIe Gen4x2 (32 Gb/s) 4 złącza SATA3 6,0 Gb/s
dimensionalWeight - 858
dimension depth - 60 mm
dimension height - 260 mm
Dimensions - 24.4 x 24.4 cm
dimension weight - 1245 g
dimension width - 280 mm
DisplayPort Input/Output connectors - 1
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek ALC897 7.1)
ean - 4710483943096
EAN - 4710483943096
Eans - 4710483943096
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 4 x M.2
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 3.0
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - AMD B650
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 6000 MHz
Full Description Line - AMD B650|SAM5|Micro-ATX|DDR5|6000 MHz|Memory slots 4|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|1xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|3xUSB 3.2|1xUSB-C|1xRJ45|SATA|USB 3.2|Video Depending on CPU|Audio Realtek ALC897|LAN 2.5 Gigabit|RAID SATA 0, 1, 10|TPM Header
Graphics - Zintegrowana grafika AMD RDNA (rzeczywista obsługa może się różnić w zależności od procesora) 1 x HDMI 2.1 Kompatybilny z TMDS/FRL 8G, obsługuje HDR, HDCP 2.3 i max. rozdzielczość do 4K 120 Hz 1 x DisplayPort 1.4 z DSC (skompresowany), obsługuje HDCP 2.3 i max. rozdzielczość do 4K 120 Hz
gross_weight - 0.47 kg
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Included Accessories - - 1 x User Manual
- 2 x SATA Data Cables
- 4 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Thunderbolt headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Komunikacja: Zintegrowana karta sieciowa - tak (2.5 Gigabit LAN)
LPT connector / port - No
M.2 Expansion slots - 1
Manufacturer - ASRock
Max. number of SATA devices - 4
Max memory size - 192 GB
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 7200 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - ASRock B650M PRO RS mATX
Model - B650M Pro RS
Model - B650M PRO RS
MPN - B650M PRO RS
Name - ASRock B650M Pro RS
name - ASRock B650M Pro RS, AMD B650 Mainboard - Sockel AM5, DDR5
Name - ASRock B650M Pro RS AM5 mATX HDMI/DP DDR5 retail
name - Motherboard B650M PRO RS AM5 4DDR5 HDMI/DP mATX
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Dragon RTL8125BG
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - 2,5-gigabitowa sieć LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Obsługuje oprogramowanie Dragon 2.5G LAN Inteligentna automatyczna regulacja przepustowości Wizualny, przyjazny dla użytkownika interfejs użytkownika Statystyki wykorzystania sieci wizualnej Zoptymalizowane ustawienia domyślne dla trybów gry, przeglądarki i przesyłania strumieniowego Dostosowana przez użytkownika kontrola priorytetów
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 2
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power led header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 3 x 4pin Chassis fan
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x M.2
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 4 x USB 2.0/1.1
Onboard connectors - 4 x USB 3.0
Other information -
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Maks. pojemność pamięci - 192 GB
Pamięć: Obsługiwana pamięć - DDR5
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5000 (PC5-40000)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-5400 (PC5-43200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-5600 (PC5-44800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-5800 (PC5-46400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6000 (PC5-48000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6200 (PC5-49600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6400 (PC5-51200)
PCI-Express 3.0 16x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Procesor: Gniazdo procesora - Socket AM5
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 8000
Processor - Compatible processor series - AMD Ryzen™ 5
Processor - Compatible processor series - AMD Ryzen™ 7
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor family - AMD Ryzen
Producent: Nazwa producenta / importera - ASRockASRock Europe B.V.Bijsterhuizen 11-116546 AR NijmegenEmail: sales@asrock.nl
producer - ASRock
Producer - ASRock
producerCode - B650M PRO RS
ProducerCode - B650M PRO RS
productName - Asrock B650M Pro RS AMD B650 Socket AM5 micro ATX
Product Net Weight - 1.2 kg
productSize - Normal
RAID - SATA 0, 1, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 28 cm
Shipping Box Height Shipping/Package Box Dimensions - 26.5 cm
Shipping Box Weight Shipping/Package Box Dimensions - 1.244 kg
Shipping Box Width Shipping/Package Box Dimensions - 6.5 cm
ShortDescription - Socket AM5 | Chipset B650 | DDR5
sizeX - 275
sizeY - 60
sizeZ - 260
Socket - SAM5
Software - Software: ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC UEFI: ASRock Full HD UEFI ASRock Auto Driver Installer ASRock Instant Flash
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Special functions - Niesamowita Produktywność PCIe Gen5 (M.2) Dual Channel DDR5 Solidna jak Skała 8+2+1 Power Phase, 50A Dr.MOS Pre-Installed I/O Shield Ultraszybka Łączność 2.5G LAN Aktualizacje EZ BIOS Flashback Button ASRock Auto Driver Installer Narzędzie EZ do Rozwiązywania Problemów ASRock Post Status Checker
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Supported operating systems - Windows 10
Supported operating systems - Windows 11
title_en - ASRock B650M PRO RS Motherboard mATX / AMD AM5
title_lv - ASRock B650M PRO RS Pamatplate mATX / AMD AM5
title_ru - ASRock B650M PRO RS Материнская плата mATX / AMD AM5
TPM - Header
Unit Calculated Volume - 0.004823 cubm
Unit Calculated Weight - 1.24 kg
Units per Shipping Box - 1
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 4
USB 3.2 Input/Output connectors - 3
USB 3.2 Interface - Yes
USB ports at back panel - 8
USB ports on motherboard - 9
Vendor Homepage - www.asrock.com/MB/AMD/B650M%20Pro%20RS/index.asp
vendpn - B650M PRO RS
Warranty - 36 months
warrantyLength - 36
warrantyType - G
weight - 0.43 kg
Weight - 1.24
weight - 1250
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 244 mm
Wymiary: Szerokość - 244 mm
Wymiary: Wysokość - 244 mm
Złącza: Obsługa Raid - tak (0, 1, 10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 5.0)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen1) typ C
Złącza: Złącza na płycie głównej - 2 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 1 x Display Port
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 1 x USB 3.2 (Gen2)
Złącza: Złącza na tylnym panelu - 1 x USB 3.2 (Gen2) typ C
Złącza: Złącza na tylnym panelu - 2 x USB 3.2 (Gen2)
Złącza: Złącza na tylnym panelu - 4 x USB
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza PCI-E (liczba slotów) - 2 x PCI-Express x16
