Accessories included -
Audio port Input/Output connectors - 3
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Bluetooth Interface - Yes
Brand - Gigabyte
BrandPartCode - B550M DS3H AC
category - Mainboards AMD Mainboards
Category - Motherboards
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM4
Chipset - AMD B550
Chipset manufacturer - AMD
Chipset type - AMD B550
CnCode CnCode - 84733020
code - B550M DS3H AC
Code - B550M DS3H AC
COM connector / port - No
CPU socket - Socket AM4
Description - AMD B550 Ultra Durable Motherboard with Digital VRM Solution, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 M.2 Connectors, Dual Band 802.11ac WIFI, Realtek GbE LAN, Smart Fan 5 with FAN STOP - Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors - Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs - 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs - Ultra Durable™ PCIe 4.0 Ready x16 Slot - Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors - Onboard Dual Band 802.11ac Wireless & BT Support with WIFI Antenna - High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality - Realtek GbE LAN with Bandwidth Management - Rear DisplayPort, HDMI & DVI for Multi-display Support - Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP - Anti-Sulfur Resistors Design
Description - AMD B550 Ultra Durable Motherboard with Pure Digital VRM, PCIe 4.0 x16, Dual PCIe 4.0/3.0 M.2, Intel Dual Band 802.11ac WIFI, Realtek GbE LAN, Smart Fan 5 with FAN STOP, RGB FUSION 2.0, Q -FlashPlus Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Dual Channel ECC/Non-ECC DDR4 Unbuffered Memory, 4 DIMMs 5+3 phase pure digital VRM with low RDS(on) MOSFETs. x16 slot ready for Ultra Durable PCIe 4.0 Dual ultra-fast NVMe PCIe 4.0/3.0 M.2 slots Built-in Intel Dual Band 802.11ac & BT 4.2 Wireless with WIFI Antenna High-quality audio capacitors and a noise shield ensure the highest sound quality Realtek GbE LAN with bandwidth management Support HDMI and DVI on the back RGB FUSION 2.0 supports addressable LED strips and RGB LED strips Smart Fan 5 includes multiple temperature sensors, hybrid fan connectors with FAN STOP function Q-Flash Plus Update BIOS without installing CPU, memory or graphics card Designing anti-sulphur resistors
Detailed data on disk/drive interfaces - 1 x M.2 connector (M2A_CPU), integrated into the processor, supporting Socket 3, M key, 2242/2260/2280/22110 type SSDs: AMD Ryzen 5000 Series and Ryzen 3000 Series processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen 5000 G-Series and Ryzen 4000 G-Series processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated into the chipset, supporting Socket 3, M key, 2242/2260/2280 type SSDs: SATA and PCIe 3.0 x2 SSD support 4 x SATA 6Gb/s connectors, integrated into the chipset: Supports RAID 0, RAID 1 and RAID 10
dimensionalWeight - 1020
dimension depth - 70 mm
dimension height - 270 mm
Dimensions - 24.4 x 24.4cm
dimension weight - 1005 g
dimension width - 270 mm
DisplayPort Input/Output connectors - 1
DVI-D Input/Output connectors - 1
EAN - 4719331810962
ean - 4719331810962
EAN_code - 4719331810962
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 3.0 x 4
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x1 slots - 1
Expansion slots - PCI Express x4 slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 slots - 1

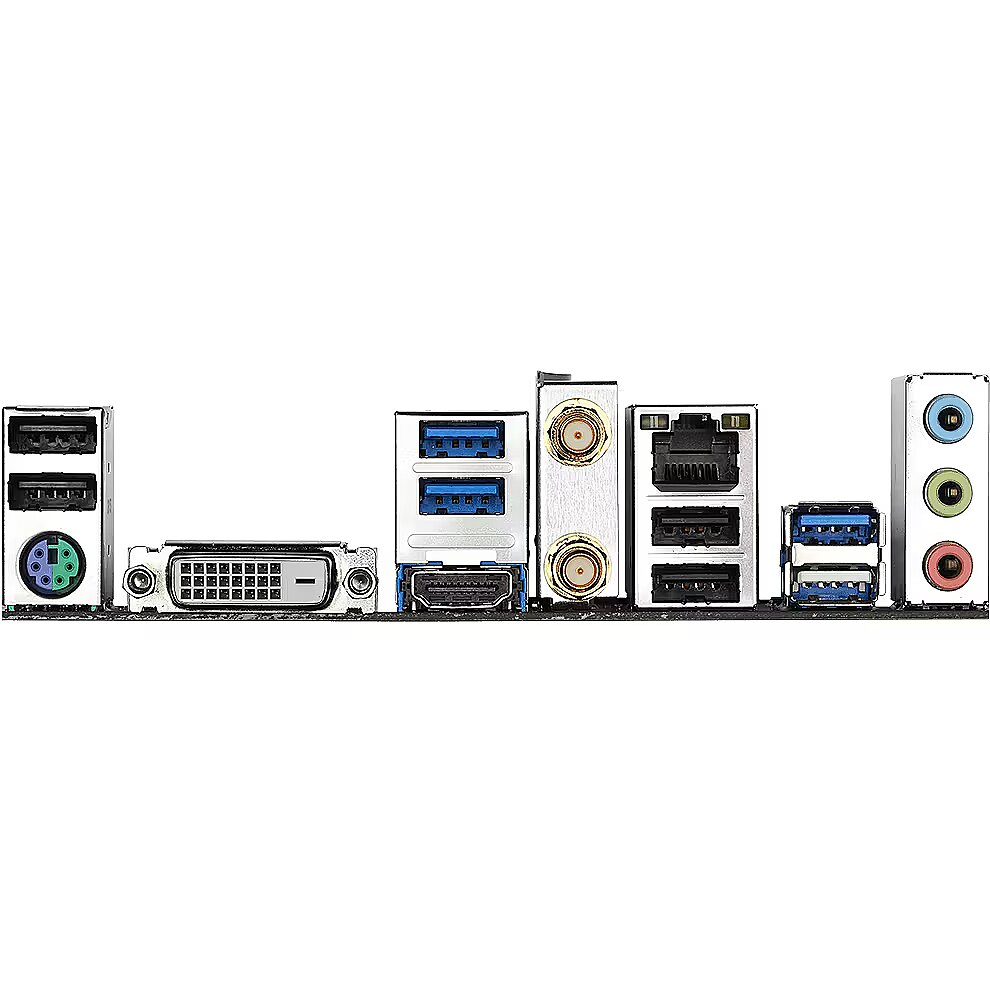

External connectors - 1 x DVI-D
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 2 x SMA
External connectors - 4 x USB 2.0
External connectors - 4 x USB 3.0
Features - Audio output channels - 7.1 channels
Features - Compatible operating systems - Windows 10 64-bit
Features - Component for - PC
Features - Cooling type - Passive
Features - Motherboard chipset - AMD B550
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - CPU
Features - PC health monitoring - CPU, Fan, Temperature, Voltage
Features - PC health monitoring - Fan
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - Power source type - ATX
Features - Product colour - Bronze
Features - Product colour - Brown
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 2133/2400/2666/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 MHz
Full Description Line - AMD B550|SAM4|Micro-ATX|DDR4|4733/4600/4400/4266/4133/4000/3866/3733/3600/3466/3400/3200/2933/2666/2400/2133 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 4x|1xPCI-Express 4.0 16x|2xM.2|1xDVI-D|1xHDMI|1xDisplayPort|4xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|SATA|Bluetooth|WiFi|Video Depending on CPU|Audio|LAN Gigabit|RAID SATA 0, 1, 10|TPM Header
Graphics - Integrated GPU: 1 x DVI-D port supporting a maximum resolution of 1920x1200 @ 60Hz The DVI-D port does not support D-Sub connection via an adapter. 1 x HDMI port supporting a maximum resolution of 4096x2160 @ 60Hz Supports HDMI 2.1, HDCP 2.3 and HDR. Maximum shared memory 16 GB
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - Parallel processing technology support - Not supported
Gross weight - 1.02 kg
GTIN - 0889523024416
GTIN - 889523024416
GTIN - 4719331810962
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Audio connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of Parallel ATA connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Parallel connector - Yes
Internal I/O - Power fan connector - Yes
Internal I/O - Total number of SATA connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.gigabyte.com/Motherboard/B550M-DS3H-AC-rev-10-11-12-13#kf
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - m-ATX, AM4, AMD B550, 4 x DDR4 DIMM max 128 GB, DVI-D, DisplayPort, HDMI 2.1, 1 Gbps LAN, WIFI 802.11a,b g,n,ac, BT 4.2, PCIe 3.0 x16, PCIe 3.0 x1
LongSummaryDescription - Gigabyte B550M DS3H AC Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 5+3 Phases Pure Digital VRM, up to 4733MHz DDR4 (OC), 2xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: 3rd Generation AMD Ryzen 5, AMD Ryzen 5 5th Gen, AMD Ryzen 7 5th Gen, AMD Ryzen 9 5th Gen. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A
LPT connector / port - No
M.2 Expansion slots - 2
Manufacturer - GigaByte
Manufacturer_code - B550M DS3H AC
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 128 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 4733 MHz
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4733 MHz
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2667
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3200
Memory - Supported memory clock speeds - 3333
Memory - Supported memory clock speeds - 3600 MHz
Memory - Supported memory clock speeds - 4000
Memory - Supported memory clock speeds - 4400
Memory - Supported memory clock speeds - 4600
Memory - Supported memory clock speeds - 4733 MHz
Memory - Supported memory module capacities - 4GB
Memory - Supported memory module capacities - 4GB, 8GB, 16GB, 32GB
Memory - Supported memory module capacities - 8GB
Memory - Supported memory module capacities - 16GB
Memory - Supported memory module capacities - 32GB
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 4
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2667 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3200 MHz
Memory bus frequency - 3400 MHz
Memory bus frequency - 3466 MHz
Memory bus frequency - 3600 MHz
Memory bus frequency - 3733 MHz
Memory bus frequency - 3866 MHz
Memory bus frequency - 4000 MHz
Memory bus frequency - 4133 MHz
Memory bus frequency - 4266 MHz
Memory bus frequency - 4400 MHz
Memory bus frequency - 4600 MHz
Memory bus frequency - 4733 MHz
Memory slots - 4
Memory type - DDR4
Memory type - DDR4
Model - B550M DS3H AC
Model - B550M DS3H AC 1.5
name - B550M DS3H AC AM4 4DDR4 HDMI/DVI M.2 USB3.2 mAT
name - GIGABYTE B550M DS3H AC, AMD B550 Mainboard - Sockel AM4, DDR4
Name - GIGABYTE B550M DS3H AC - Socket AM4 - motherboard
Name - Gigabyte | B550M DS3H AC 1.0/1.1/1.2/1.3/1.5 M/B | Processor family AMD | Processor socket AM4 | DDR4 DIMM | Memory slots 4 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset AMD B550 | Micro ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 4.2
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 5 (802.11ac)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - WLAN controller model - Realtek RTL8822CE
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - Bluetooth
Network interface - Intel Wi-Fi AC 3168 WiFi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band Bluetooth 4.2 Support for 11ac wireless standard and up to 433 Mbps data rate
Network interface - Wi-Fi 802.11a/b/g/n/ac
Number of DDR4 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Q-Flash Plus button
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 2.0/1.1 header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 2 x M.2
Onboard connectors - 4 x SATA III 6Gb/s
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 265.00 mm
Package features > Gross depth master carton - 286 mm
Package features > Gross height (mm) - 54.00 mm
Package features > Gross height master carton - 370 mm
Package features > Gross width (mm) - 265.00 mm
Package features > Gross width master carton - 380 mm
Package features > Net weight master carton - 9.665 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 456 pc(s)
Package features > Paper/Pasteboard - 180.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Tare weight master carton - 0.684 kg
Package features > TI weight (kg) - 0.05 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton® Internet Security
LAN bandwidth management software
Packaging data - Package depth - 268 mm
Packaging data - Package height - 68 mm
Packaging data - Package weight - 1.09 kg
Packaging data - Package width - 270 mm
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 3.0 4x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Performance > Chipset - AMD B550
Performance > Motherboard form factor - Micro ATX
Processor - Compatible processor series - 3rd Generation AMD Ryzen 5
Processor - Compatible processor series - 3rd Generation AMD Ryzen 5, AMD Ryzen 5 5th Gen, AMD Ryzen 7 5th Gen, AMD Ryzen 9 5th Gen
Processor - Compatible processor series - AMD Ryzen 5 5th Gen
Processor - Compatible processor series - AMD Ryzen 7 5th Gen
Processor - Compatible processor series - AMD Ryzen 9 5th Gen
Processor - Maximum internal memory supported by processor - 128 GB
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Processor - Supported processor sockets - Socket AM4
Processor > Compatible processor series - Supports AMD Ryzen 5000 Series, Ryzen 5000 G-Series, Ryzen 4000 G-Series and Ryzen 3000 Series Processors
Processor > Processor family - AMD
Processor > Processor socket - AM4
Processor family - AMD Ryzen
producer - Gigabyte
producerCode - B550M DS3H AC
Producer product name - B550M DS3H AC 1.0/1.1/1.2/1.3/1.5 M/B
ProductName - B550M DS3H AC Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 5+3 Phases Pure Digital VRM, up to 4733MHz DDR4 (OC), 2xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen1
productName - Gigabyte B550M DS3H Socket AM4 micro ATX AMD B550
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 10
RAID - Yes
Rear panel I/O ports - Digital audio optical out - 3
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - DVI-D ports quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB connector type - USB Type-A
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 27.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 7 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.996 kg
Shipping Box Width Shipping/Package Box Dimensions - 27 cm
ShortSummaryDescription - Gigabyte B550M DS3H AC Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 5+3 Phases Pure Digital VRM, up to 4733MHz DDR4 (OC), 2xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen1, AMD, Socket AM4, 3rd Generation AMD Ryzen 5, AMD Ryzen 5 5th Gen, AMD Ryzen 7 5th Gen, AMD Ryzen 9 5th Gen, Socket AM4, 128 GB, DDR4-SDRAM
sizeX - 270
sizeY - 270
sizeZ - 70
Socket - SAM4
Software - Norton Internet Security (OEM version) LAN bandwidth management software
Sound card - Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Special functions - App Center support @BIOS EasyTune ON/OFF Landing RGB fusion Smart Backup System information viewer Support for Q-Flash Plus Q-Flash support Xpress installation support
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details - Warranty period - 3 year(s)
Technical details > Net weight - 0.82 kg
Technical details > Producer - Gigabyte
Technical details > Warranty - 36 month(s)
Title - Gigabyte B550M DS3H AC Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 5+3 Phases Pure Digital VRM, up to 4733MHz DDR4 (OC), 2xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen1
TPM - Header
Unit Box Height - 0.07
Unit Box Length - 0.275
Unit Box Width - 0.27
Unit Brutto Volume - 0.005197 cubm
Unit Gross Weight - 0.996 kg
Unit Net Weight - 0.8 kg
URL - https://www.gigabyte.com/Motherboard/B550M-DS3H-AC-rev-15-16/sp#sp
USB 2.0 Input/Output connectors - 4
USB 3.2 Input/Output connectors - 4
USB ports at back panel - 8
USB ports on motherboard - 4
Vendor Homepage - www.gigabyte.com/Motherboard/B550M-DS3H-AC-rev-15-16#kf
vendpn - B550M DS3H AC
Warranty - 36
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 36
warrantyType - G
Weight - 1,01
weight - 990
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 244 mm
WiFi Interface - Yes
