Audio port Input/Output connectors - 5
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Bluetooth Interface - Yes
Brand - ASUS
BrandPartCode - 90MB1BQ0-M0EAY0
category - Mainboards AMD Mainboards
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
Chipset - AMD B650
code - 90MB1BQ0-M0EAY0
Code - 90MB1BQ0-M0EAY1

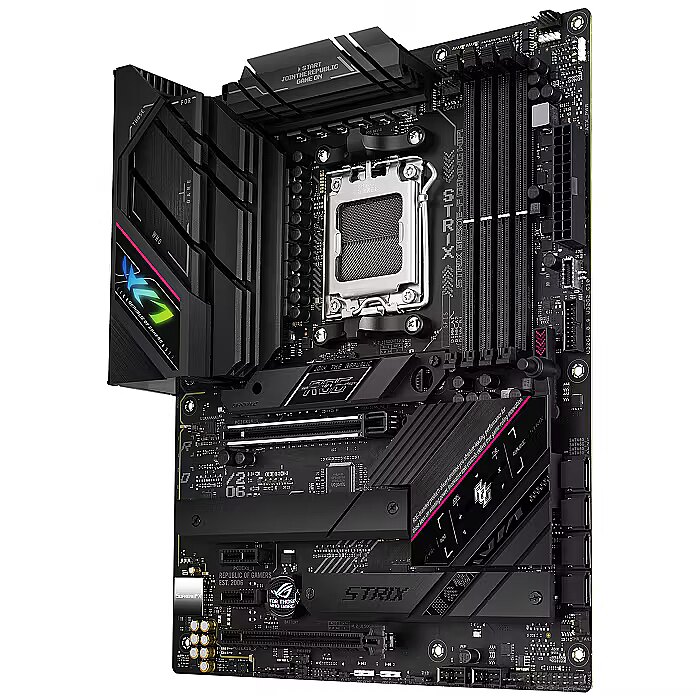

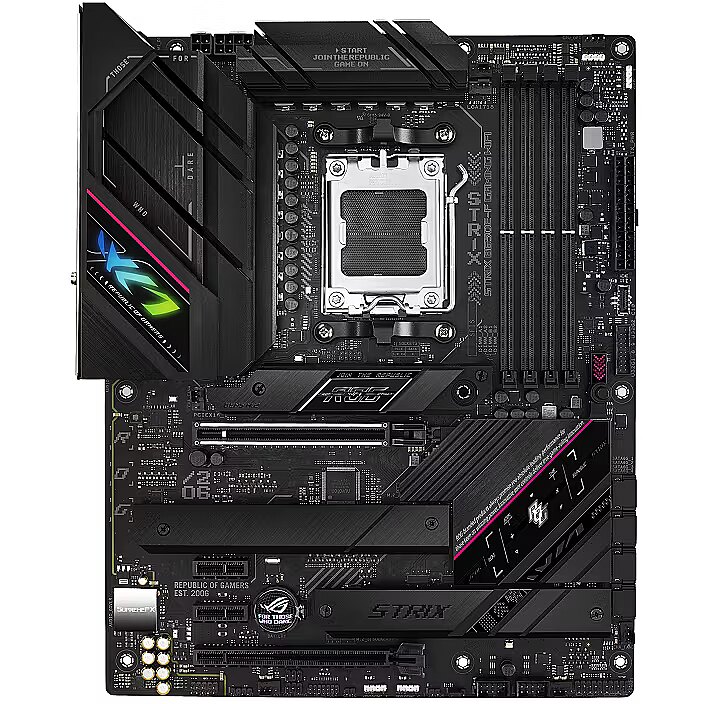

Description - ROG STRIX B650E-F GAMING WIFI This mean machine is the heart of your next hot rod. With the stunning speed of PCIe 5.0 and WiFi 6E, hearty cooling from onboard heasinks, and advanced power design engineered for the latest Ryzen™ processors, the ROG Strix B650E-F leaves its competition in the dust.
DisplayPort Input/Output connectors - 1
EAN - 4711081944034
ean - 4711081944034
Eans - 4711081944034
EAN_code - 4711081944034
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x1 (Gen 4.x) slots - 2
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
Features - Audio chip - Realtek ALC4080
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B650
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Windows operating systems supported - Windows 11 x64
Form Factor - ATX
Frequency speed - 4800/5200/5400/5600/5800/6000/6200/6400 MHz
Full Description Line - AMD B650|SAM5|ATX|DDR5|6400/6200/6000/5800/5600/5400/5200/4800 MHz|Memory slots 4|2xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|6xUSB 3.2|2xUSB-C|1xRJ45|5xAudio port|USB 2.0|USB 3.2|Bluetooth|WiFi|SATA 3.0|Video Depending on CPU|Audio Realtek ALC4080|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 10
Graphics - Parallel processing technology support - Not supported
Gross weight - 1.30 kg
GTIN - 4711081944034
HDMI Input/Output connectors - 1
Included Accessories - Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous

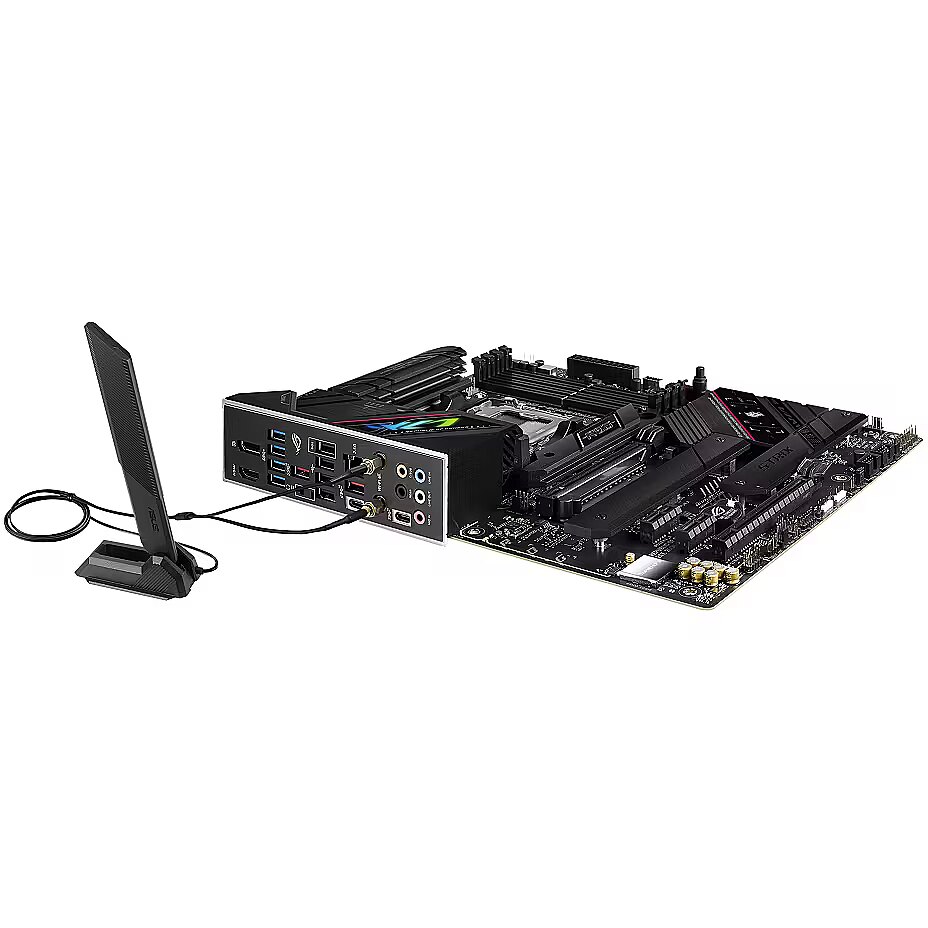

1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
2 x M.2 Rubber Packages
Documentation
1 x User guide
Integrated audio - Realtek ALC4080
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Peripheral (Molex) power connectors (4-pin) - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://rog.asus.com/motherboards/rog-strix/rog-strix-b650e-f-gaming-wifi-model/
LongDesc - ROG STRIX B650E-F GAMING WIFIThis mean machine is the heart of your next hot rod. With the stunning speed of PCIe 5.0 and WiFi 6E, hearty cooling from onboard heasinks, and advanced power design engineered for the latest Ryzen™ processors, the ROG Strix B650E-F leaves its competition in the dust.DIY-FRIENDLY FEATURESPCIE® SLOT Q-RELEASEA physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.ALL-ROUND PERFORMANCEWith robust power delivery, speedy storage and memory, and comprehensive cooling, the Strix B650E-F brings high performance to every scenario.Take advantage of future storage and GPU performance with a PCIe 5.0 and two PCIe 4.0 M.2 slots, all with robust heatsinks, and a PCIe 5.0 x16 slot that features SafeSlot for increased durability and Q-Release for easy upgrades.LEADING CONNECTIVITYThe ROG Strix B650E-F delivers next-gen connectivity for ultrafast data transfers and low-latency networking. An advanced audio solution allows you to pick out the smallest cues and home in on your opponents.WIFI 6EOnboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.*WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi. 2.5G ETHERNETLow-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.PLAY IN STYLESlick aesthetics and Aura Sync RGB controls let the ROG Strix B650E-F shine in every build.UNDENIABLY ROG STRIXAn overall dark aesthetic is accented with punchy brand-centric details and a logo that glows with fully-customizable RGB lighting. A meld of form and function is illustrated by a cut-out I/O shield, which allows additional airflow to pass through the VRM heatsink channels below. Pair the Strix B650E-F with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.SOFTWARE UTILITIESA myriad of ROG-exclusive tools put advanced system tuning and configuration at your fingertips.TWO-WAY AI NOISE CANCELATIONThis utility leverages a massive deep-learning database to reduce over 5 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls.THIS CHANGES EVERYTHING.FROM THIS NEW PLATFORM, YOU CAN SEE THE FUTUREBuild your next rig with an AMD Ryzen™ 7000 Series processor and ROG Strix B650E-F Gaming WiFi to experience advanced performance. With up to 16 “Zen 4” cores and 32 threads, boost clocks of up to 5.7GHz, and 80MB cache, the AMD Ryzen™ 7000 Series keeps you ahead of the game.1You’ll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe® 5.0. AMD Ryzen™ 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO™ technology.2
LongProductName - AMD AM5, Ryzen 7000, ATX, DDR5, 12+2 Power Stages, USB 3.2 Gen 2x2 Typ-C, PCIe 5.0, Q-Release, WiFi 6E, Aura Sync
LongSummaryDescription - ASUS ROG STRIX B650E-F GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 7. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Intel I225-V, Top Wi-Fi standard: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
M.2 Expansion slots - 3
Manufacturer - Asus
Manufacturer - ASUS
Manufacturer_code - 90MB1BQ0-M0EAY1
Memory - ECC - Yes
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 4
Memory > Supported memory types - DDR5 DIMM
Memory slots - 4
Memory type - DDR5
Model - ROG STRIX B650E-F GAMING WIFI
MPN - 90MB1BQ0-M0EAY0
Name - AM5 ASUS ROG STRIX B650E-F GAMING WIFI
Name - ASUS ROG STRIX B650E-F GAMING WIFI
name - ASUS ROG Strix B650E-F Gaming WiFi, AMD B650E - Mainboard - Sockel AM5, DDR5
Name - ASUS ROG STRIX B650E-F GAMING WIFI, motherboard (black) - AM5
Name - Asus | ROG STRIX B650E-F GAMING WIFI | Processor family AMD | Processor socket AM5 | DDR5 DIMM | Memory slots 4 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset AMD B650 | ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.2
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Intel I225-V
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 340.00 mm
Package features > Gross height (mm) - 60.00 mm
Package features > Gross width (mm) - 270.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 157 pc(s)
Package features > Paper/Pasteboard - 250.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - SATA
Packaging data - Package depth - 265 mm
Packaging data - Package height - 71 mm
Packaging data - Package weight - 9.22 kg
Packaging data - Package width - 280 mm
PCI-Express 4.0 1x Expansion slots - 2
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Performance > Chipset - AMD B650
Performance > Motherboard form factor - ATX
Processor - Compatible processor series - AMD Ryzen™ 7
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor > Compatible processor series - Supports AMD Ryzen 7000 Series Desktop Processors
Processor > Processor family - AMD
Processor > Processor socket - AM5
Producer - Asus
ProducerCode - ROG STRIX B650E-F GAMING WIFI
Producer product name - ROG STRIX B650E-F GAMING WIFI
ProductName - ROG STRIX B650E-F GAMING WIFI
RAID - SATA 0, 1, 10; NVMe 0, 1, 10

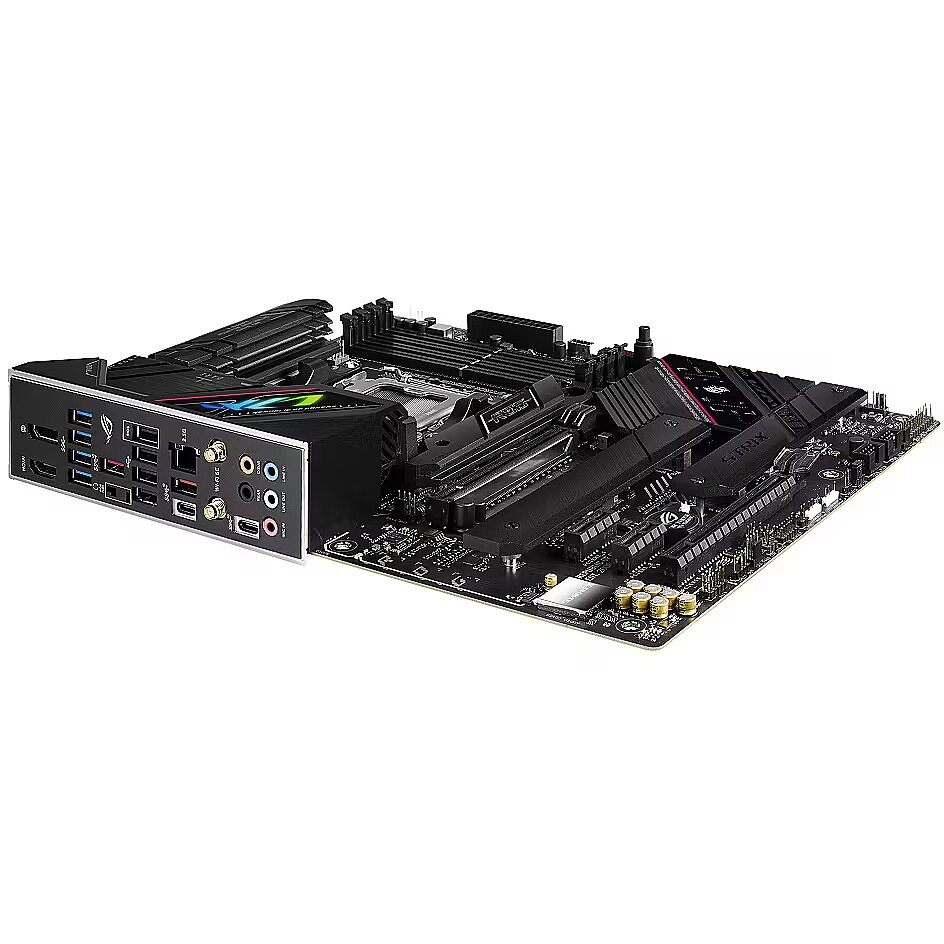

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 3
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA 3.0 Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 34 cm
Shipping Box Height Shipping/Package Box Dimensions - 27.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.093 kg
Shipping Box Width Shipping/Package Box Dimensions - 7.5 cm
ShortDescription - Socket AM5 | Chipset AMD B650 | DDR5
ShortSummaryDescription - ASUS ROG STRIX B650E-F GAMING WIFI, AMD, Socket AM5, AMD Ryzen™ 7, Socket AM5, DDR5-SDRAM, 128 GB
Socket - SAM5
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details > Net weight - 1.00 kg
Technical details > Producer - Asus
Title - ASUS ROG STRIX B650E-F GAMING WIFI AMD B650 Socket AM5 ATX
Unit Box Height - 0.275
Unit Box Length - 0.34
Unit Box Width - 0.075
Unit Brutto Volume - 0.007012 cubm
Unit Gross Weight - 2.09 kg
Unit Net Weight - 1.7 kg
URL - https://rog.asus.com/motherboards/rog-strix/rog-strix-b650e-f-gaming-wifi-model/
USB-C Input/Output connectors - 2
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 6
USB 3.2 Interface - Yes
Vendor Homepage - rog.asus.com/motherboards/rog-strix/rog-strix-b650e-f-gaming-wifi-model/
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
Weight - 2,09
Weight - 2.1
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
