Accessories included -
Audio port Input/Output connectors - 5
BIOS - 256 Mb Flash ROM, UEFI AMI BIOS
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
Bluetooth Interface - Yes
Brand - ASUS
BrandPartCode - 90MB1BF0-M0EAY0
category - Mainboards AMD Mainboards
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM3+
Chipset - AMD B650
Chipset manufacturer - AMD
Chipset type - AMD B650
CnCode CnCode - 84733020
code - 90MB1BF0-M0EAY0
Code - 90MB1BF0-M0EAY0
COM connector / port - Yes
CPU socket - Socket AM5
Description -
Description - TUF GAMING B650M-PLUS WIFI ASUS TUF GAMING B650M-PLUS WIFI takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
Detailed data on disk/drive interfaces - Total supports 2 M.2 and 4 SATA 6Gb/s ports: AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset 4 x SATA 6Gb/s ports *AMD RAIDXpert2 technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
dimensionalWeight - 1218
dimension depth - 70 mm
dimension height - 275 mm
Dimensions - 24.4 x 24.4 cm
dimension weight - 1700 g
dimension width - 278 mm
DisplayPort Input/Output connectors - 1
EAN - 4711081912118
ean - 4711081912118
Eans - 4711081912118
EAN_code - 4711081912118
Expansion slots - 1 x PCIe 4.0 x 1
Expansion slots - 2 x PCIe 4.0 x 16
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 2
External connectors - 1 x Central Speaker / Subwoofer
External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Rear Speaker
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.0
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 3.1
External connectors - 4 x USB 2.0
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B650
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400 MHz
Full Description Line - AMD B650|SAM5|Micro-ATX|DDR5|6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|3xUSB 3.2|1xUSB-C|1xRJ45|5xAudio port|USB 2.0|USB 3.2|Bluetooth|WiFi|SATA 3.0|Video Depending on CPU|Audio|LAN 2.5 Gigabit
Graphics - 1 DisplayPort* 1 HDMI port** * Supports up to 8K @ 60Hz, compliant with DisplayPort 1.4. ** Supports 4K@60Hz according to HDMI 2.1. *** Support for VGA resolution depends on the resolution of the CPU or graphics card.
Gross weight - 2.05 kg
GTIN - 0195553912112
GTIN - 195553912112
GTIN - 4711081912118
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 3
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b650m-plus-wifi/
LongDesc - TUF GAMING B650M-PLUS WIFIASUS TUF GAMING B650M-PLUS WIFI takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.INTELLIGENT CONTROLComprehensive controls form the foundation of the ASUS TUF GAMING series. The TUF GAMING B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.CPU Performance BoostAMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD‘s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.All-Around Energy EfficiencyThe Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.UEFI BIOSThe renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.Armoury CrateThe ASUS-exclusive Armoury Crate centralizes easy control of supported gaming products. A single intuitive interface lets you customize RGB lighting for all compatible devices and link them to Aura Sync for unified illumination. It also offers information and control for a select and growing hardware ecosystem, with input device settings, Fan Xpert 2+ and Two-Way AI Noise Cancelation. Armoury Crate even features product registration, and a news section to stay in touch with the gaming community.Rock-Solid PerformanceWith upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF GAMING B650 motherboards are the perfect foundation for your next high-core-count AMD battle rig.Power DesignTeamed Power Stages12+2 power stages are each rated to handle 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible AMD processors.8+4 PIN ProCool Power ConnectorsCompared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.TUF ComponentsTUF ChokesCertified military-grade TUF chokes deliver rock-solid power to the CPU, improving system stability.TUF CapacitorsThe TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X-longer lifespan than standard motherboard capacitors.Digi+ VRMThe integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.Memory & StorageDRAM Overclocking PerformanceDDR5 OC 6400Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With TUF GAMING B650 motherboards, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.DDR5 DOMINANCEFor those who want to fly past stock DDR5 speeds, TUF GAMING B650 motherboards are primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.PCIe 5.0 SupportTUF GAMING B650 motherboards also feature one PCIe 5.0 M.2 slot to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support for NVMe RAID configurations to take advantage of the latest available speeds.CoolingCooler By Design1. Enlarged VRM HeatsinkThe extensive surface area of this heatsink covers the VRMs and chokes to improve heat dissipation.2. Optimized M.2 Heatsink DesignAll M.2 slots have dedicated heatsinks, keeping M.2 SSDs at optimal operating temperatures to ensure consistent performance and reliability.Comprehensive Fan ControlsTUF GAMING B650 motherboards feature comprehensive fan controls that can be configured via Fan Xpert 2+ utility in Armoury Crate or the award-winning ASUS UEFI BIOS.ConnectivityConnectivityTUF-GAMING B650 motherboards reach new heights of performance potential with the latest version of PCI Express, while an arsenal of USB ports includes three Type-C® connections, and Thunderbolt™ (USB4®) expands compatibility and bandwidth even further.Easy PC DIYThe TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 2+, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.TUF Gaming AllianceBuild With ConfidenceTUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.TUF ProtectionSafeslot Core+ & SafeDIMMSafeSlot Core+ is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on select ASUS motherboards, empowering you to insert your modules with speed, accuracy and confidence.ESD GuardsESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge — greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes.USB ConnectorsAdditional on-circuit ESD transient-voltage-suppressionTUF LANGuardTUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.Stainless Steel Back I/O PanelTUF GAMING motherboards have a corrosion-resistant stainless steel back I/O panel bonded with chromium oxide to provide a lifespan that’s three times longer than traditional panels. With this protective feature, TUF GAMING motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.Easy ConfigurationM.2 Q-LatchThe innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws.Removable Captive ScrewsSpecialized M.2 slot screws reduce the risk of dropping or losing a screw somewhere in your case during M.2 heatsink removal.Q-LEDThe on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components ― CPU, RAM, graphics card, storage devices ― are functioning normally during startup.Immersive GamingTUF GAMING B650 motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.NetworkingWiFi 6The WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 1.2 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.2.5 Gb Ethernet2.5 Gb on-board Ethernet kicks your LAN connection up a notch with a bandwidth improvement of up to 2.5X. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.AI Noise CancelationTwo-Way AI Noise CancelationThis powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls.*An audio splitter (3.5 mm audio jack Y-cable) is necessary when using a 3.5 mm headset.AudioRealtek 7.1 Surround SoundThe unique audio codec designed in close collaboration with Realtek for TUF GAMING B650 motherboards features an unprecedented 98 dB signal-to-noise ratio for the stereo line out, providing pristine audio quality.DTS Audio ProcessingDTS® Audio Processing enhances gaming headset and speaker audio experiences by reducing distortion and by providing deeper bass, so games, movies and music sound better. It also allows you to customize audio settings.LightingAddressable Gen 2 RGB HeaderThree addressable Gen 2 RGB headers will support up to 500 LEDs on Gen 2 RGB devices, empowering Aura Sync to automatically tailor lighting effects across your whole system. The new headers also offer full backward compatibility with existing Aura Sync gear.ASUS WebstorageTimeline BackupAuto Backup for Your Computer!ASUS user's special offer. Buy 1TB get 200GB free.THIS CHANGES EVERYTHINGFrom this new platform,you can see the futureBuild your next rig with an AMD Ryzen™ 7000 Series processor and ASUS TUF GAMING motherboards to experience advanced performance. With up to 16 “Zen 4” cores and 32 threads, boost clocks of up to 5.7GHz, and 80MB cache, the AMD Ryzen™ 7000 Series keeps you ahead of the game.You’ll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe® 5.0. AMD Ryzen™ 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO™ technology.
LongProductName - AMD B650, AM5, 4 x DIMM, Max. 128GB, DDR5, 2.5Gb Ethernet, Wi-Fi 6, Realtek 7.1, 256 Mb Flash ROM, UEFI AMI BIOS, micro-ATX
LongSummaryDescription - ASUS TUF GAMING B650M-PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
LPT connector / port - No
M.2 Expansion slots - 2
Manufacturer - Asus
Manufacturer - ASUS
Manufacturer_code - 90MB1BF0-M0EAY0
Max. number of SATA devices - 4
Max memory size - 128 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 4
Memory > Supported memory types - DDR5 DIMM
Memory bus frequency - 4800 MHz
Memory bus frequency - 5000 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - TUF GAMING B650M-PLUS WIFI
MPN - 90MB1BF0-M0EAY0
Name - AM5 ASUS TUF GAMING B650M-PLUS WIFI
Name - ASUS TUF GAMING B650M-PLUS WIFI
name - ASUS TUF Gaming B650M-Plus WiFi, AMD B650 Mainboard - Sockel AM5, DDR5
Name - ASUS TUF GAMING B650M-PLUS WIFI, mainboard (black/light orange) - AM5
Name - Asus | TUF GAMING B650M-PLUS WIFI | Processor family AMD | Processor socket AM5 | DDR5 DIMM | Memory slots 4 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset AMD B650 | micro-ATX
name - Motherboard TUF GAMING B650M-PLUS WIFI AM5 4DDR5 HDMI mATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.2
Network - Ethernet interface type - 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6 (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - Ethernet: Realtek 2.5Gb ethernet TUF LANGuard Wireless communication: WiFi 6 2x2 WiFi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 3
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin 12V power
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 4pin wentylator OPT CPU
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS button
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x M.2
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 3 x 4pin Chassis fan
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 4 x USB 2.0/1.1
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 300.00 mm
Package features > Gross depth master carton - 286 mm
Package features > Gross height (mm) - 160.00 mm
Package features > Gross height master carton - 370 mm
Package features > Gross width (mm) - 300.00 mm
Package features > Gross width master carton - 380 mm
Package features > Net weight master carton - 9.665 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 120 pc(s)
Package features > Paper/Pasteboard - 200.00 g
Package features > Plastic (No PET) - 30.00 g
Package features > Tare weight (kg) - 0.23 kg
Package features > Tare weight master carton - 0.684 kg
Package features > TI weight (kg) - 0.05 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
PCI-Express 4.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Performance > Chipset - AMD B650
Performance > Motherboard form factor - micro-ATX
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor > Compatible processor series - Supports AMD Ryzen 7000 Series Desktop Processors
Processor > Processor family - AMD
Processor > Processor socket - AM5
Processor family - AMD Ryzen
producer - Asus
Producer - Asus
producerCode - 90MB1BF0-M0EAY0
ProducerCode - TUF GAMING B650M-PLUS WIFI
Producer product name - TUF GAMING B650M-PLUS WIFI
productName - Asus | TUF GAMING B650M-PLUS WIFI | Processor family AMD | Processor socket AM5 | DDR5 DIMM | Memory slots 4 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset AMD B650 | micro-ATX
ProductName - TUF GAMING B650M-PLUS WIFI
productSize - Normal
RAID - Yes

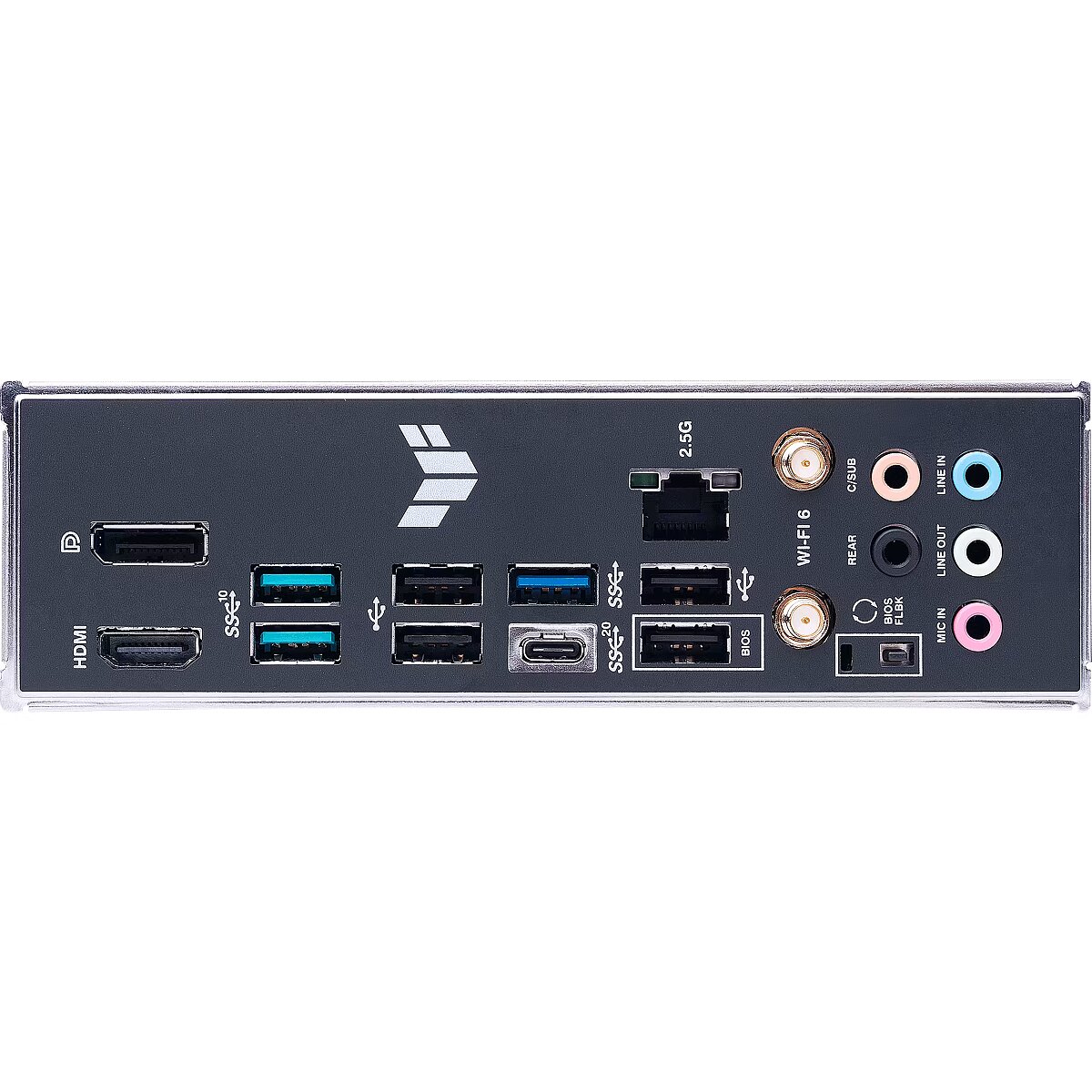

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA 3.0 Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 34 cm
Shipping Box Height Shipping/Package Box Dimensions - 27.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.624 kg
Shipping Box Width Shipping/Package Box Dimensions - 7 cm
ShortDescription - Socket AM5 | Chipset AMD B650 | DDR5
ShortSummaryDescription - ASUS TUF GAMING B650M-PLUS WIFI, AMD, Socket AM5, DDR5-SDRAM, 128 GB, DIMM, Dual-channel
sizeX - 282
sizeY - 72
sizeZ - 300
Socket - SAM5
Software - TUF GAMING CPU-Z: DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR ASUS Exclusive Software Armoury Crate: Aura Creator Aura Sync Fan Xpert 2+ Power Saving Two-Way AI Noise Cancellation AI Suite 3: TurboV EVO DIGI+ VRM PC Cleaner UEFI BIOS: ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode
Sound card - Realtek 7.1 Surround Sound High Definition Audio CODEC: Supports: plug-in detection, multi-streaming, changing plug-in tasks on the front panel Supports playback up to 24-bit/192kHz Audio Features: Sound shielding High-quality audio capacitors Dedicated audio PCB layers
Special functions - ASUS TUF PROTECTION DIGI+ VRM (- Digital power design with DrMOS) Enhanced DRAM Overcurrent Protection ESD Guards TUF LANGuard Overvoltage Protection SafeSlot Core+ Stainless-Steel Back I/O ASUS Q-Design M.2 Q-Latch Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) Q-Slot ASUS Thermal Solution M.2 heatsink VRM heatsink design ASUS EZ DIY BIOS FlashBack button BIOS FlashBack LED ProCool Pre-mounted I/O shield SafeDIMM Aura Sync Aura RGB header Addressable Gen 2 headers
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 1.82 kg
Technical details > Producer - Asus
Technical details > Warranty - 36 month(s)
Title - ASUS TUF GAMING B650M-PLUS WIFI AMD B650 Socket AM5 micro ATX
Unit Box Height - 0.275
Unit Box Length - 0.34
Unit Box Width - 0.07
Unit Brutto Volume - 0.006545 cubm
Unit Gross Weight - 1.62 kg
Unit Net Weight - 1.3 kg
URL - https://www.asus.com/Motherboards-Components/Motherboards/TUF-Gaming/TUF-GAMING-B650M-PLUS-WIFI/
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 3
USB 3.2 Interface - Yes
USB ports at back panel - 8
USB ports on motherboard - 7
Vendor Homepage - www.asus.com/Motherboards-Components/Motherboards/TUF-Gaming/TUF-GAMING-B650M-PLUS-WIFI/
vendpn - TUF GAMING B650M-PLUS WIFI
Warranty - 36
Warranty - 36 months
WarrantyInfo -
warrantyLength - 24
warrantyType - G
Weight - 1,63
Weight - 1.64
weight - 1700
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 244 mm
WiFi Interface - Yes
