Accessories included - 1 x Operating Instructions 2 x SATA data cables 3 x Screws for M.2 sockets
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS type - UEFI AMI
category - Mainboards AMD Mainboards
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
Chipset - AMD B650
Chipset manufacturer - AMD
Chipset type - AMD B650
code - 90-MXBK20-A0UAYZ
COM connector / port - No
CPU socket - Socket AM5
Description - - Supports AMD Ryzen™ 7000 Series Processors - 14+2+1 Phase Power Design, SPS - 4 x DDR5 DIMMs, supports up to 6400+(OC) - 2 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key-E for WiFi - Graphics Output Options: 1 HDMI - CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio - 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen4x2), 4 SATA3 - 1 USB 3.2 Gen2x2 Type-C (Rear), 1 USB 3.2 Gen2 Type-C (Front), 9 USB 3.2 Gen1 (7 Rear, 2 Front), 8 USB 2.0 (4 Rear, 4 Front) - Realtek 2.5G LAN
Description - B650 PG Lightning motherboard Supports AMD Ryzen 7000 series processors 14+2+1 phase power design, SPS 4 x DDR5 DIMMs, support up to 6400+(OC) 2 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key-E for Wi-Fi Graphics output options: 1 HDMI 7.1-channel HD audio (Realtek ALC897 audio codec), Nahimic Audio 1 incredible M.2 card (PCIe Gen5x4) 1 Hyper M.2 (PCIe Gen4x4) 1 M.2 (PCIe Gen4x2) 4 SATA3 1 USB 3.2 Gen2x2 Type-C port (rear) 1 USB 3.2 Gen2 Type-C port (front) 9 USB 3.2 Gen1 (7 rear, 2 front) 8 USB 2.0 ports (4 rear, 4 front) Realtek 2.5G LAN
Detailed data on disk/drive interfaces - CPU: 1 x Blazing M.2 slot (M2_1, Key M), supports 2280 PCIe Gen5x4 (128 Gbps)* mode. 1 x Hyper M.2 slot (M2_2, Key M), supports 2280 PCIe Gen4x4 (64 Gbps) mode*. Chipset: 1 x M.2 slot (M2_3, Key M), supports 2280 PCIe Gen4x2 mode (32 Gbps)* 4 SATA3 6.0Gb/s connectors *Supports booting from NVMe SSD. Supports ASRock U.2 kit
dimensionalWeight - 1716
dimension depth - 73 mm
dimension height - 360 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 1720 g
dimension width - 300 mm
ean - 4710483940910
Eans - 4710483940910
EAN_code - 4710483940910
Expansion slots - 1 x M.2
Expansion slots - 2 x PCIe 4.0 x 1
Expansion slots - 2 x PCIe 4.0 x 16
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1 Type-C
External connectors - 4 x USB 2.0
External connectors - 7 x USB 3.0
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - AMD B650
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 6400 MHz
Full Description Line - AMD B650|SAM5|ATX|DDR5|6400 MHz|Memory slots 4|2xPCI-Express 4.0 1x|2xPCI-Express 4.0 16x|3xM.2|1xHDMI|1xAudio-In|1xAudio-Out|1xMicrophone|4xUSB 2.0|7xUSB 3.2|2xUSB-C|1xRJ45|SATA|USB 2.0|USB 3.2|Video Depending on CPU|Audio Realtek ALC897|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 10|TPM Header
Graphics - Integrated AMD RDNA 2 graphics (Support may vary by CPU) 1 x HDMI 2.1 TMDS/FRL Compatible with 8G, supports HDR, HDCP 2.3 and max. resolutionup to 4K 120Hz
Graphics - Graphics card - AMD RDNA 2
Graphics - Graphics card family - AMD
Graphics - HDCP - Yes
Graphics - On-board graphics card - Yes
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Included Accessories - - 1 x User Manual
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
LPT connector / port - No
M.2 Expansion slots - 3
Manufacturer - Asrock
Manufacturer_code - 90-MXBK20-A0UAYZ
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 128 GB
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6666
Memory - Supported memory clock speeds - 6800
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 6400 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Microphone Input/Output connectors - 1

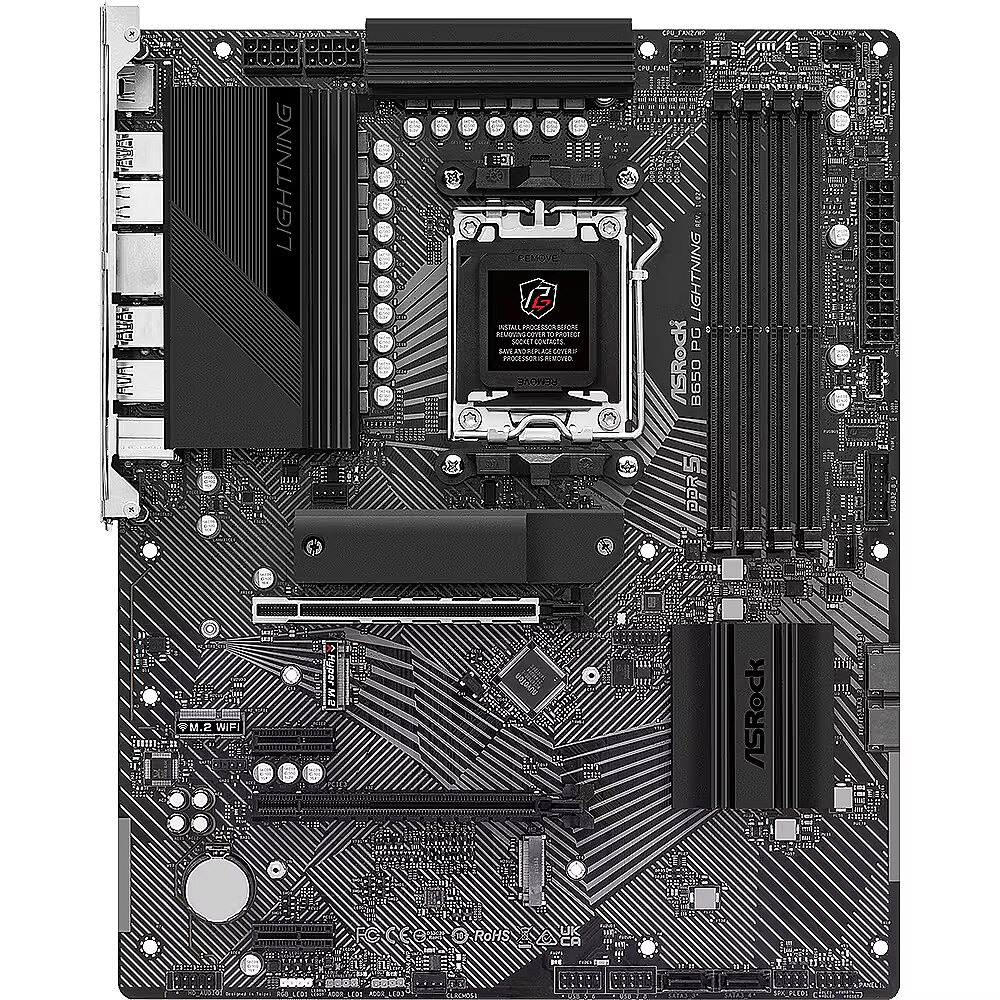

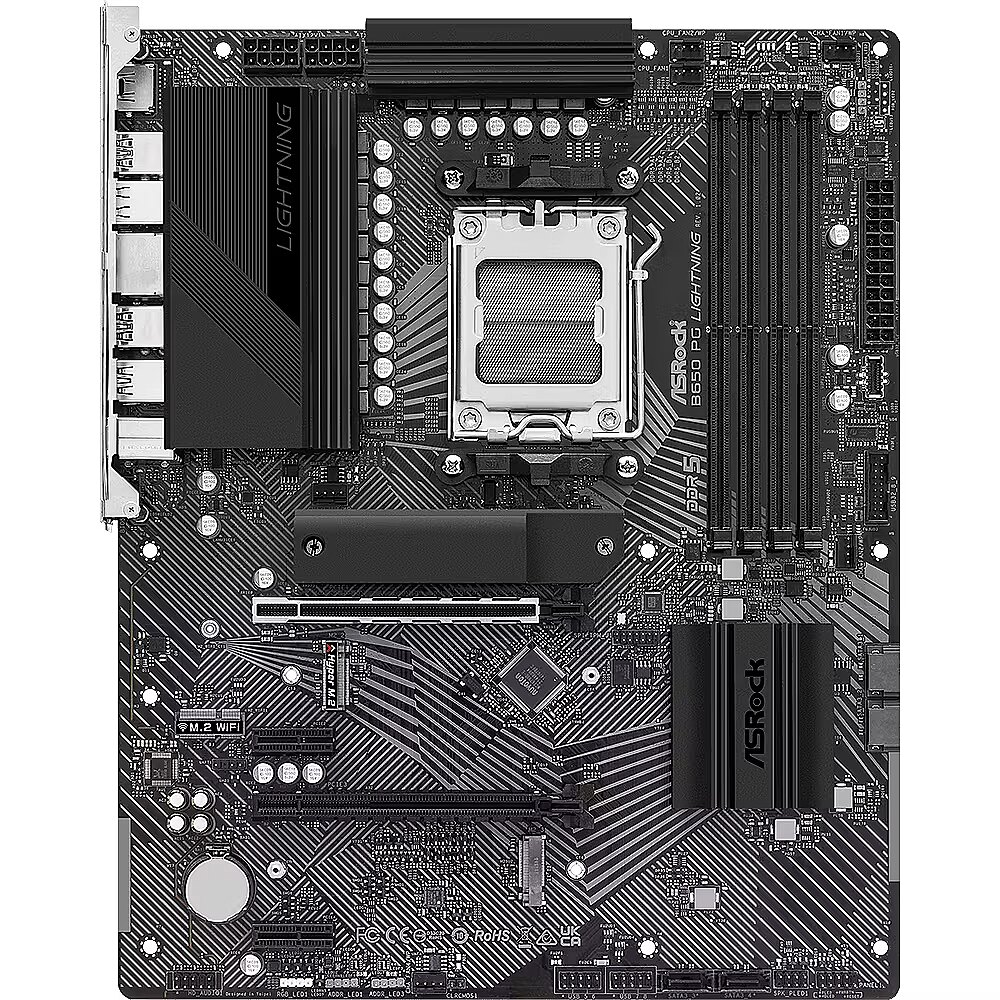

Model - B650 PG Lightning
Name - ASRock B650 PG Lightning
name - ASRock B650 PG Lightning, AMD B650 Mainboard - Sockel AM5, DDR5
Name - ASRock B650 PG LIGHTNING, Motherboard - AM5
name - B650 PG LIGHTNING AM5 4DDR5 HDMI M.2 ATX
Network - Bluetooth - Yes
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Dragon RTL8125BG
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network interface -
Network interface - 1 x 10/100/1000/2500 Mbit/s
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 2
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 9
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Other information -
Packaging content - Cables included - SATA
PCI-Express 4.0 1x Expansion slots - 2
PCI-Express 4.0 16x Expansion slots - 2
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor family - AMD Ryzen
producer - ASRock
Producer - ASRock
producerCode - B650 PG LIGHTNING
ProducerCode - B650 PG Lightning
productName - Asrock B650 PG Lightning AMD B650 Socket AM5 ATX
productSize - Normal
RAID - SATA 0, 1, 10; NVMe 0, 1, 10
RAID - Yes

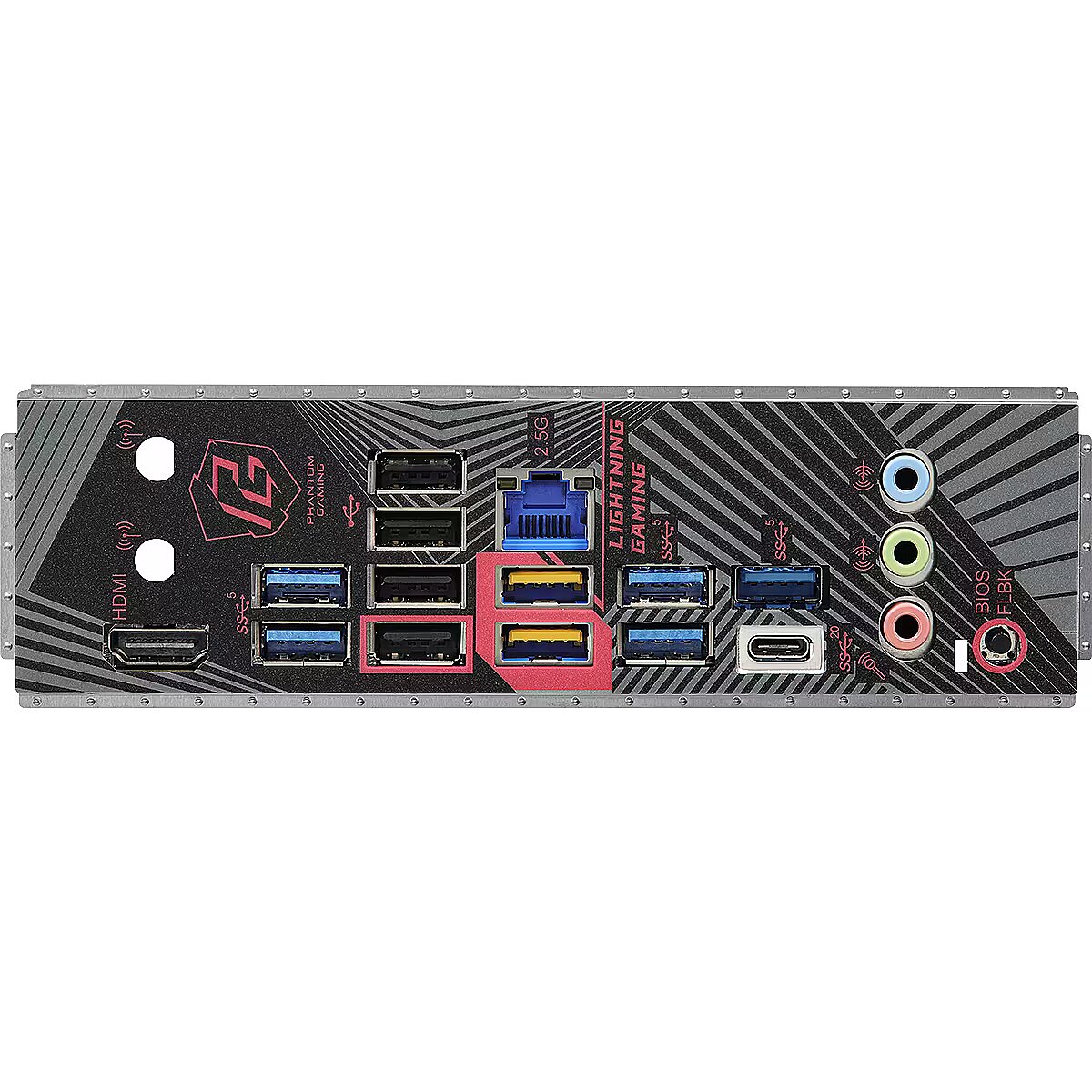

Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 7
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 36 cm
Shipping Box Height Shipping/Package Box Dimensions - 8 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.71 kg
Shipping Box Width Shipping/Package Box Dimensions - 30 cm
ShortDescription - Socket AM5 | Chipset B650 | DDR5
sizeX - 361
sizeY - 301
sizeZ - 79
Socket - SAM5
Software - Software ASRock Motherboard Utility (Phantom Gaming Tuning) ASRock Phantom Gaming LAN Software ASRock Polychrome SYNC* UEFI ASRock Full HD UEFI ASRock Automatic Driver Installer ASRock Instant Flash
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Special functions -
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA II
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
TPM - Header
Unit Box Height - 0.08
Unit Box Length - 0.36
Unit Box Width - 0.3
Unit Brutto Volume - 0.00864 cubm
Unit Gross Weight - 1.71 kg
Unit Net Weight - 1.4 kg
USB-C Input/Output connectors - 2
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 7
USB 3.2 Interface - Yes
USB ports at back panel - 12
USB ports on motherboard - 6
Vendor Homepage - www.asrock.com/mb/AMD/B650%20PG%20Lightning/
vendpn - B650 PG LIGHTNING
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 1,70
weight - 1714
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
