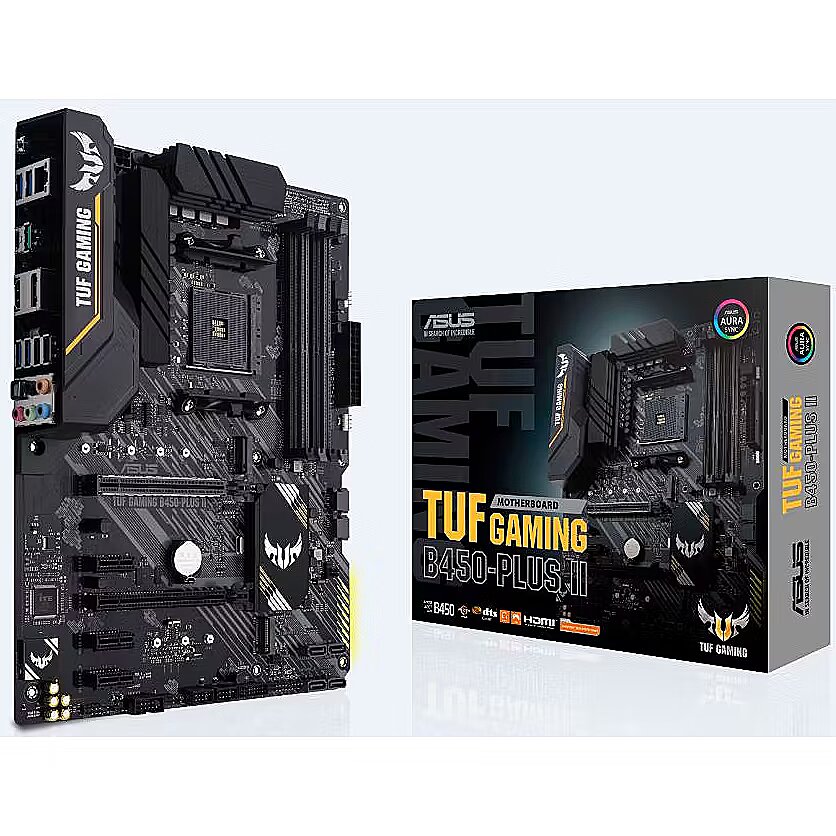

Asus TUF GAMING B450-PLUS II

Audio-In Input/Output connectors - 2
Audio-Out Input/Output connectors - 3
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
Brand - ASUS
BrandPartCode - 90MB1650-M0EAY0
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM4
Chipset - AMD B450
Code - 90MB1650-M0EAY0
Description - TUF GAMING B450-PLUS II AMD AM4 (Ryzen 5000, 3rd Gen Ryzen ATX Gaming Motherboard (DDR4 4400(O.C.), HDMI 2.0b, USB 3.2 Gen 2 Type-C, BIOS Flashback, 256Mb BIOS Flash ROM, AI Noise Cancelling Mic
dimensionalWeight - 1309
DisplayPort Input/Output connectors - 1
EAN - 4718017957489
Eans - 4718017957489
EAN_code - 4718017957489
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 2.x) slots - 3
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Features - Audio chip - Realtek ALC S1200A
Features - Audio output channels - 8 channels
Features - Component for - PC
Features - Cooling type - Active
Features - Motherboard chipset - AMD B450
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Number of mounting holes - 8
Features - Power source type - ATX
Features - Windows operating systems supported - Windows 7 x64
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 7 x64
Form Factor - ATX
Frequency speed - 2133/2400/2666/2800/3000/3200/3466/3533/4400 MHz
Full Description Line - AMD B450|SAM4|ATX|DDR4|4400/3533/3466/3200/3000/2800/2666/2400/2133 MHz|Memory slots 4|3xPCI-Express 2.0 1x|1xPCI-Express 2.0 4x|1xPCI-Express 3.0 16x|2xM.2|1xHDMI|1xDisplayPort|2xAudio-In|3xAudio-Out|2xUSB 2.0|5xUSB 3.2|1xUSB-C|1xRJ45|SATA|Video Depending on CPU|Audio|LAN Realtek (Gigabit)|RAID SATA 0, 1, 10|TPM Header
Graphics - Parallel processing technology support - CrossFireX
Gross weight - 1.484 kg
GTIN - 0192876957486
GTIN - 192876957486
GTIN - 4718017957489
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated LAN - Realtek (Gigabit)
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Audio connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of EATX power connectors - 1
Internal I/O - Number of SATA III connectors - 6
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - Total number of SATA connectors - 6
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 6 x SATA-600 (RAID)
Link - https://www.asus.com/Motherboards-Components/Motherboards/All-series/TUF-GAMING-B450-PLUS-II/
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - DURABLE. STABLE. RELIABLE.TUF Gaming B450-PLUS II distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.ROCK-SOLID PERFORMANCEWith upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory and storage, TUF Gaming B450-PLUS II is the perfect foundation for your next high-core-count battle rig.DrMOSThe onboard VRM of TUF Gaming B450-PLUS II utilizes 8+2 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that 3rd Gen AMD Ryzen™ Processors demand.Stack Cool 3+2-ounce copper layers draw heat away from critical components to keep them at their optimal operating temperatures and provide more headroom to push CPUs beyond stock speeds.TUF CHOKESCertified military-grade TUF chokes deliver rock-steady power to the CPU, improving system stability.TUF CAPACITORSProprietary capacitors provide up to 20% greater temperature tolerance and 5X-longer lifespan.Digi+ VRMThe integrated Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times.Cooler by designVRM HEATSINKA large, high-mass heatsink with extensive surface that covers the VRM and choke areas improves heat dissipation.THERMAL PADHigh-quality thermal pads help transfer heat from the inductor and phase array to the heatsink.COMPREHENSIVE FAN CONTROLSTUF Gaming B450-PLUS II features comprehensive fan controls that can be configured via Fan Xpert 4 utility or via the award-winning ASUS UEFI BIOS.USB 3.2 Gen 2 Type-A & Type-CNumerous USB ports support gaming rigs loaded with peripherals, including a USB Type-A and a Type-C connectors with fast USB 3.2 Gen 2 connectivity for compatible cases.Thunderbolt™ 3 supportAn integrated Thunderbolt™ 3 header supports up to 40 Gbps of aggregate interface bandwidth. One Thunderbolt 3 port can support up to six devices in a daisy-chain, and provide up to 100 watts of power to fast-charge devices.EASY PC DIYTUF Gaming motherboards are designed to be easy to set up and configure just the way you want — even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.Build with confidenceTUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.TUF PROTECTIONSafeSlotSafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured via a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.ESD guardsESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge — greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV.TUF LANGuardTUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.DRAM overvoltage protectionOnboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.Stainless-steel back I/O panelTUF Gaming motherboards have a corrosion-resistant stainless-steel back I/O panel bonded with chromium oxide to provide a 3X-longer lifespan versus traditional panels. With this protective feature, TUF Gaming motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.EASY CONFIGURATIONBIOS FlashBack™BIOS FlashBack™ is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick, plug it into the USB BIOS FlashBack™ port and press the button. Updates can even be performed without having memory or a CPU installed.Armoury CrateArmoury Crate is a new software utility designed to give you centralized control of supported gaming products. From a single intuitive interface, Armoury Crate lets you easily customize RGB lighting and effects for every compatible device in your arsenal and synchronize them with Aura Sync for unified system lighting effects. You can also turn on the AI Noise-Canceling Microphone function for crystal-clear in-game voice communication. The software also provides control of settings for a select and growing number of products, including keyboard and mouse preferences as well as laptop overclocking and fan speeds, making it easier to tune the look and feel of your system. Armoury Crate even features dedicated product registration and news areas to help you stay in touch with the gaming community.IMMERSIVE GAMINGTUF Gaming B450-PLUS II provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.EXCLUSIVE GIGABIT ETHERNETExperience ultra-fast gaming with the ASUS-exclusive Realtek® L8200A Gigabit Ethernet. With performance and stability enhancements, the LAN is optimized for CPU-efficient, low-latency data transfers.AI NOISE-CANCELING MICROPHONEAI Noise-Canceling Microphone software is exclusively featured on ASUS motherboards and supports 3.5 mm, USB, or Bluetooth headsets. The utility leverages a massive deep-learning database to preserve the sound of your voice while eliminating distracting keyboard clatter, mouse clicks, and other forms of environmental noise. And it only places a slight load on the CPU, ensuring minimal impact on gaming performance.signal-to-noise ratioPRISTINE AUDIOThe unique audio codec designed in close collaboration with Realtek for TUF Gaming B550M series motherboards features an unprecedented 108 dB signal-to-noise ratio for the stereo line out and a 103dB SNR for the line in, providing pristine audio quality.DTS® Custom for gaming headsetsHone your battle skills with exclusive DTS® Custom onboard audio. Utilizing advanced emulation techniques to create positional cues via stereo headphones, DTS Custom takes onboard audio to a new frontier. With three presets ― Aerial, Soundscape, and Tactical ― for different genres, you'll have a distinct advantage in every game.AERIAL MODEExperience audio as though hovering above the game world, with sound coming from ahead — perfect for MOBA, RTA, strategy and sports titles!SOUNDSCAPE MODEThe ideal audio envelope for MMO, RPG, action and horror games — your ears will put you in the center of the action!TACTICAL MODEShhh — is that an enemy just around the corner? DTS Custom emphasises detail for stealthy play, so you'll detect and locate every footstep!
LongProductName - AMD B450, AM4, ATX, 4 x DIMM DDR4, M.2, HDMI, DisplayPort, USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1 Type-A and Type-C, Aura Sync RGB
LongSummaryDescription - ASUS TUF GAMING B450-PLUS II. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Parallel processing technology support: CrossFireX. HDMI version: 2.0b, USB connector type: USB Type-A, USB Type-C
M.2 Expansion slots - 2
Manufacturer - Asus
Manufacturer_code - 90MB1650-M0EAY0
Memory - ECC - Yes
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2133,2400,2666,2800,3000,3200,3400,3466,3533,3600,3733,3866,4000,4400 MHz
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2666
Memory - Supported memory clock speeds - 2800
Memory - Supported memory clock speeds - 3000
Memory - Supported memory clock speeds - 3200 MHz
Memory - Supported memory clock speeds - 3400
Memory - Supported memory clock speeds - 3466
Memory - Supported memory clock speeds - 3533
Memory - Supported memory clock speeds - 3600
Memory - Supported memory clock speeds - 3733
Memory - Supported memory clock speeds - 3866
Memory - Supported memory clock speeds - 4000
Memory - Supported memory clock speeds - 4400
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 4
Memory > Supported memory types - DDR4
Memory slots - 4
Memory type - DDR4
Name - ASUS TUF GAMING B450 PLUS II
Name - Asus TUF GAMING B450-PLUS II - Socket AM4 - Mainboard
Name - ASUS TUF GAMING B450-PLUS II Asus | TUF GAMING B450-PLUS II | Memory slots 4 | Number of SATA connectors 6 x SATA-600 (RAID) | Chipset AMD B | ATX | Processor family AMD | Processor socket AM4 | DDR4
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek L8200A
Network - Wi-Fi - No
Other features > Special features - AI Noise-Canceling Microphon; AI Suite 3; Ai Charger; Turbo LAN; PC Cleaner; Armoury Crate; BIOS FlashBack™ Button; Aura Lighting Contro; Aura RGB Strip Headers
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 340 mm
Package features > Gross depth master carton - 365 mm
Package features > Gross height (mm) - 68 mm
Package features > Gross height master carton - 295 mm
Package features > Gross width (mm) - 272 mm
Package features > Gross width master carton - 365 mm
Package features > Net weight master carton - 7.42 kg
Package features > Packing quantity - 5 pc(s)
Package features > Palette Qty - 220 pc(s)
Package features > Paper/Pasteboard - 250.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > Tare weight master carton - 0.668 kg
Package features > Volume (m3) - 0.00628864 m³
Package features > WEEE tax - No
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
PCI-Express 2.0 1x Expansion slots - 3
PCI-Express 2.0 4x Expansion slots - 1
PCI-Express 3.0 16x Expansion slots - 1
Performance > Chipset - AMD B
Performance > Motherboard form factor - ATX
Ports & interfaces > USB port - 2 x USB 3.2, 1 x USB Type-C, 1 x Type-A +0 x; 4 x USB 3.2, 4 x Type-A; 2 x USB 2.0, 2 x Type-A; 2 x USB 3.2; 4 x USB 2.0
Processor - Compatible processor series - 3rd Generation AMD Ryzen 5
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 3
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 7
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 9
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Processor > Compatible processor series - 1st, 2nd and 3rd Generation Ryzen / Ryzen with Radeon Vega Graphics and 2nd Generation Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics
Processor > Processor family - AMD
Processor > Processor socket - AM4
Producer - Asus
producerCode - 90MB1650-M0EAY0
ProducerCode - TUF GAMING B450-PLUS II
Producer product name - TUF GAMING B450-PLUS II
productName - ASUS TUF GAMING B450-PLUS II AMD B450 Socket AM4 ATX
ProductName - TUF GAMING B450-PLUS II
productSize - Normal
RAID - SATA 0, 1, 10

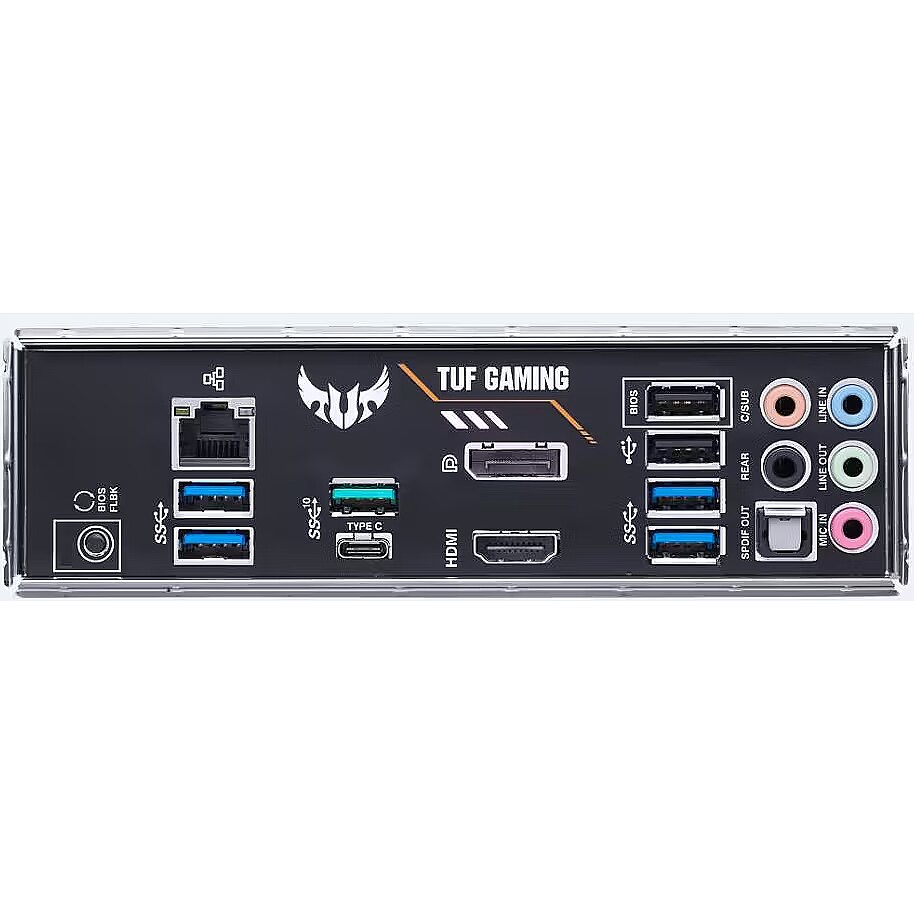

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.0b
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB connector type - USB Type-A
Rear panel I/O ports - USB connector type - USB Type-A, USB Type-C
Rear panel I/O ports - USB connector type - USB Type-C
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 37 cm
Shipping Box Height Shipping/Package Box Dimensions - 29 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 8.2 kg
Shipping Box Width Shipping/Package Box Dimensions - 36.5 cm
ShortDescription - Socket AM4 | Chipset AMD B450
ShortSummaryDescription - ASUS TUF GAMING B450-PLUS II, AMD, Socket AM4, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd..., DDR4-SDRAM, 128 GB, DIMM
sizeX - 340
sizeY - 275
sizeZ - 70
Socket - SAM4
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - Supported storage drive interfaces - M.2, SATA
Storage controllers - Supported storage drive interfaces - M.2, Serial ATA
Storage controllers - Supported storage drive types - HDD & SSD
Technical details > Accessories included - User's Manual; I/O Shield; 2 x SATA Cables; 1x Supporting DVD; 1 x TUF Gaming Sticker; 1 x TUF Certification Card
Technical details > Net weight - 1.184 kg
Technical details > Other features - max 128GB
Technical details > Producer - Asus
Title - ASUS TUF GAMING B450-PLUS II AMD B450 Socket AM4 ATX
TPM - Header
Unit Box Height - 0.075
Unit Box Length - 0.345
Unit Box Width - 0.275
Unit Brutto Volume - 0.007833 cubm
Unit Gross Weight - 1.64 kg
Unit Net Weight - 1.1 kg
URL - https://www.asus.com/motherboards-components/motherboards/all-series/TUF-GAMING-B450-PLUS-II/
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 2
USB 3.2 Input/Output connectors - 5
Vendor Homepage - www.asus.com/Motherboards-Components/Motherboards/All-series/TUF-GAMING-B450-PLUS-II/
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1,49
weight - 1504
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
