12V power connector Internal I/O - Yes
ACPI version BIOS - 5.1
ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC1200
Audio output channels Features - 7.1 channels
BIOS - BIOS type - UEFI AMI
BIOS memory size BIOS - 256 Mbit
BIOS type BIOS - UEFI AMI
Cables included Packaging content - SATA
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM4
Compatible processor series Processor - AMD Ryzen 3000 Series
Component for Features - PC
CPU fan connector Internal I/O - Yes
Dane techniczne: Chipset płyty głównej - AMD B550
Dane techniczne: Grupa produktowa - Płyty główne ASRock
Dane techniczne: Gwarancja - 2 lata w serwisie sprzedawcy
Dane techniczne: Producent - ASRock
Dane techniczne: Przeznaczenie - AMD
Dane techniczne: Standard płyty - ATX
Depth Weight & dimensions - 244 mm
Description - IT’S TIME FOR B550 MOTHERBOARDS
Everything You Need For Computing Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game. 8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. 2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance! RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well. A SOLID M.2-SOLUTION PERFORMER
Dual M.2 For SSD, Supports Type 22110 M.2
Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance. Hyper M.2 socket that supports PCIe Gen4 x4 while M.2 socket is capable of running PCIe Gen3 x2 and SATA3 mode.
M.2 Armors
Good M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armor solution that makes SSDs to run in a certain low temperature. Reinforced Steel Slot [PCIe 4.0 Version]
The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed. Dual USB 3.2 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates. M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot. Post Status Checker
An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem. Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + D-SUB combo, you have more graphics output options now. Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes. Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors8 Power Phase Design, Digi PowerSupports DDR4 4733+ (OC)1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFiGraphics Output Options: HDMI, D-SubAMD CrossFireX™7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)2 USB 3.2 Gen2 (Rear Type A+C), 6 USB 3.2 Gen1 (2 Front, 4 Rear)Gigabit LAN
dimensionalWeight - 2196
DirectX version Graphics - 12.0
Drivers included Packaging content - Yes
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek ALC1220 - 7.1)
EAN - 4710483931482
Eans - 4710483931482
EAN_code - 4710483931482
ECC сompatibility Memory - ECC & Non-ECC
EPS power connector (8-pin) Internal I/O - Yes
Ethernet interface type Network - Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Features - Audio chip - Realtek ALC1200
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - AMD B550
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Front panel audio connector Internal I/O - Yes
Front panel connector Internal I/O - Yes
Grafika: Obsługa technologii CrossFire - tak
Graphics - DirectX version - 12.0
Graphics - Graphics card - Radeon Vega
Graphics - Graphics card family - AMD
Graphics - HDCP - Yes
Graphics - On-board graphics card - Yes
Harmonized System (HS) code Logistics data - 84733020
HDCP Graphics - Yes
HDMI ports quantity Rear panel I/O ports - 1
Height Weight & dimensions - 87 mm
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 6
Internal I/O - Peripheral (Molex) power connectors (4-pin) - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Komunikacja: Zintegrowana karta sieciowa - tak (Realtek RTL8111H Gigabit LAN)
LAN controller Network - Realtek RTL8111H
Manufacturer - Asrock
Manufacturer - ASRock
Manufacturer_code - 90-MXBCZ0-A0UAYZ
Maximum internal memory Memory - 128 GB
Maximum number of SMP processors Processor - 1
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2667
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3200
Memory - Supported memory clock speeds - 3466
Memory - Supported memory clock speeds - 3600 MHz
Memory - Supported memory clock speeds - 3733
Memory - Supported memory clock speeds - 3800
Memory - Supported memory clock speeds - 3866
Memory - Supported memory clock speeds - 4000
Memory - Supported memory clock speeds - 4133
Memory - Supported memory clock speeds - 4200
Memory - Supported memory clock speeds - 4266
Memory - Supported memory clock speeds - 4333
Memory - Supported memory clock speeds - 4400 MHz
Memory - Supported memory clock speeds - 4466
Memory - Supported memory clock speeds - 4533
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Microphone in Rear panel I/O ports - Yes
Motherboard chipset family Features - AMD
Motherboard chipset Features - AMD B550
Motherboard form factor Features - ATX
MPN - 90-MXBCZ0-A0UAYZ

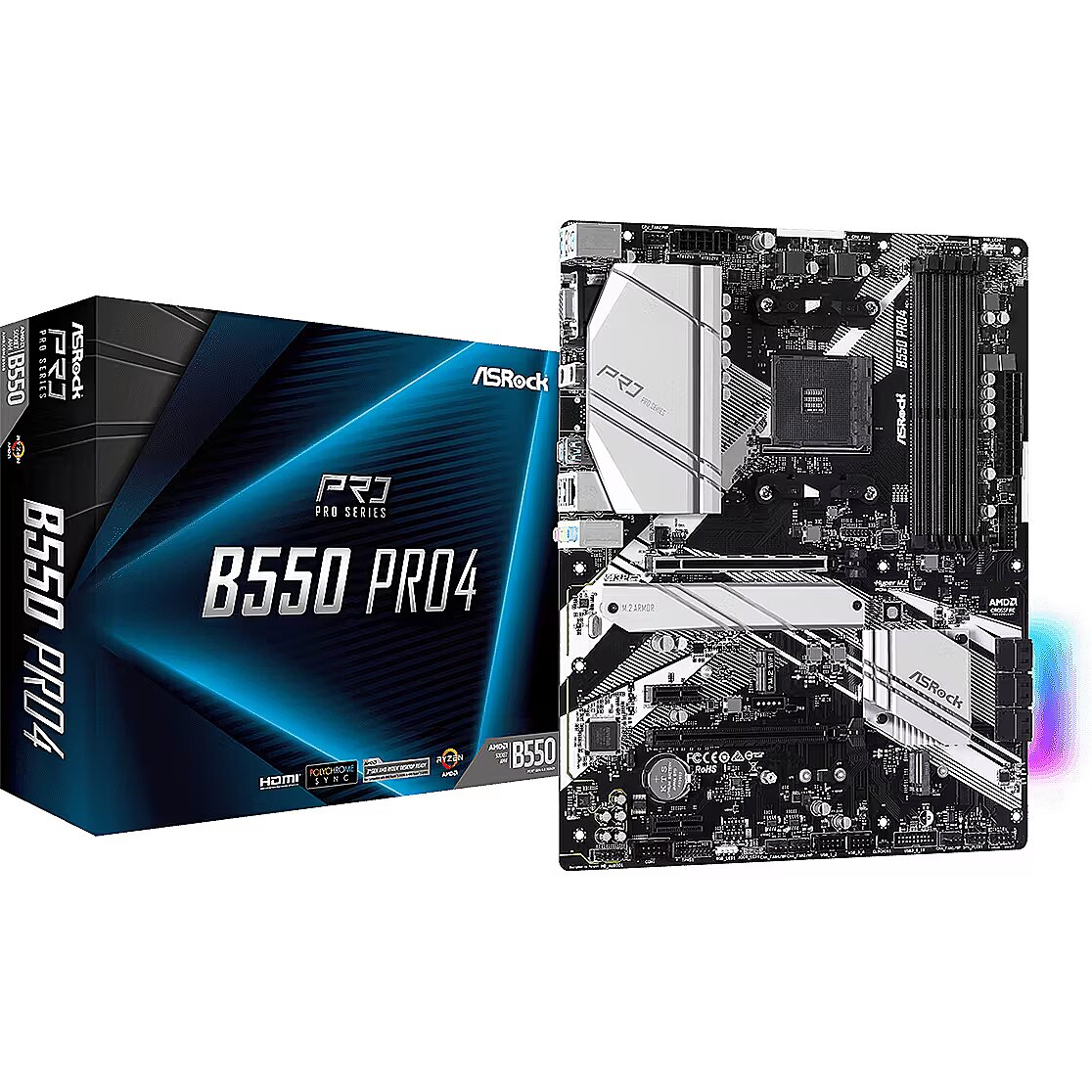

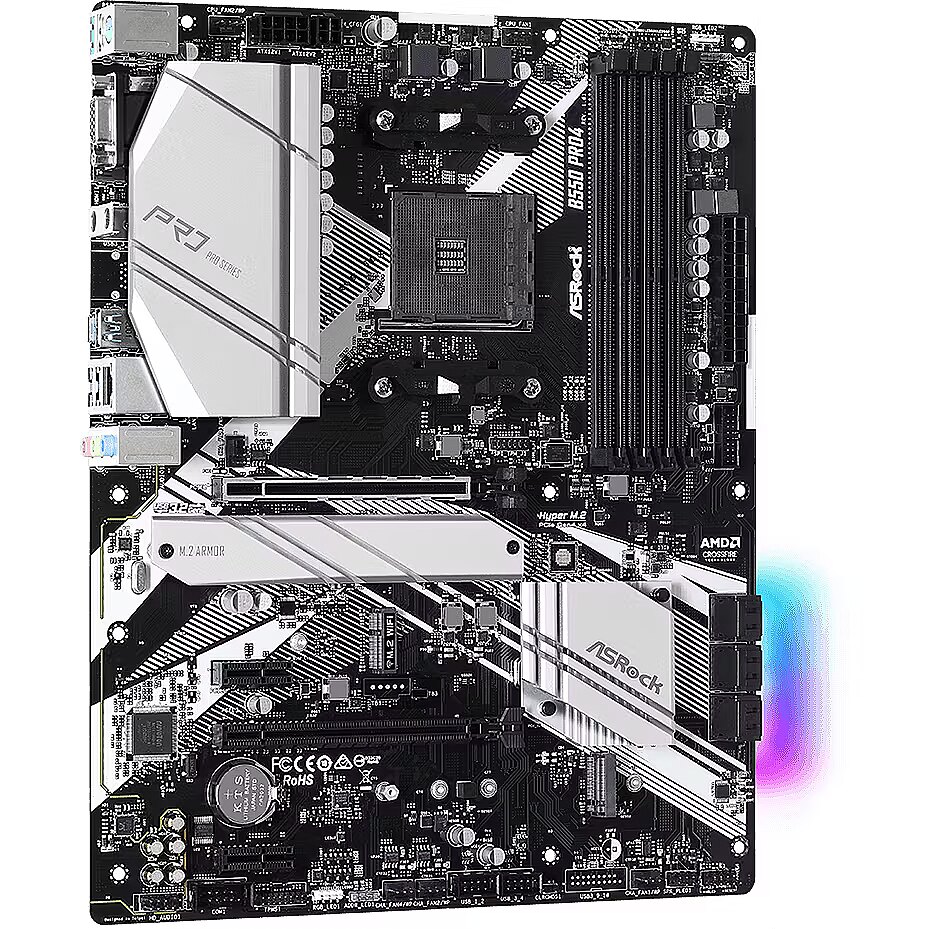

Name - ASRock B550 PRO4
Name - ASRock B550 Pro4 - Socket AM4 - mainboard
Name - ASRock B550 Pro4 AM4 ATX VGA/HDMI DDR4 retail
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8111H
Network - Wake-on-LAN ready - Yes
Network - Wi-Fi - No
Number of chassis fan connectors Internal I/O - 4
Number of COM connectors Internal I/O - 1
Number of M.2 (M) slots Expansion slots - 2
Number of memory slots Memory - 4
Number of SATA III connectors Internal I/O - 6
Packaging content - Drivers included - Yes
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Maks. pojemność pamięci - 128 GB
Pamięć: Obsługiwana pamięć - DDR4
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR4-2133 (PC4-17000)
Pamięć: Typ obsługiwanej pamięci - DDR4-2400 (PC4-19200)
Pamięć: Typ obsługiwanej pamięci - DDR4-2666 (PC4-21300)
Pamięć: Typ obsługiwanej pamięci - DDR4-2800 (PC4-22400)
Pamięć: Typ obsługiwanej pamięci - DDR4-3200 (PC4-25600)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-3466 (PC4-27700)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-3600 (PC4-28800)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-3866 (PC4-30900)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-4000 (PC4-32000)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-4133 (PC4-33000)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-4400 (PC4-35200)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-4600 (PC4-36800)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-4700 (PC4-37600)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-4800 (PC4-38400)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-5000 (PC4-40000)
Parallel processing technology support Graphics - CrossFireX/Quad-GPU CrossFireX
PC health monitoring Features - CPU/Fan/Temperature/Voltage/Water cooling
PCI Express x1 (Gen 3.x) slots Expansion slots - 2
PCI Express x16 (Gen 3.x) slots Expansion slots - 1
PCI Express x16 (Gen 4.x) slots Expansion slots - 1
Peripheral (Molex) power connectors (4-pin) Internal I/O - 1
Procesor: Gniazdo procesora - Socket AM4
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 3000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 4000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 5000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 3000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 4000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 5000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 3000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 5000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 3000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 5000
Processor - Compatible processor series - 3rd Generation AMD Ryzen 5
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 3
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 7
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 9
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Processor manufacturer Processor - AMD
Processor socket Processor - Socket AM4
Producent: Nazwa producenta / importera - ASRock
ASRock Europe B.V.
Bijsterhuizen 11-11
6546 AR Nijmegen
Producer - ASRock
producerCode - B550 PRO4
ProducerCode - B550 PRO4
productName - Asrock B550 Pro4 Socket AM4 ATX AMD B550
productSize - Normal
PS/2 ports quantity Rear panel I/O ports - 1
RAID levels Storage controllers - 0/1/10
RAID support Storage controllers - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RGB LED pin header Internal I/O - Yes
ShortDescription - Socket AM4 | Chipset AMD B550
sizeX - 380
sizeY - 340
sizeZ - 85
Storage controllers - Supported storage drive interfaces - M.2, Serial ATA III
Summary - Asrock B550 Pro4. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Parallel processing technology support: CrossFireX, Quad-GPU CrossFireX. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
Supported memory clock speed (max) Memory - 4533 MHz
Supported memory clock speeds Memory - 2133/2400/2667/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4533 MHz
Supported memory module capacities Memory - 16GB/32GB/4GB/8GB
Supported memory types Memory - DDR4-SDRAM
Supported processor sockets Processor - Socket AM4
Supported storage drive interfaces Storage controllers - M.2,SATA III
Supported storage drive types Storage controllers - HDD & SSD
System Management BIOS (SMBIOS) version BIOS - 2.3
TPM connector Internal I/O - Yes
Unbuffered memory Memory - Yes
Unit Box Height - 0.36
Unit Box Length - 0.89
Unit Box Width - 0.04
Unit Calculated Volume - 0.01282 cubm
Unit Calculated Weight - 2 kg
Units per Shipping Box - 10
USB 2.0 connectors Internal I/O - 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity Rear panel I/O ports - 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Rear panel I/O ports - 1
Vendor Homepage - https://www.asrock.com/mb/AMD/B550%20Pro4/index.asp#Specification
VGA (D-Sub) ports quantity Rear panel I/O ports - 1
Wake-on-LAN ready Network - Yes
Warranty - 36 months
warrantyLength - 24
warrantyType - G
Weight - 1,88
Weight - 1.81
weight - 1805
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
Weight Other features - 465 g
Wi-Fi Network - No
Width Weight & dimensions - 305 mm
Wymiary: Szerokość - 244 mm
Wymiary: Wysokość - 305 mm
Złącza: Obsługa Raid - tak (0,1,10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 6 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na płycie głównej - 1 x USB 3.1 (Gen2)
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 1 x PS/2
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 1 x USB 3.2 (Gen2)
Złącza: Złącza na tylnym panelu - 1 x USB 3.2 (Gen2) typ C
Złącza: Złącza na tylnym panelu - 1 x VGA
Złącza: Złącza na tylnym panelu - 4 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza PCI-E (liczba slotów) - 2 x PCI-Express x1
Złącza: Złącza PCI-E (liczba slotów) - 2 x PCI-Express x16
