BIOS - ACPI version - 6.2
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - System Management BIOS (SMBIOS) version - 3.2
Brand - ASUS
BrandPartCode - 90MB1140-M0EAY0
Category - Motherboards
Code - 90MB1140-MVAAY0
EAN - 4718017487597
Features - Component for - PC
Features - Motherboard chipset - AMD X570
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - mini ITX
Features - Windows operating systems supported - Windows 10 x64
Graphics - Parallel processing technology support - Not supported
GTIN - 4718017487597
Internal I/O - Number of SATA III connectors - 4
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://rog.asus.com/motherboards/rog-strix/rog-strix-x570-i-gaming-model/
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - ROG Strix X570-I Gaming rises above the rest to deliver incredible power and undeniable style for your small form factor gaming build. With support for the latest AMD Ryzen processors, ROG Strix X570-I Gaming is primed to deliver maximum gaming performance, while its revolutionary miniature active cooling design efficiently works to keep temperatures down. Coupled with HDMI 2.0 and DisplayPort 1.4 for ultra-high-resolution video output, ultrafast next-generation wireless networking and PCIe 4.0 connectivity, ROG Strix X570-I Gaming is a compact gaming powerhouse.Designed to be ChilledEffective cooling is extremely important, so ROG Strix X570-I Gaming provides comprehensive cooling features that enable higher performance at lower temperatures.SOLID HARDWARE SPECSWith upgraded power delivery to fuel high-core-count Ryzen CPUs, plus faster storage and networking, ROG Strix X570-I Gaming provides all the essentials you need to harness the full potential of components in your build for top-tier gaming performance.DESIGN & CUSTOMIZATIONThe arrival of ROG Strix X570-I Gaming brings a brand-new design that features unique mesh and cyber-text patterns. Together with the most diverse ecosystem of components in the industry, ROG Strix X570-I Gaming makes creating and customizing a gaming rig that reflects your personal style wonderfully easy.TUNE YOUR RIG YOU WANTThe ROG Strix X570-I Gaming motherboard features firmware controls and software utilities designed for all skill levels, making setup, tuning and system maintenance simple. With options from overclocking and cooling to managing network performance and audio characteristics, you can configure your ROG Strix gaming build to perform the way you want.THE POWER OF AMDAMD X570 chipsetThe AMD X570 chipset delivers outstanding overclocking capabilities for the latest AMD AM4 socket for 3rd and 2nd Gen AMD Ryzen /2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors. It is optimized for multiple GPU configurations, including NVIDIA SLI and AMD CrossFireX. It also supports x16 PCI Express 4.0/3.0 lanes and provides 10Gb/s USB 3.2 Gen 2 ports and 6 Gb/s SATA ports for faster data retrieval.AMD AM4 Socket for 3rd and 2nd Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors.The high-performance 3rd Gen AMD Ryzen processors are based on the next-gen 7nm Zen architecture and support up to 16 processor cores. AMD AM4-socket processors feature dual-channel DDR4 memory, native 10Gb/s USB 3.2 Gen 2 and x16 PCI Express 4.0/3.0 lanes for superb performance.
LongProductName - AM4, 2x DDR4, PCIe 4.0 x16, 4x SATA 6Gb/s, M.2, HDMI, DisplayPort, RJ-45, Wi-Fi 802.11 a/b/g/n/ac/ax, Bluetooth 5.0, 17x17 cm
LongSummaryDescription - ASUS ROG Strix X570-I Gaming. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 2000 Series, AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III. LAN controller: Intel® I211-AT, Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: mini ITX, Motherboard chipset family: AMD
Memory - Maximum internal memory - 64 GB
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 4800,2133,2400,2666,2800,2933,3000,3200,3400,3466,3600,3800,4000,4133,4266,4400,4600 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory > Supported memory types - DDR4
Name - Asus ROG STRIX X570-I GAMING | Processor family AMD | Processor socket AM4 | DDR4 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Network - Bluetooth - Yes
Network - Bluetooth version - 5.0
Network - Ethernet LAN - Yes
Network - LAN controller - Intel® I211-AT
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Other features - Weight - 1.23 kg
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 90.00 mm
Package features > Gross height (mm) - 280.00 mm
Package features > Gross width (mm) - 280.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 122 pc(s)
Package features > Paper/Pasteboard - 160.00 g
Package features > Plastic (No PET) - 40.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Processor - Compatible processor series - AMD Ryzen 2000 Series, AMD Ryzen 3000 Series
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Processor > Processor family - AMD
Processor > Processor socket - AM4
ProductName - ROG Strix X570-I Gaming

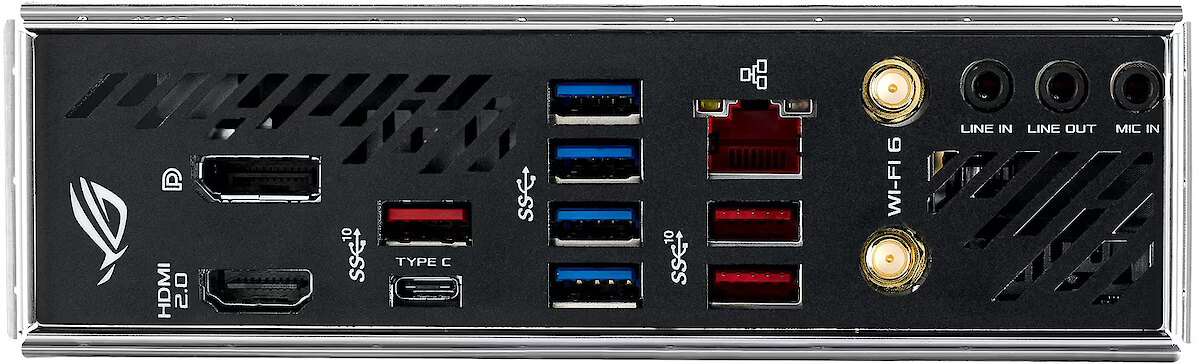

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
ShortSummaryDescription - ASUS ROG Strix X570-I Gaming, AMD, Socket AM4, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series, DDR4-SDRAM, 64 GB, DIMM
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Technical details > Gross weight - 1.70 kg
Technical details > Net weight - 1.50 kg
Technical details > Producer - Asus
Technical details > Producer product name - ROG STRIX X570-I GAMING
Title - ASUS ROG Strix X570-I Gaming AMD X570 Socket AM4 mini ITX
URL - https://www.asus.com/Motherboards/ROG-Strix-X570-I-Gaming/overview/
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo -
Weight & dimensions - Depth - 170 mm
Weight & dimensions - Height - 94 mm
Weight & dimensions - Width - 170 mm
