ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC897
Audio output channels Features - 7.1 channels
BIOS - BIOS type - UEFI AMI
BIOS memory size BIOS - 256 Mbit
BIOS type BIOS - UEFI AMI
Bluetooth Network - Yes
Bluetooth version Network - 5.0
Cables included Packaging content - SATA
Category Code - MBA
Compatible processor series Processor - AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component for Features - PC
CPU fan connector Internal I/O - Yes
Depth Weight & dimensions - 226 mm
Description - The ASRock X-Series motherboard provides a high-value solution, balancing performance and versatility within a compact form factor. It’s highly capable in handling a wide range of tasks, from professional productivity to everyday usage, striking an excellent balance between affordability, reliability, and efficiency. 6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance! DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all. Hyper M.2 Gen4 x4
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly. Dual Band 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth. Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case. POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility. Post Status Checker
Displays the real-time status of CPU, DRAM, VGA, and BOOT device with colored LEDs during startup. A simple and efficient way to check system operation at a glance.Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors6+1+1 Power Design, Dr.MOS for VCore2 x DDR5 DIMMsSupports Dual Channel, up to 8000+ (OC)1 PCIe 4.0 x16, 2 PCIe 3.0 x1Graphics Output Options: 1 HDMI, 1 DisplayPortRealtek ALC897 7.1 CH HD Audio Codec2 Hyper M.2 (PCIe Gen4x4)4 SATA32 USB 3.2 Gen1 Type-C (1 Rear, 1 Front)5 USB 3.2 Gen1 (3 Rear, 2 Front)6 USB 2.0 (2 Rear, 4 Front)Realtek 2.5G LAN802.11ac Wi-Fi 5 + BluetoothSupports BIOS Flashback
dimensionalWeight - 906
DisplayPorts quantity Rear panel I/O ports - 1
DisplayPort version Rear panel I/O ports - 1.4
ECC сompatibility Memory - ECC & Non-ECC
EPS power connector (8-pin) Internal I/O - Yes
Ethernet interface type Network - 2.5 Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 (Gen 3.x) slots - 2
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - AMD A620A
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
Front panel audio connector Internal I/O - Yes
Graphics - Graphics card family - AMD
Graphics - HDCP - Yes
Graphics - HDCP version - 2.3
Graphics - On-board graphics card - Yes
Graphics card family Graphics - AMD
HDCP Graphics - Yes
HDCP version Graphics - 2.3
HDMI ports quantity Rear panel I/O ports - 1
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 3
Internal I/O - Number of CPU fan connectors - 2
Internal I/O - Number of EPS power connectors (8-pin) - 1
Internal I/O - Number of RGB LED pin headers - 4
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Number of water pump connectors - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
LAN controller Network - Dragon RTL8125BG
Line-in Rear panel I/O ports - Yes
Maximum internal memory Memory - 128 GB
Maximum number of SMP processors Processor - 1
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Microphone in Rear panel I/O ports - Yes

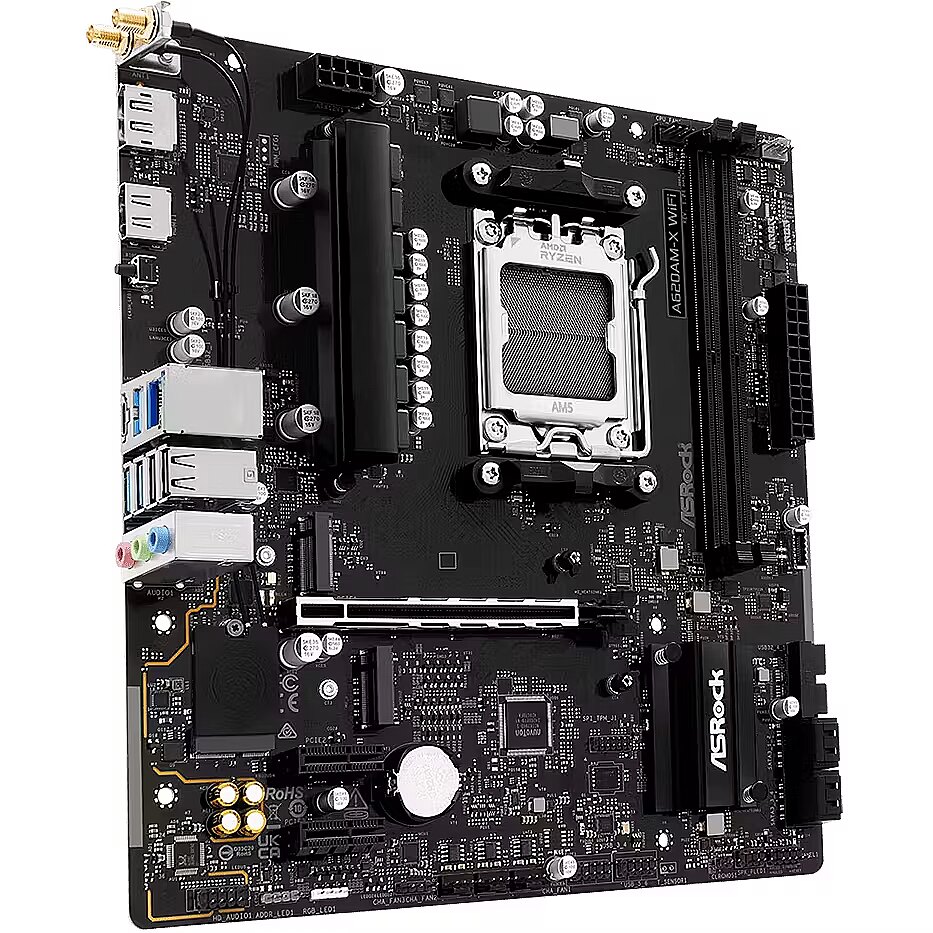

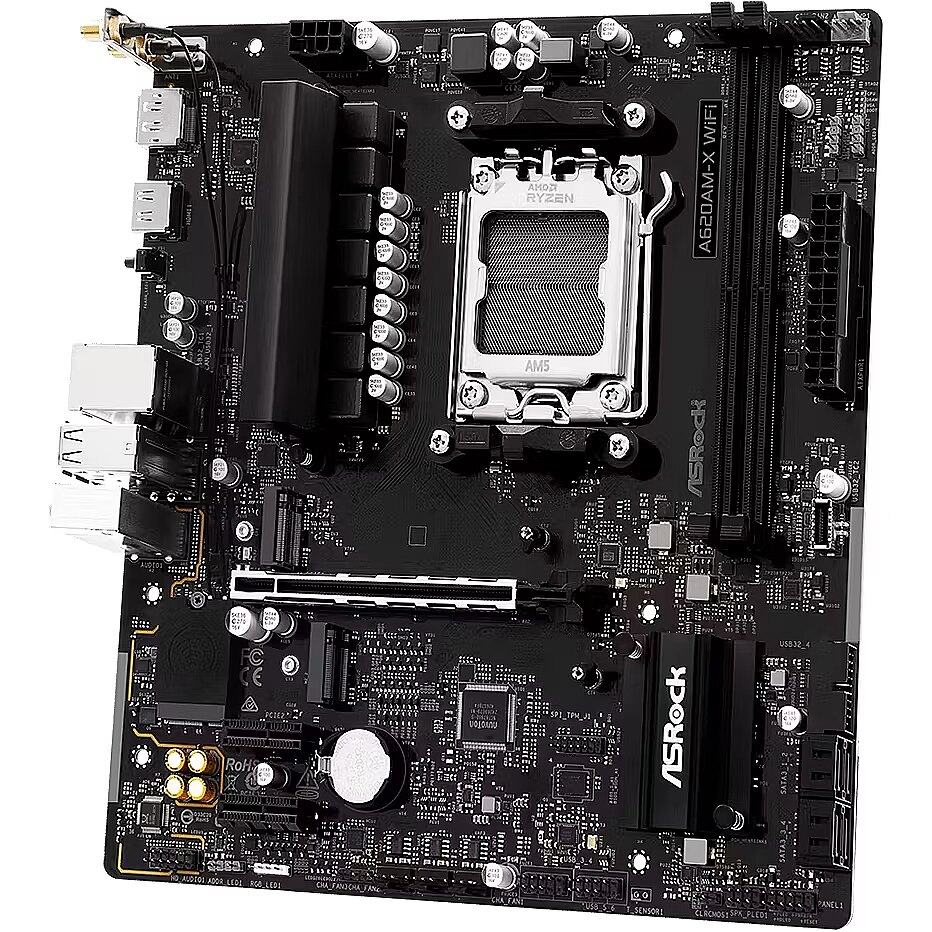

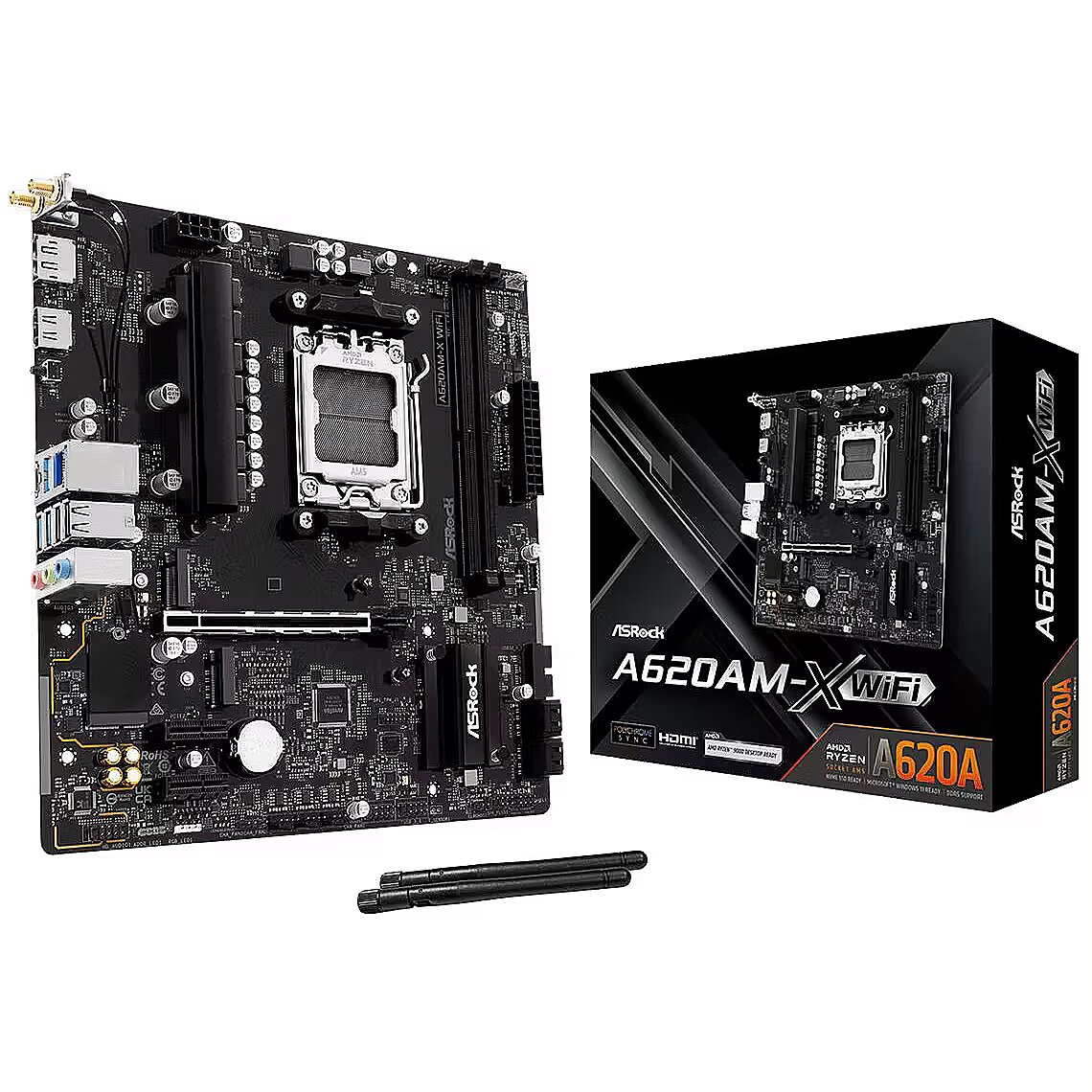

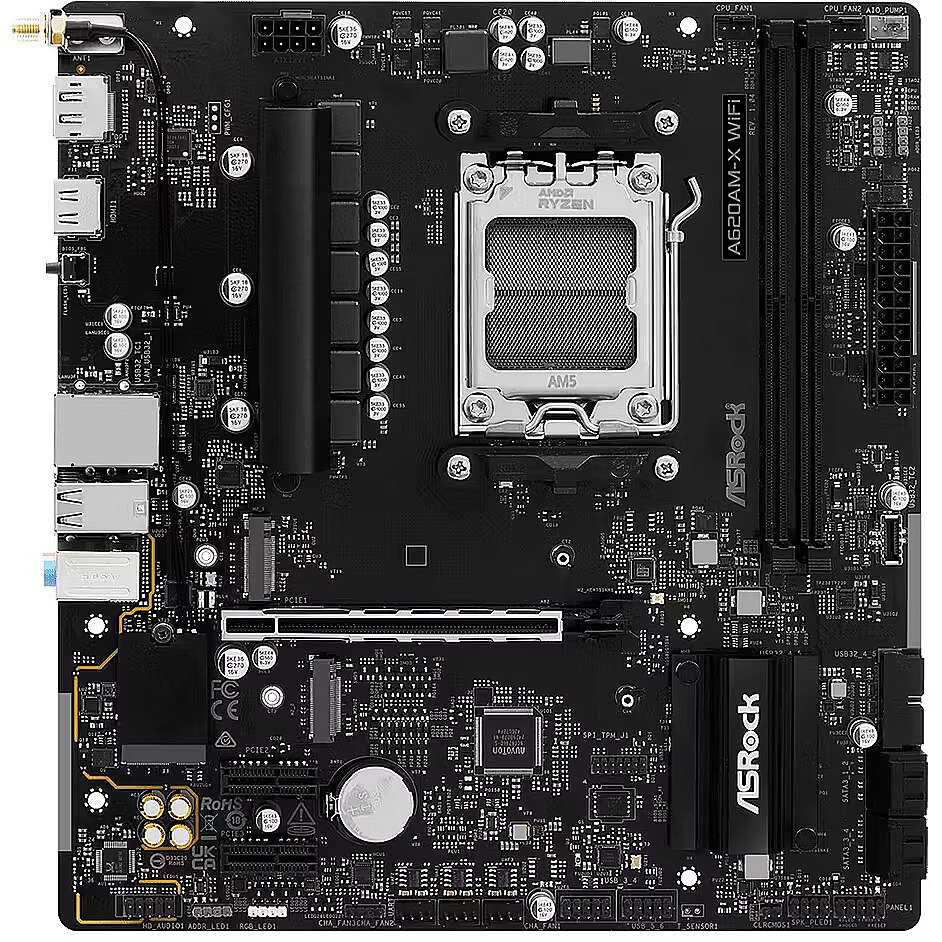

Model - A620AM-X WIFI
Motherboard chipset family Features - AMD
Motherboard chipset Features - AMD A620A
Motherboard form factor Features - micro ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.0
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Dragon RTL8125BG
Network - Top Wi-Fi standard - Wi-Fi 5 (802.11ac)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Number of chassis fan connectors Internal I/O - 3
Number of CPU fan connectors Internal I/O - 2
Number of EPS power connectors (8-pin) Internal I/O - 1
Number of M.2 (M) slots Expansion slots - 2
Number of memory slots Memory - 2
Number of RGB LED pin headers Internal I/O - 4
Number of SATA III connectors Internal I/O - 4
Number of water pump connectors Internal I/O - 1
On-board graphics card Graphics - Yes
Packaging content - Cables included - SATA
PCI Express x1 (Gen 3.x) slots Expansion slots - 2
PCI Express x16 (Gen 4.x) slots Expansion slots - 1
Processor - Compatible processor series - AMD Ryzen 7000 Series
Processor - Compatible processor series - AMD Ryzen 8000 Series
Processor - Compatible processor series - AMD Ryzen 9000 Series
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor manufacturer Processor - AMD
Processor socket Processor - Socket AM5
producerCode - A620AM-X WIFI
productName - Asrock A620AM-X WiFi AMD A620A Socket AM5 micro ATX
productSize - Normal

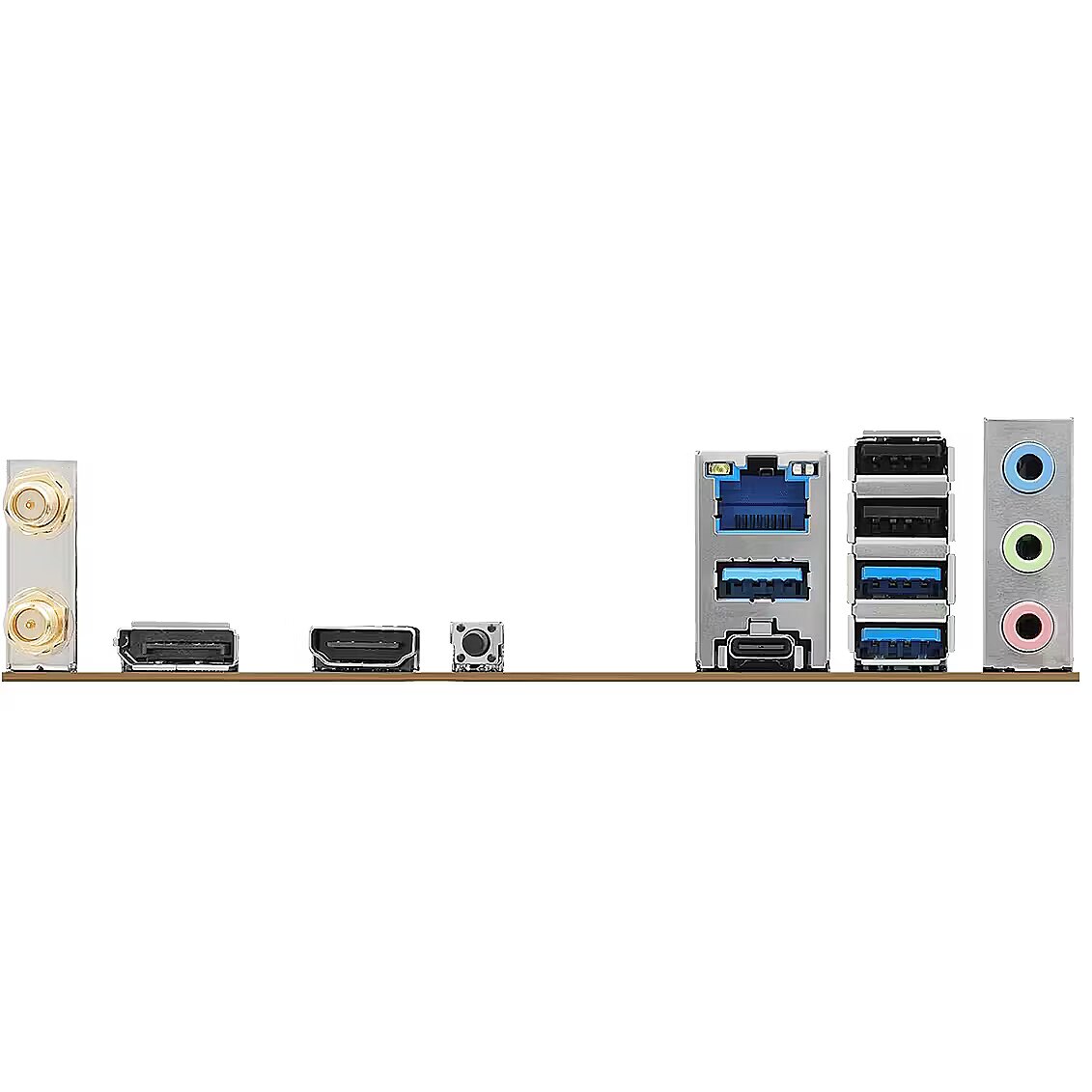

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
RGB LED pin header Internal I/O - Yes
sizeX - 296
sizeY - 264
sizeZ - 58
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Summary - Asrock A620AM-X WiFi. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III. Graphics card family: AMD. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Supported memory types Memory - DDR5-SDRAM
Supported storage drive interfaces Storage controllers - M.2, SATA III
Top Wi-Fi standard Network - Wi-Fi 5 (802.11ac)
TPM connector Internal I/O - Yes
Unbuffered memory Memory - Yes
Unit Box Height - 0.06
Unit Box Length - 0.3
Unit Box Width - 0.265
Unit Calculated Volume - 0.005702 cubm
Unit Calculated Weight - 1.15 kg
Units per Pallet - 0
Units per Shipping Box - 10
USB 2.0 connectors Internal I/O - 2
USB 2.0 ports quantity Rear panel I/O ports - 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Rear panel I/O ports - 1
Vendor Homepage - https://asrock.com/MB/AMD/A620AM-X%20WiFi/index.asp#Overview
Warranty - 36 months
warrantyLength - 36
warrantyType - G
weight - 1062
Weight & dimensions - Depth - 226 mm
Weight & dimensions - Width - 244 mm
Wi-Fi Network - Yes
Wi-Fi standards Network - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Width Weight & dimensions - 244 mm
Windows operating systems supported Features - Windows 10 x64, Windows 11 x64
