1st M.2 highest PCI Express generation Expansion slots - 4.0
1st M.2 largest key size Expansion slots - 2280
2nd M.2 highest PCI Express generation Expansion slots - 4.0
2nd M.2 largest key size Expansion slots - 2280
ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC897
Audio output channels Features - 7.1 channels
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS type BIOS - UEFI AMI
Bluetooth Network - Yes
Cables included Packaging content - SATA
Category Code - MBA
Category_1 - Płyty główne
Category_2 - Płyty główne - AMD AM5
Clear CMOS jumper BIOS - Yes
Compatible processor series Processor - AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
Component for Features - PC
CPU fan connector Internal I/O - Yes
Depth Weight & dimensions - 244 mm
Description - AMD B850 chipset
The AMD B850 platform is the foundation for next-generation gaming and content creation experiences. Featuring enhanced overclocking capabilities, DDR5 memory support with AMD EXPO™ Technology, and PCIe® 5 connectivity for NVME storage, the AMD B850 platform is ready to power your desktop for years to come. HD Audio
Provides high quality sound with minimal loss of audio fidelity. Hi-Fi Ground
BIOSTAR Hi-Fi Ground (Golden Line) is noise-blocking multi-layer PCB design to isolates analog audio signals from digital sources. Unique PCB layout is ideal for exceptional clarity and high fidelity sound. DisplayPort
DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio. DX12
DirectX 12 introduces the next version of Direct3D, the graphics API at the heart of DirectX. Direct3D is one of the most critical pieces of a game or game engine, and we've redesigned it to be faster and more efficient than ever before. Direct3D 12 enables richer scenes, more objects, and full utilization of modern GPU hardware. HDMI® 2.1
HDMI® 2.1 supports true 4K resolution- 4096*2160@120hz. A significant increase in bandwidth is up to 18mbps, and significant enhancements are added to support the continued increase consumer demands on video and audio experience. SATAIII 6Gbps
SATAIII 6Gbps provides a higher bandwidth to retrieve and transfer HD media. With this super speed data transfer, SATAIII allows an incredible data boost which is 2x faster than the SATA II. DDR5
DDR5 provides 50% higher bandwidth than DDR4, the frequency can be up to 6000+(OC)MHz, and can boasts the largest memory capacity available. It also supports dual channels and has lower power consumption, which can provide better performance and experience for overclockers. PCIe 4.0
PCIe 4.0 is the ubiquitous and general-purpose PCI Express I/O standard. At 16GT/s bit rate, the interconnect performance bandwidth is doubled over PCIe 3.0, while preserving compatibility with software and mechanical interfaces. PCIe 4.0 M.2
PCIe 4.0 M.2 delivers the highest bandwidth and lower latency. It is 2 times faster compared with PCIe 3.0 M.2. USB 3.2 Gen2 Type-C
USB 3.2 Gen2 offers up to double the transfer speed of USB 3.2 Gen1 at 10 Gbps that allows for much higher data transfer rates and more efficient data transfer. And the Type-C connector is reversible so it's easier to plug in. USB 3.2 Gen1 Type-A
USB 3.2 Gen1 delivers a compelling performance boosts and can be used to connect multiple devices without worrying about compatibility. It is capable of data transfer speeds up to 5Gbps and backwards compatible with all existing USB products. Digital PWM
Digital PWM controller is with dual-output multiphase that faster transient performance and accurately regulated frequency control. It can be enabled to greatly increase system efficiency. 2.5 GbE LAN
The 2.5 GbE LAN offers faster transmission speeds compared to traditional 1 GbE LAN and is currently the mainstream transmission speed. It enhances data transmission speeds among devices within a local area network, making it particularly suitable for scenarios requiring large-scale data transfer. Super Durable Solid Caps
The best quality solid state capacitors with ultra low ESR design, the Super Durable Solid Caps doubles the lifespan. Iron Slot Protection
The exclusive Iron Slot Protection can reinforce PCI-E x16 slots to handle heavier graphics cards, prevent bending, and extend longevity of the slot, making the new-gen RACING Series much more robust. Super Durable Inductor
Super Durable Inductor brings the benefits of higher current capacity, lower energy loss and better power stability. Moistureproof PCB
The PCB will be oxidizing easily by damp or absorbed moisture, and ionic migration or CAF (Conductive Anodic Filament) will be generated. Moistureproof PCB meets high density and high reliability requirements for moisture proof. ESD Protection
ESD (Electrostatic Discharge) is the major factor to destroy the PC by electrical overstress (EOS) condition. ESD occurred by PC users when touch any devices connect to a PC, which may result in damage to the motherboard or parts. ESD protection is designed to protect the motherboard and equipment from damage by EOS. OC / OV / OH Protection
OC / OV / OH Protection design detects overvoltage conditions and prevents voltage surges from spreading in real time. It also actively cuts off the overvoltage supply to protect your system. VIVID LED DJ
The VIVID LED DJ has launched a brand-new interface that offers better compatibility with peripheral devices, delivering the best lighting experience to users and allowing them to create a unique personal style. UEFI BIOS
Unified Extensible Firmware Interface (UEFI) is a brand new framework that provides a revolutionary interface. It is a modern clear and easy-to-use graphical user interface. The UEFI comes with a colorful easy-understand icons lead users into the setup layer directly. BIO-Flasher
BIO-Flasher is a convenient BIOS update tool. Just launch this tool and put the BIOS on USB pen driver before entering the OS. You can update your BIOS with only a few clicks without preparing an additional floppy disk or other complicated flash utility. A.I FAN
With A.I FAN users can ensure that their gaming PC can maintain its performance while staying cool. According to different cooling needs and usage scenarios, users can control speed modes. Allows users to have more customizability of fan modes and automatically detects different temperatures to make fan operate at defined speed for optimal cooling performance. LED ROCK ZONE
LED ROCK ZONE comes with the RGB 12V LED header and Digital 5V LED header which offer more colorful lighting options to DIY lovers. Adjusting the color of LED and changing system colors by VIVID LED DJ will make you fully enjoy the process of PC modding developing your personal style. BIOSTAR RGB SYNC
BISOTAR RGB SYNC is designed to create your personalized lighting effects. Let all the RGB peripherals and components sync together. Debug LED
Debug LED helps you identify any issues going with your board or hardware. When error occurs, the corresponding LED lights will inform you on the status of your board or hardware to shorten the test time effectively. A.I TP Control
A.I TP Control is designed for overclockers. It provides a user-friendly BIOS environment that overclockers can adjust the temperature setting to keep your PC safe and enjoy extreme overclocking performance. Smart Update
Biostar Smart Update is a utility that can help users run online update. It can download the drivers for your motherboard from Biostar official website and install them automatically. SMART BIOS UPDATE
The easiest way to update the BIOS is provided.
Connect the USB driver to the SMART BIOS USB port to update. Auto Installer
The Auto Installer is capable of automatically installing the required drivers on Windows OS, providing users with a more intuitive and convenient experience, eliminating the hassle of manually searching for drivers. HDMI®
The terms HDMI® and HDMI® High-Definition Multimedia Interface, and the HDMI® Logo are trademarks or registered trademarks of HDMI® Licensing Administrator, Inc. in the United States and other countries.Supports AMD Ryzen™ 9000 / 8000 / 7000 series ProcessorsAMD B850 single chip architectureSupports 2-DIMM DDR5 up to 128 GB MemorySupports PCIe 4.0 M.2Supports HDMI® & Display PortSupports 2.5 GbE LANSupports USB 3.2 Gen2 Type CSupports WiFi 7 & 6E module (No WiFi card included)
dimensionalWeight - 931
DirectX version Graphics - 12.0
DisplayPorts quantity Rear panel I/O ports - 1
DisplayPort version Rear panel I/O ports - 1.2
EAN_code - 4712960688414
ECC сompatibility Memory - Non-ECC
EPS power connector (8-pin) Internal I/O - Yes
Ethernet interface type Network - Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - 1st M.2 highest PCI Express generation - 4.0
Expansion slots - 1st M.2 largest key size - 2280
Expansion slots - 2nd M.2 highest PCI Express generation - 4.0
Expansion slots - 2nd M.2 largest key size - 2280
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x4 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - AMD B850
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
Front panel audio connector Internal I/O - Yes
Front panel connector Internal I/O - Yes
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Parallel processing technology support - Not supported
HDCP Graphics - Yes
HDMI ports quantity Rear panel I/O ports - 1
HDMI version Rear panel I/O ports - 2.1
Headphone outputs Rear panel I/O ports - 3
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Clear CMOS jumper - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of CPU fan connectors - 1
Internal I/O - Number of EPS power connectors (8-pin) - 1
Internal I/O - Number of SATA III connectors - 2
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
LAN controller Network - Realtek RTL8125D
Manufacturer - Biostar
Manufacturer_code - B850MT2E DJ
Maximum internal memory Memory - 128 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speed (max) - 8000 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Microphone in Rear panel I/O ports - Yes
Model - B850MT2-E DJ
Motherboard chipset family Features - AMD
Motherboard chipset Features - AMD B850
Motherboard form factor Features - micro ATX

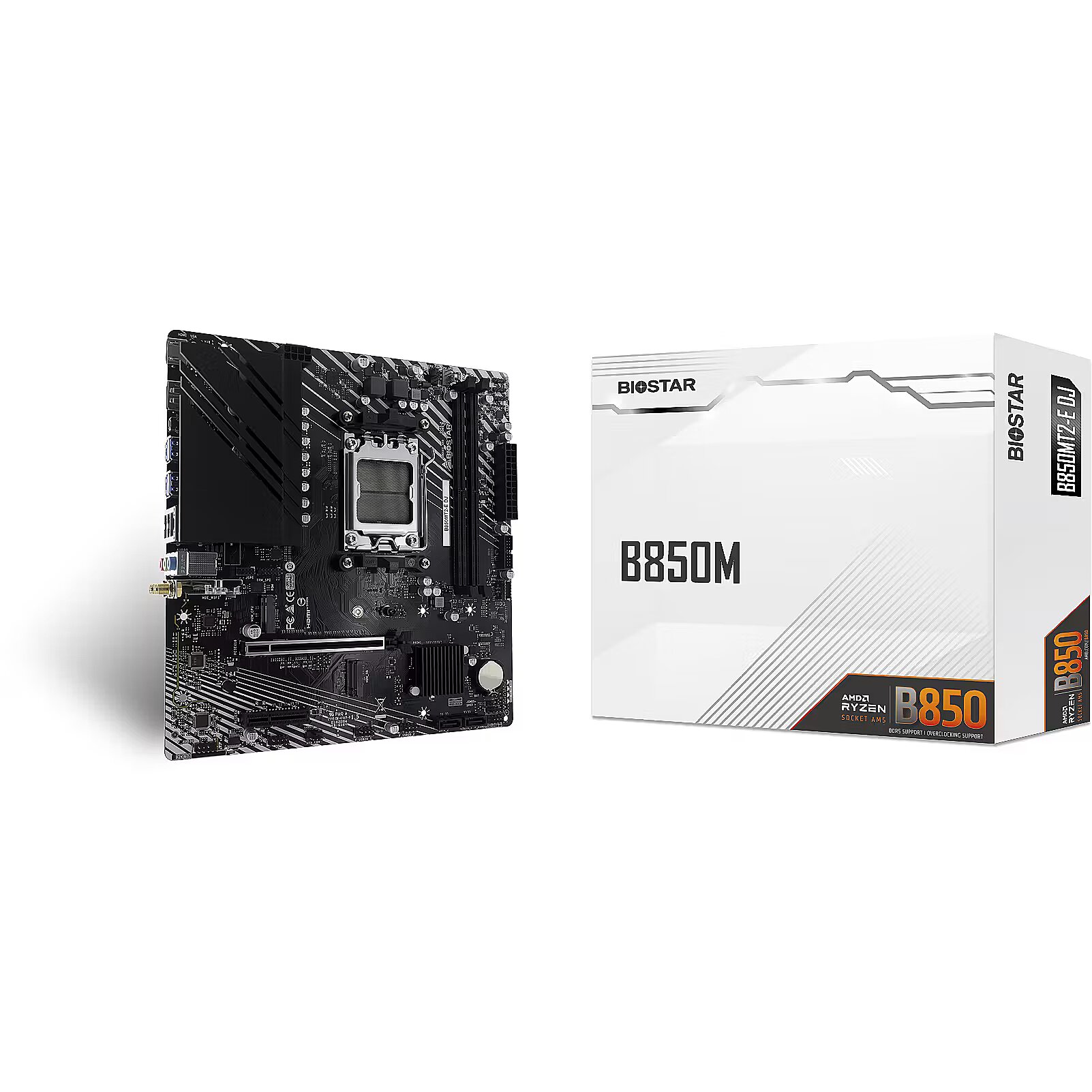

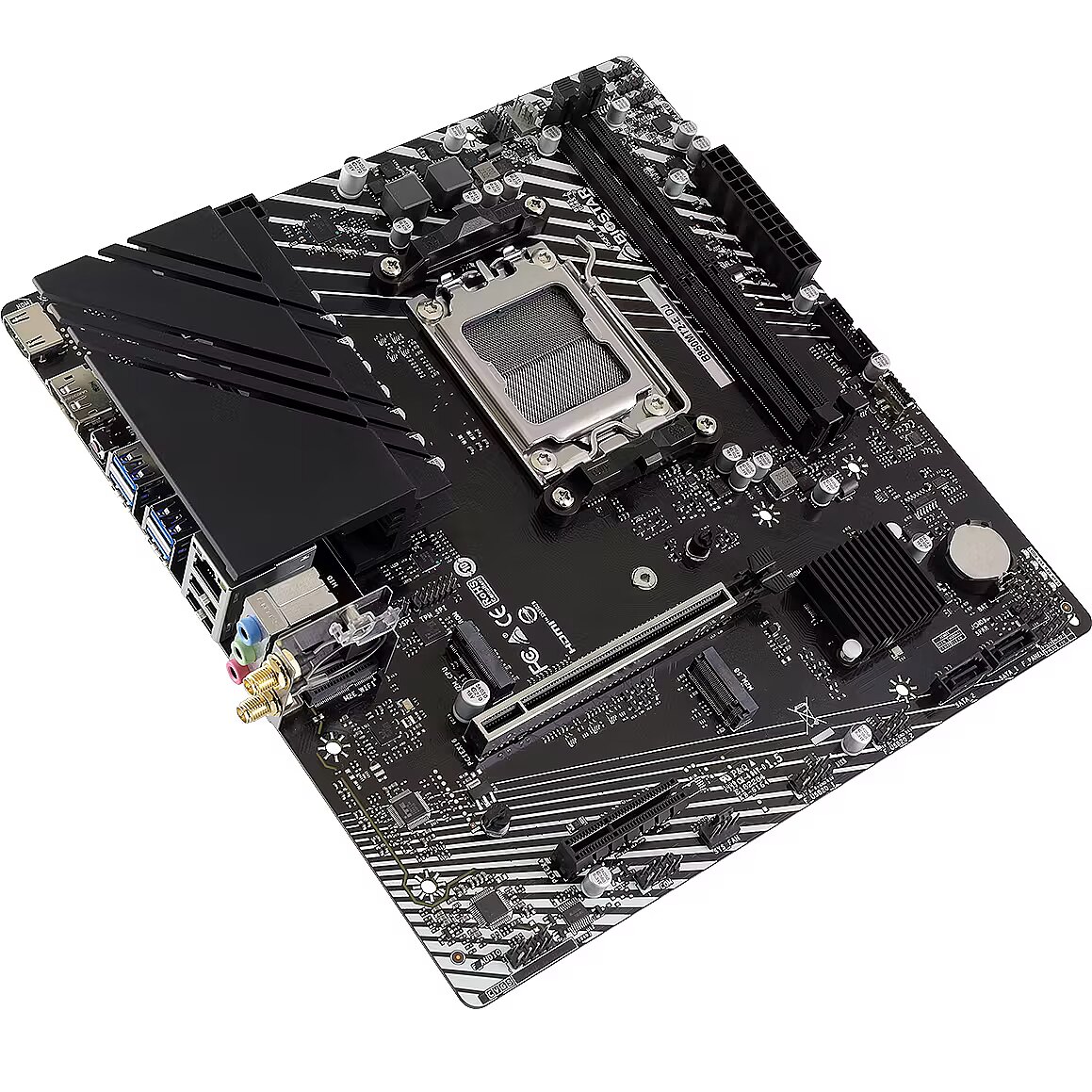

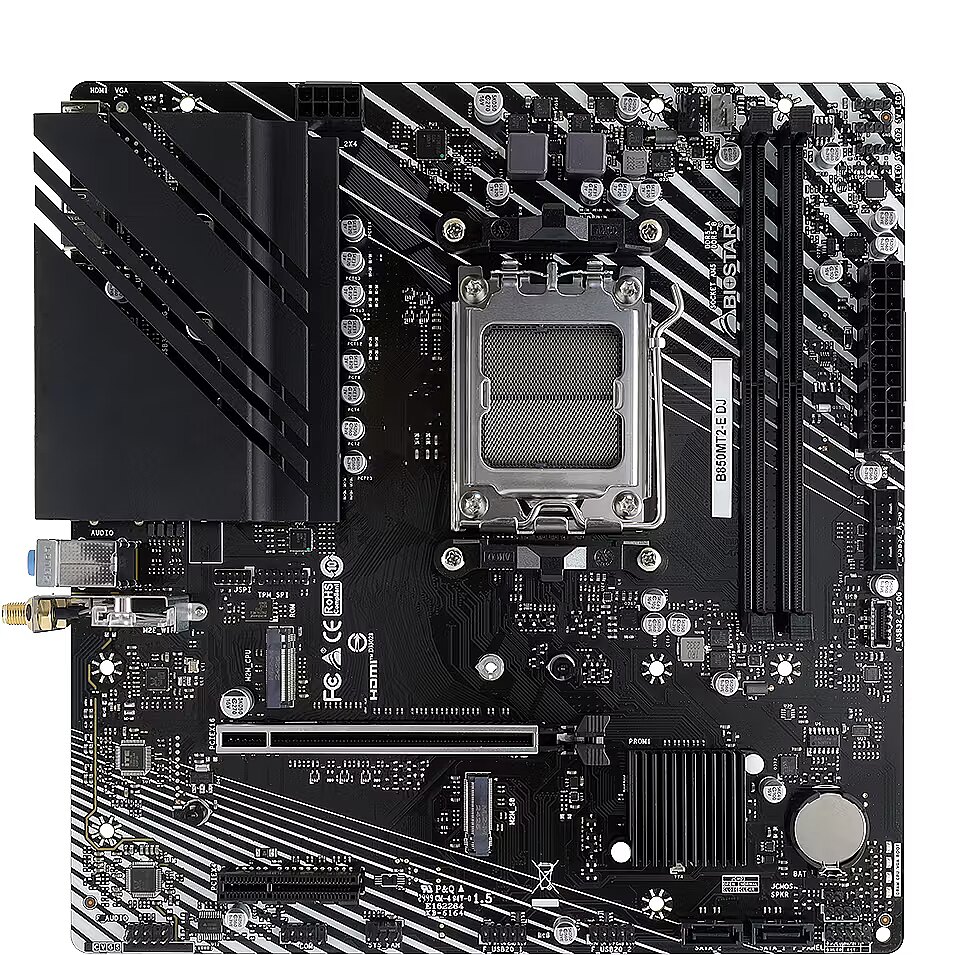

Name - Biostar B850MT2E DJ - Socket AM5
Network - Bluetooth - Yes
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8125D
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Number of COM connectors Internal I/O - 1
Number of CPU fan connectors Internal I/O - 1
Number of EPS power connectors (8-pin) Internal I/O - 1
Number of M.2 (M) slots Expansion slots - 2
Number of memory slots Memory - 2
Number of SATA III connectors Internal I/O - 2
Number of storage drives supported Storage controllers - 4
Packaging content - Cables included - SATA
Parallel processing technology support Graphics - Not supported
PCI Express x4 (Gen 4.x) slots Expansion slots - 1
PCI Express x16 (Gen 4.x) slots Expansion slots - 1
Processor - Compatible processor series - AMD Ryzen 7000 Series
Processor - Compatible processor series - AMD Ryzen 8000 Series
Processor - Compatible processor series - AMD Ryzen 9000 Series
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor manufacturer Processor - AMD
Processor socket Processor - Socket AM5
producerCode - B850MT2-E DJ
Product colour Features - Black
productName - Biostar B850MT2-E DJ motherboard AMD B850 Socket AM5 micro ATX
productSize - Normal
RAID levels Storage controllers - 0, 1, 10
RAID support Storage controllers - Yes

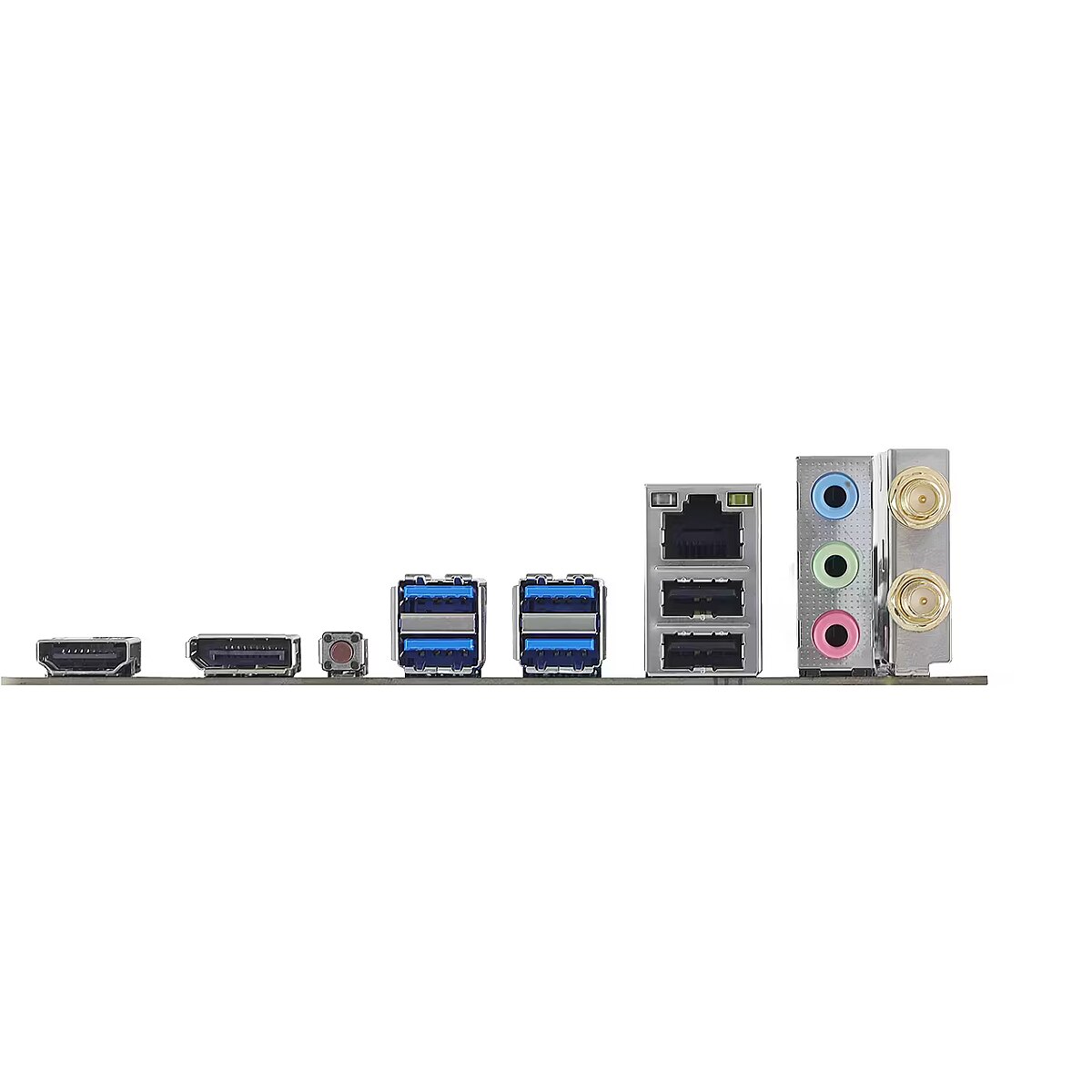

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 3
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - Number of Wi-Fi antenna ports - 2
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB connector type - USB Type-A
Rear panel I/O ports - WiFi-AP antenna jack - 2
RGB LED pin header Internal I/O - Yes
sizeX - 280
sizeY - 256
sizeZ - 65
Storage controllers - Number of storage drives supported - 4
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - SATA III, PCI Express 4.0
Storage controllers - Supported storage drive types - HDD & SSD
Summary - Biostar B850MT2-E DJ. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, PCI Express 4.0, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. USB connector type: USB Type-A. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125D, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Supported memory clock speed (max) Memory - 8000 MHz
Supported memory types Memory - DDR5-SDRAM
Supported processor sockets Processor - Socket AM5
Supported storage drive interfaces Storage controllers - SATA III, PCI Express 4.0
Supported storage drive types Storage controllers - HDD & SSD
Top Wi-Fi standard Network - Wi-Fi 7 (802.11be)
TPM connector Internal I/O - Yes
Unbuffered memory Memory - Yes
Unit Box Height - 0.065
Unit Box Length - 0.28
Unit Box Width - 0.26
Unit Calculated Volume - 0.005423 cubm
Unit Calculated Weight - 1.1 kg
Units per Shipping Box - 10
USB 2.0 connectors Internal I/O - 2
USB 2.0 ports quantity Rear panel I/O ports - 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors Internal I/O - 1
USB connector type Rear panel I/O ports - USB Type-A
Vendor Homepage - https://www.biostar.com.tw/app/en/mb/introduction.php?S_ID=1177
Warranty - 36 months
warrantyLength - 24
warrantyType - G
Weight - 1,10
weight - 1020
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 235 mm
Wi-Fi Network - Yes
Width Weight & dimensions - 235 mm
WiFi-AP antenna jack Rear panel I/O ports - 2
Windows operating systems supported Features - Windows 11 x64, Windows 10 x64
