1st M.2 highest PCI Express generation Expansion slots - 5.0
1st M.2 largest key size Expansion slots - 2580
2nd M.2 highest PCI Express generation Expansion slots - 4.0
2nd M.2 largest key size Expansion slots - 22110
12V power connector Internal I/O - Yes
Accessories included -
ACPI version BIOS - 5.0
Antenna included Packaging content - Yes
ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC897
Audio output channels Features - 7.1 channels
Batteries included Packaging content - Yes
Battery technology Battery - Lithium-Manganese Dioxide (LiMnO2)
Battery type Battery - CR2032
Battery weight Battery - 3 g
BIOS - 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS memory size BIOS - 256 Mbit
BIOS type BIOS - UEFI AMI
Bundled software Packaging content - Norton Internet Security (OEM version)
LAN bandwidth management software
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
Chipset manufacturer - AMD
Chipset type - AMD B850
Clear CMOS button BIOS - Yes
Clear CMOS jumper BIOS - Yes
CnCode - 84733020
code - B850M D3HP
Code - B850M D3HP
COM connector / port - No
Compatible processor series Processor - AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Component for Features - PC
Country of origin Logistics data - China
CPU fan connector Internal I/O - Yes
CPU socket - Socket AM5
Dane techniczne: Chipset płyty głównej - AMD B850
Dane techniczne: Grupa produktowa - Płyty główne Gigabyte
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - Gigabyte
Dane techniczne: Przeznaczenie - AMD
Dane techniczne: Standard płyty - micro-ATX
Depth Weight & dimensions - 244 mm
Description - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge 5+2+2 Phases Digital VRM with DrMOS Dual Channel DDR5：4*DIMMs PCIe Gen5 x16 with PCIe UD Slot & EZ-Latch M.2 Gen5 with M.2 Heatsink, MOSFET Heatsink
Description - X3D Turbo Mode
Unleash next-generation gaming performance with one-click activation.
X3D Turbo Mode's unique optimization parameters allow even Ryzen 9000 X3D processors to boost gaming performance, and Ryzen 9000 processors without X3D to achieve similar levels of gaming performance as their Ryzen X3D counterparts. Enjoy smoother gameplay, higher frame rates, and reduced lag with GIGABYTE's BIOS innovation, X3D Turbo Mode. X3D Turbo Mode to Unleash Next-Generation Gaming Performance AMD AM5 Socket: Supports AMD Ryzen 9000/8000/7000 Series Processors 5+2+2 Phase Digital VRM Dual-Channel DDR5 Memory: 4 DIMMs with AMD EXPO Memory Module Support EZ-Latch: PCIe x16 Slot with Quick Release Design User-Friendly Interface: Multi-Theme, AIO Fan Control, and Automatic Q-Flash Scan in BIOS and Software Ultra-Fast Storage: 2 M.2 Slots, Including 1 PCIe 5.0 x4 High-Speed Networking: GbE LAN Expanded Connectivity: 2 DP, HDMI
Designation - CE+WEEE
Desktop Management Interface (DMI) version BIOS - 2.7
Detailed data on disk/drive interfaces - Expansion connectors 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode *The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) SATA connectors 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
dimension depth - 55 mm
dimension height - 270 mm
Dimensions - 24.4 cm x 24.4 cm
dimension weight - 990 g
dimension width - 265 mm
DirectX version Graphics - 12.0
DisplayPorts quantity Rear panel I/O ports - 1
DisplayPort version Rear panel I/O ports - 2.1
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek Audio 7.1)
EAN - 4719331867058
ean - 4719331867058
Eans - 4719331867058
EAN_code - 4719331867058
ECC сompatibility Memory - Non-ECC
EPS power connector (8-pin) Internal I/O - Yes
Ethernet interface type Network - Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - 1 x PCIe 3.0 x 4
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 4.0 x 8
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 2 x M.2
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x Q-Flash Plus button
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.2 Gen 1 Type-C
External connectors - 2 x DisplayPort
External connectors - 2 x USB 2.0
External connectors - 3 x USB 3.2 Gen 1 Type-A
FireWire (IEEE 1394) - No
Form factor - micro ATX
Front panel audio connector Internal I/O - Yes
Front panel connector Internal I/O - Yes
Graphics - Zintegrowany procesor graficzny z obsługą grafiki AMD Radeon: 1 x port HDMI, obsługujący maksymalną rozdzielczość 4096x2160@60 Hz
* Obsługa wersji HDMI 2.1, HDCP 2.3 i HDR.
** Obsługa natywnych portów zgodnych z HDMI 2.1 TMDS. 2 x DisplayPort, obsługujące maksymalną rozdzielczość 3840x2160@144 Hz
* Obsługa wersji DisplayPort 1.4.
guarantee - 36
guarantee_type - normal
HDCP Graphics - Yes
HDMI ports quantity Rear panel I/O ports - 1
HDMI version Rear panel I/O ports - 2.1
Headphone outputs Rear panel I/O ports - 1
Height Weight & dimensions - 35 mm
Integrated CPU - No
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - M.2, SATA
Komunikacja: Zintegrowana karta sieciowa - tak (Realtek 1GbE LAN)
Link - https://www.gigabyte.com/Motherboard/B850M-D3HP#kf
Lithium weight per battery Battery - 0.07 g
LPT connector / port - No
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer Code - B850M D3HP
Manufacturer Name - Gigabyte
Manufacturer_code - B850M D3HP
Max. number of SATA devices - 4
Maximum internal memory Memory - 256 GB
Maximum internal memory per slot Memory - 64 GB
Maximum resolution Graphics - 4096 x 2160 pixels
Max memory size - 256 GB
Memory > Supported memory types - DDR5
Memory bus frequency - 4400 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6666 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory bus frequency - 8000 MHz
Memory bus frequency - 8200 MHz
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Memory type - DDR5
Microphone in Rear panel I/O ports - Yes
Model - B850M D3HP
Motherboard chipset family Features - AMD
Motherboard chipset Features - AMD B850
Motherboard form factor Features - micro ATX
MPN - B850M D3HP

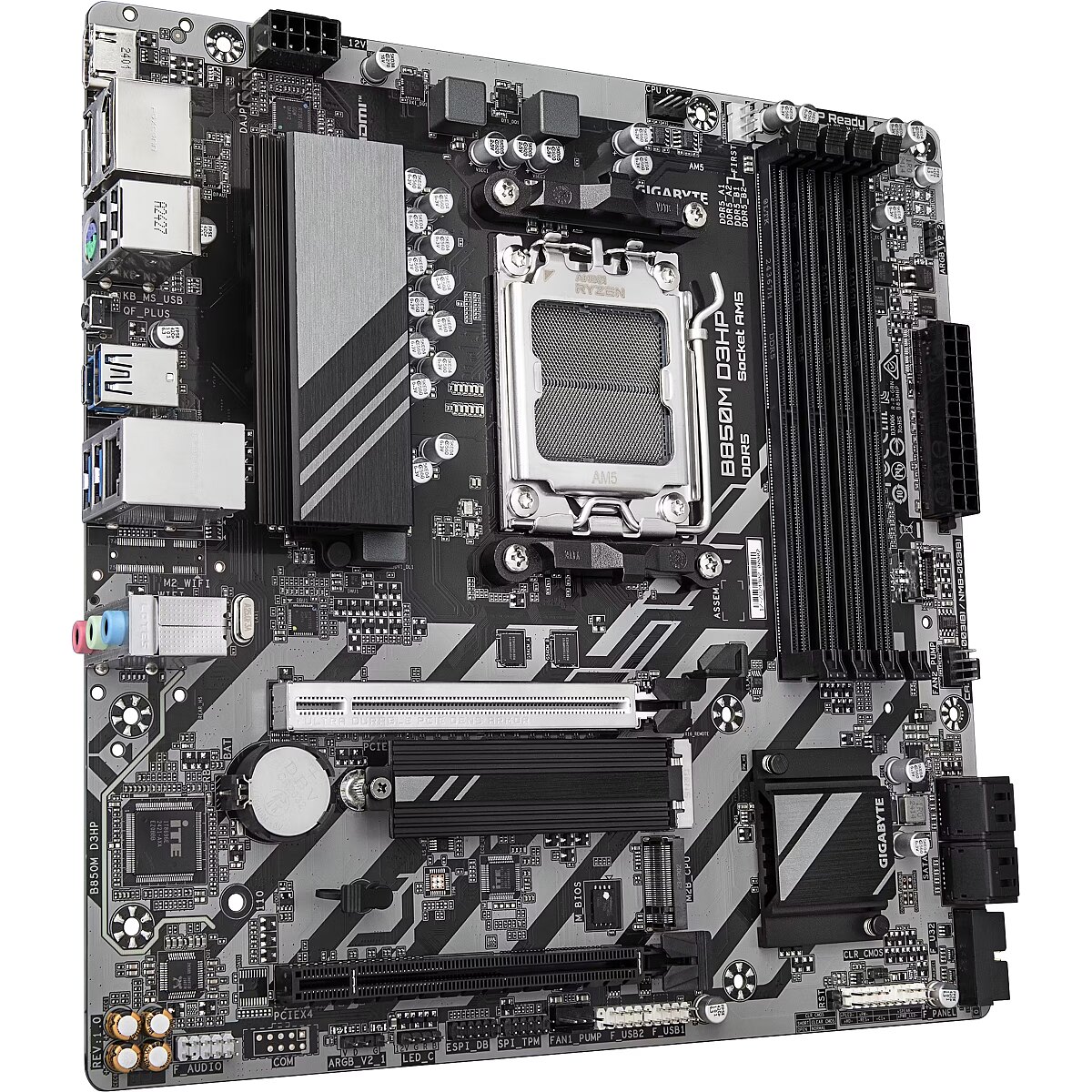

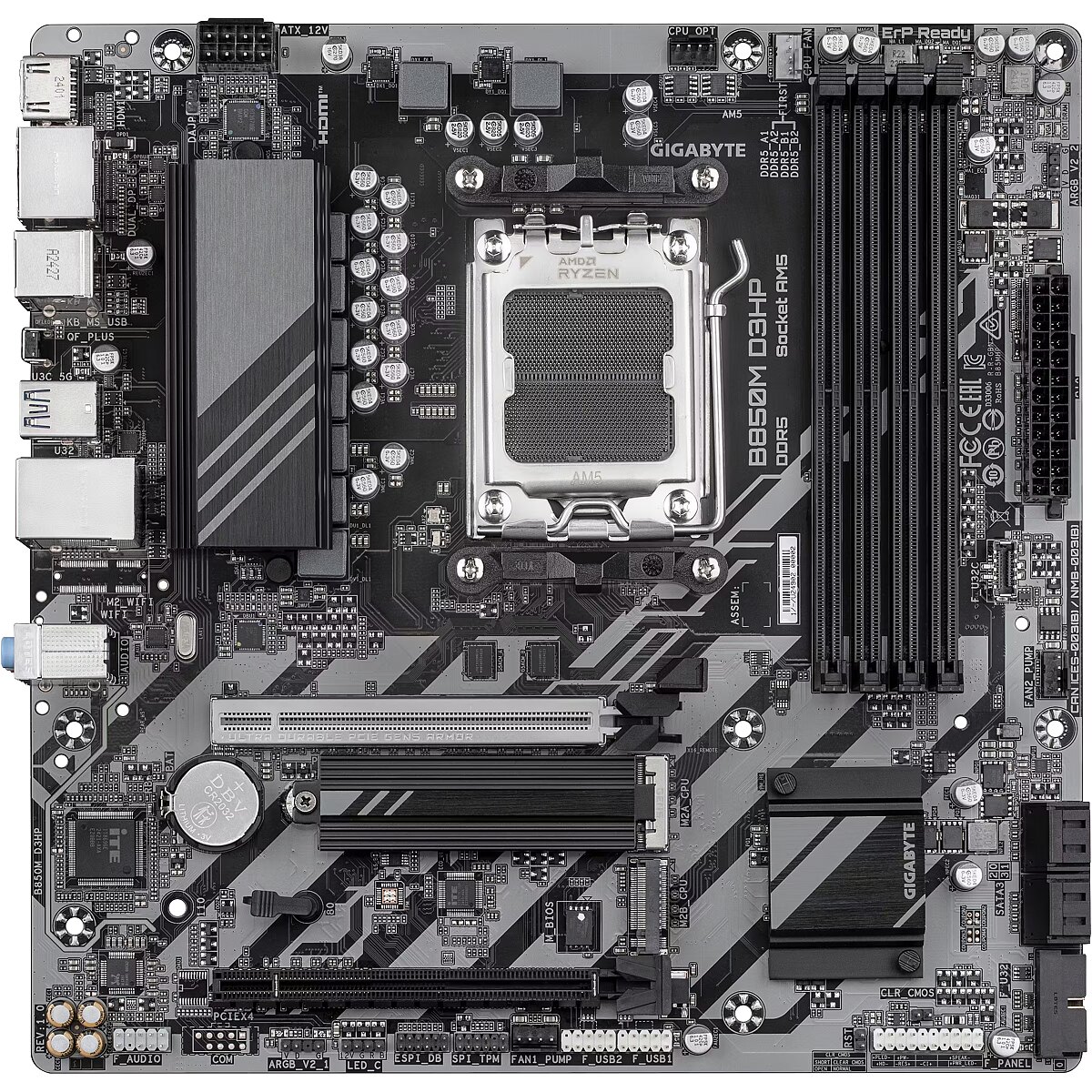

Name - AM5 Gigabyte B850M D3HP
Name - Gigabyte B850M D3HP
name - GIGABYTE B850M D3HP, AMD B850 Mainboard - Sockel AM5, DDR5
Name - GigaByte B850M D3HP - Socket AM5 - motherboard
Name - Gigabyte B850M D3HP | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces M.2, SATA | Number of SATA connectors 4
name - Motherboard B850M D3HP
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Number of battery cells Battery - 1
Number of chassis fan connectors Internal I/O - 3
Number of CPU fan connectors Internal I/O - 2
Number of DDR5 slots - 4
Number of EPS power connectors (8-pin) Internal I/O - 1
Number of HDDs supported Storage controllers - 4
Number of M.2 (M) slots Expansion slots - 2
Number of memory slots Memory - 4
Number of RGB LED pin headers Internal I/O - 4
Number of SATA III connectors Internal I/O - 4
Number of storage drives supported Storage controllers - 6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin Chassis fan
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Reset jumper
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.2 Gen 1 Type-A
Onboard connectors - 1 x USB 3.2 Gen 1 Type-C
Onboard connectors - 2 x Addressable LED
Onboard connectors - 2 x M.2
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 4 x SATA III 6Gb/s
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 327.00 mm
Package features > Gross height (mm) - 70.00 mm
Package features > Gross width (mm) - 260.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 145 pc(s)
Package features > Paper/Pasteboard - 240.00 g
Package features > Plastic (No PET) - 60.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Maks. pojemność pamięci - 256 GB
Pamięć: Obsługiwana pamięć - DDR5
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-5600 (PC5-44800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-5800 (PC5-46400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6000 (PC5-48000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6200 (PC5-49600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6400 (PC5-51200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6600 (PC5-52800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6800 (PC5-54400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7000 (PC5-56000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7400 (PC5-59200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7600 (PC5-60800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7800 (PC5-62400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7900 (PC5-63200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7950 (PC5-63600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8000 (PC5-64000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8200 (PC5-65600)
Parallel processing technology support Graphics - Not supported
PC health monitoring Features - Fan/Temperature/Voltage/Water cooling
PCI Express x16 (Gen 5.x) slots Expansion slots - 1
Peripheral (Molex) power connectors (4-pin) Internal I/O - 1
Power source type Features - ATX
Procesor: Gniazdo procesora - Socket AM5
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 9000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 9000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 9000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 9000
Processor > Processor family - AMD
Processor > Processor socket - AM5
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
Processor manufacturer Processor - AMD
Processor socket Processor - Socket AM5
Producent: Nazwa producenta / importera - Gigabyte
Giga-Byte Technology BV
Steenoven 24
5626 Eindhoven
producer - Gigabyte
Producer - Gigabyte
ProducerCode - B850M D3HP
Product colour Features - Brown
Products per shipping (inner) case Logistics data - 1 pc(s)
RAID - Yes
RAID levels Storage controllers - 0/1/10
RAID support Storage controllers - Yes
RGB LED pin header Internal I/O - Yes
Screws included Packaging content - Yes
Serial port headers Internal I/O - 1
Short description - GIGA B850M D3HP AM5/DDR5/µATX
ShortDescription - Socket AM5 | Chipset AMD B850 | DDR5
Software - Norton Internet Security (OEM version)
LAN bandwidth management software
Sound card - Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Special functions -
Summary - GIGABYTE B850M D3HP Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet
Supported memory clock speed (max) Memory - 8200 MHz
Supported memory clock speeds Memory - 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200 MHz
Supported memory types Memory - DDR5-SDRAM
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Supported processor sockets Processor - Socket AM5
Supported storage drive interfaces Storage controllers - M.2, SATA III
Supported storage drive types Storage controllers - HDD & SSD
System Management BIOS (SMBIOS) version BIOS - 2.7
Technical details > Gross weight - 1.30 kg
Technical details > Net weight - 1.00 kg
Technical details > Producer - Gigabyte
Technical details > Producer product name - B850M D3HP
TPM connector Internal I/O - Yes
Unbuffered memory Memory - Yes
Unit Box Height - 0.27
Unit Box Length - 0.27
Unit Box Width - 0.07
Unit Calculated Volume - 0.006244 cubm
Unit Calculated Weight - 1.18 kg
Units per Pallet - 0
Units per Shipping Box - 10
USB 2.0 connectors Internal I/O - 2
USB 2.0 ports quantity Rear panel I/O ports - 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Rear panel I/O ports - 1
USB ports at back panel - 6
USB ports on motherboard - 7
Vendor Homepage - https://www.gigabyte.com/
vendpn - B850M D3HP
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
Warranty period Technical details - 3 year(s)
Weight - 0.98
Weight - 1,00
Weight Other features - 1.3 kg
Wi-Fi Network - No
Width Weight & dimensions - 244 mm
WiFi-AP antenna jack Rear panel I/O ports - 2
Windows operating systems supported Features - Windows 10 x64/Windows 11 x64
Wymiary: Szerokość - 244 mm
Wymiary: Wysokość - 244 mm
Złącza: Obsługa Raid - tak (0, 1, 5, 10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x 8-pin ATX 12V
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 5.0)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen1)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen1) typ C
Złącza: Złącza na tylnym panelu - 1 x Display Port
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 1 x PS/2
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 1 x USB 3.2 (Gen1) typ C
Złącza: Złącza na tylnym panelu - 2 x USB
Złącza: Złącza na tylnym panelu - 3 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza PCI-E (liczba slotów) - 2 x PCI-Express x16
