Accessories included - 1 x Instrukcja Obsługi 2 x kable danych SATA 2 x anteny ASRock WiFi 2,4/5/6 GHz 3 x śrubki do gniazd M.2 1 x dystans do gniazda M.2
ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC4082
Audio output channels Features - 7.1 channels
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS type - UEFI AMI
BIOS memory size BIOS - 256 Mbit
BIOS type BIOS - UEFI AMI
Bluetooth Network - Yes
Bluetooth version Network - 5.2
Cables included Packaging content - SATA
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
Chipset manufacturer - AMD
Chipset type - AMD B650
code - 90-MXBN90-A0UAYZ
COM connector / port - No
Compatible processor series Processor - AMD Ryzen 7000 Series
Component for Features - PC
CPU fan connector Internal I/O - Yes
CPU socket - Socket AM5
Dane techniczne: Chipset płyty głównej - AMD B650
Dane techniczne: Grupa produktowa - Płyty główne ASRock
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - ASRock
Dane techniczne: Przeznaczenie - AMD
Dane techniczne: Standard płyty - ATX
Depth Weight & dimensions - 244 mm
Description - Płyta główna B650 Steel Legend WiFi Obsługuje procesory AMD Ryzen serii 9000, 8000 i 7000 z gniazdem AM5 14+2+1 faz zasilania, 80A Dr.MOS dla Vcore 4 moduły DIMM DDR5 Obsługuje Dual Channel, do 7200+ (OC) 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 PCIe 4.0 x1 Opcje wyjść graficznych: 1 HDMI, 1 DisplayPort Kodek audio Realtek ALC4082 7.1 CH HD, Nahimic Audio 4 SATA3, 1 Blazing M.2 (PCIe Gen5x4), 2 Hyper M.2 (PCIe Gen4x4) 1 USB 3.2 Gen2x2 Type-C (z tyłu) 1 USB 3.2 Gen1 Type-C (z przodu) 1 USB 3.2 Gen2 Type-A (z tyłu) 8 USB 3.2 Gen1 Type-A (4 z tyłu, 4 z przodu) 8 portów USB 2.0 (4 z tyłu, 4 z przodu) Karta sieciowa Dragon 2,5G 802.11axe Wi-Fi 6E + Bluetooth Obsługuje Automatyczny Instalator Sterowników ASRock, BIOS Flashback
Description - Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance. Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. 14+2+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers. 20K Capacitor
20K black capacitors with lifespans of at least 20,000 hours, provides even longer component durability compares with normal capacitors, extending MTBF to give better system stability. 8 Layer PCB design
The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise. PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards. DDR5 EXPO & XMP Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. All B650 motherboards are built with 8-Layer PCB design, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 7200MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO™/ Intel® XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all. Blazing OC Tuner
The Blazing OC Tuner allows AM5 CPU to switch between OC mode and PBO(Precision Boost Overdrive) mode when the CPU current hits threshold. Anything above current threshold will engage manual OC mode; if below current threshold then will engage Precision Boost Overdrive mode. This idea is to combine overclocking on all cores and automatic boost on a single core to get the best performance out of your CPU. There is no need to enter BIOS to setup up, you can modify all the settings on time under OS. AMD PBO Technology
PBO(Precision Boost Overdrive) is an automatic performance-maximizing technology that is able to improve your PC’s performance by raising clock speeds based on the conditions inside your PC, AMD’s processors is equipped with intelligent thermal sensors designed to analyze conditions inside your PC and make the “go faster” decision as often as possible, please ensure system cooling is sufficient before enabling PBO. Audio That Matters
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. Enhance Communication Quality
The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
●Static Noise Suppression
●Echo Cancellation
●Lateral Sound Cancellation
●Voice Stabilizer Ultimate Gaming Experience
●Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game. ●Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience. POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. Wi-Fi 6E 802.11ax
WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks. Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.Supports AMD Socket AM5 Ryzen™ 8000 and 7000 Series Processors14+2+1 Power Phase, 80A Dr.MOS for VCore4 x DDR5 DIMMsSupports Dual Channel, up to 7200+ (OC)1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 PCIe 4.0 x1Graphics Output Options: 1 HDMI, 1 DisplayPortRealtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio4 SATA3, 1 Blazing M.2 (PCIe Gen5x4), 2 Hyper M.2 (PCIe Gen4x4)1 USB 3.2 Gen2x2 Type-C (Rear)1 USB 3.2 Gen1 Type-C (Front)1 USB 3.2 Gen2 Type-A (Rear)8 USB 3.2 Gen1 Type-A (4 Rear, 4 Front)8 USB 2.0 (4 Rear, 4 Front)Dragon 2.5G LAN802.11axe WiFi 6E + BluetoothSupports ASRock Auto Driver Installer, BIOS Flashback
Designation - CE+WEEE
Detailed data on disk/drive interfaces - CPU: 1 x Blazing M.2 Socket (M2_1, Key M), obsługuje typ 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* 1 x Hyper M.2 Socket (M2_3, Key M), obsługuje typ 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), obsługuje typ 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 2 x SATA3 6.0 Gb/s Connectors** ASMedia ASM1061: 2 x SATA3 6.0 Gb/s Connectors * Obsługa bootowania z dysków NVMe SSD
** Jeśli zajęte są porty SATA3_0 i SATA3_1, tryb PCIE2 zostanie obniżony do trybu x2
dimensionalWeight - 2371
dimension depth - 100 mm
dimension height - 310 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 2220 g
dimension width - 380 mm
DisplayPorts quantity Rear panel I/O ports - 1
DisplayPort version Rear panel I/O ports - 1.4
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek ALC4082 7.1)
ean - 4710483944598
EAN - 4710483944598
Eans - 4710483944598
EAN_code - 4710483944598
ECC сompatibility Memory - ECC & Non-ECC
Ethernet interface type Network - 2.5 Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - 1 x PCIe 4.0 x 1
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - PCI Express x1 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x MIC (front)
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x USB 3.2 Gen 2 Type-A
External connectors - 1 x USB 3.2 Gen 2 Type-C
External connectors - 2 x SMA
External connectors - 4 x USB 2.0
External connectors - 4 x USB 3.0
Features - Audio chip - Realtek ALC4082
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - AMD B650
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - ATX
Front panel audio connector Internal I/O - Yes
Graphics - Integrated AMD RDNA graphics (Wsparcie może się różnić w zależności od CPU) 1 x HDMI 2.1 TMDS/FRL Kompatybilny z 8G, obsługuje HDR, HDCP 2.3 and max. Rozdzielczośćup to 4K 120Hz 1 x DisplayPort 1.4 z DSC (skompresowany), obsługuje HDCP 2.3 and max. Rozdzielczośćup to 4K 120Hz
Graphics card family Graphics - AMD
guarantee - 36
guarantee_type - normal
HDMI ports quantity Rear panel I/O ports - 1
Integrated CPU - No
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Komunikacja: Karta bezprzewodowa - Wi-Fi 6E | Bluetooth 5.2
Komunikacja: Transmisja danych - Bluetooth
Komunikacja: Transmisja danych - Wi-Fi
Komunikacja: Zintegrowana karta sieciowa - tak (2.5 Gigabit LAN)
LAN controller Network - Dragon RTL8125BG
LPT connector / port - No
Manufacturer - Asrock
Manufacturer - ASRock
Manufacturer_code - 90-MXBN90-A0UAYZ
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Maximum internal memory Memory - 192 GB
Maximum number of SMP processors Processor - 1
Max memory size - 256 GB
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 7200
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Memory type - DDR5
Microphone in Rear panel I/O ports - Yes

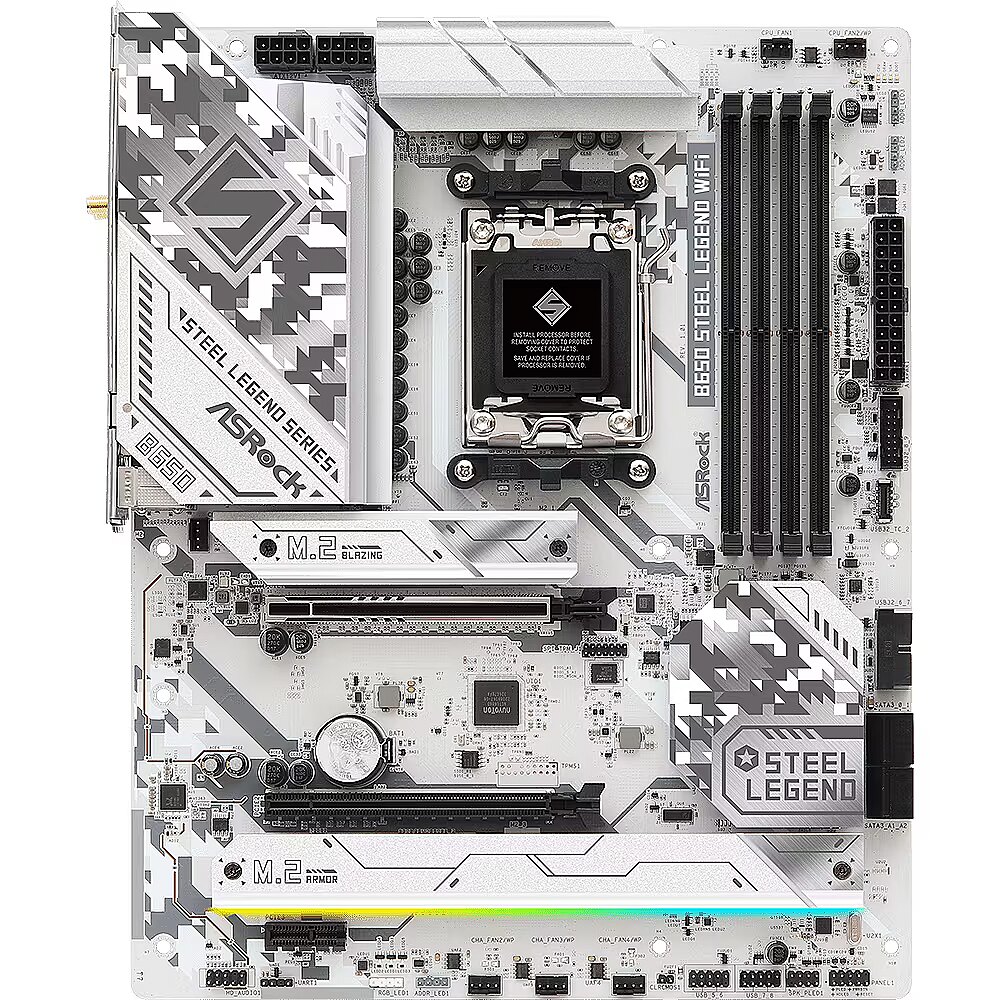

Model - B650 STEEL LEGEND WIFI
Model - B650 Steel Legend WiFi
Motherboard chipset family Features - AMD
Motherboard chipset Features - AMD B650
Motherboard form factor Features - ATX
MPN - 90-MXBN90-A0UAYZ
Name - ASRock B650 Steel Legend WiFi
Name - ASROCK B650 Steel Legend WIFI (AM5) (D)
name - ASRock B650 Steel Legend WiFi, AMD B650 Mainboard - Sockel AM5, DDR5
Name - ASRock B650 STEEL LEGEND WIFI - Socket AM5 - motherboard
name - B650 STEEL LEGEND WIFI AM5 4DDR5 HDMI/DP M2 AT
Network - Bluetooth - Yes
Network - Bluetooth version - 5.2
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Dragon RTL8125BG
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network interface -
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/axe
Number of DDR5 slots - 4
Number of M.2 (M) slots Expansion slots - 3
Number of memory slots Memory - 4
Number of SATA III connectors Internal I/O - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 9
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 2
On-board graphics card Graphics - Yes
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.2 Gen 1 Type-C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.0 header
Other information -
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Maks. pojemność pamięci - 256 GB
Pamięć: Obsługiwana pamięć - DDR5
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5000 (PC5-40000)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-5400 (PC5-43200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-5600 (PC5-44800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-5800 (PC5-46400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6000 (PC5-48000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6200 (PC5-49600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6400 (PC5-51200)
PCI Express x1 (Gen 4.x) slots Expansion slots - 1
PCI Express x16 (Gen 3.x) slots Expansion slots - 1
PCI Express x16 (Gen 5.x) slots Expansion slots - 1
Procesor: Gniazdo procesora - Socket AM5
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 8000
Processor - Compatible processor series - AMD Ryzen 9 7th Gen
Processor - Compatible processor series - AMD Ryzen™ 5
Processor - Compatible processor series - AMD Ryzen™ 7
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor family - AMD Ryzen
Processor manufacturer Processor - AMD
Processor socket Processor - Socket AM5
Producent: Nazwa producenta / importera - ASRock
ASRock Europe B.V.
Bijsterhuizen 11-11
6546 AR Nijmegen
producer - ASRock
Producer - ASRock
producerCode - B650 STEEL LEGEND WIFI
ProducerCode - B650 STEEL LEGEND WIFI
productName - Asrock B650 STEEL LEGEND WIFI motherboard
productSize - Normal
RAID - Yes
RAID levels Storage controllers - 0, 1, 10
RAID support Storage controllers - Yes

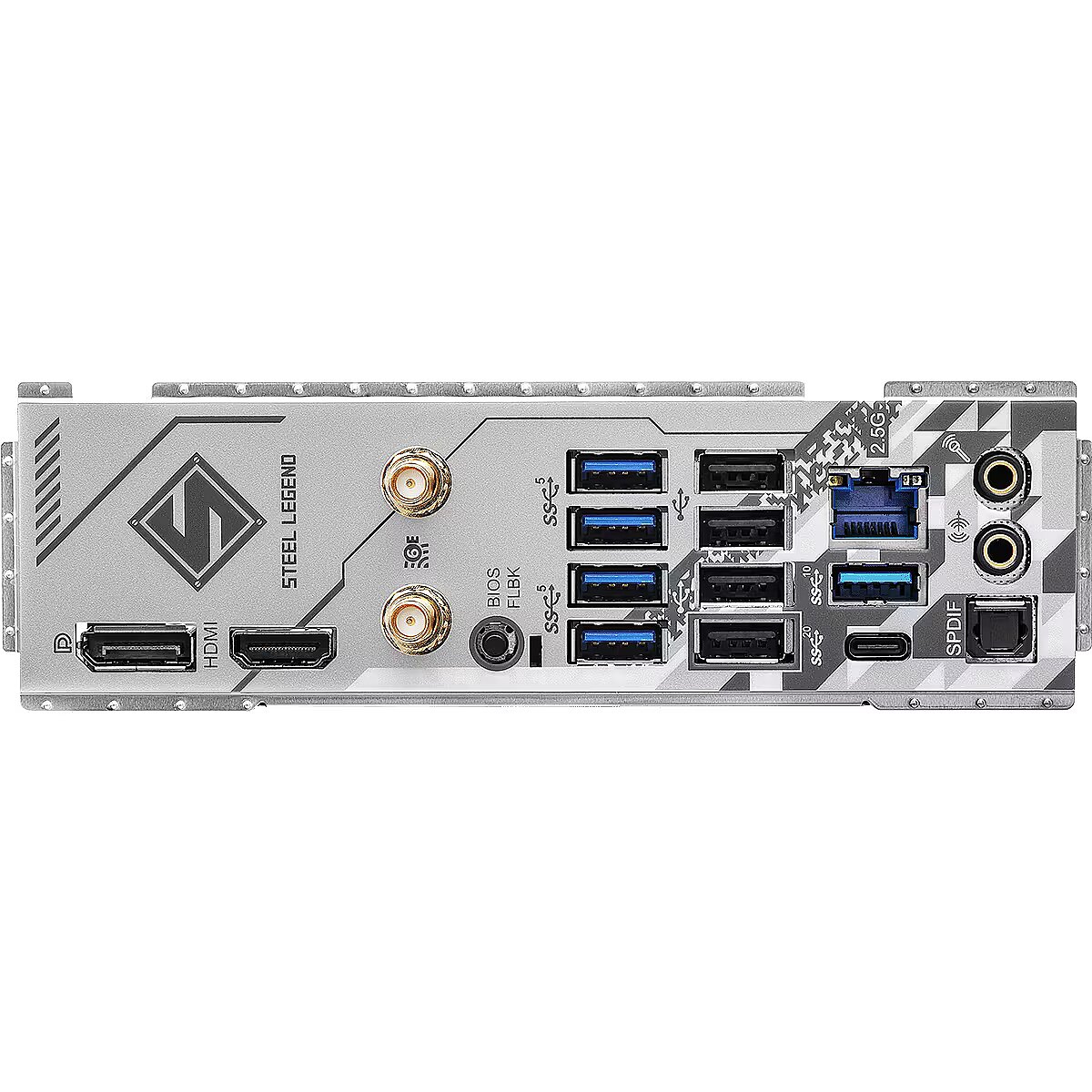

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - Number of antenna connectors - 2
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
RGB LED pin header Internal I/O - Yes
S/PDIF out port Rear panel I/O ports - Yes
Safety warning - Warnings - Avoid contact with liquids to prevent electronic damage.
Safety warning - Warnings - Dispose of in accordance with local regulations for electronic waste.
Safety warning - Warnings - Do not disassemble to avoid damage to internal components and loss of warranty.
Screws included Packaging content - Yes
ShortDescription - Socket AM5 | Chipset B650 | DDR5
sizeX - 320
sizeY - 95
sizeZ - 390
Software - Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC UEFI ASRock Full HD UEFI Automatyczny Instalator Sterowników ASRock ASRock Funkcja Instant Flash
Sound card - Karta dźwiękowa HD 7.1 z ochroną Treści (kodek audio Realtek ALC4082) Oddzielne warstwy PCB dla kanału audio lewego i prawego Pomiar impedancji na tylnym porcie wyjściowym Dźwięk Nahimic
Special functions -
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Summary - Asrock B650 Steel Legend WiFi. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Graphics card family: AMD. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Supported memory types Memory - DDR5-SDRAM
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Supported storage drive interfaces Storage controllers - M.2, SATA III
Supported storage drive types Storage controllers - HDD & SSD
Technical_details - The ASRock B650 STEEL LEGEND WIFI is based on the AMD B650 chipset and supports AMD processors for socket AM5. It has four DDR5 slots for up to 192 GB of memory. The ASRock B650 STEEL LEGEND WIFI's additional features include a PCIe 5.0 x16 slot, a PCIe 3.0 x16 slot (x4 lanes) and a PCIe 4.0 x1 slot. The ASRock B650 STEEL LEGEND WIFI also has 8-channel sound, a 2.5 Gigabit LAN interface, two SATA3 ports, three M.2 ports and a number of USB interfaces. Item no.: 100049032 Mainboard type EAN 4710483944598 Manufacturer no. 90-MXBN90-A0UAYZ Socket AM5 Max. supported CPUs 1 Operating system support Windows 10 ready, Windows 11 ready Processor Supported Models Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 8xxxG (Phoenix), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael ), Ryzen 7 8xxxG (Phoenix), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael) Chipset AMD B650 Slots PCIe x16 2x (of which: 1x PCIe x16, 1x PCIe x4) Wi-Fi 6E module BIOS 256Mb AMI UEFI Legal BIOS Form factor ATX Use PC Power supply ATX12V (24-pin + 2x 8-pin) Memory maximum 192 GB Ports (external) USB-C 3.2 Gen 2x2 (20 Gbit/s) 1 Connectors (internal) SATA 4 Ports (optional) USB 3.2 Gen 1 (5 Gbit/s) 2 RGB standard RGB LED SATA controller AMD B650 Directly usable RAID levels 0, 1, 10 USB controller AMD B650 Onboard graphics The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. Sound Realtek ALC897 LAN Dragon RTL8125BG 2.5GbE LAN Features CrossFireX Further information In order to support the latest processor cores, a BIOS update may be required. Dimensions Width: 244mm x Height: 305mm
Top Wi-Fi standard Network - Wi-Fi 6E (802.11ax)
TPM connector Internal I/O - Yes
Unbuffered memory Memory - Yes
Unit Box Height - 0.32
Unit Box Length - 0.38
Unit Box Width - 0.095
Unit Calculated Volume - 0.01155 cubm
Unit Calculated Weight - 2.3 kg
Units per Shipping Box - 1
USB 2.0 connectors Internal I/O - 2
USB 2.0 ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors Internal I/O - 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity Rear panel I/O ports - 1
USB 3.2 Gen 2x2 Type-C ports quantity Rear panel I/O ports - 1
USB ports at back panel - 10
USB ports on motherboard - 8
Vendor Homepage - https://www.asrock.com/MB/AMD/B650%20Steel%20Legend%20WiFi/index.asp#Overview
vendpn - B650 STEEL LEGEND WIFI
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 2,26
Weight - 2.24
weight - 2290
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
Wi-Fi Network - Yes
Wi-Fi standards Network - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Width Weight & dimensions - 305 mm
Wymiary: Szerokość - 244 mm
Wymiary: Wysokość - 305 mm
Złącza: Obsługa Raid - tak (0, 1, 10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 2 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 5.0)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen1) typ C
Złącza: Złącza na płycie głównej - 2 x 8-pin ATX 12V
Złącza: Złącza na płycie głównej - 2 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na płycie głównej - 2 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 1 x Display Port
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 1 x USB 3.2 (Gen2 x2) typ C
Złącza: Złącza na tylnym panelu - 1 x USB 3.2 (Gen2)
Złącza: Złącza na tylnym panelu - 4 x USB
Złącza: Złącza na tylnym panelu - 4 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza na tylnym panelu - gniazdo anteny Wi-Fi
Złącza: Złącza na tylnym panelu - SPDIF out
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x4
Złącza: Złącza PCI-E (liczba slotów) - 2 x PCI-Express x16
