Accessories included -
BIOS -
BIOS - ACPI version - 6.4
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - System Management BIOS (SMBIOS) version - 3.5

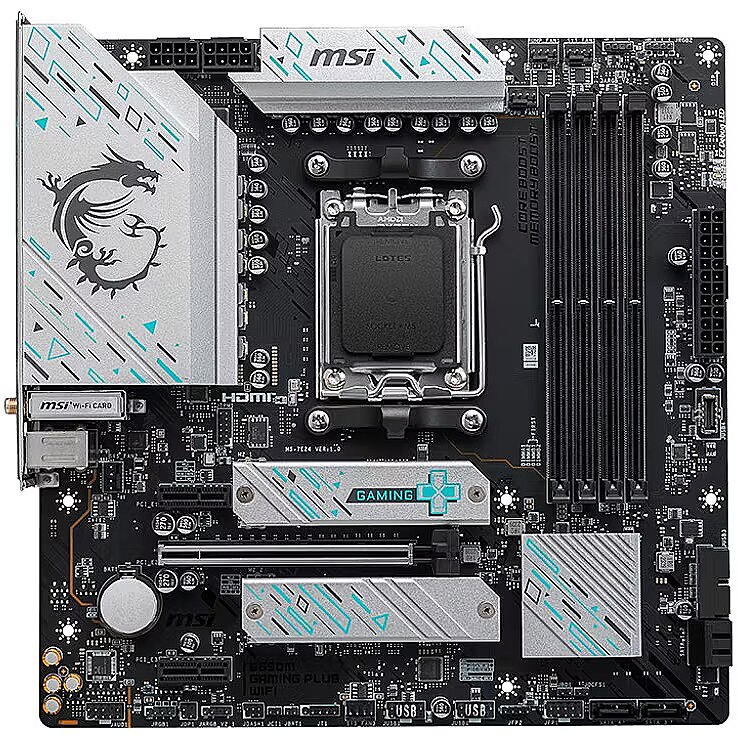

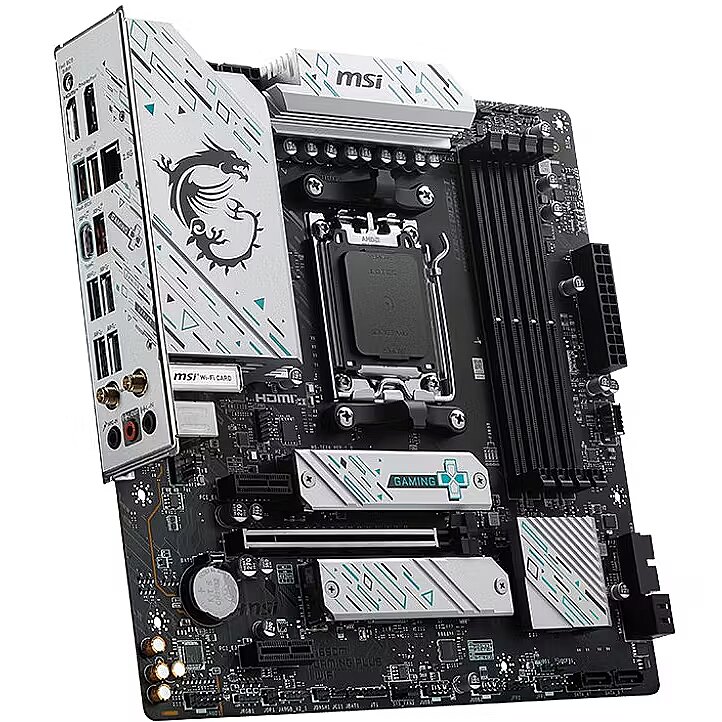

Brand - MSI
BrandPartCode - B650M GAMING PLUS WIFI
category - Mainboards AMD Mainboards
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Chipset manufacturer - AMD
Chipset type - AMD B650
code - 7E24-001R
Code - B650M GAMING PLUS WIFI
COM connector / port - No
CPU socket - LGA1700
Description - B650M DO GIER Z WI-FI Obsługuje procesory AMD Ryzen z serii 8000/7000 do komputerów stacjonarnych Obsługuje pamięć DDR5, do 7200+(OC) MHz Ulepszona konstrukcja zasilania: system zasilania 10+2+1 Duet Rail, podwójne 8-pinowe złącza zasilania procesora, wzmocnienie rdzenia, zwiększenie pamięci Błyskawiczne wrażenia z gry: gniazdo PCIe 4.0, Lightning Gen4 M.2, USB 3.2 Gen 2 Rozwiązanie termiczne klasy premium: rozszerzona konstrukcja radiatora i M.2 Shield Frozr zostały zbudowane z myślą o wysokiej wydajności systemu i nieprzerwanej pracy WZMOCNIENIE AUDIO: Nagradzaj swoje uszy studyjną jakością dźwięku, aby uzyskać najbardziej wciągające wrażenia z gry Wysokiej jakości PCB: 6-warstwowa płytka drukowana wykonana z miedzi pogrubionej o grubości 2 uncji
Detailed data on disk/drive interfaces - 1x PCI-E x16 slot Supports x16 (For Ryzen 7000 Series processors) Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors) Supports x4 (For Ryzen 5 8500G processor) 2x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) Storage 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 for M.2 NVMe storage devices
dimensionalWeight - 1058
dimension depth - 75 mm
dimension height - 275 mm
Dimensions - 243.84 x 243.84 mm
dimension weight - 1592 g
dimension width - 285 mm
EAN - 4711377180955
ean - 4711377180955
Eans - 4711377180955
Expansion slots - 1 x PCIe x 16
Expansion slots - 2 x M.2
Expansion slots - 2 x PCIe x 1
Expansion slots - Number of M.2 (M) slots - 2
External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line Out (front)
External connectors - 1 x MIC (front)
External connectors - 1 x Rear Speaker
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1 Type-C
External connectors - 3 x USB 3.1
External connectors - 4 x USB 3.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B650
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - micro ATX
Graphics - 1x HDMI
Obsługa HDMI 2.1, maksymalna rozdzielczość 4K 60 Hz* 1x DisplayPort
Obsługa DP 1.4, maksymalna rozdzielczość 4K 60 Hz* *Dostępne tylko w procesorach ze zintegrowaną grafiką. Specyfikacje graficzne mogą się różnić w zależności od zainstalowanego procesora.
Graphics - Parallel processing technology support - Not supported
GTIN - 4711377180955
guarantee - 36
guarantee_type - normal
Integrated CPU - No
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
LongDesc - MSI B650M Gaming Plus wifi TitleB650M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all.LIGHTNING GEN 4 PCI-EMSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.REINFORCED,HEAVY SOLDERED CONNECTIONSMSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
LongProductName - AMD B650, 4x DDR5 7200MHz, 1x HDM, 1x DisplayPort, 2x M.2, Wi-Fi 6E, 2.5Gbps, Bluetooth 5.3, mATX
LongSummaryDescription - MSI B650M GAMING PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory channels: Dual-channel. Supported storage drive interfaces: M.2, PCI Express, Supported storage drive types: HDD & SSD, RAID levels: 0, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
LPT connector / port - No
Max. number of SATA devices - 4
Max memory size - 192 GB
Memory - ECC - No
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7200 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5000
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6800
Memory - Supported memory clock speeds - 7000
Memory - Supported memory clock speeds - 7200 MHz
Memory - Supported memory clock speeds - 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 4800 MHz
Memory bus frequency - 5000 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory type - DDR5
Model - B650M GAMING PLUS WIFI
name - B650M GAMING PLUS WIFI AM5 4DDR5 HDMI/DP mATX
Name - MSI B650M GAMING PLUS WIFI
name - MSI Pro B650M Gaming Plus WiFi, AMD B650 Mainboard - Sockel AM5, DDR5
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - Sieć LAN Realtek RTL8125BG 2,5 Gb/s AMD Wi-Fi 6E Moduł bezprzewodowy jest wstępnie zainstalowany w gnieździe M.2 (Key-E). Obsługuje MU-MIMO TX/RX Obsługuje szerokość pasma 20 MHz, 40 MHz, 80 MHz, 160 MHz w pasmach 2,4 GHz/5 GHz lub 6 GHz* Obsługuje 802.11 a/b/g/n/ac/ax Obsługuje Bluetooth 5.3**
* Wi-Fi 6E 6 GHz może zależeć od przepisów każdego kraju i będzie gotowe w systemie Windows 11.
** Bluetooth 5.3 będzie dostępny w systemie Windows 10 w wersji 21H1 i Windows 11.
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 5
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x Addressable LED
Onboard connectors - 2 x System panel header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 3 x 4pin Chassis fan
Onboard connectors - 4 x EZ Debug LED
Onboard connectors - 4 x USB 2.0/1.1
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 335.00 mm
Package features > Gross height (mm) - 275.00 mm
Package features > Gross width (mm) - 80.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 117 pc(s)
Package features > Paper/Pasteboard - 240.00 g
Package features > Plastic (No PET) - 60.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > TI weight (kg) - 0.05 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Packaging content - Cables included - SATA
Processor - Maximum internal memory supported by processor - 192 GB
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor family - AMD Ryzen 3
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
producer - MSI
Producer - MSI
producerCode - 7E24-001R
ProducerCode - B650M GAMING PLUS WIFI
ProductName - B650M GAMING PLUS WIFI
productName - MSI B650M GAMING PLUS WIFI motherboard AMD B650 Socket AM5 micro ATX
productSize - Normal
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
ShortDescription - Socket AM5 | Chipset AMD B650 | DDR5
ShortSummaryDescription - MSI B650M GAMING PLUS WIFI, AMD, Socket AM5, Socket AM5, 192 GB, DDR5-SDRAM, 192 GB
sizeX - 270
sizeY - 280
sizeZ - 70
Software -
Sound card - Realtek ALC897 Codec 7.1-Channel High Definition Audio
Special functions -
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 5, 10
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, PCI Express
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Gross weight - 1.27 kg
Technical details > Net weight - 0.97 kg
Technical details > Producer - MSI
Title - MSI B650M GAMING PLUS WIFI motherboard AMD B650 Socket AM5 micro ATX
URL - https://www.msi.com/Motherboard/B650M-GAMING-PLUS-WIFI
USB ports at back panel - 8
USB ports on motherboard - 7
vendpn - B650M GAMING PLUS WIFI
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 1580
Weight & dimensions - Depth - 243.8 mm
Weight & dimensions - Width - 243.8 mm
