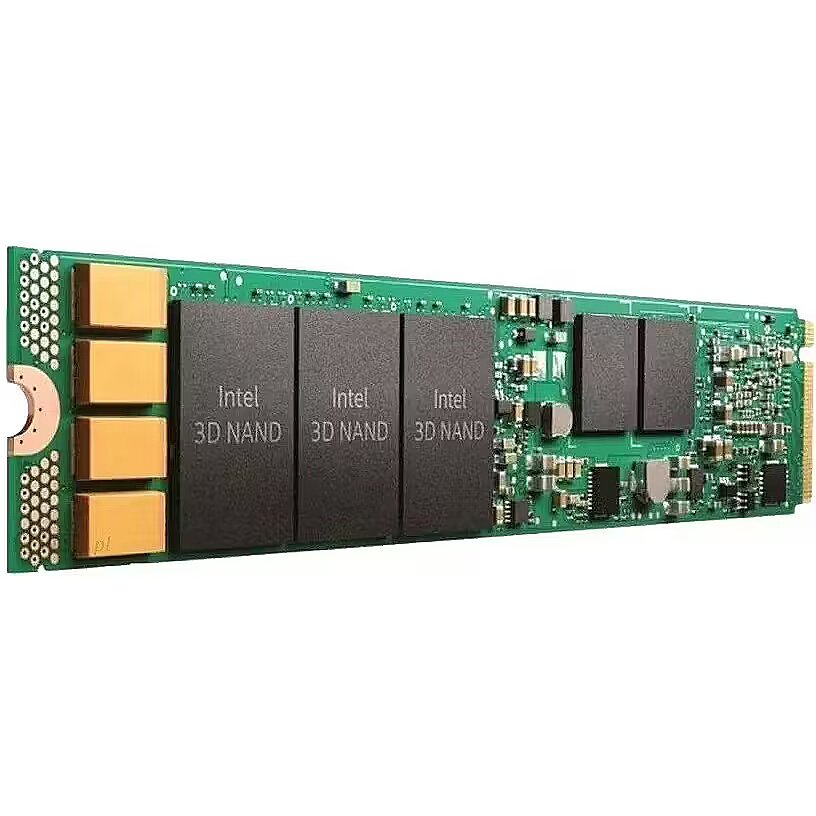

Solidigm SSD Solidigm (Intel) S4520 480GB SATA M.2 (22x80) SSDSCKKB480GZ01 (DWPD up to 3)

dimensionalWeight - 46
Features - Commodity Classification Automated Tracking System (CCATS) - G162706
Features - Component for - Server/workstation
Features - Data transfer rate - 6 Gbit/s
Features - DWPD - 3
Features - End-to-End Data Protection - Yes
Features - Enhanced Power Loss Data Protection technology - Yes
Features - Export Control Classification Number (ECCN) - 5A992C
Features - Hardware encryption - Yes
Features - Harmonized System (HS) code - 84717070
Features - Interface - Serial ATA
Features - Mean time between failures (MTBF) - 2000000 h
Features - Memory type - TLC 3D NAND
Features - NVMe - No
Features - Product series - S4520
Features - Random read (4KB) - 85000 IOPS
Features - Random read (100% span) - 85000 IOPS
Features - Random write (4KB) - 48000 IOPS
Features - Random write (100% span) - 48000 IOPS
Features - Read speed - 550 MB/s
Features - Security algorithms - 256-bit AES
Features - SSD capacity - 480 GB
Features - SSD form factor - M.2
Features - SSD temperature monitoring - Yes
Features - Uncorrectable Bit Error Rate (UBER) - < 1 per 10^17 bits read
Features - Write speed - 500 MB/s
Operational conditions - Maximum operating temperature - 70 °C
Operational conditions - Non-operating shock - 1000 G
Operational conditions - Non-operating vibration - 3.13 G
Operational conditions - Operating shock - 1000 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Operating vibration - 2.17 G
Other features - Internal memory type - SATA 3.0 6Gb/S
Other features - Launch date - Q3'21
Other features - Power consumption (active) - 3 W
Other features - Processor family - Intel SSD D3
Other features - Sequential reading - 550 MB/s
Other features - Sequential writing speed - 500 MB/s
Other features - SSD endurance rating - 4.1 PBW
Other features - SSD shock - 1000G,0.5ms
Other features - Status - Launched
Power - Power consumption (idle) - 0.9 W
Power - Power consumption (read) - 3 W
Power - Power consumption (write) - 3 W
producerCode - SSDSCKKB480GZ01
productName - SSD Solidigm (Intel) S4520 480GB SATA M.2 (22x80) SSDSCKKB480GZ01 (DWPD up to 3)
productSize - Normal
sizeX - 140
sizeY - 15
sizeZ - 110
warrantyLength - 60
warrantyType - G
weight - 40
Weight & dimensions - Height - 22 mm
Weight & dimensions - Width - 80 mm
