ACinputfrequency - 50 - 60 Hz
ACoutletsquantity - 42 AC outlet(s)
ACoutlettypes - C13 coupler, C19 coupler
ARTIKEL1 - EASY PDU BASIC ZERO U 22KW
ARTIKEL2 - 230V (30) C13AND(12) C19 IEC309
Brand - APC
BrandPartCode - EPDU1232B
Breite - 0.17
Cablecolour -
Cablelength - 2 m
Category - Power Distribution Units (PDUs)
Certificates - Certification - CE, TUV
Depth - 44 mm
Depth, mm - 44
Description - APC EASY PDU, BASIC, ZERO U, 22 KW, 230V, (30) C13 & (12) C19?IEC309
Design -
Design - Mounting - Vertical
Design - PDU types - Basic
Design - Product colour - Black
Design - Rack capacity - 0U
Design - Type - Three-phase
EANCode - 0731304405061
Features -
Features - Cable length - 2 m
Formfactor -
Gewicht - 6.1
GRUPPE1 - Power Protection
GRUPPE2 - Power Product Cpnt
GTIN - 0731304405061
GTIN - 731304405061
Height - 110.000000
Height - 1794 mm
Height, mm - 1794
HERSTELLER - APC
HighLights -
Hoehe - 0.12
HSTNUMMER - EPDU1232B
Input frequency, Hz - 50/60
Laenge - 1.95
LEDindicators -
Length - 1950.000000
Logistics data - Total carbon footprint (kg of CO2e) - 127.67
LongDesc -
LongDesc - APC Easy Basic Rack PDU EPDU1232B is Easy-to-install and easy-to-use PDU, making rack power distribution easy. This offers more than a power strip for server rack and network rack solutions. This is Vertical rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing. This is integrated with Hydraulic-magnetic circuit breakers (in units with 32A input current). EPDU1216B has IEC 309 32A 3P+N+E type inlet, Thirty IEC C13 and twelve IEC C19 type outlet sockets. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. The packaging includes installation guide, toolless mounting kit and mounting brackets for quick and easy mounting in the rear of the enclosure. Saves time and money during installation by using one branch whip and standard connections. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements.
LongProductName - Easy Rack PDU, Basic, 0U, 3 Phase, 22kW, 230V, 32A, 30 x C13 and 12 x C19 outlets, IEC60309 3P+N+PE inlet
LongSummaryDescription - APC Easy Rack PDU, Basic, 0U, 3 Phase, 22kW, 230V, 32A, 30 x C13 and 12 x C19 outlets, IEC60309 3P+N+PE inlet. PDU types: Basic, Rack capacity: 0U, Type: Three-phase. AC outlets quantity: 42 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Cable length: 2 m. Nominal input voltage: 400 V, Maximum current: 32 A, AC input frequency: 50 - 60 Hz. Certification: CE, TUV
Manufacturer - APC
ManufacturerPartNumber - EPDU1232B
ManufDatasheet -
Maximumcurrent - 32 A
Maximuminputcurrentperphase - 32 A
Maximumpower - 22000 W
Mounting - Vertical
Nominalinputvoltage - 400 V
Nominal input voltage, V - 400
Nominaloutputvoltage - 230 V
Nominal output voltage, V - 230
Operating relative humidity range, % - 5-95
Operating temperature range (T-T), °C - -5-45
OperatingtemperatureTT - -5 - 45 °C
Operationalconditions -
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - -5 - 45 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -25 - 65 °C
Outputconnections -
Packagingcontent -
Packaging content - Manual - Yes
Packagingdata -
Packaging data - Package depth - 110 mm
Packaging data - Package height - 1950 mm
Packaging data - Package weight - 6.2 kg
Packaging data - Package width - 160 mm
PDUtypes - Basic
PeriodofWarranty - 2 Y
Ports & interfaces - AC outlets quantity - 42 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
Ports & interfaces - Power plug - IEC 60309
Portsinterfaces -
Power -
Power - AC input frequency - 50 - 60 Hz
Power - Load capacity - 22080 VA
Power - Maximum current - 32 A
Power - Maximum input current per phase - 32 A
Power - Maximum power - 22000 W
Power - Nominal input voltage - 400 V
Power - Nominal output voltage - 230 V
Powerplug - IEC 60309
ProdDesc - Easy PDU, Basic, Zero U, 22 kW, 230V, (30) C13 & (12) C19?IEC309
Productcolour - Black
Productcondition - Original
ProductHighLights -
- Three-phase Basic 0U Black
- 42 AC outlet(s) C13 coupler, C19 coupler
- 22000 W
ProductName - Easy Rack PDU, Basic, 0U, 3 Phase, 22kW, 230V, 32A, 30 x C13 and 12 x C19 outlets, IEC60309 3P+N+PE inlet

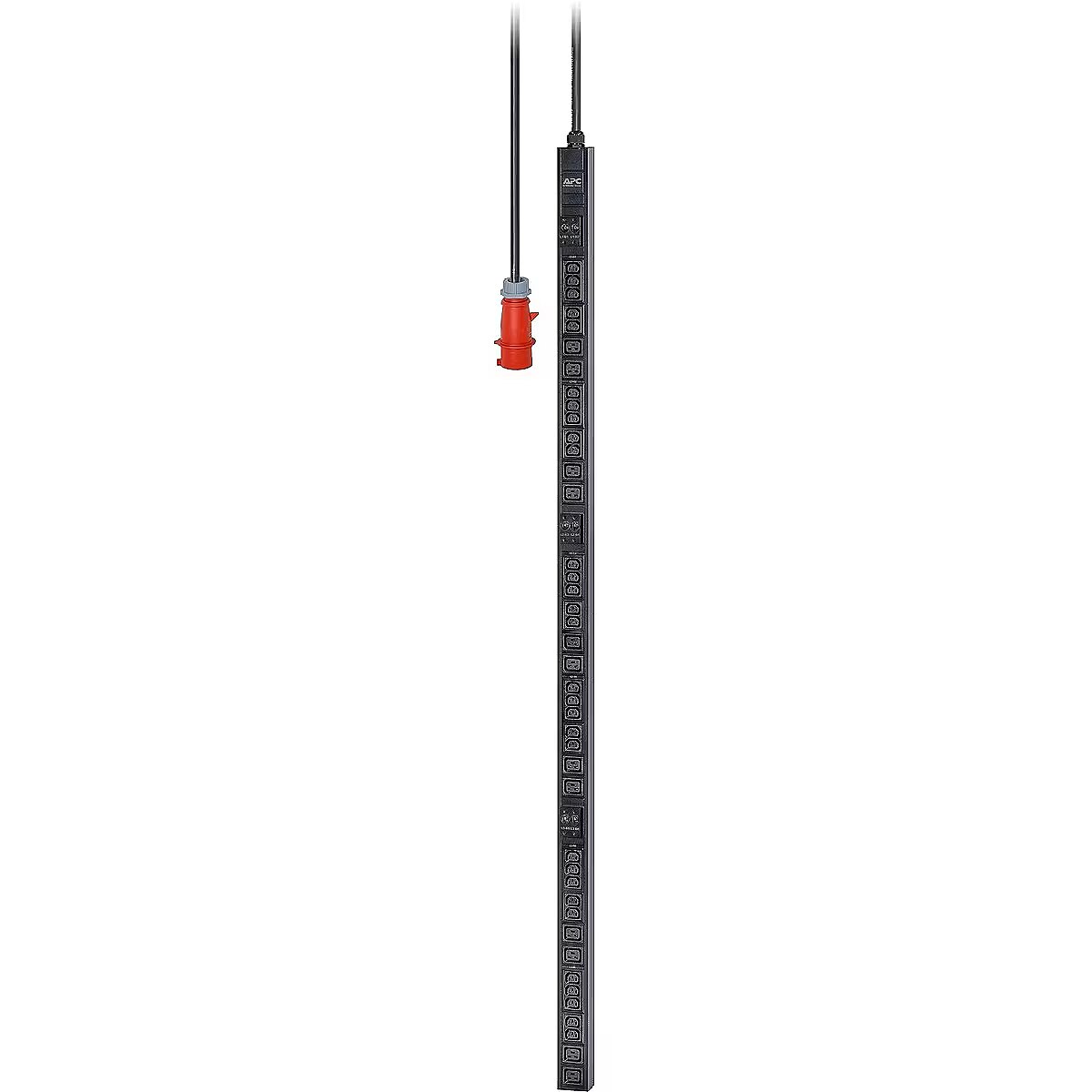

ProductPicture - https://www.tdbaltic.ee/images/products/APC/EPDU1232B_1.jpg

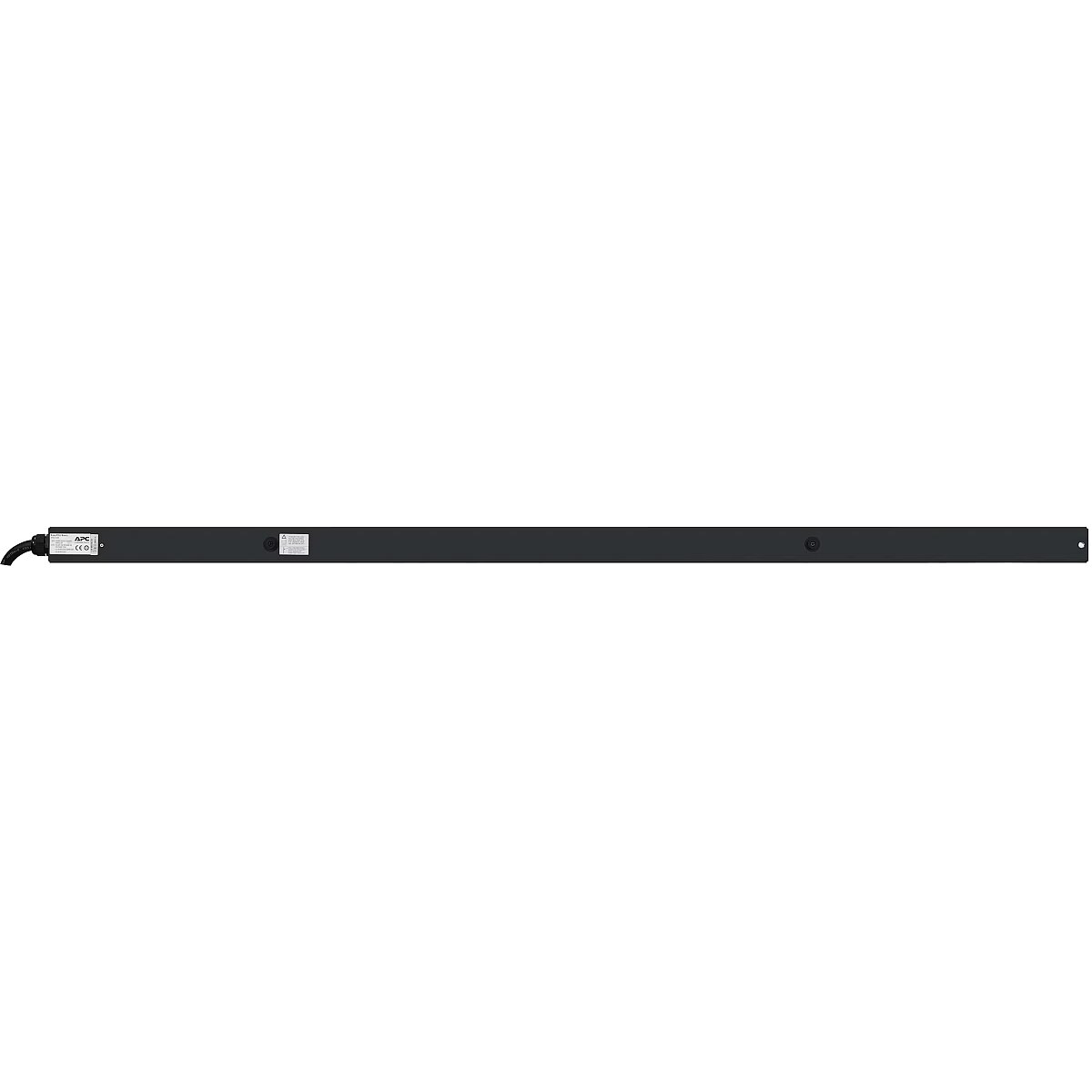

ProductPicture1 - https://www.tdbaltic.ee/images/products/APC/EPDU1232B_2.jpg
ProductPicture2 - https://www.tdbaltic.ee/images/products/APC/EPDU1232B_3.jpg
ProductPicture3 - https://www.tdbaltic.ee/images/products/APC/EPDU1232B_4.jpg
ProductPicture4 -
ProductPicture5 -
Rackcapacity - 0U
Rackmounting -
Rackmountkit -
ShortSummaryDescription - APC Easy Rack PDU, Basic, 0U, 3 Phase, 22kW, 230V, 32A, 30 x C13 and 12 x C19 outlets, IEC60309 3P+N+PE inlet, Basic, 0U, Three-phase, Vertical, Black, 42 AC outlet(s)
Stck_Kart - 1
Stck_Pal - 0
Storage temperature range (T-T), °C - -25 - 65
Storno - Y
Title - APC Easy Rack PDU, Basic, 0U, 3 Phase, 22kW, 230V, 32A, 30 x C13 and 12 x C19 outlets, IEC60309 3P+N+PE inlet
Type - Three-phase
URL - https://www.apc.com/
Warranty - 12 months
Warrantyandmisc -
WarrantyInfo - 1 year repair or replace
Weight - 5.14 kg
Weight - 6.150000
Weight & dimensions - Depth - 44 mm
Weight & dimensions - Height - 1794 mm
Weight & dimensions - Weight - 5.14 kg
Weight & dimensions - Width - 62 mm
Weight, kg - 5.14
Weightdimensions -
Width - 62 mm
Width - 160.000000
Width, mm - 62
