Brand - ARCTIC
BrandPartCode - ACFAN00294A
Category - Computer Cooling Systems
category_en - Computers & Components > Computer components > Cooling systems
category_lv - Datortehnika > Datoru komponentes > Dzesēšanas sistēmas
category_ru - Datortehnika > Datoru komponentes > Dzesēšanas sistēmas

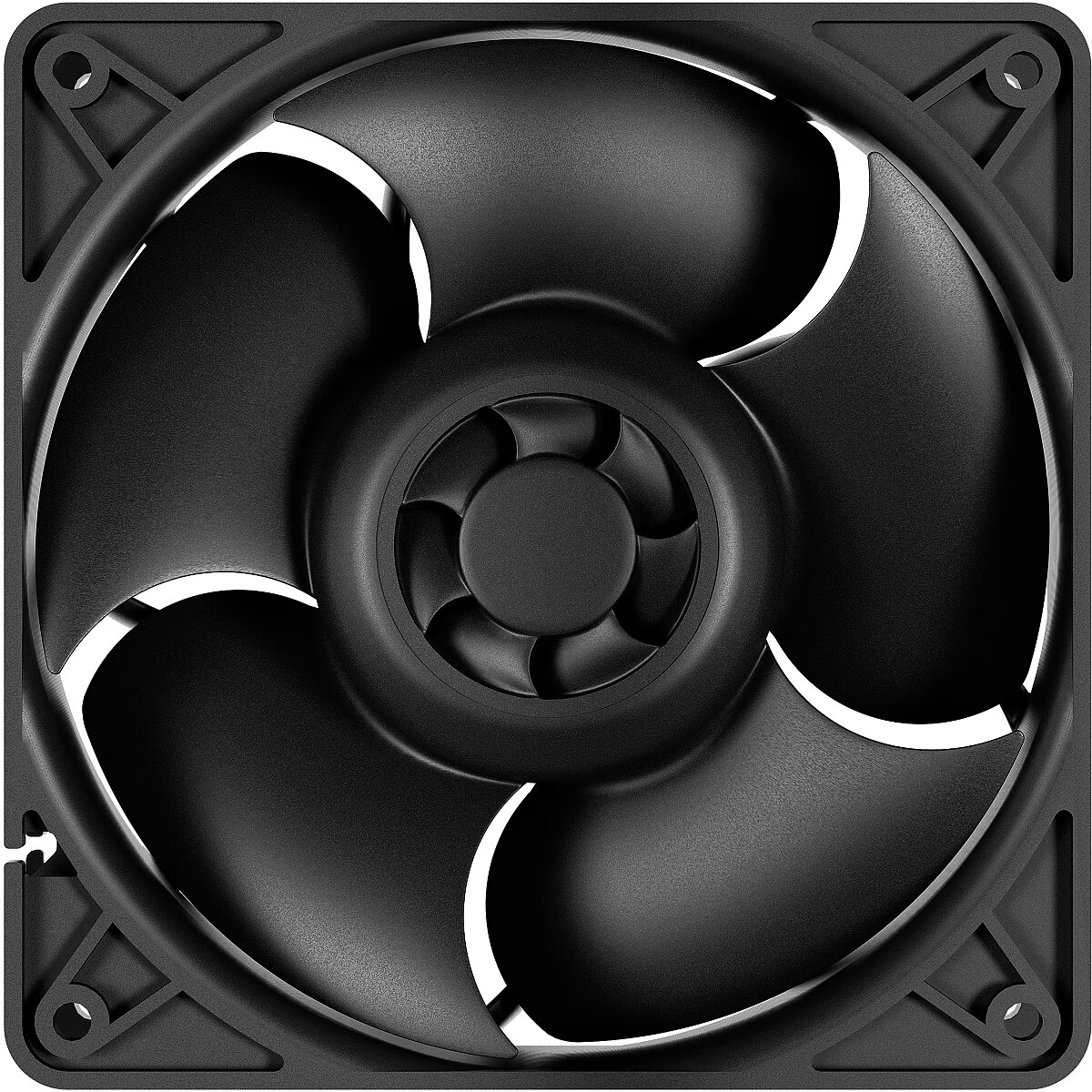

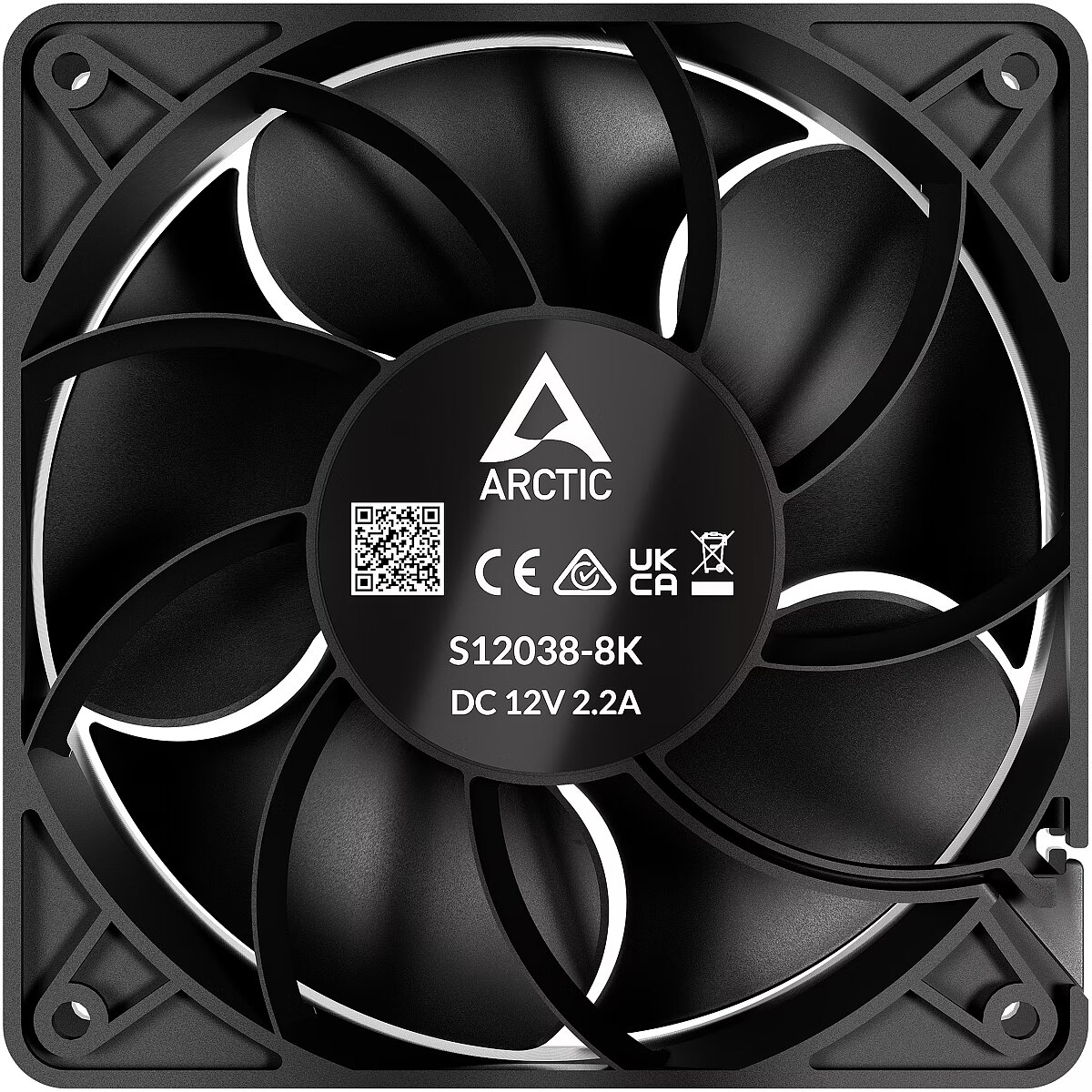

description_en - The ARCTIC S12038-8K fan (model ACFAN00294A) is designed for use in PC cases, providing effective cooling for system components.
Technical Specifications: Dimensions: 120 x 120 x 38 mm
Rotation Speed: 800–8000 RPM
Airflow: up to 220 CFM (approximately 373 m³/h)
Static Pressure: 37 mm H₂O
Noise Level: up to 40 dBa
Bearing Type: Dual Ball Bearing
Speed Control: PWM (Pulse Width Modulation)
Cable Length: 30 cm
Operating Voltage: 12 V DC
Connector Type: 4-pin
Power Consumption: 15.6 W
description_lv - ARCTIC S12038-8K ventilators (modelis ACFAN00294A) ir paredzēts lietošanai datoru korpusos, nodrošinot efektīvu komponentu dzesēšanu.
Tehniskās specifikācijas: Izmēri: 120 x 120 x 38 mm
Griešanās ātrums: 800–8000 apgr./min
Gaisa plūsma: līdz 220 CFM (aptuveni 373 m³/h)
Statiskā spiediena: 37 mm ūdens kolonna
Troksnis līmenis: līdz 40 dBa
Gultņa tips: Divkāršais lodīšu gultnis
Ātruma kontrole: PWM (platuma impulsu modulācija)
Kabeļa garums: 30 cm
Barošanas spriegums: 12 V DC
Savienojuma tips: 4-pin
Patērētā jauda: 15,6 W
description_ru - Вентилятор ARCTIC S12038-8K (модель ACFAN00294A) предназначен для использования в корпусах ПК, обеспечивая эффективное охлаждение компонентов системы.
Технические характеристики: Размеры: 120 x 120 x 38 мм
Скорость вращения: 800–8000 об/мин
Воздушный поток: до 220 CFM (около 373 м³/ч)
Статическое давление: 37 мм водяного столба
Уровень шума: до 40 дБа
Тип подшипника: Двойной шарикоподшипник
Управление скоростью: PWM (широтно-импульсная модуляция)
Длина кабеля: 30 см
Напряжение питания: 12 В DC
Тип подключения: 4-pin
Потребляемая мощность: 15,6 Вт
Design - Fan connector - 4-pin
Design - Product colour - Black
EAN - 4895213704762
gross_weight - 0.2 kg
GTIN - 0840033402538
GTIN - 840033402538
GTIN - 4895213704762
LongDesc - Workstation & Server CoolingEfficient, reliable, durable and quiet – the demands on server cooling are high. ARCTIC has developed specialised solutions for continuous operation that ensure the reliable performance of servers and workstations. Our fans deliver high performance and set new standards in energy efficiency.
LongProductName - S12038-8K 120 mm 8k rpm Server Fan
LongSummaryDescription - ARCTIC S12038-8K 120 mm 8k rpm Server Fan. Type: Fan, Fan diameter: 12 cm, Rotational speed (min): 800 RPM, Rotational speed (max): 8000 RPM, Airflow: 370 m³/h, Maximum air pressure: 37 mmH2O, Bearing type: Dual ball bearing. Width: 120 mm, Depth: 120 mm, Height: 38 mm. Product colour: Black
Model - S12038-8
Packaging content - Number of screws - 4
Packaging content - Screws included - Yes
Performance - Airflow - 370 m³/h
Performance - Bearing type - Dual ball bearing
Performance - Fan diameter - 12 cm
Performance - Maximum airflow - 220 cfm
Performance - Maximum air pressure - 37 mmH2O
Performance - Operating temperature (T-T) - -10 - 70 °C
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Quantity per pack - 1 pc(s)
Performance - Rotational speed (max) - 8000 RPM
Performance - Rotational speed (min) - 800 RPM
Performance - Suitable location - Computer case
Performance - Type - Fan
Power - Maximum current - 3.2 A
Power - Power protection features - Over voltage, Reverse polarity, Under voltage
Power - Rated current - 2.2 A
Power - Rated voltage - 12 V
Power - Starting voltage - 6.5 V
Producer - Arctic
ProductName - S12038-8K 120 mm 8k rpm Server Fan
ShortSummaryDescription - ARCTIC S12038-8K 120 mm 8k rpm Server Fan, Fan, 12 cm, 800 RPM, 8000 RPM, 370 m³/h, Black
Title - ARCTIC S12038-8K 120 mm 8k rpm Server Fan
title_en - Arctic S12038-8 Server Fan 4-pin / 120mm
title_lv - Arctic S12038-8 Servera Ventilators 4-pin / 120mm
title_ru - Arctic S12038-8 Вентилятор для Сервера 4-pin / 120mm
URL - https://www.arctic.de/en/S12038-8K/ACFAN00294A
WarrantyInfo - 6 Years
weight - 0.15 kg
Weight & dimensions - Cable length - 0.3 m
Weight & dimensions - Depth - 120 mm
Weight & dimensions - Height - 38 mm
Weight & dimensions - Package depth - 125 mm
Weight & dimensions - Package height - 43 mm
Weight & dimensions - Package weight - 367 g
Weight & dimensions - Package width - 125 mm
Weight & dimensions - Weight - 328 g
Weight & dimensions - Width - 120 mm
