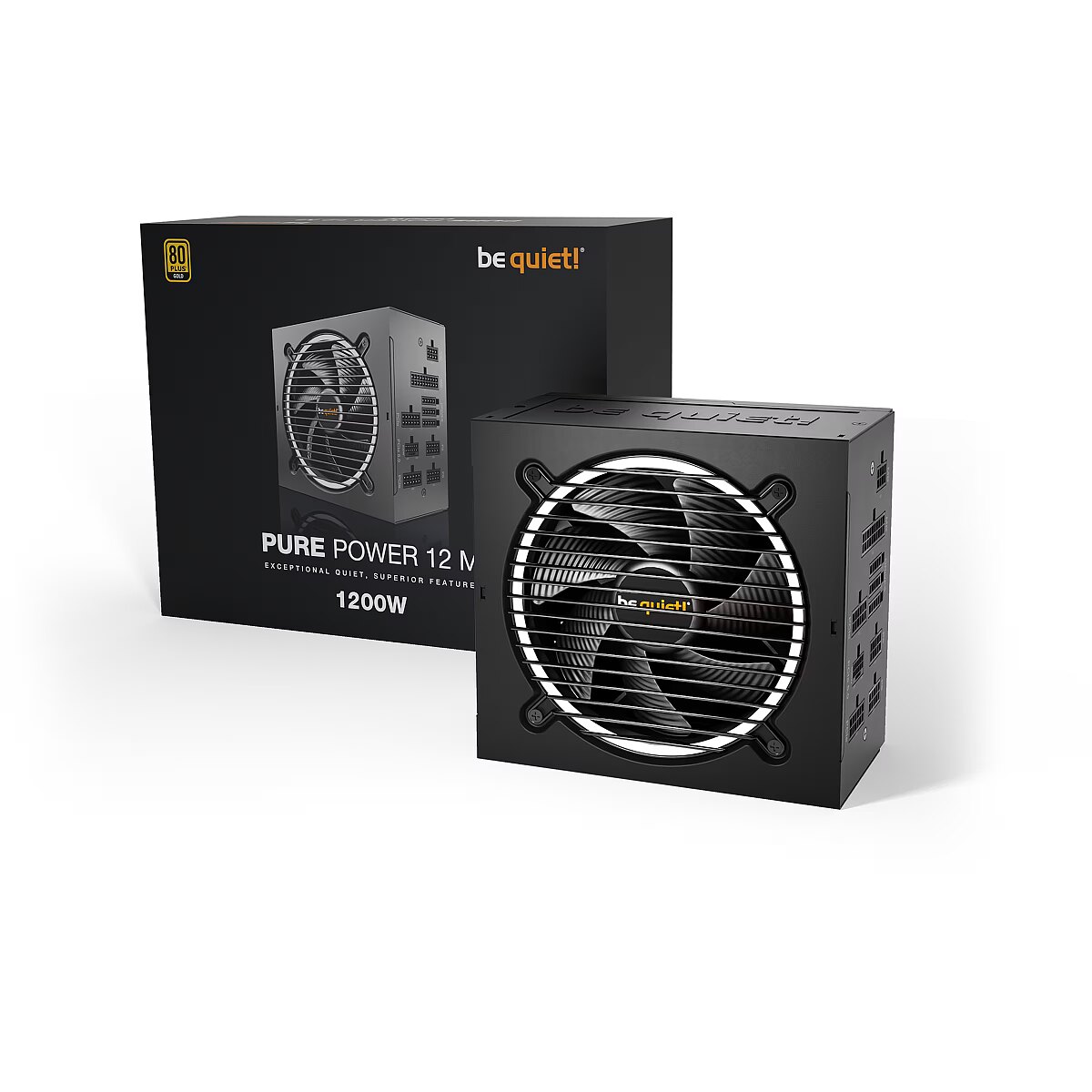

Be Quiet Pure Power 12 M, 1200W, ATX 3.0, 80PLUS Gold

Brand - be quiet!
BrandPartCode - BN346
Category - Power Supply Units
Category 1 - Netzteile
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Colour - Black
Cooling System - 12cm fan
Description - PURE POWER 12 M 1200W Exceptional quiet, superior features Pure Power 12 M 1200W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 1200W offers the best combination of features with outstanding compatibility. - 80 PLUS® Gold efficiency (up to 93.7%) - ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors - Exceptionally silent 120mm be quiet! fan - Advanced stability and voltage regulation thanks to LLC technology - 2 strong 12V-rails - Modular cables for maximum build flexibility - One PCIe 5.0 12VHPWR 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUs
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan speed - 0 - 2700 RPM
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1339
Dimensions - 160 x 150 x 86mm
EAN - 4260052190166
EAN_code - 4260052190166
Efficiency - 80 PLUS GOLD
Full Description Line - Pure Power 12 M 1200W|ATX 3.0|1200 Watts|Cooling System 12cm fan|80 PLUS GOLD|PFC Active|MTBF 100000 hours|Colour Black
GTIN - 4260052190166
Logistics data - Products per shipping (inner) case - 4 pc(s)
Logistics data - Shipping (inner) case height - 24.3 cm
Logistics data - Shipping (inner) case length - 29.8 cm
Logistics data - Shipping (inner) case net weight - 12.7 kg
Logistics data - Shipping (inner) case width - 42.6 cm
LongDesc - EXCEPTIONAL QUIET, SUPERIOR FEATURESPure Power 12 M 1200W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.0 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 12 M 1200W offers the best combination of features in its class.
LongProductName - 1200W, 100-240V 50/60Hz 15A, 80+ Gold, 120mm fan, 160x150x86mm, 1.92kg
LongSummaryDescription - be quiet! PURE POWER 12 M | 1200W. Total power: 1200 W, AC input voltage: 100 - 240 V, Peak power: 1250 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 500,650,800,950 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, CPU, PATA, PCIe, SATA
Manufacturer - Be quiet
Manufacturer - Be Quiet!
Manufacturer_code - BN346
Model - BN346
Model name - Pure Power 12 M 1200W
MPN - BN346
MTBF - 100000 hours
Name - 1200W be quiet! PURE Power 12 M | 80+ Gold ATX 3.0
Name - be quiet! Pure Power 12M 1200W, PC power supply (black, 5x PCIe, cable management, 1200 watts)
Operational conditions - Operating temperature (T-T) - 0 - 40 °C

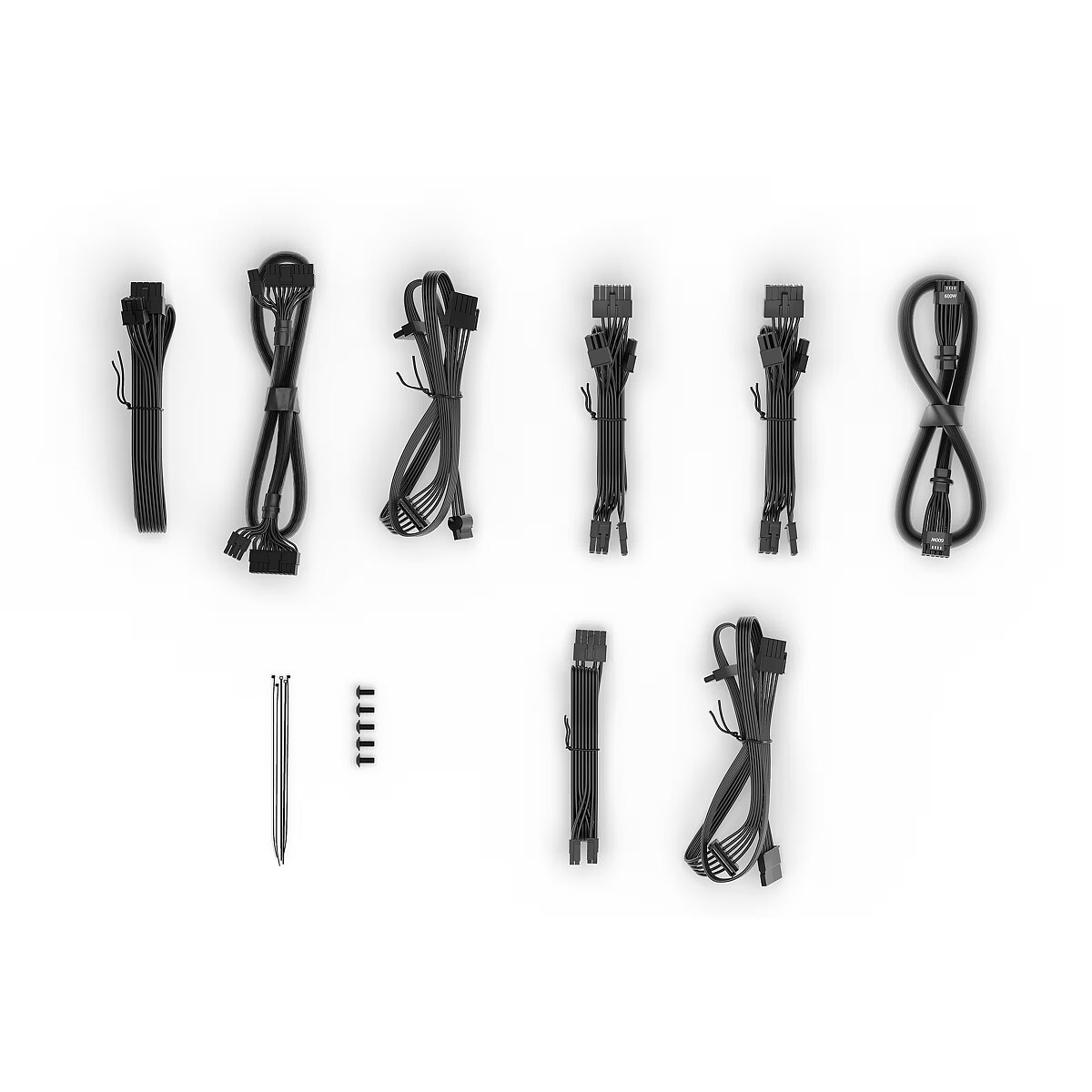

Packaging content - Cables included - AC, CPU, PATA, PCIe, SATA
Packaging content - Cable tie(s) included - Yes
Packaging data - Package depth - 284 mm
Packaging data - Package height - 100 mm
Packaging data - Package type - Box
Packaging data - Package weight - 3.19 kg
Packaging data - Package width - 220 mm
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.0
Performance - Bearing technology - Rifle
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Noise level - 34.3 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - Silent mode - Yes
Performance - Supported motherboard form factors - ATX
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 60 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power cable length - 55 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 2
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power cable length - 800
Ports & interfaces - Peripheral (Molex) power cable length - 800,950 mm
Ports & interfaces - Peripheral (Molex) power cable length - 950 mm
Ports & interfaces - SATA power cable length - 500 mm
Ports & interfaces - SATA power cable length - 500,650,800,950 mm
Ports & interfaces - SATA power cable length - 650
Ports & interfaces - SATA power cable length - 800
Ports & interfaces - SATA power cable length - 950 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+12V) - 1200 W
Power - Efficiency - 91.5%
Power - Hold time - 19 ms
Power - Input current - 15 - 7.5 A
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+12V1) - 55 A
Power - Max output current (+12V2) - 50 A
Power - Max output current (-12V) - 0.3 A
Power - Peak power - 1250 W
Power - Power factor - 0.98
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under power, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under power
Power - Power protection features - Under voltage
Power - Total power - 1200 W
producerCode - BN346
productName - be quiet! PURE POWER 12 M | 1200W power supply unit 20+4 pin ATX ATX Black
ProductName - PURE POWER 12 M | 1200W
productSize - Normal
PSU - ATX 3.0
PSU Output Power - 1200 Watts
PSU Peak Output Power - 1250 Watts
Shipping Box Depth Shipping/Package Box Dimensions - 43 cm
Shipping Box Height Shipping/Package Box Dimensions - 25 cm
Shipping box quantity - 4
Shipping Box Weight Shipping/Package Box Dimensions - 13.4 kg
Shipping Box Width Shipping/Package Box Dimensions - 30 cm
ShortSummaryDescription - be quiet! PURE POWER 12 M | 1200W, 1200 W, 100 - 240 V, 1250 W, 50/60 Hz, 15 - 7.5 A, 120 W
sizeX - 220
sizeY - 290
sizeZ - 105
Technical details - Sustainability certificates - BSMI
Technical details - Sustainability certificates - BSMI, CB, CCC, CE, ENERGY STAR, ErP, Federal Communications Commission (FCC), RoHS, TUV, Triman, UKCA, WEEE, cTUVus
Technical details - Sustainability certificates - CB
Technical details - Sustainability certificates - CCC
Technical details - Sustainability certificates - CE
Technical details - Sustainability certificates - cTUVus
Technical details - Sustainability certificates - ENERGY STAR
Technical details - Sustainability certificates - ErP
Technical details - Sustainability certificates - Federal Communications Commission (FCC)
Technical details - Sustainability certificates - RoHS
Technical details - Sustainability certificates - Triman
Technical details - Sustainability certificates - TUV
Technical details - Sustainability certificates - UKCA
Technical details - Sustainability certificates - WEEE
Technical details - Sustainability compliance - Yes
Title - be quiet! PURE POWER 12 M | 1200W power supply unit 20+4 pin ATX ATX Black
Unit Box Height - 0.22
Unit Box Length - 0.29
Unit Box Width - 0.1
Unit Brutto Volume - 0.008063 cubm
Unit Gross Weight - 3.35 kg
Unit Net Weight - 2.9 kg
URL - https://www.bequiet.com/en/powersupply/4405
Vendor Homepage - www.bequiet.com/en/powersupply/4405
Warranty - 24 months
WarrantyInfo - 10-year manufacturer’s warranty
warrantyLength - 120
warrantyType - G
Weight - 3,19
Weight - 3.2
weight - 3300
Weight & dimensions - Depth - 160 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.92 kg
Weight & dimensions - Width - 150 mm
