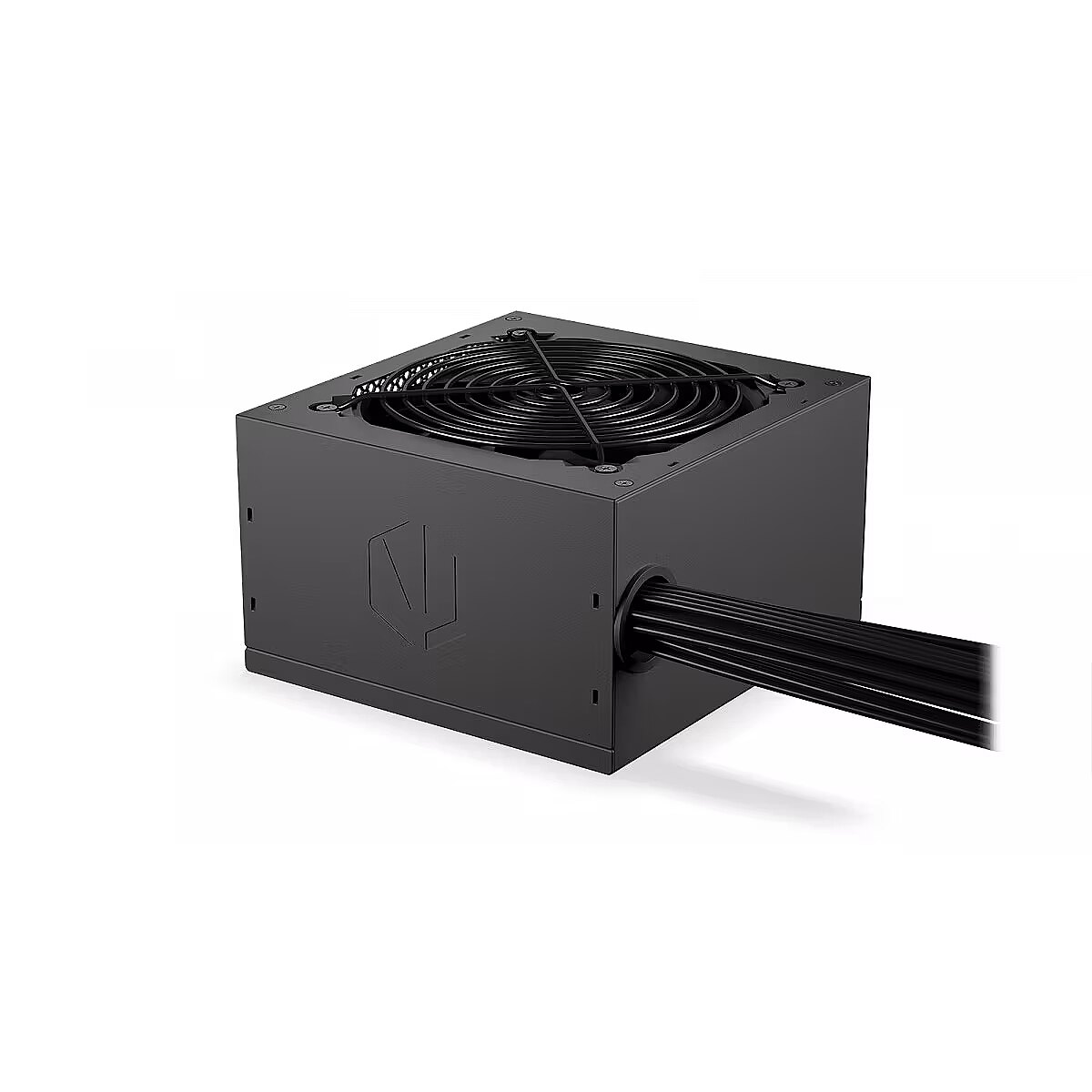

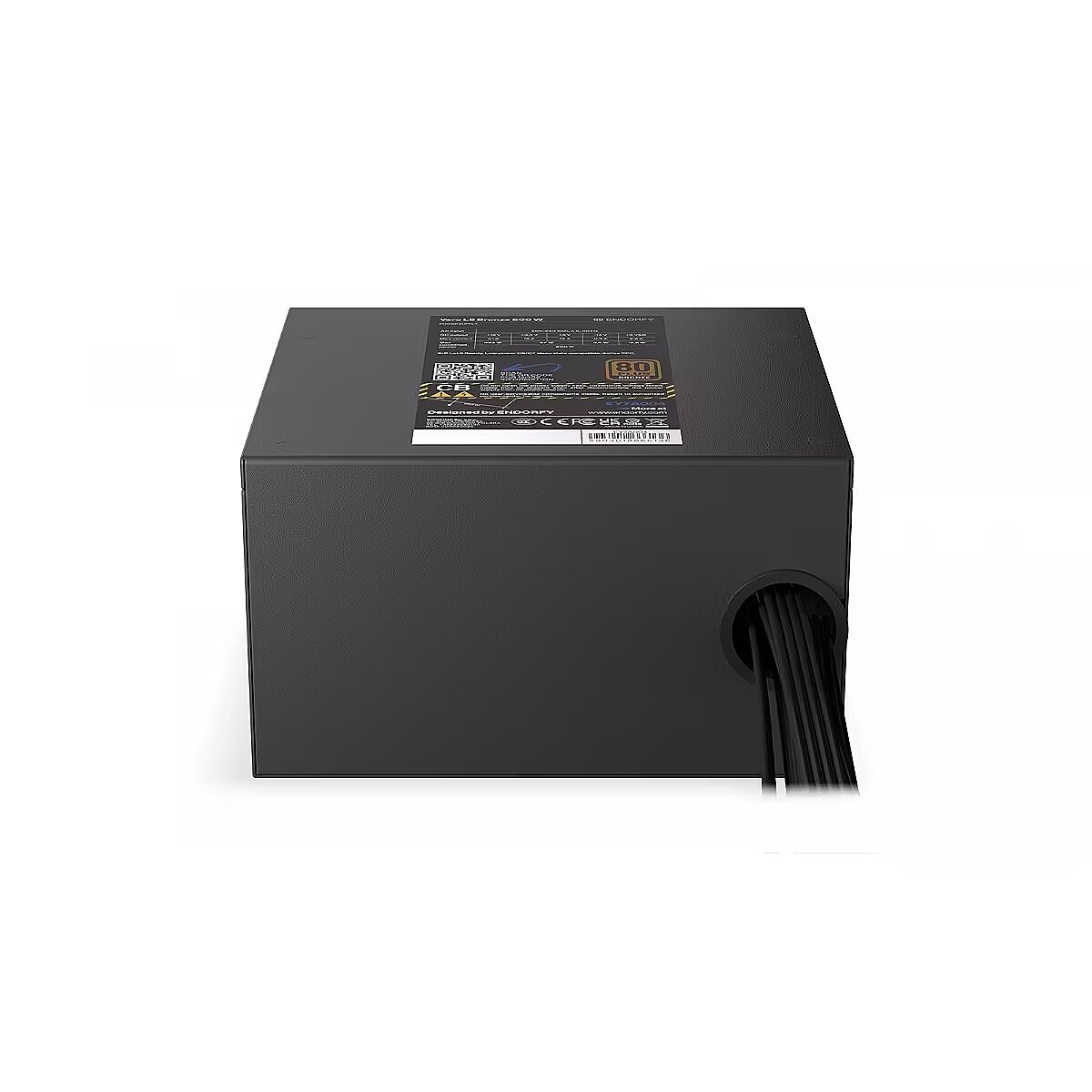

Endorfy Vero L5 Bronze, 500W, 80PLUS Bronze

80 PLUS certification Performance - 80 PLUS Bronze
Accessories included - ENDORFY Vero L5 Bronze 500W power supply Power cable Mounting kit User manual
AC input voltage Power - 230 V
Bearing technology Performance - FDB
Cables included Packaging content - AC,CPU,PCIe,Peripheral (Molex),SATA
Cabling type Ports & interfaces - Non-Modular
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Bronze
Cooling type Design - Active
Dane techniczne: Certyfikat sprawności - 80 Plus Bronze
Dane techniczne: Dodatkowe informacje - Certyfikat 80 PLUS® Bronze Przetwornica DC-DC Tajwańskie kondensatory Teapo Wydajny i wytrzymały wentylator Stratus Wygodne zarządzanie kablami Kompaktowa obudowa
Dane techniczne: Grupa produktowa - Zasilacze do komputera Endorfy
Dane techniczne: Gwarancja - 3 lata w serwisie zewnętrznym
Dane techniczne: Głębokość - 140 mm
Dane techniczne: Ilość wentylatorów chłodzących - 1
Dane techniczne: Moc - 500 W
Dane techniczne: Model - Endorfy Vero L5 Bronze
Dane techniczne: Producent - Endorfy
Dane techniczne: Rodzaj chłodzenia - wentylator
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 150 mm
Dane techniczne: Waga - 1.6 kg
Dane techniczne: Wtyczka zasilania [pin] - 1 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 1 x EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 5 x SATA
Dane techniczne: Wysokość - 87 mm
Dane techniczne: Zabezpieczenia - OCP
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Zabezpieczenia - SIP
Dane techniczne: Zabezpieczenia - UVP
Dane techniczne: Średnica wentylatorów - 120 mm
Depth Weight & dimensions - 140 mm
Description - The ENDORFY Vero L5 Bronze 500W is like a God mode for you your PC. It's a
stable power supply with DC-DC converters to regulate voltages and deliver 500
W of continuous power. With Taiwanese Teapo electrolytic and aluminum –
polymer capacitors inside, the ENDORFY Vero L5 Bronze 500W can operate at
temperatures up to 105⁰C. No wonder this bad boy is 80 PLUS® Bronze certified.
The Vero is also protected against short circuits, system overloads and other
mishaps. A quiet Stratus fan with FDB bearings keeps operating temperatures
low. And with a chassis length of just 14 cm long, it can fit into a smaller PC too. Rise of the machines? What’s this?
Life writes the best screenplays – that’s why even a trusty PC can crash start the
rise of the machines.
In the past, we’ve experienced a few (or more) blue screens and unexpected
resets – so we designed the Vero L5 Bronze 500W to hold a stable voltage at all
costs. Even when it's working with demanding components.
You may be wondering how we did it. The answer is simple: it’s all down to the
DC-DC converters, which guarantee precise voltage regulation, stable operation
and a total continuous output of 500 W. On top of that, you get a full package of
protection against short circuits and overloads, among other things. Thanks to
these, in case of overvoltage, the power supply will simply shut down. Quite quiet (and cool!)
When you're working and playing at 100%, you need a power supply that can
keep up with you your PC. That's what the Vero L5 Bronze 500W is all about. It's
a powerful piece of hardware that stays cool (and quiet) even when you're in the
middle of rendering 3D projects or video coding marathons.

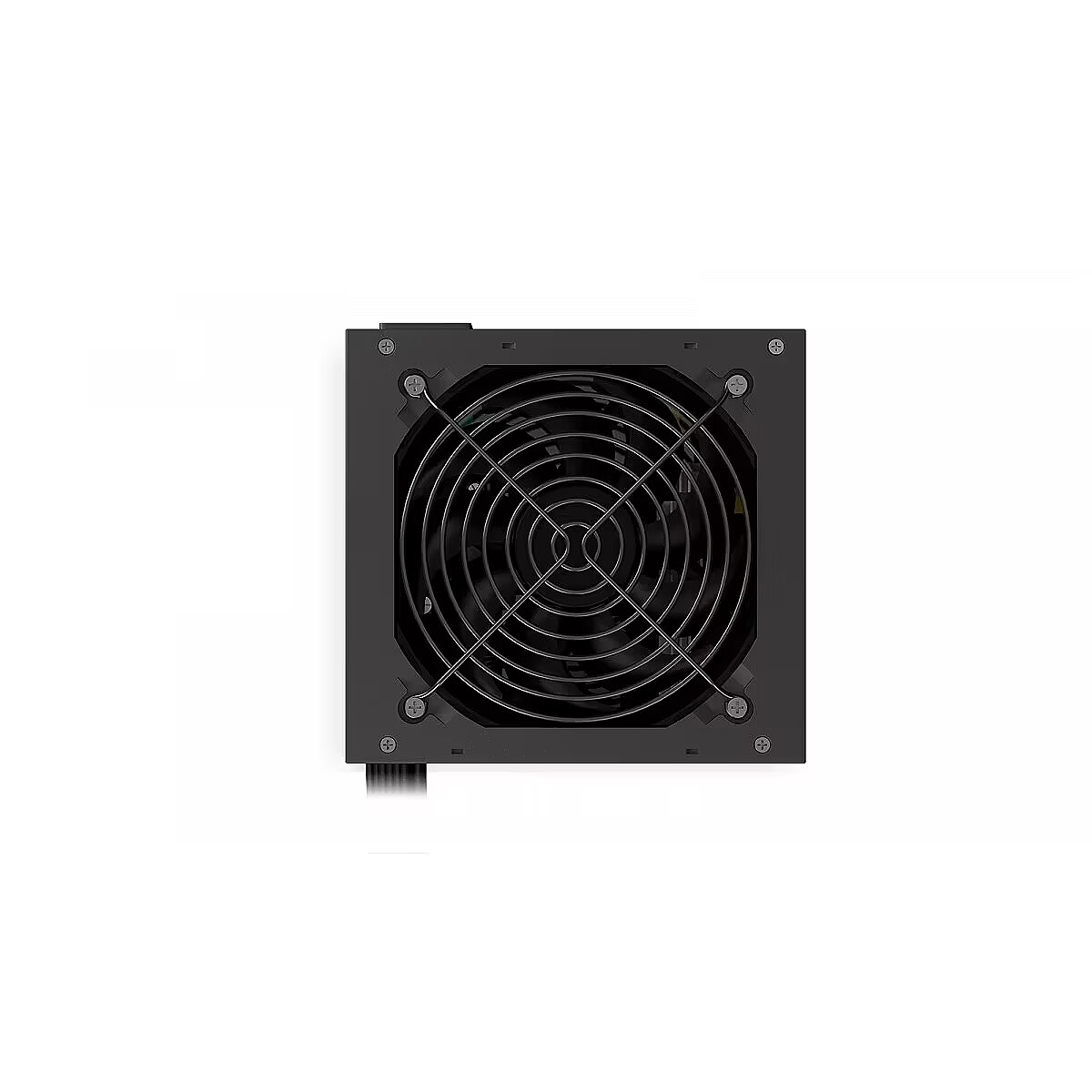

All thanks to the quiet FDB – bearing Stratus fan we installed in the power
supply. It's quite small, but it keeps the temperature as low as a fridge on a hot
night – but without the annoying noise. Maybe one day we’ll add a cup holder to
the Vero L5 Bronze 500W. Watchmen Capacitors straight from Taiwan
The Vero L5 Bronze 500W is a power supply that can compete with the most
hardcore survival nerds. It doesn’t mind extreme temperatures – the capacitors
are rated to operate at up to 105°C.
All thanks to Taiwanese Teapo watchmen capacitors. They take up little space,
but their aluminum casing hides high-end power. 3-year warranty
The Vero L5 Bronze 500W comes with a 3-year warranty. We’re pretty sure you
won't use it anyway (because, you know, it's ENDORFY quality), but we thought
you'd be happy to have it. YOLO!
Description - Vero L5 Bronze 500W If you like equipment that is not afraid to work at full speed, you will like the Vero L5 Bronze 500W stable power supply for voltage regulation. We packed it with, among other things, a quiet Stratus fan and Taiwanese Teapo electrolytic and aluminum-polymer capacitors, so you can overclock the parameters without worrying that the screen will turn blue in a moment. No wonder the power supply is 80 PLUS Bronze certified. Vero is also protected against short circuits, system overload and other accidents. The low operating temperature is ensured by a quiet Stratus fan with an FDB bearing. Its housing is 14 cm long, so you can fit it even to a smaller computer.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Fan speed - 0 - 1400 RPM
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 1188
dimension depth - 96 mm
dimension height - 225 mm
Dimensions - 87 × 140 × 150 mm
dimension weight - 2062 g
dimension width - 260 mm
ean - 5903018666136
Eans - 5903018666136
EAN_code - 5903018666136
EPS power connector (4+4 pin) Ports & interfaces - Yes
Fan - 12 cm
Fan diameter Design - 120 mm
Fan location Design - Top
Fan speed Design - 0 - 1400 RPM
Form Factor - ATX
guarantee - 36
guarantee_type - normal
Height Weight & dimensions - 87 mm
Manufacturer - ENDORFY
Manufacturer_code - EY7A004
Max output current (+3.3V) Power - 20 A
Max output current (+5Vsb) Power - 3 A
Max output current (+12V) Power - 70 A
Max output current (-12V) Power - 0.3 A
MB power connector - 24 pin
Mean time between failures (MTBF) Performance - 80000 h
Model name - Vero L5 Bronze 500 W
MOLEX power connectors - 1
Motherboard power cable length Ports & interfaces - 570 mm
Motherboard power connector Ports & interfaces - 24-pin ATX
Name - ENDORFY Vero L5 Bronze 500W
Name - Endorfy Vero L5 Bronze 500W ATX
name - Power Supply Vero L5 500W 80 Plus Bronze
Number of fans Design - 1 fan(s)
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connectors PCI-E 6 +2 pin - 1
Number of SATA power connectors Ports & interfaces - 5
On/off switch Design - Yes
Operating temperature (T-T) Operational conditions - 0 - 105 °C
Operational conditions - Operating temperature (T-T) - 0 - 105 °C
Other features - 80 PLUS Bronze certificate DC-DC converter Taiwanese Teapo capacitors Efficient and durable Stratus fan Convenient cable management Compact housing
Package type Packaging data - Box
Packaging content - Cables included - AC, CPU, PCIe, Peripheral (Molex), SATA
Packaging data - Package type - Box
PCI Express power cable length Ports & interfaces - 560 mm
PCI Express power connectors (6+2 pin) Ports & interfaces - 1
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - Bearing technology - FDB
Performance - Mean time between failures (MTBF) - 80000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - Supported motherboard form factors - ATX, micro BTX, Mini-ATX
Peripheral (Molex) power cable length Ports & interfaces - 820 mm
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 1
PFC - Active
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 57 cm
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express power cable length - 56 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 820 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Ports & interfaces - SATA power cable length - 820 mm
Power - AC input voltage - 230 V
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 70 A
Power - Max output current (-12V) - 0.3 A
Power - Power protection features - Over current
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 500 W
Power protection features Power - Over current/Over power/Over voltage/Short circuit/Under voltage
Power supply - 500 W
Power supply unit (PSU) form factor Performance - ATX
Producent: Nazwa producenta / importera - EndorfyCOOLING sp. z o.o Sokołowska 24 05-806 Sokołów PolskaEmail: product-safety@cooling.pl
producer - Endorfy
Producer - Endorfy
producerCode - EY7A004
ProducerCode - EY7A004
Product colour Design - Black
productName - ENDORFY Vero L5 power supply unit 500 W 24-pin ATX ATX Black
productSize - Normal
Purpose Performance - PC
SATA power cable length Ports & interfaces - 820 mm
SATA power connectors - 5
ShortDescription - 500 | ATX | 120 mm |87mm 140mm 150 | 80 PLUS Bronze|
sizeX - 270
sizeY - 220
sizeZ - 100
Summary - ENDORFY Vero L5. Total power: 500 W, AC input voltage: 230 V, Max output current (+3.3V): 20 A. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 57 cm, SATA power cable length: 820 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
Supported motherboard form factors Performance - ATX,Micro BTX,Mini-ATX
Total power Power - 500 W
Unit Box Height - 0.22
Unit Box Length - 0.095
Unit Box Width - 0.265
Unit Calculated Volume - 0.0055385 cubm
Unit Calculated Weight - 2.04 kg
Units per Shipping Box - 1
Vendor Homepage - https://endorfy.com/en/product/vero-l5-bronze-500w/
vendpn - EY7A004
Warranty - 24 months
warrantyLength - 36
warrantyType - G
Weight - 2,03
weight - 2060
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 87 mm
Weight & dimensions - Weight - 2.06 kg
Weight & dimensions - Width - 150 mm
Weight Weight & dimensions - 2060 g
Width Weight & dimensions - 150 mm
