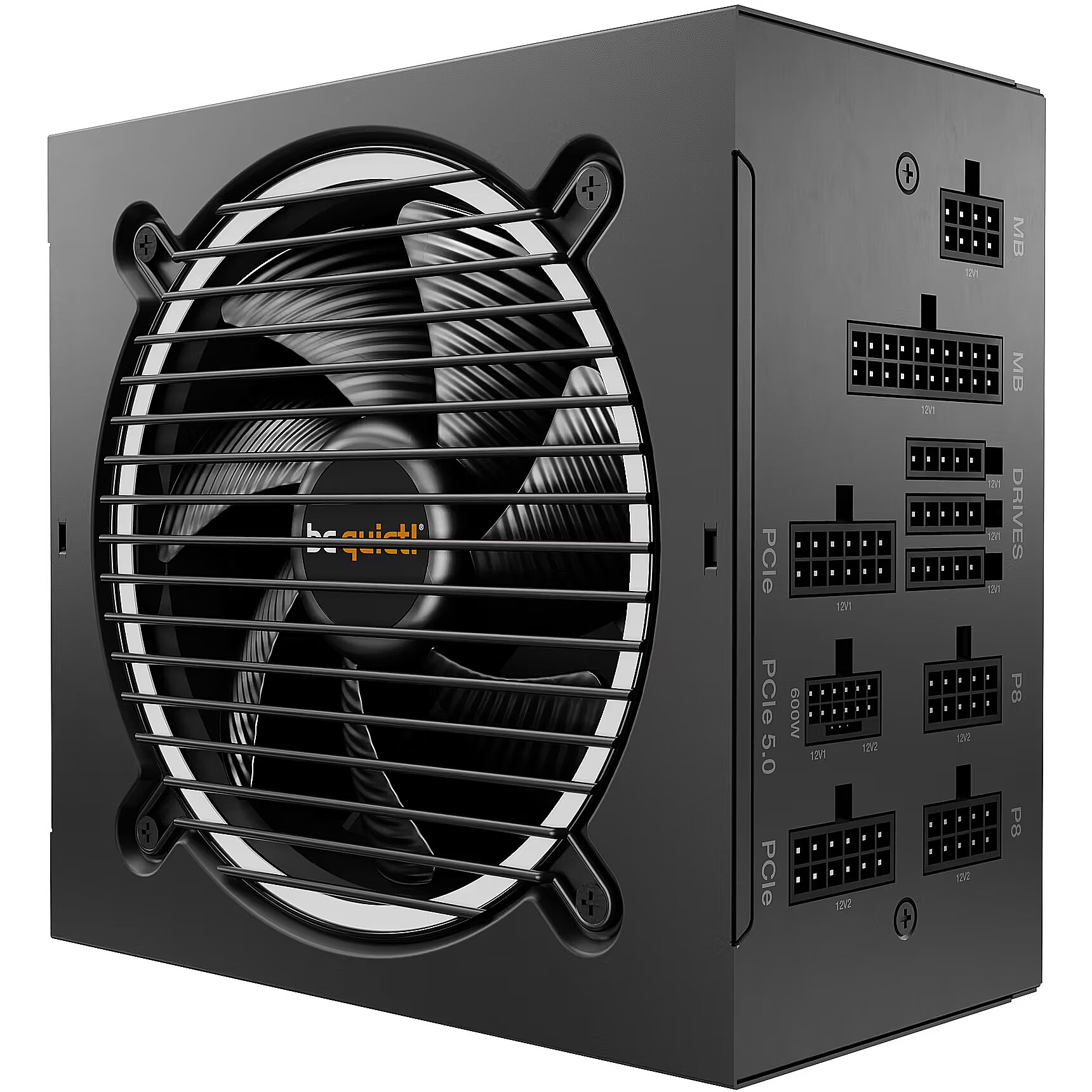

Be Quiet Pure Power 12 M, 1000W, ATX 3.0, 80PLUS Gold

8-pin 12V power connectors - 0
Accessories included -
ARTIKEL1 - PURE POWER 12 M 1000W
ARTIKEL2 - 80PLUS GOLD POWER SUPPLY
Brand - be quiet!
BrandPartCode - BN345
Breite - 0.22
category - Energy Power Supplies
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Gold
code - BN345
Colour - Black
Cooling System - 12cm fan
Description - PURE POWER 12 M 1000W Exceptional quiet, superior features Pure Power 12 M 1000W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 1000W offers the best combination of features with outstanding compatibility. - 80 PLUS® Gold efficiency (up to 93.1%) - ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors - Exceptionally silent 120mm be quiet! fan - Advanced stability and voltage regulation thanks to LLC technology - 2 strong 12V-rails - Modular cables for maximum build flexibility - One PCIe 5.0 12VHPWR 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUs
Description - PURE POWER 12 M 1000W EXCEPTIONAL SILENCE, BEST-IN-CLASS FEATURES Pure Power 12 M 1000W is ATX 3.0 and PCIe 5.0 compliant and offers unparalleled reliability with best-in-class features. It is the best combination of performance with exceptional compatibility.   80 PLUS Gold efficiency (up to 93.1%) ATX 3.0 power supply with full support for PCIe 5.0 graphics cards and those with 6+2-pin connectors Extremely silent be quiet! 120 mm fan! Advanced voltage stability and regulation thanks to LLC technology 2 powerful 12V rails Modular cables for maximum configuration flexibility One PCIe 5.0 12VHPWR 600W and 4 PCIe 6+2 connectors for high-end overclocked graphics cards 10-year manufacturer's warranty   Extremely high performance Pure Power 12 M 1000W is 80 PLUS Gold certified with up to 93.1% efficiency. The most convincing advantage: lower power consumption and thus lower costs, as well as cooler and quieter operation. The Pure Power 12 M 1000W is a good choice for quiet configurations and gaming PCs! Meets all requirements of the ATX 3.0 specification Pure Power 12 M 1000W is an ATX 3.0 power supply with native 12VHPWR connector integration for next-generation PCIe 5.0 graphics cards and PCIe 6+2-pin connectors to support current-generation GPUs. This makes the PSU extremely versatile and an excellent choice for current and future high-end configurations. For massive transient loads The Pure Power 12 M offers 1000W of continuous power with 2 independent 12 V lines. Even if your graphics card requires excessive power for short periods of time: Pure Power 12 M 1000W can easily cope with power surges of up to twice its rated power. This ensures reliable operation with the next generation of processors and graphics cards. Achieved thanks to the noise-optimised be quiet! The exceptionally quiet be quiet! 120mm fan is temperature-controlled to achieve the best balance between efficient cooling and silence. Airflow-optimised fan blades reduce turbulence for best-in-class quiet operation. Incredible stability Thanks to its LLC topology, the Pure Power 12 M 1000W guarantees best-in-class performance and voltage regulation. It is ideal for creating or upgrading silent PC configurations, gaming PCs or multimedia editing. Maximum convenience and compatibility Thanks to its modularity, you can remove all unnecessary cables from your configuration. The Pure Power 12 M 1000W simplifies cable management, cable routing, ensuring a tidy system. Smoother airflow results from an orderly layout, which means lower noise levels and temperatures inside the case.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1350
dimension depth - 100 mm
dimension height - 280 mm
Dimensions - 160 x 150 x 86 mm
Dimensions - 160 x 150 x 86mm
dimension weight - 3198 g
dimension width - 230 mm
ean - 4260052189504
EANCode - 4260052189504
Eans - 4260052189504
EAN_code - 4260052189504
Efficiency - 80 PLUS GOLD
Fan - 12 cm
Full Description Line - Pure Power 12 M 850W|ATX 3.0|1000 Watts|Cooling System 12cm fan|80 PLUS GOLD|PFC Active|MTBF 100000 hours|Colour Black
Gewicht - 3.2
GRUPPE1 - Computer Systems
GRUPPE2 - Power Supplies
GTIN - 4260052189504
guarantee - 120
guarantee_type - normal
HERSTELLER - BE QUIET
Hoehe - 0.1
HSTNUMMER - BN345
Laenge - 0.29
LongDesc - EXCEPTIONAL QUIET, SUPERIOR FEATURESPure Power 12 M 1000W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 1000W offers the best combination of features with outstanding compatibility.80 PLUS® GOLD CERTIFIEDVery high operating efficiencyPure Power 12 M 1000W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 93.1%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 1000W is always the correct choice for quiet systems and gaming PCs!FUTURE-PROOF YOUR SYSTEMFulfills all ATX 3.0 specificationsPure Power 12 M 1000W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for present high-end systems and the ones to come.THE NEW STANDARD OF POWERFor massive transient loadsPure Power 12 M offers 1000W of continuous power with 2 independent 12V rails. Even if the graphics card demands excessive power for a short time: Pure Power 12 M 1000W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.UNPRECEDENTED SILENT OPERATIONAchieved with a silence-optimized be quiet! fanThe exceptionally silent 120mm be quiet! fan is temperature-controlled to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-classquiet functionality. HIGH-CLASS TECHNOLOGIESRock-solid stabilityWith its LLC topology Pure Power 12 M 1000W provides a best-in-class voltage regulation and efficiency. That makes it perfect for building or upgrading very quiet systems as well as gaming and media creation PCs.MODULAR CABLESUtmost convenience and compatibilityThanks to their modularity, all unnecessary cables in the system are left out. Pure Power 12 M 1000W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.
LongProductName - 1000W, ATX 3.0, 100 - 240V, 50 - 60Hz, 160 x 150 x 86mm, Black
LongSummaryDescription - be quiet! Pure Power 12 M. Total power: 1000 W, AC input voltage: 100 - 240 V, Peak power: 1050 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 500,600,650,800,950 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: PATA, PCIe, Peripheral (Molex), SATA
Manufacturer - Be quiet
Manufacturer_code - BN345
MB power connector - 20 + 4 pin
Model - BN345
Model name - Pure Power 12 M 1000W
Modular power supply - Yes
MOLEX power connectors - 2
MTBF - 100000 hours
Name - be quiet! Pure Power 12 M 1000W
Name - be quiet! Pure Power 12M 1000W, PC power supply (black, 5x PCIe, cable management, 1000 watts)
name - be quiet! Pure Power 12M Netzteil 80 PLUS Gold, ATX 3.0, PCIe 5.0 - 1000 Watt
name - Pure Power 12M 1000W ATX 3.0 GOLD PSU
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features -
Other features - Cable ties included - Yes
Other features - Noise level (full-load mode, 100%) - 31.7 dB
Other features - Noise level (quiet mode, 50%) - 9.6 dB
Other features - Noise level (silent mode, Other features - Number of screws - 5
Other features - Screws included - Yes
Packaging content - Cables included - PATA, PCIe, Peripheral (Molex), SATA
Packaging data - Package type - Box
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 1
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.0
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Noise level - 31.7 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power cable length - 55 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 2
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power cable length - 550 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Ports & interfaces - SATA power cable length - 500,600,650,800,950 mm
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 1000 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 93.2%
Power - Input current - 12 / 6 A
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 83.4 A
Power - Max output current (+12V1) - 46 A
Power - Max output current (+12V2) - 42 A
Power - Max output current (-12V) - 0.3 A
Power - Peak power - 1050 W
Power - Power factor - 0.98
Power - Power Factor Correction (PFC) type - Active
Power - Power Good signal delay range - 100 - 150 ms
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit
Power - Total power - 1000 W
Power supply - 1000 W
producer - Be quiet!
Producer - be quiet!
producerCode - BN345
ProducerCode - BN345
productName - be quiet! Pure Power 12 M power supply unit 1000 W 20+4 pin ATX ATX Black
ProductName - Pure Power 12 M
productSize - Normal
PSU - ATX 3.0
PSU Output Power - 1000 Watts
PSU Peak Output Power - 1050 Watts
SATA power connectors - 6
Shipping box quantity - 1
ShortDescription - 1000 | ATX | 120 mm | 20 + 4 pin | 160mm x 86mm x 150mm | 80 PLUS Gold
ShortSummaryDescription - be quiet! Pure Power 12 M, 1000 W, 100 - 240 V, 1050 W, 50 - 60 Hz, 12 / 6 A, Active
sizeX - 294
sizeY - 103
sizeZ - 223
Stck_Kart - 4
Stck_Pal - 16
Storno - Y
Technical details - Sustainability certificates - ENERGY STAR, ErP, RoHS
Technical details - Sustainability compliance - Yes
Technical details - Warranty period - 10 year(s)
Title - be quiet! Pure Power 12 M power supply unit 1000 W 20+4 pin ATX ATX Black
Unit Brutto Volume - 0.006 cubm
Unit Gross Weight - 2.94 kg
Unit Net Weight - 2.9 kg
URL - https://www.bequiet.com/en/powersupply/4066
Vendor Homepage - www.bequiet.com/en/powersupply/4066
vendpn - BN345
Warranty - 24 months
WarrantyInfo -
warrantyLength - 120
warrantyType - G
Weight - 3,20
weight - 3210
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 160 mm
