Brand - ASUS
BrandPartCode - 90YE00N4-B0NA00
category - Energy Power Supplies
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category_1 - Power
Category_2 - Computer Power Supplies
code - 90YE00N4-B0NA00
Design - Fan diameter - 12 cm
Design - Illumination - Yes
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
Design - Product colour - Black, Silver
Design - Product colour - Silver
dimensionalWeight - 1157
ean - 4711081722915
Eans - 4711081722915
EAN_code - 4711081722915
GTIN - 4711081722915
LongDesc - ROG Loki 750W PlatinumThe Quietest SFX-L PSUTaking after the ROG Thor, the ROG Loki SFX-L 750W Platinum brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.ROG HeatsinksCool under pressureROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.80 PLUS Platinum CertifiedEffortless outputLow-ESR Japanese capacitors further improve efficiency and reduce heat, readying ROG Loki to reliably fuel your build for years to come.ATX 3.0 CompatibleStep into the futureThe latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Loki steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities to SFF rigs.ARGB-illuminated Fan & Aura SyncMagical glowThe Loki's 120 mm fan features eight addressable LEDs ready to be customized with Aura Sync to create coordinated lighting patterns across your build.* If the connector cable is not used, the default color effect is rainbow.* To enjoy Aura Sync, you’ll need an Aura Sync-compatible ASUS or ROG motherboard. Similarly, the Smart Mode lighting effect, which reflects GPU temperature, requires use of a compatible ASUS or ROG graphics card.
LongProductName - SFX-L, 80Plus Platinum, 750W, 100 - 240V, 1.815kg
LongSummaryDescription - ASUS ROG Loki SFX-L 750W Platinum. Total power: 750 W, AC input voltage: 100 - 240 V, Combined power (+3.3V): 110 W. Motherboard power connector: 20+4 pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: SFX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Silver, Fan diameter: 12 cm, Number of fans: 1 fan(s). Width: 125 mm, Depth: 125 mm, Height: 63.5 mm
Manufacturer - Asus
Manufacturer_code - 90YE00N4-B0NA00
Name - ASUS ROG-LOKI-750P-SFX-L-GAMING
Name - ASUS ROG Loki 750W Platinum, PC power supply (black, 4x PCIe, cable management, 750 watts)
name - ASUS ROG Loki SFX-L 80 PLUS Platinum netzteil, modular - 750 Watt
Packaging data - Package depth - 190 mm
Packaging data - Package height - 100 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.5 kg
Packaging data - Package width - 285 mm
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - Certification - OPP/OVP/UVP/SCP/OCP/OTP
Performance - Power supply unit (PSU) form factor - SFX
Performance - Purpose - PC
Performance - Silent mode - Yes
Performance - Supported motherboard form factors - ATX
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power connectors (8-pin) - 3
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 750 W
Power - Combined power (-12V) - 9.6 W
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 62.5 A
Power - Max output current (-12V) - 0.8 A
Power - Total power - 750 W
Producer - Asus
producerCode - 90YE00N4-B0NA00
ProducerCode - 90YE00N4-B0NA00
productName - ASUS ROG Loki SFX-L 750W Platinum power supply unit 20+4 pin ATX Black, Silver

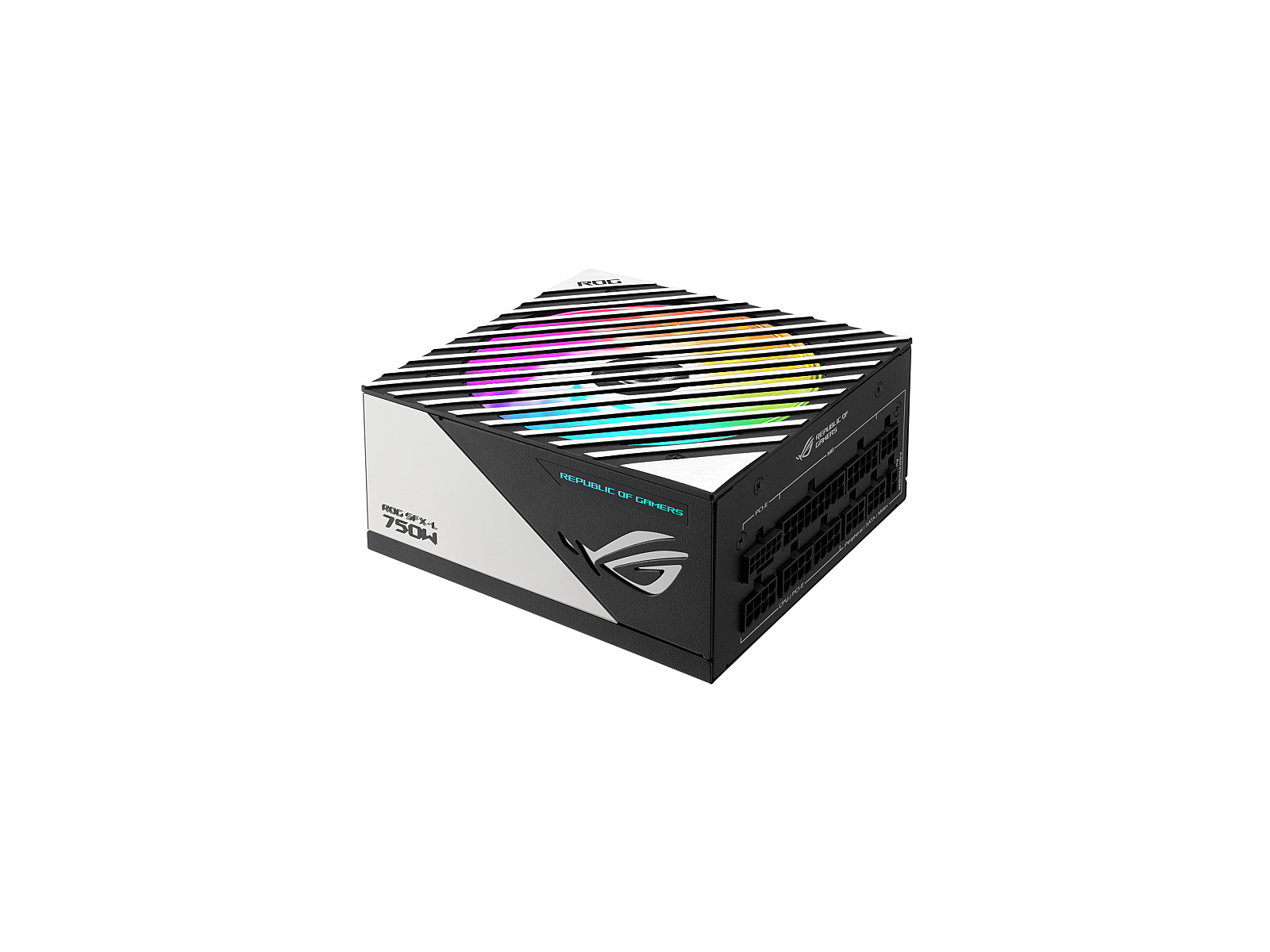

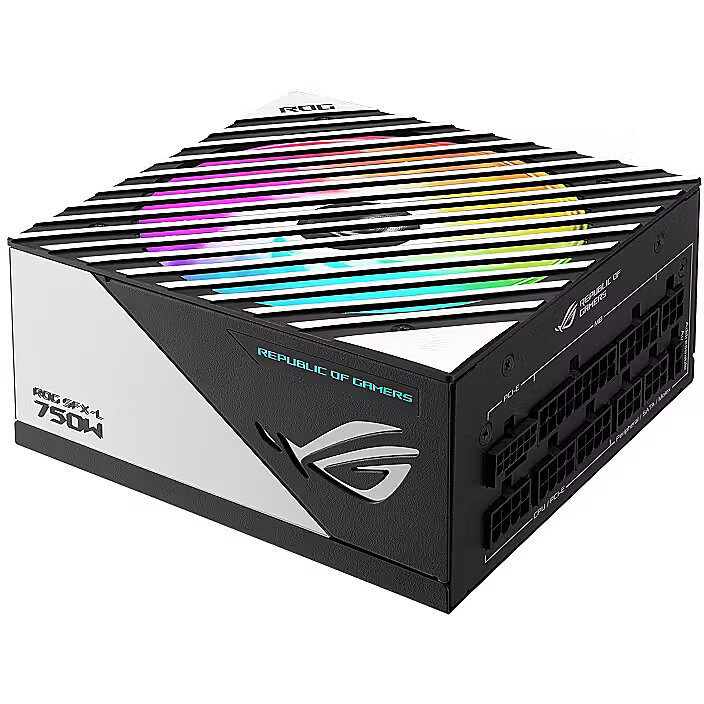

ProductName - ROG Loki SFX-L 750W Platinum
productSize - Normal
ShortDescription - 750 | ATX | 135mm | 20 + 4 pin | 80 Plus Platinum| 125 x 125 x 63.5 mm |
ShortSummaryDescription - ASUS ROG Loki SFX-L 750W Platinum, 750 W, 100 - 240 V, 110 W, 750 W, 110 W, 9.6 W
sizeX - 105
sizeY - 190
sizeZ - 290
Technical details - Sustainability certificates - RoHS
Title - ASUS ROG Loki SFX-L 750W Platinum power supply unit 20+4 pin ATX Black, Silver
URL - https://rog.asus.com/power-supply-units/rog-loki/rog-loki-750p-sfx-l-gaming-model/spec/
WarrantyInfo -
warrantyLength - 120
warrantyType - G
Weight - 2,50
weight - 2565
Weight & dimensions - Depth - 125 mm
Weight & dimensions - Height - 63.5 mm
Weight & dimensions - Weight - 1.81 kg
Weight & dimensions - Width - 125 mm
