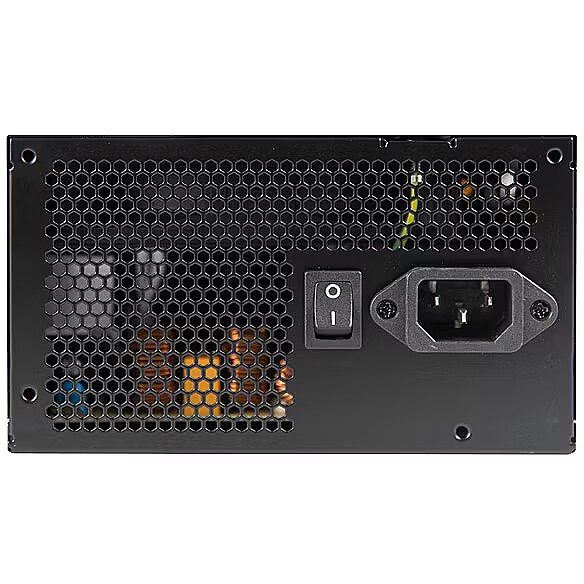

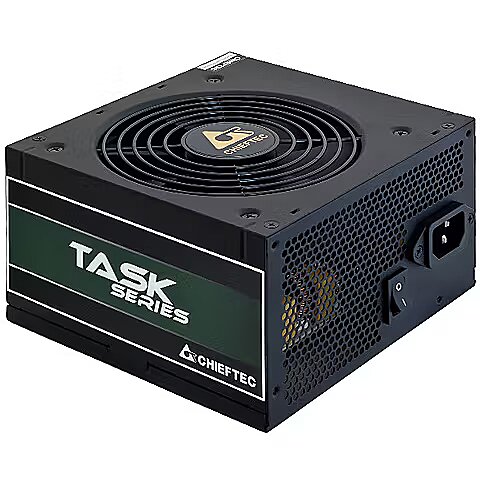

Chieftec Task Series, 700W, 80PLUS Bronze

8-pin 12V power connectors - 0
Accessories included -
Brand - Chieftec
BrandPartCode - TPS-700S
Category - Power Supply Units
Category 1 - Netzteile
Certificates 80+ - 80 PLUS Bronze
Description - Zasilacz TPS-700S 700W ATX-12V, TAS series Ta popularna seria zasilaczy Task sprosta każdemu zadaniu i poradzi sobie z każdym napotkanym problemem.
Dzięki certyfikowanej sprawności 80PLUS Bronze i wszystkimi nowoczesnymi zabezpieczeniami, można zaufać temu zasilaczowi bezgranicznie. Posiadając kable do 650 mm dla płyty głównej i procesora zasilacz ten spełni każde wymagania dla twojego systemu.
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimension depth - 50 mm
dimension height - 185 mm
Dimensions - 140 x 150 x 87 mm
dimension weight - 2060 g
dimension width - 150 mm
ean - 753263076502
EAN - 0753263076502
Fan - 12 cm
Floppy power connectors - 0
GTIN - 753263076502
GTIN - 0753263076502
guarantee - 24
guarantee_type - normal
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - TPS-700SThe CHIEFTEC Task Series PSU’s are true to their name, and take on any task they are required for without any trouble. With certified 80PLUS Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger cases.
LongProductName - Chieftec Task Series TPS-700S, ATX, 80PLUS Bronze
LongSummaryDescription - Chieftec Task TPS-700S. Total power: 700 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Width: 150 mm, Depth: 140 mm, Height: 87 mm
Manufacturer - Chieftec
MB power connector - 20 + 4 pin
Modular power supply - No
MOLEX power connectors - 3
MPN - TPS-700S
Name - 700W Chieftec TASK Series TPS-700S
name - Power supply TPS-700S 700W ATX-12V, TAS series
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 2
Other features - AFC (automatyczna kontrola prędkości obrotowej wentylatora) OPP (zabezpieczenie przeciwprzeciążeniowe) OTP (zabezpieczenie przed przegrzaniem) OVP (zabezpieczenie przeciwprzepięciowe) SCP (zabezpieczenie przeciwzwarciowe) SIP (ochrona przed przepięciami i udarami) UVP (zabezpieczenie podnapięciowe)
Other features - EPS cable length - 65 cm
Packaging data - Package type - Box
Packaging data - Package weight - 2.15 kg
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - Certification - ErP, CE, CB, EAC, TUV
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - Supported motherboard form factors - ATX
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 65 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power cable length - 50 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 150,500 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 150,500 mm
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 648 W
Power - Combined power (-12V) - 3.6 W
Power - Input current - 10 A
Power - Max output current (+3.3V) - 19 A
Power - Max output current (+5V) - 17 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 54 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over voltage, Overheating, Overload, Short circuit, Under voltage
Power - Total power - 700 W
Power supply - 700 W
producer - Chieftec
ProductName - TPS-700S
SATA power connectors - 6
ShortSummaryDescription - Chieftec Task TPS-700S, 700 W, 100 - 240 V, 47 - 63 Hz, 10 A, Active, 648 W
Technical details - Sustainability certificates - RoHS
Title - Chieftec Task TPS-700S power supply unit 700 W 20+4 pin ATX ATX Black
URL - https://www.chieftec.eu/products-detail/180/TASK_SERIES/248/TPS-700S
vendpn - TPS-700S
WarrantyInfo - 24 months
Weight - 2.08
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 87 mm
Weight & dimensions - Weight - 1.74 kg
Weight & dimensions - Width - 150 mm
