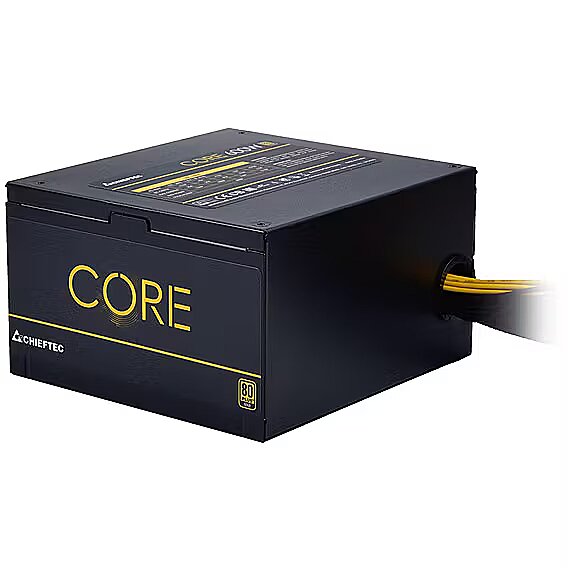

Chieftec Core Series, 600W, 80PLUS Gold

8-pin 12V power connectors - 0
Accessories included -
Brand - Chieftec
BrandPartCode - BBS-600S
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category Code - PSU
Certificates 80+ - 80 PLUS Gold
Colour - Black
Cooling System - 12cm fan
Description - - 80 PLUS Gold Efficiency - Compact size with only 140mm depth - 500-700W power output - Motherboard, CPU and PCI-E cable lengths of 650mm With the Core Series, Chieftec has brought an 80 PLUS Gold certified PSU to market, offering the best possible value for money. The goal of the Core Series power-supplies is to deliver a no-nonsense package of performance, efficiency and reliability.
Description - Power supply 600W 80 PLUS GOLD PFC 120MM ATX Chieftec launches another new series of CORE power supplies. These power supplies have a 80 PLUS Gold certificate and convince by the ratio of attractive price to quality. The purpose of the CORE series power supplies is to offer a combination of power, performance and reliability without unnecessary gadgets. These power supplies are available with 500W / 600W / 700W.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 932
dimension depth - 240 mm
dimension height - 105 mm
Dimensions - 140 mm x 150 mm x 86 mm
Dimensions - 140 x 150 x 86 mm
dimension weight - 2068 g
dimension width - 190 mm
ean - 753263076137
EAN - 0753263076137
Eans - 753263076137
Efficiency - 80 PLUS GOLD
Fan - 12 cm
Floppy power connectors - 1
Full Description Line - Core 600W|ATX 2.3|600 Watts|Cooling System 12cm fan|80 PLUS GOLD|PFC Active|Colour Black
GTIN - 753263076137
GTIN - 0753263076137
guarantee - 24
guarantee_type - normal
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - With the Core Series, Chieftec will be bringing a new 80 PLUS Gold certified PSU to market, offering the best possible value-formoney. The goal of the Core Series power-supplies is to deliver a no-nonsense package of performance, efficiency and reliability. With power output ranging from 500W to 700W, this product is idea for customers who want top-tier power output at the most attractive price.
LongProductName - Chieftec Core Series BBS-600S, ATX, 80PLUS Gold
LongSummaryDescription - Chieftec Core BBS-600S. Total power: 600 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 86 mm
Manufacturer - Chieftec
MB power connector - 20 + 4 pin
Model name - Core 600W
Modular power supply - No
MOLEX power connectors - 3
MPN - BBS-600S
Name - 600W Chieftec CORE Serie BBS-600S
Name - Chieftec Core BBS-600S 600W
name - Power supply Core 600W 80 PLUS GOLD PFC 120MM ATX
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 2
Other features - OVP (overvoltage protection) SCP (short-circuit protection) OPP (Over Power Protection) Work without load
Packaging data - Package weight - 2.08 kg
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - Power supply unit (PSU) form factor - PS/2
Performance - Purpose - PC
PFC - Active
Ports & interfaces - CPU power cable length - 65 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 65 cm
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power cable length - 50 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 150
Ports & interfaces - Peripheral (Molex) power cable length - 150,500 mm
Ports & interfaces - Peripheral (Molex) power cable length - 500 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 150
Ports & interfaces - SATA power cable length - 150,500 mm
Ports & interfaces - SATA power cable length - 500 mm
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (-12V) - 3.6 W
Power - Input current - 9 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V1) - 49 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Overload
Power - Power protection features - Over voltage
Power - Power protection features - Over voltage, Overload, Short circuit
Power - Power protection features - Short circuit
Power - Total power - 600 W
Power supply - 600 W
producer - Chieftec
Producer - Chieftec
producerCode - BBS-600S
ProducerCode - BBS-600S
ProductName - BBS-600S
productName - Chieftec Core BBS-600S power supply unit 600 W 24-pin ATX PS/2 Black
productSize - Normal
PSU - ATX 2.3
PSU Output Power - 600 Watts
SATA power connectors - 6
Shipping Box Depth Shipping/Package Box Dimensions - 24 cm
Shipping Box Height Shipping/Package Box Dimensions - 10.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.021 kg
Shipping Box Width Shipping/Package Box Dimensions - 18.5 cm
ShortDescription - 600W | ATX | 120 mm | 20 + 4 pin | 140mm x 150mm x 86mm | 80 PLUS Gold
ShortSummaryDescription - Chieftec Core BBS-600S, 600 W, 100 - 240 V, 47 - 63 Hz, 9 A, Active, 3.6 W
sizeX - 240
sizeY - 185
sizeZ - 105
Title - Chieftec Core BBS-600S power supply unit 600 W 24-pin ATX PS/2 Black
Unit Box Height - 0.105
Unit Box Length - 0.24
Unit Box Width - 0.185
Unit Brutto Volume - 0.004662 cubm
Unit Gross Weight - 2.02 kg
Unit Net Weight - 1.67 kg
URL - https://www.chieftec.eu/products-detail/113/CORE_SERIES/115/BBS-600S
Vendor Homepage - www.chieftec.eu/en/psus/ps-2/core-series/bbs-600s.html
vendpn - BBS-600S
Warranty - 24 months
WarrantyInfo - 24 Months
warrantyLength - 24
warrantyType - G
Weight - 1.67 kg
Weight - 2.08
weight - 2040
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.67 kg
Weight & dimensions - Width - 140 mm
