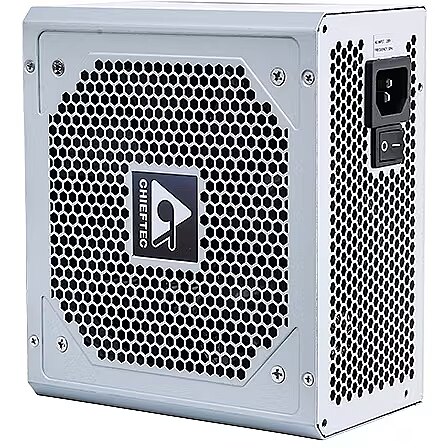

Chieftec iArena GPC Series, 700W

AC input frequency Power - 50 Hz
AC input voltage Power - 230 V
ATX version Performance - 2.3
Brand - Chieftec
BrandPartCode - GPC-700S
Cabling type Ports & interfaces - Non-Modular
Category - Power Supply Units
Category Code - PSU
CnCode - 85044095
Combined power (+3.3V) Power - 130 W
Combined power (+5Vsb) Power - 12.5 W
Depth Weight & dimensions - 150 mm
Description - In a continuous effort to align our high-end production with the extreme fast technological developments of the IT industry, CHIEFTEC introduces its NEW iARENA series. Initially dedicated to the SI market alone, the iARENA series has established a strong position amongst end users as well, owing to the implemented high-end components which have lead and proven longevity and ruggedness.
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Silver
Fan diameter Design - 120 mm
GTIN - 4710713234161
GTIN - 4710713234208
Harmonized System (HS) code Logistics data - 84733020
Height Weight & dimensions - 87 mm
Input current Power - 6.3 A
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - In a continuous effort to align our high-end production with the extreme fast technological developments of the IT industry, CHIEFTEC introduces its NEW iARENA series. Initially dedicated to the SI market alone, the iARENA series has established a strong position amongst end users as well, owing to the implemented high-end components which have lead and proven longevity and ruggedness.
LongProductName - GPC-700S, 700W, 230V / 6,3A
LongSummaryDescription - Chieftec GPC-700S. Total power: 700 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Silver, Fan diameter: 12 cm, Number of fans: 1 fan(s). Width: 140 mm, Depth: 150 mm, Height: 87 mm
Max output current (+3.3V) Power - 22 A
Max output current (+5V) Power - 22 A
Max output current (+5Vsb) Power - 2.5 A
Max output current (+12V1) Power - 52.5 A
Max output current (-12V) Power - 0.3 A
Motherboard power connector Ports & interfaces - 24-pin ATX
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 6
Performance - ATX version - 2.3
Performance - Power supply unit (PSU) form factor - PS/2
Performance - Purpose - PC
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 2
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Power - AC input frequency - 50 Hz
Power - AC input voltage - 230 V
Power - Combined power (+3.3V) - 130 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Input current - 6.3 A
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V1) - 52.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over voltage, Overload, Short circuit, Under voltage
Power - Total power - 700 W
Power Factor Correction (PFC) type Power - Active
Power protection features Power - Over voltage/Overload/Short circuit/Under voltage
Power supply unit (PSU) form factor Performance - PS/2
Product colour Design - Silver
ProductName - GPC-700S
Purpose Performance - PC
ShortSummaryDescription - Chieftec GPC-700S, 700 W, 230 V, 50 Hz, 6.3 A, Active, 130 W
Summary - Chieftec GPC-700S. Total power: 700 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Silver, Fan diameter: 12 cm, Number of fans: 1 fan(s). Width: 140 mm, Depth: 150 mm, Height: 87 mm
Title - Chieftec GPC-700S power supply unit 700 W 24-pin ATX PS/2 Silver
Total power Power - 700 W
Unit Box Height - 0.21
Unit Box Length - 0.145
Unit Box Width - 0.09
Unit Calculated Volume - 0.00274 cubm
Unit Calculated Weight - 1.52 kg
Units per Shipping Box - 1
URL - https://www.chieftec.eu/en/psus/ps-2/iarena-series/gpc-700s.html
Vendor Homepage - https://www.chieftec.eu/en/psus/ps-2/iarena-series/gpc-700s.html
Warranty - 24 months
WarrantyInfo -
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 87 mm
Weight & dimensions - Width - 140 mm
Width Weight & dimensions - 140 mm
