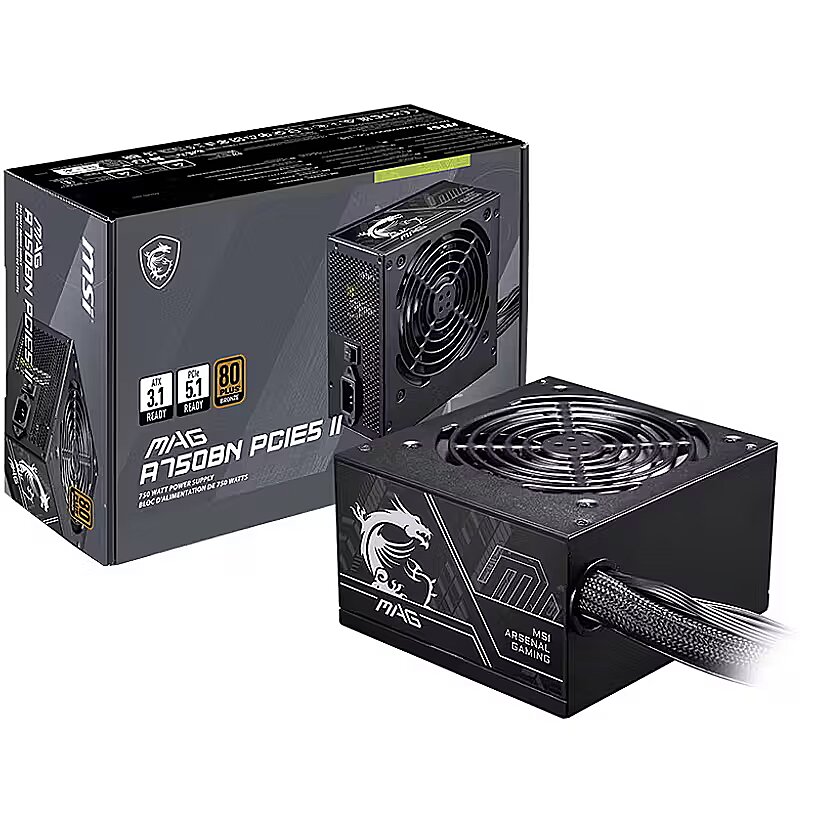

MSI MAG A750BN PCIE5 II, 750W, 80PLUS Bronze, ATX 3.1, PCIe 5.1

Brand - MSI
BrandPartCode - MAG A750BN PCIE5 II
Category - Power Supply Units
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Illumination - No
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1440
GTIN - 4711377364256
GTIN - 4711377364263
LongDesc - MAG msi arsenal gamingMSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.80 PLUS BRONZE CERTIFIEDThe efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS BRONZE certification promises lower energy consumption and higher efficiency.ATX 3.1 READYIt has an output port that is compliant with PCIe CEM 5.1 and Intel PSDG (Power Supply Design Guide)ATX 3.1, also this power supply can hold up to 2x total power excursion and 3x GPU power excursion.Dual-color 12V-2x6 cableThe 12V-2x6 cable’s connector color has been changed to yellow so that users can easily see if the connector has been plugged in properly.Offer the CPU sufficient powerThis power supply features dual 4+4-pin PCIe power connectors, providing ample 12V power to support high-performance CPUs.POWER AT YOUR SIDEThe power supply is built with DC-to-DC construction, ensuring top-tier efficiency and unwavering voltage stability for your system.SET FREE FOR THE +12V POWER OUTPUTThe latest CPUs and graphics cards demand more power, and a single +12V rail PSU provides an ideal combination of simplicity, robust power delivery.Alloy Copper Connector TerminalsThe cable connectors are made of copper alloy terminals so that thepower supply will be safer when there is a higher surge in current.Built for Maximum SafetyThe power supply's cables, from the internal copper wires to the external high-density braided cover, are fully UL certified, ensuring superior safety and durability.PROTECTION MECHANISMSoperate safely and stably at all times, this power supply comes with a number of protection mechanisms to give you the best peace of mind.connectorsThis non-modular power supply is equipped with soft cables, making cable management easier.
LongProductName - 750W, 120 mm, 50-60Hz, 80 PLUS Bronze
LongSummaryDescription - MSI MAG A750BN PCIE5 II. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - ATX Power connector (24-pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 1
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 750 W
Power - Efficiency - 85%
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 32.5 A
Power - Max output current (+12V) - 62.5 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over power, Over voltage, Short circuit
Power - Total power - 750 W
producerCode - 306-7ZPSX11-CE0
ProductName - MAG A750BN PCIE5 II
productName - Zasilacz MSI MAG A750BN PCIE5 II
productSize - Normal
ShortSummaryDescription - MSI MAG A750BN PCIE5 II, 750 W, 100 - 240 V, 50/60 Hz, Active, 120 W, 750 W
sizeX - 200
sizeY - 300
sizeZ - 120
Title - MSI MAG A750BN PCIE5 II power supply unit 750 W 24-pin ATX ATX Black
URL - https://www.msi.com/Power-Supply/MAG-A750BN-PCIE5-II/Overview
WarrantyInfo -
warrantyLength - 60
warrantyType - G
weight - 2320
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
