Brand - ASUS
BrandPartCode - 90YE00V6-B0NA00
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Dane techniczne: Certyfikat sprawności - 80 Plus Platinium

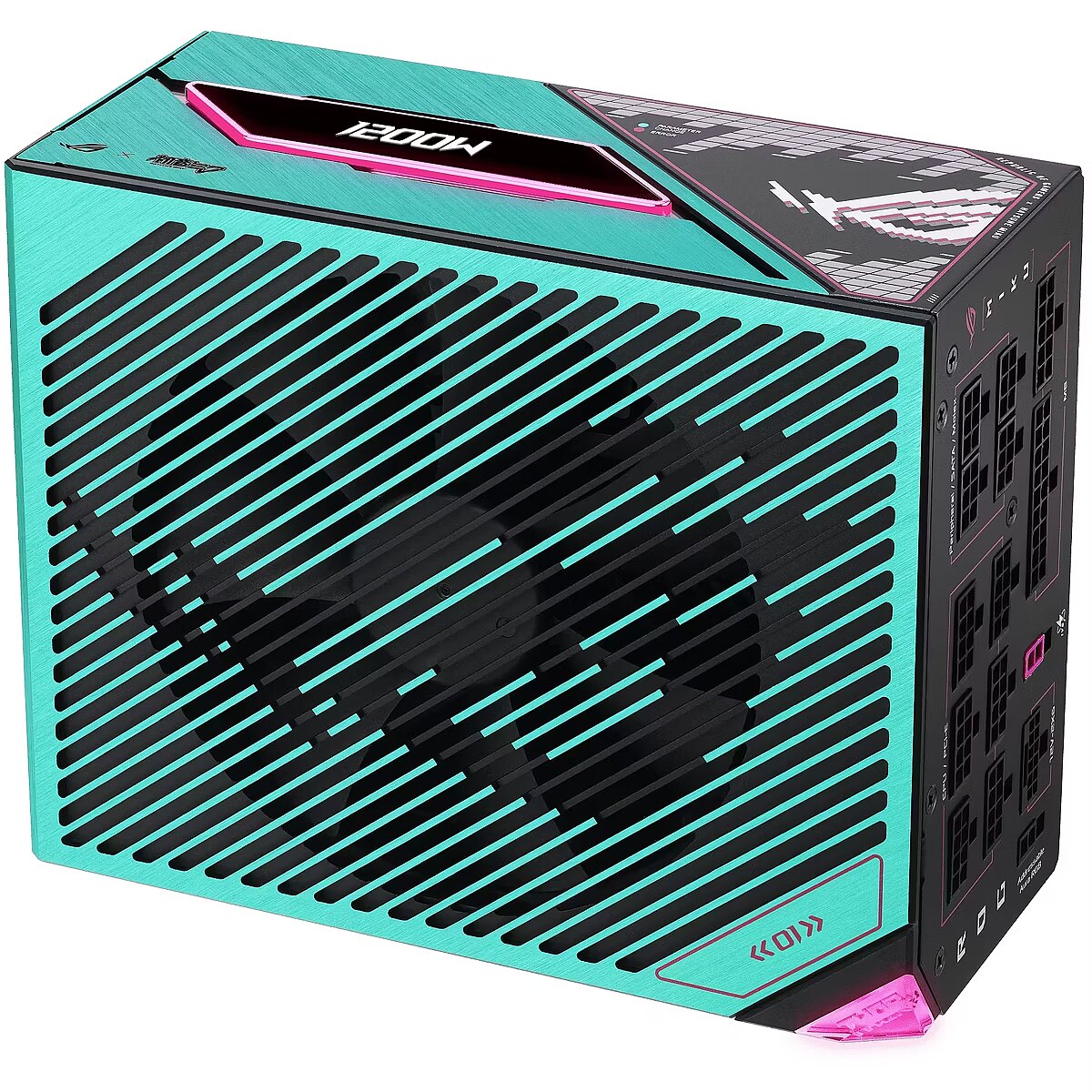

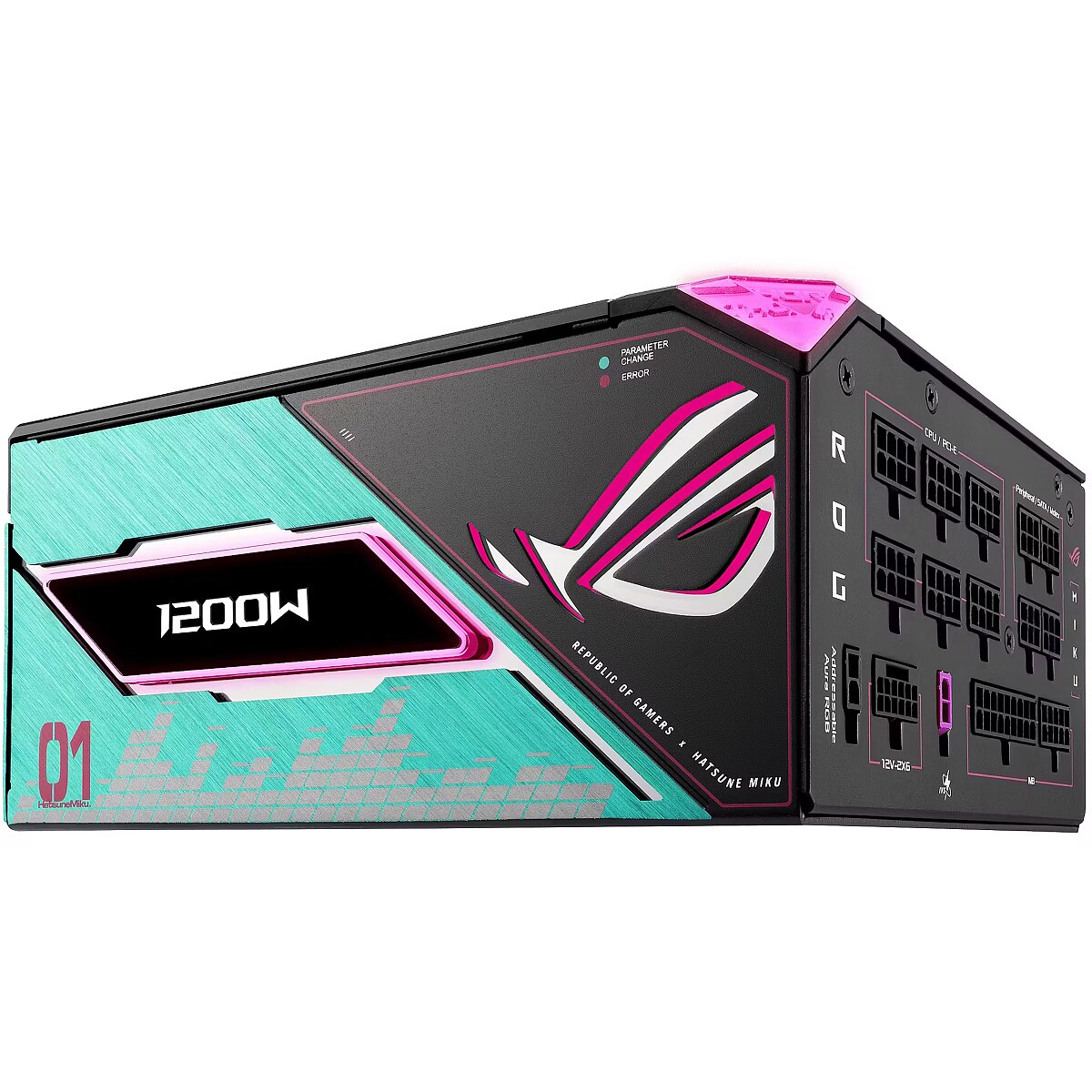

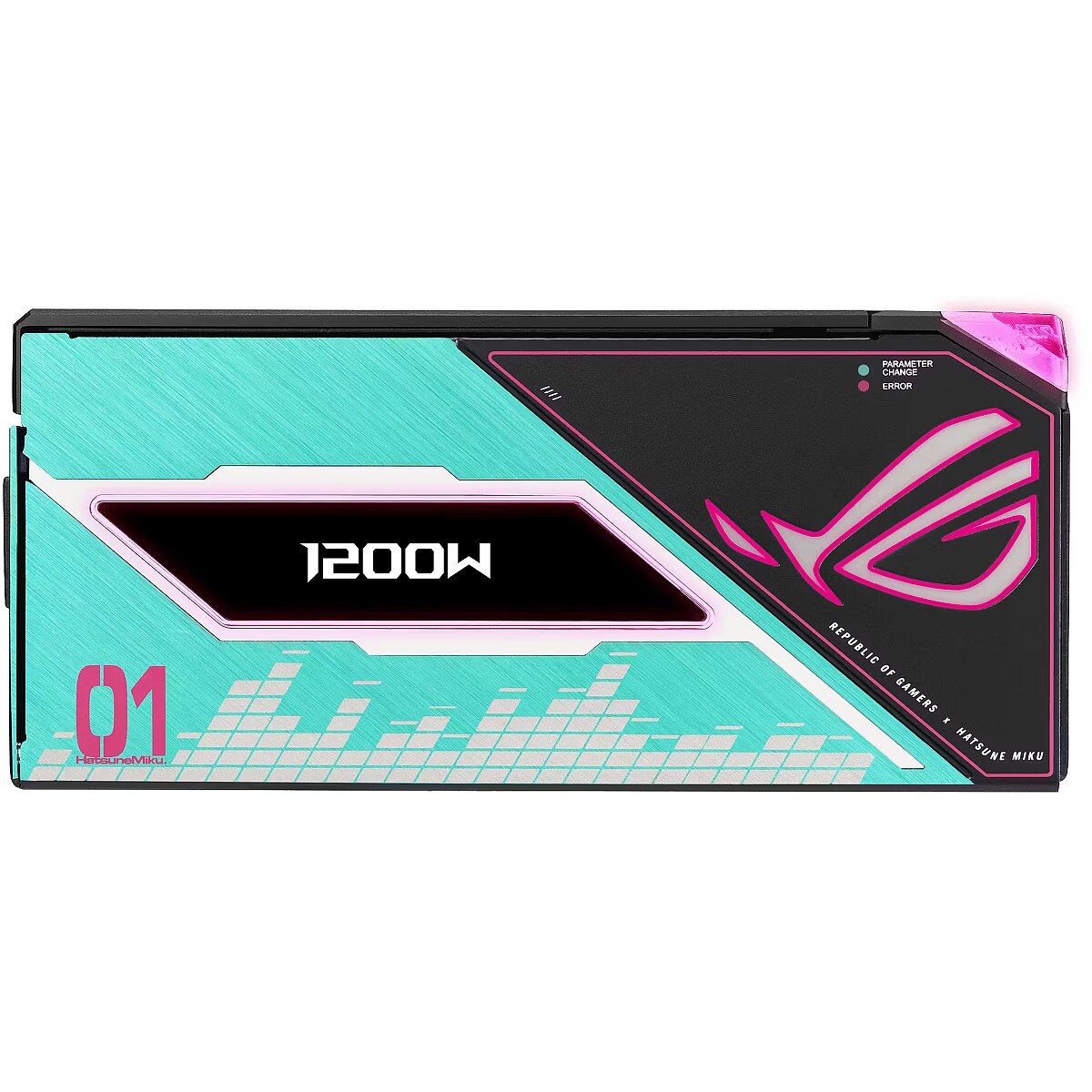

Dane techniczne: Dodatkowe informacje - ARGB | wyświetlacz OLED
Dane techniczne: Funkcja PFC - tak
Dane techniczne: Gwarancja - 10 lat w serwisie zewnętrznym
Dane techniczne: Głębokość - 150 mm
Dane techniczne: Moc - 1200 W
Dane techniczne: Model - Asus ROG Thor
Dane techniczne: Modularne okablowanie - w pełni modularne
Dane techniczne: MTBF - 120000 godz.
Dane techniczne: Natężenie przy napięciu +3.3V - 25 A
Dane techniczne: Natężenie przy napięciu +5V - 25 A
Dane techniczne: Natężenie przy napięciu +5VSB - 3 A
Dane techniczne: Natężenie przy napięciu +12V1 - 100 A
Dane techniczne: Natężenie przy napięciu -12V - 0.3 A
Dane techniczne: Odłączane przewody - tak
Dane techniczne: Producent - Asus

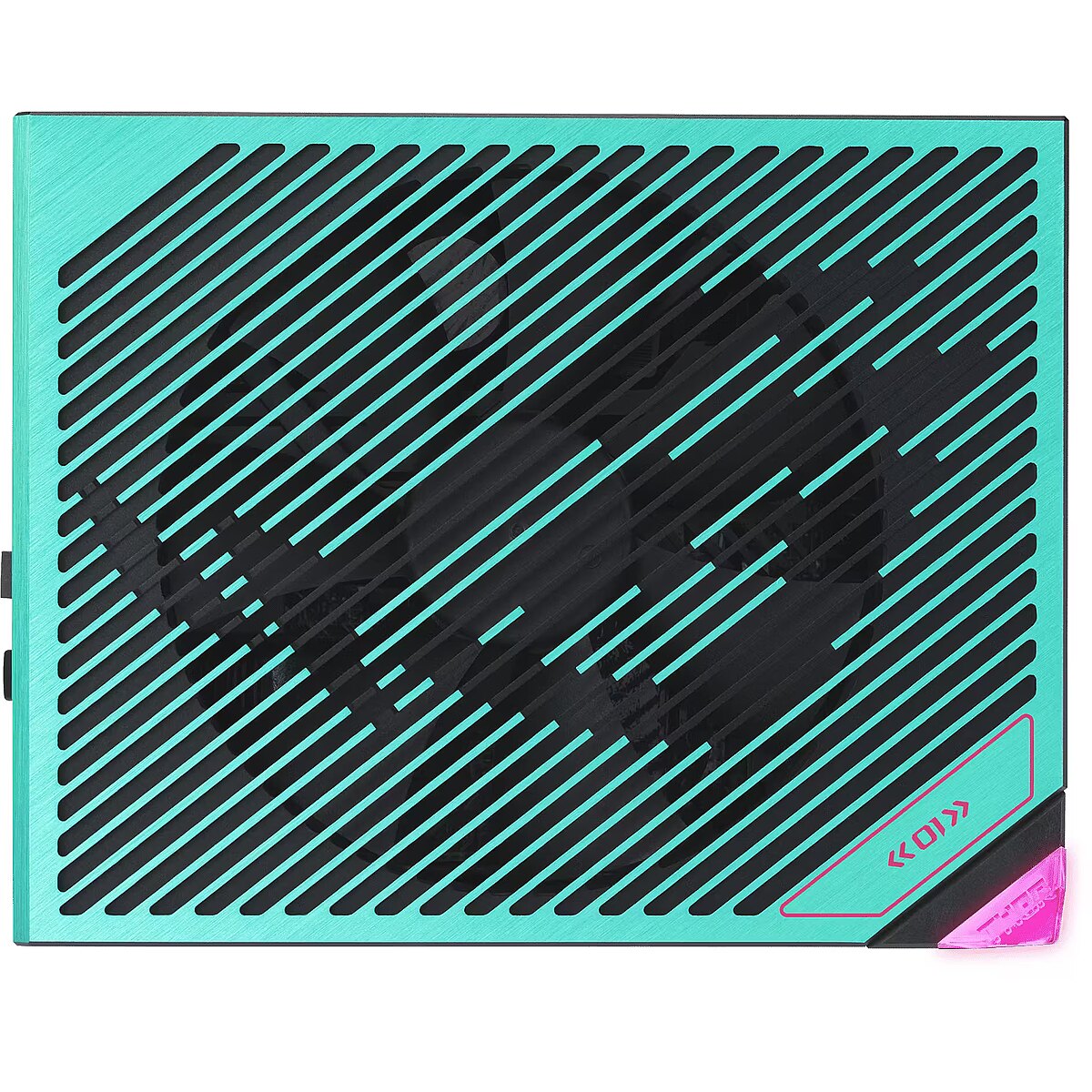

Dane techniczne: Rodzaj chłodzenia - wentylator
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 190 mm
Dane techniczne: Układ PFC - aktywny
Dane techniczne: Waga - 2.37 kg
Dane techniczne: Wersja standardu ATX - ATX 3.1

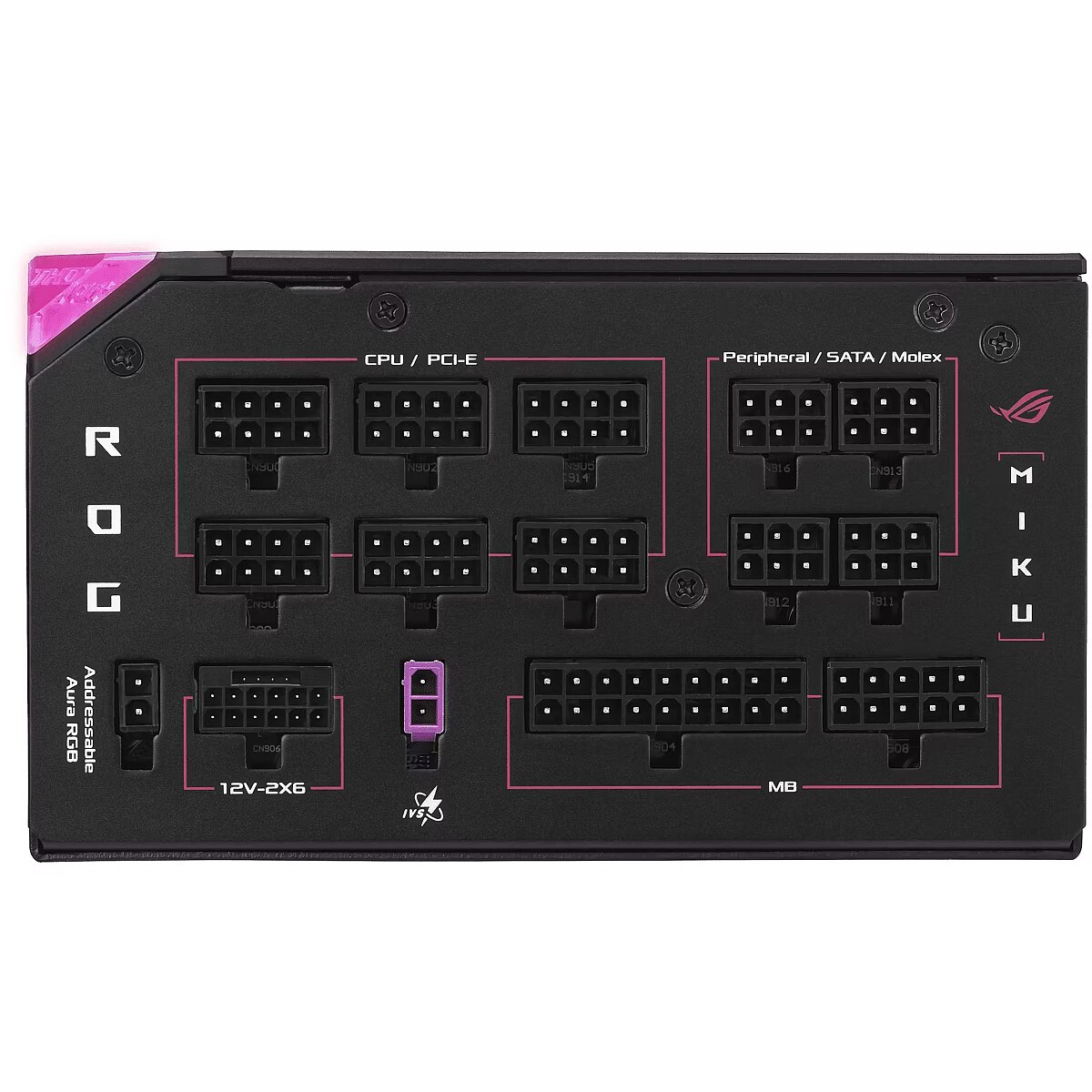

Dane techniczne: Wtyczka zasilania [pin] - 1 x 16-pin PCIe (12VHPWR)
Dane techniczne: Wtyczka zasilania [pin] - 2 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 4 x 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 6 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 7 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 86 mm
Dane techniczne: Zabezpieczenia - OCP
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OTP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Zabezpieczenia - UVP
Design - Cooling type - Active
Design - Illumination - Yes
Design - Product colour - Multicolour
Eans - 4711636125581
GTIN - 4711636125581
LongDesc - Featuring a GaN MOSFET, “GPU-First” patented intelligent voltage stabilizer and a magnetic OLED display, ROG Thor 1200W Platinum III Hatsune Miku Edition delivers unmatched performance and rock-solid stability for your ultimate PC buildFeel the Beat,In-Game FeatsROG continues its collaboration with virtual pop star Hatsune Miku with a complete gaming system centered around ROG's sci-fi aesthetics and Miku's signature blue-green, pink-color scheme. The collection combines Hatsune Miku’s signature style with superior ROG performance, premium quality, and versatile functionality for competitive gameplay or daily tasks. Products include a motherboard, graphics card, PC case, all-in-one cooler, SSD enclosure, power supply, monitor, and apparels, enabling gamers to create an entire gaming setup that exudes the vibrant Miku aesthetic.

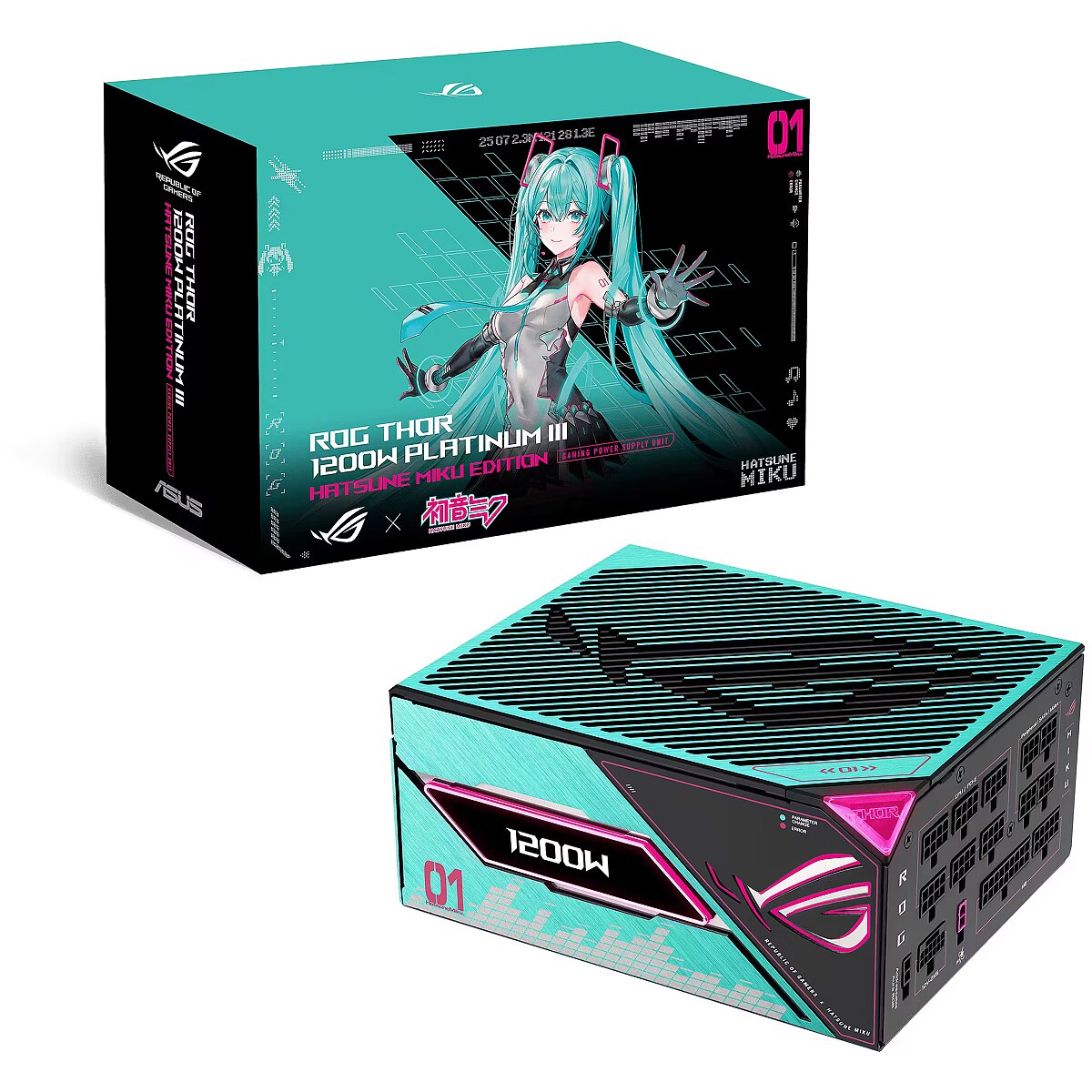

LongProductName - ROG Thor 1200W Platinum III Hatsune Miku Edition
LongSummaryDescription - ASUS ROG -THOR-1200P3-MIKU. Total power: 1200 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 400,120 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Multicolour, Cooling type: Active. Cables included: CPU, PCIe, SATA, Peripheral (Molex), Packaging content: Power cord x 1 Motherboard power cable x 1 (610mm) CPU cable x 2 (1000mm) PCI-E Gen 5 16-pin cable...
Name - ASUS ROG THOR 1200W Platinum III HATSUNE MIKU EDITION
Packaging content - Cables included - CPU, PCIe, SATA, Peripheral (Molex)
Packaging content - Packaging content - Power cord x 1
Motherboard power cable x 1 (610mm)
CPU cable x 2 (1000mm)
PCI-E Gen 5 16-pin cable x 1 (750mm)
PCI-E cable 1-to-1 x 4 (750mm)
SATA cable 1-to-4 x 1 (400+120+120+120mm)
SATA cable 1-to-3 x 1 (400+120+120mm)
Peripheral cable 1-to-3 x 2 (400+150+150mm)
Addressable RGB cable x 1 (800mm)
ROG sticker x 1
ROG cable tie x 6
Chassis screws package x 1
Cable tie x 12
Thank you card x 1
User manual x 1
Packaging data - Package depth - 241 mm
Packaging data - Package height - 127 mm
Packaging data - Package type - Box
Packaging data - Package weight - 5.21 kg
Packaging data - Package width - 379 mm
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.1
Performance - Bearing technology - DBB
Performance - Mean time between failures (MTBF) - 120000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 100 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 7
Ports & interfaces - PCI Express power cable length - 75 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 400,150 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 6
Ports & interfaces - SATA power cable length - 400,120 mm

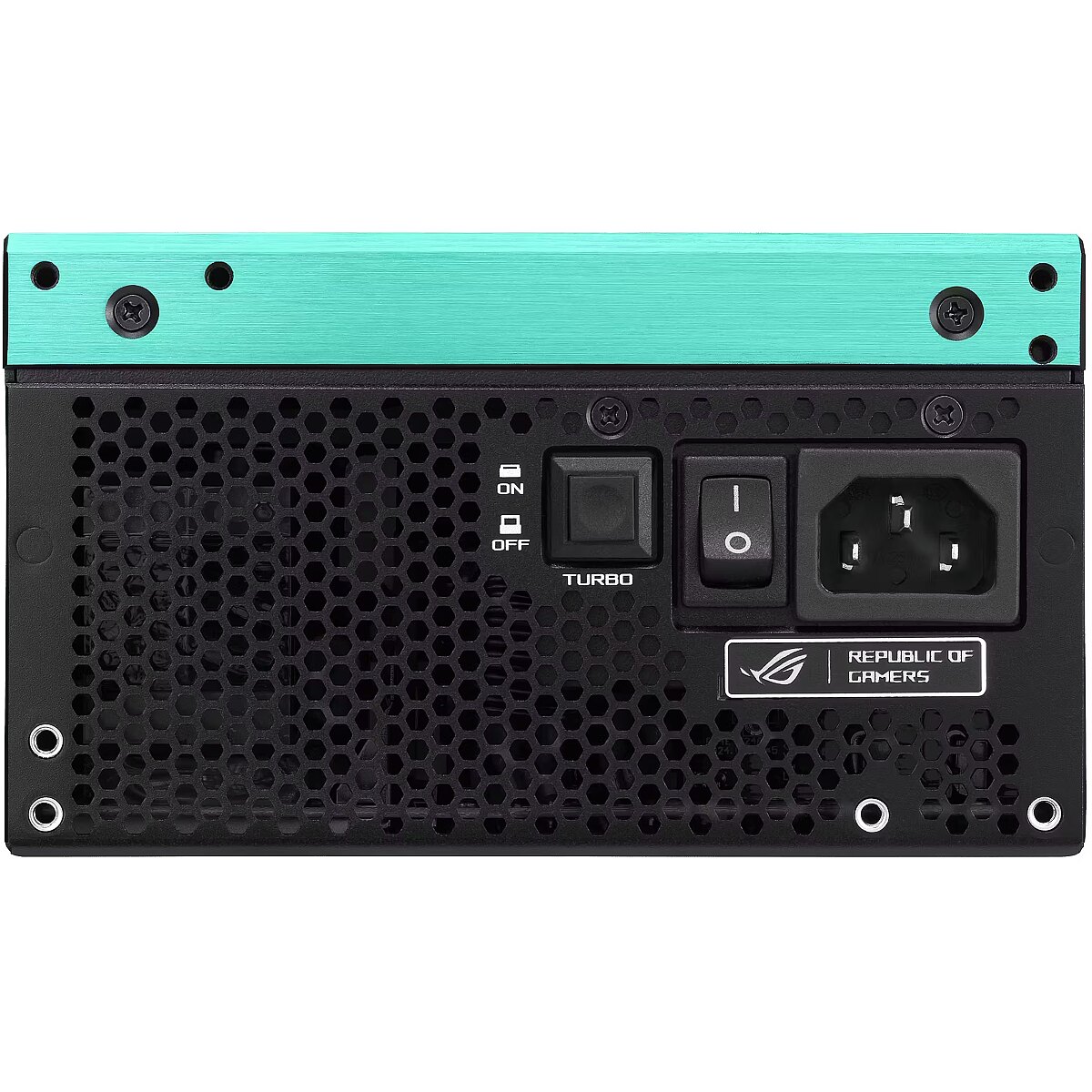

Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 125 W
Power - Combined power (+5V) - 125 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 1200 W
Power - Combined power (-12V) - 3.6 W
Power - Max output current (+3.3V) - 30 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 100 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Overheating, Over current, Over power, Over voltage, Short circuit, Under power
Power - Total power - 1200 W
Producent: Nazwa producenta / importera - Asus
ASUS COMPUTER GmBH
HARKORT STR. 21-23
40880 RATINGEN
Producer - Asus
ProducerCode - 90YE00V6-B0NA00
ProductName - ROG-THOR-1200P3-MIKU
ShortDescription - 1200 | ATX | 135mm | 20 + 4 pin | 80Plus Platinum| 379 x 241 x 127|
ShortSummaryDescription - ASUS ROG -THOR-1200P3-MIKU, 1200 W, 100 - 240 V, Active, 125 W, 1200 W, 125 W
Title - ASUS ROG -THOR-1200P3-MIKU power supply unit 1200 W 20+4 pin ATX ATX Multicolour
URL - https://rog.asus.com/power-supply-units/rog-thor/rog-thor-1200p3-miku/
WarrantyInfo - 10-year warranty included.
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.37 kg
Weight & dimensions - Width - 190 mm
