Montech APX, 550W, 80PLUS

80 PLUS certification Performance - 80 PLUS White
AC input frequency Power - 50/60 Hz
AC input voltage Power - 100 - 240 V
Bearing technology Performance - HDB
Category Code - PSU
Combined power (+3.3V) Power - 100 W
Combined power (+5V) Power - 100 W
Combined power (+5Vsb) Power - 2.5 W
Combined power (+12V) Power - 549.6 W
Combined power (-12V) Power - 3.6 W
Compliance certificates Certificates - CB/CE/cTUVus/EAC/Federal Communications Commission (FCC)/RCM/RoHS/UKCA
CPU power connector (4+4 pin) Ports & interfaces - Yes
Depth Weight & dimensions - 140 mm
Description - APX 550W Discover the MONTECH APX white-label series: your ultimate gaming companion. Engineered with high-end components and whisper-quiet fan performance, APX redefines excellence in the white-label market. Featuring a cutting-edge DC-to-DC design, it eradicates compatibility worries, setting a new standard for white-label power. Elevate your gaming prowess with APX. Experience cool performance and silent operation with APX, featuring a whisper-quiet 120mm Hydraulic Bearing Fan. Keep your system running smoothly without the noise.
APX's robust +12V rails, deliver superior power under any system load. With advanced DC-to-DC converters, APX ensures efficient and precise voltage regulation, providing optimal power supply for all electronic devices across diverse applications. Power up with APX for reliability and performance like never before.
APX power supply is engineered to deliver consistent power across diverse electrical systems.
Elevate your chassis thermal efficiency with the APX series, boasting flat cables designed to enhance airflow and optimize heat dissipation. Experience improved performance and effortless cable routing for a streamlined setup.
Experience industrial-grade power protection with APX, featuring all six essential mechanisms to ensure stable and safe system operation. Backed by a 5-year warranty, APX guarantees long-term reliability for worry-free usage. Power up with confidence with APX.

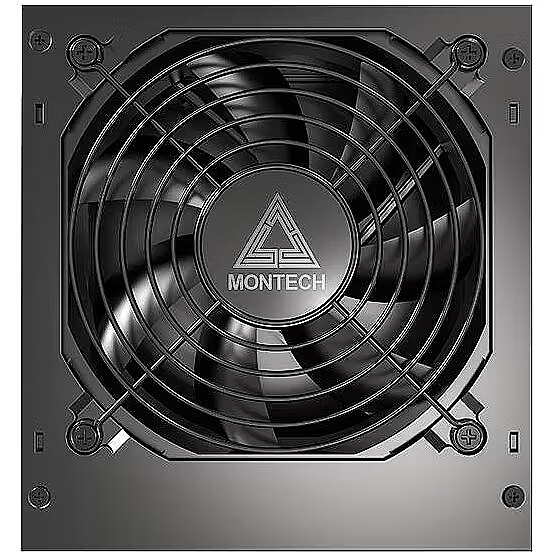

Fan diameter Design - 120 mm
Height Weight & dimensions - 86 mm
Input current Power - 12 A
Max output current (+3.3V) Power - 18 A
Max output current (+5V) Power - 18 A
Max output current (+12V) Power - 45.8 A
Max output current (-12V) Power - 0.3 A
Model name - APX 550W
Motherboard power connector Ports & interfaces - 20+4 pin ATX
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 6
Operating temperature (T-T) Operational conditions - 0 - 40 °C
PCI Express power connectors (6+2 pin) Ports & interfaces - 2
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 3
Power protection features Power - Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Power supply unit (PSU) form factor Performance - ATX
Product colour Design - Black
Purpose Performance - PC
Summary - Montech APX550. Total power: 550 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS White. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Compliance certificates: CB, CE, EAC, Federal Communications Commission (FCC), RCM, RoHS, UKCA, cTUVus
Total power Power - 550 W
Unit Box Height - 0.095
Unit Box Length - 0.25
Unit Box Width - 0.2
Unit Calculated Volume - 0.00475 cubm
Unit Calculated Weight - 1.82 kg
Units per Pallet - 0
Units per Shipping Box - 1
Vendor Homepage - https://www.montechpc.com/apx-550w
Warranty - 36 months
Width Weight & dimensions - 150 mm
