Brand - COUGAR
BrandPartCode - 31GP075001P01
Category - Power Supply Units
Category 1 - Netzteile
Certificates - Compliance certificates - CE, EAC, Federal Communications Commission (FCC), RoHS, UKCA
Design - Cooling type - Active

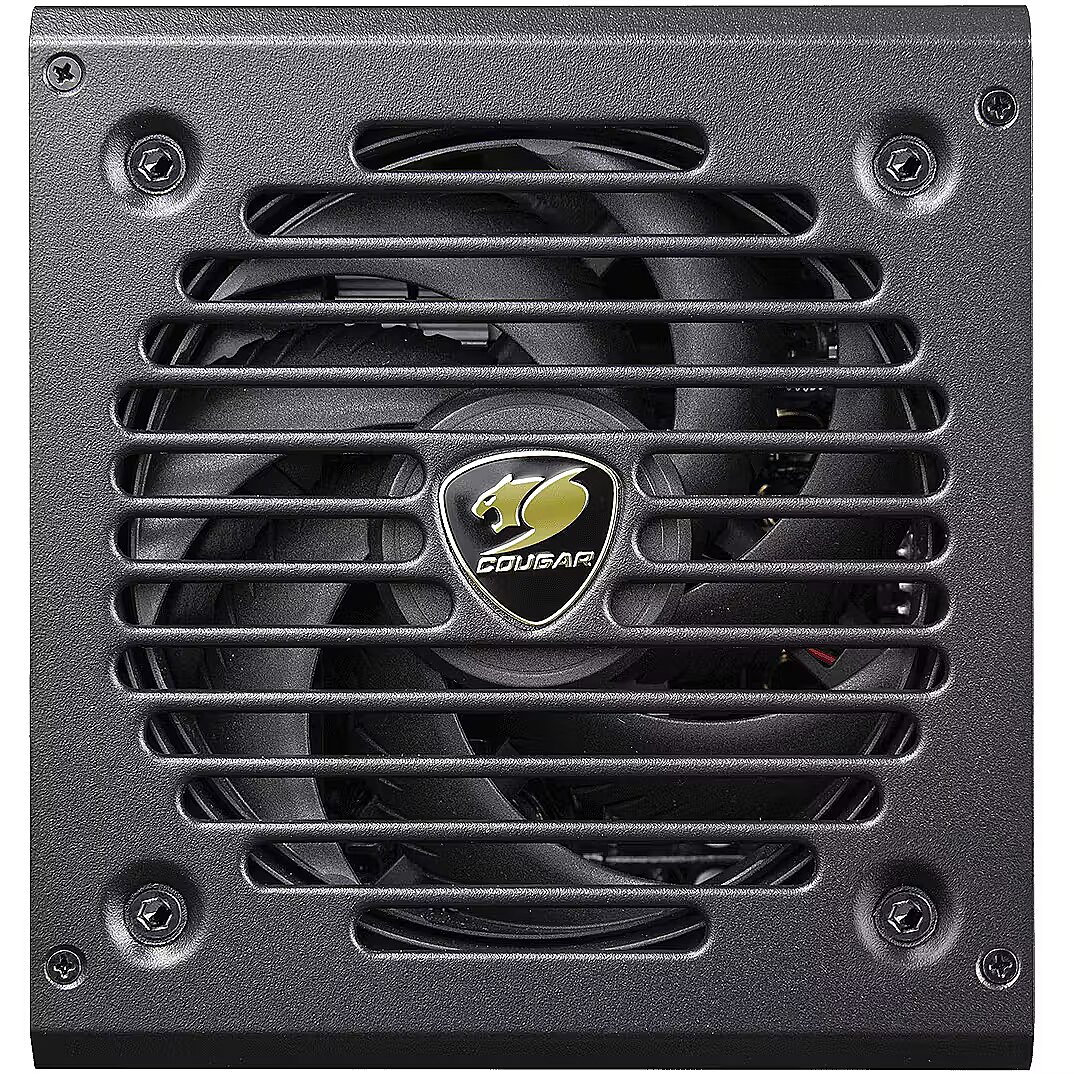

Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
EAN - 4710483778681
GTIN - 0192554008554
GTIN - 192554008554
GTIN - 4541995039164
GTIN - 4710483778681
LongDesc - GEX PRO 650/750/850WOutstanding performance and exceptional valueThe COUGAR GEX PRO series boasts high-quality 80 PLUS Gold certification, achieving up to 91% conversion efficiency. Utilizing a native PCIe 12V-2X6 connector design, this power supply delivers power to next-gen graphics cards through a single 12+4-pin cable, bringing them into compliance with Intel’s ATX 3.1 standard. With flawless power delivery in 40°C environments, it is designed for users who are price-conscious but unwilling to compromise on reliability and silence.ATX 3.1 CertifiedDesigned to support next-generation systems, the COUGAR GEX PRO series conforms to the ATX 3.1 standard. Featuring a native 12V-2X6 design, it provides power to the next-generation graphics cards through a single 12+4-pin cable. With both 80 PLUS Gold efficiency rating and Cybenetics certifications (750W/850W), it offers high-quality stability, durability, and reliability.The COUGAR GEX PRO series passes the four strict power excursion tests from PSU ATX 3.1 Guide, in which the spike power consumption must bear up to 200% of the rated power for 100μs.Designed for the New Era of PCIe Gen 5.1!The COUGAR GEX PRO series supports the latest PCIe 5.1 specification: its powerful and stable performance meets the needs of next-generation GPUs, delivering perfect power for next-gen graphics cards. Equipped with a modular native PCIe 12V-2X6 connector, the 650mm length provides sufficient slack to reduce the risk of faulty connection during PC installation, without the need for a 6+2 pin adaptor.Notice: Before using the PCIe 12+4pin cable, please go to the graphics card official website to check the recommended wattage requirements.High PerformanceEfficiencyThe GEX PRO series features a highly efficient design that surpasses the 80 PLUS Gold standard, to help you save money on your electricity bill.Perfect Fan Speed to Noise RatioUsing COUGAR’s exclusive 120mm HDB fan, the advanced fan blade design enhances airflow smoothness and optimizes silent performance.HDB FanCompared to other fan bearing types, the HDB fan is considered the best in its class for operating noise and expected lifespan. Fluid dynamics and fluid-based characteristics greatly reduce friction and vibration, resulting in better reliability and quieter operation.More Stability. Less Noise.Crafted for quiet operation, COUGAR’s exclusive 120mm HDB fan achieves an ideal equilibrium between efficient cooling and minimal noise. Optimized, grooved fan blades are molded with an integrated stabilizing ring, minimizing flex during rotation and reducing turbulence for an optimal and silent cooling experience.Refined Regulation. Stable OperationIt includes 105°C Japanese capacitors standby power to ensure keep providing computer with stable electrical supply. - Tight 2% voltage regulation for ultra-stable operation.- Optimally perform in 40ºC working temperature environments.Easy PC BuildsOne Size Fits AllAt 140mm in length, the GEX PRO is one of the most compact, fully modular PSUs. it fits in a wide range of cases, giving you additional flexibility for building your PC.Stylish DesignFeaturing a sleek embossed black design with ample cable length for easy and aesthetically pleasing PC installation.Fully Modular Cables / Embossed black cablesConnect only the cables you need, reducing cable clutter and friction and improving the airflow and the ease of installation of DIY solutions.Support PCI Express 5.1 Graphics Cards 12+4 Pin ConnectorConnect the 12V-2X6 with true 200% power excursion dynamic outputs.80 PLUS Gold CertifiedUp to 91% efficiency power conversion to cut down your electricity bill.Durable HDB FanCOUGAR’s 120mm HDB fan: efficient cooling, minimal noise.Compact PSU Size for All PC CasesIts 140mm length suits most cases and allows for easy installation.Fully Modular Power Supply UnitConnect only the cables you need for less clutter and better airflow.Silent SpinGroundbreaking grooved fan blade design lets you experience noiseless gaming.Compatible with The Lastest PC TechnologyCreated for user with current and next-generation multi-core CPU platforms.Flawless Operation at 40°CPowerful performance at 40°C ambient temperature.
LongProductName - 750 W, AC100-240V, 50-60Hz, 10-5A, ATX 3.1, 80 PLUS Gold
LongSummaryDescription - COUGAR CGR GEXP-750. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 400,520,640,760 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CE, EAC, Federal Communications Commission (FCC), RoHS, UKCA
Manufacturer - Cougar
MPN - CGR GEXP-750

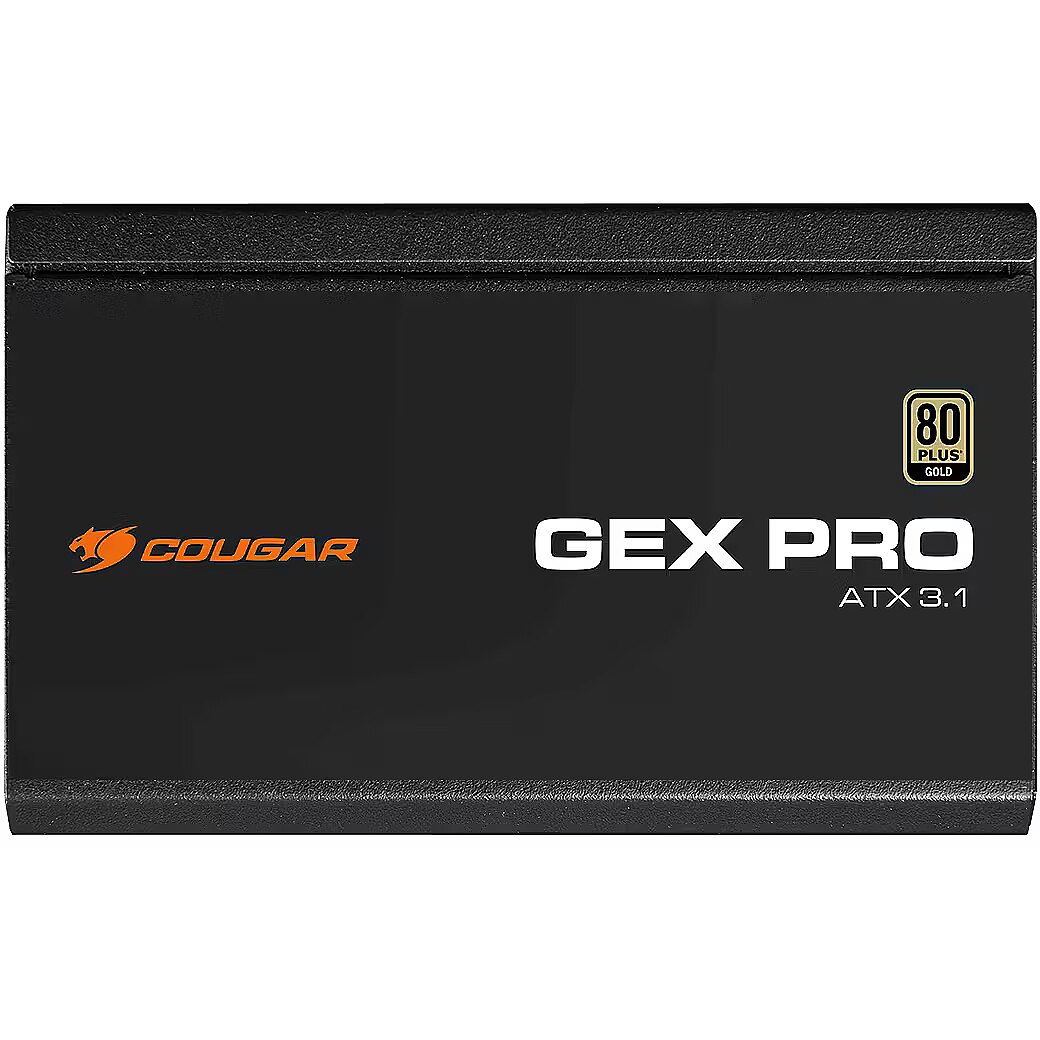

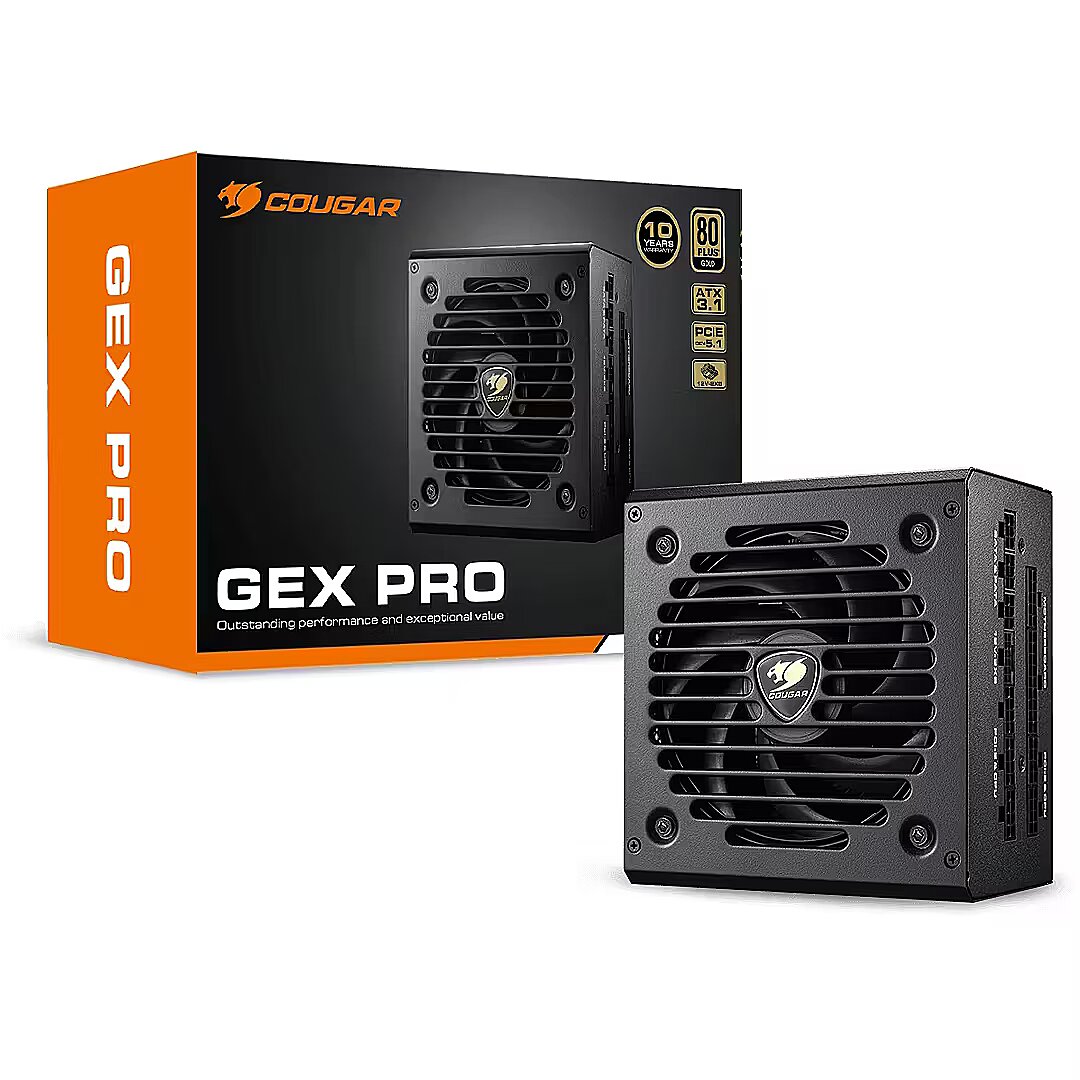

Name - 750W COUGAR Netzteil GEX PRO 750W ATX3.1 / 80 Plus Gold / Modular
Operational conditions - Operating relative humidity (H-H) - 20 - 85%
Operational conditions - Operating temperature (T-T) - 10 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Packaging data - Package depth - 330 mm
Packaging data - Package height - 107 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.14 kg
Packaging data - Package width - 215 mm
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.1
Performance - Bearing technology - HDB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC

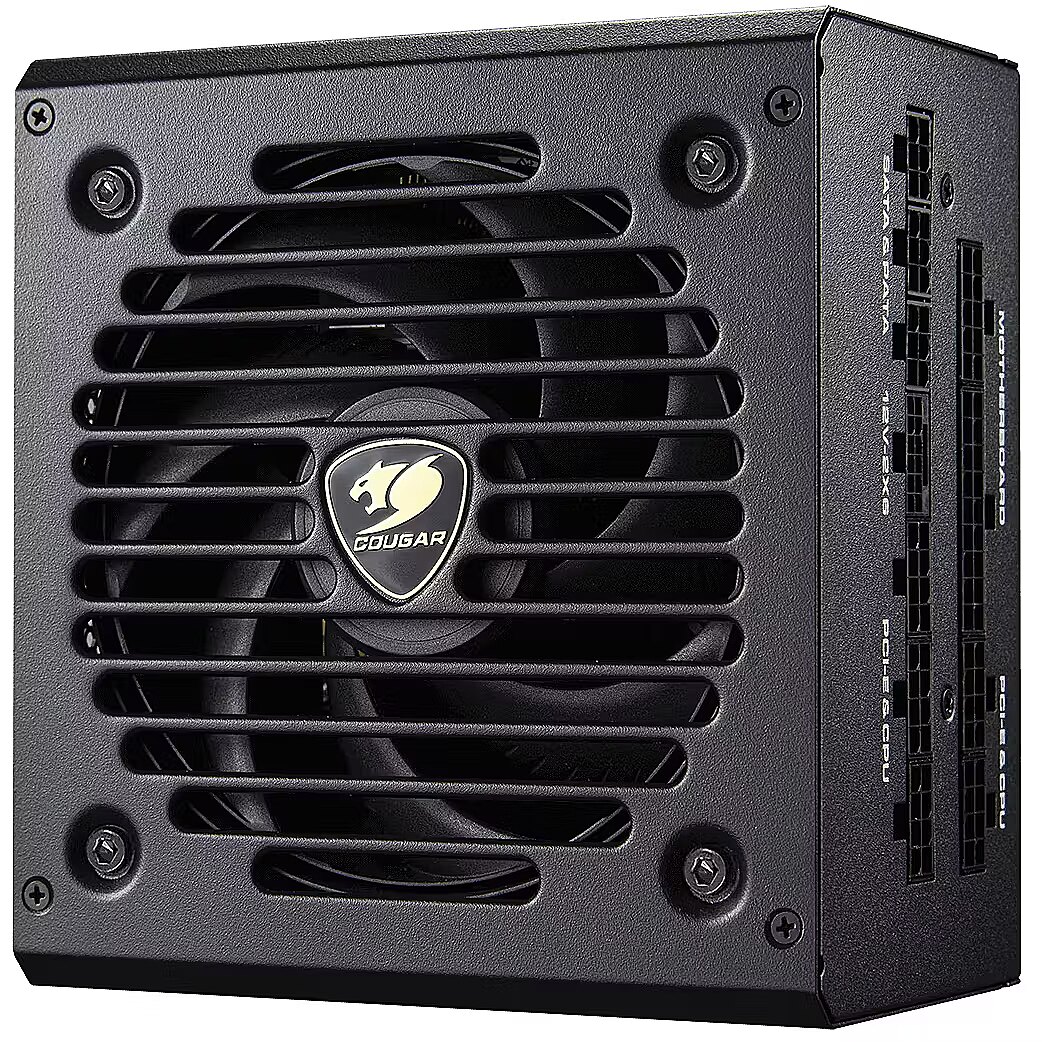

Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 70 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 3
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power connectors (6+2 pin) - 3
Ports & interfaces - PCI Express power connectors (12+4 pin) - 1
Ports & interfaces - PCI Express power connectors (12+4 pin) cable length - 650 mm
Ports & interfaces - SATA power cable length - 400,520,640,760 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 750 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 91%
Power - Input current - 10-5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Total power - 750 W
ProductName - CGR GEXP-750
ShortSummaryDescription - COUGAR CGR GEXP-750, 750 W, 100 - 240 V, 50/60 Hz, 10-5 A, 100 W, 750 W
Title - COUGAR CGR GEXP-750 power supply unit 750 W 20+4 pin ATX ATX Black
URL - https://cougargaming.com/products/psus/gex-pro-650-750-850/
WarrantyInfo -
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 56 mm
Weight & dimensions - Weight - 2.12 kg
Weight & dimensions - Width - 150 mm
