ASRock Challenger CL-750G, 750W, 80PLUS Gold, ATX 3.1, PCIe 5.1

8-pin 12V power connectors - 0
Accessories included -
Category 1 - Netzteile
Category1 - Power supplies
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Gold
Description -
Description1 - ASRock Challenger CL-750G - power supply - 750 Watt
Description2 - The ASRock Challenger CL-750G is a power supply designed to meet the demands of high-performance computing. With a power output of 750 watts, this power supply provides stable and consistent power for your system. It features a cooling system equipped with a 120 mm fan, facilitating effective thermal management, while Intelligent Fan Control Technology adjusts the fan speed based on the load to minimize noise levels without compromising cooling performance. The ASRock Challenger CL-750G incorporates safety features such as overheat, overcurrent, overvoltage, overpower, undervoltage, and short-circuit protection to safeguard your system components. Its compliance with PCIe 5.1 and RoHS standards assures quality and safety. The power supply includes sleeved and flat cables for enhanced cable management, providing a clean and organized look within your PC build. With a Mean Time Between Failures (MTBF) of 100,000 hours, reliability is an aspect of this power supply, ensuring longevity for all your computing needs.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 1021
dimension depth - 100 mm
dimension height - 200 mm
Dimensions - 86 x 150 x 140 mm
dimension weight - 2470 g
dimension width - 270 mm
ean - 4710483948282
EAN - 4710483948282
EAN_code - 4710483948282
Fan - 12 cm
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Floppy power connectors - 0
guarantee - 60
guarantee_type - normal
Manufacturer - Asrock
Manufacturer - ASRock
Manufacturer - AsRock
ManufacturerID - 90-UXC075-GNEAAA
Manufacturer_code - 90-UXC075-GNEAAA
MB power connector - 24 pin
Modular power supply - No
MOLEX power connectors - 2
MPN - 90-UXC075-GNEAAA
Name - 750W ASRock Challenger Series CL-750G 750W ATX 80+ Gold black retail
Name - ASRock Challenger CL-750G 750W, PC power supply black, 1x 12-pin high power GPU, 2x PCIe, 750 watts
name - Power supply CL-750G 750W 80PLUS GOLD
Number of connectors PATA - 0

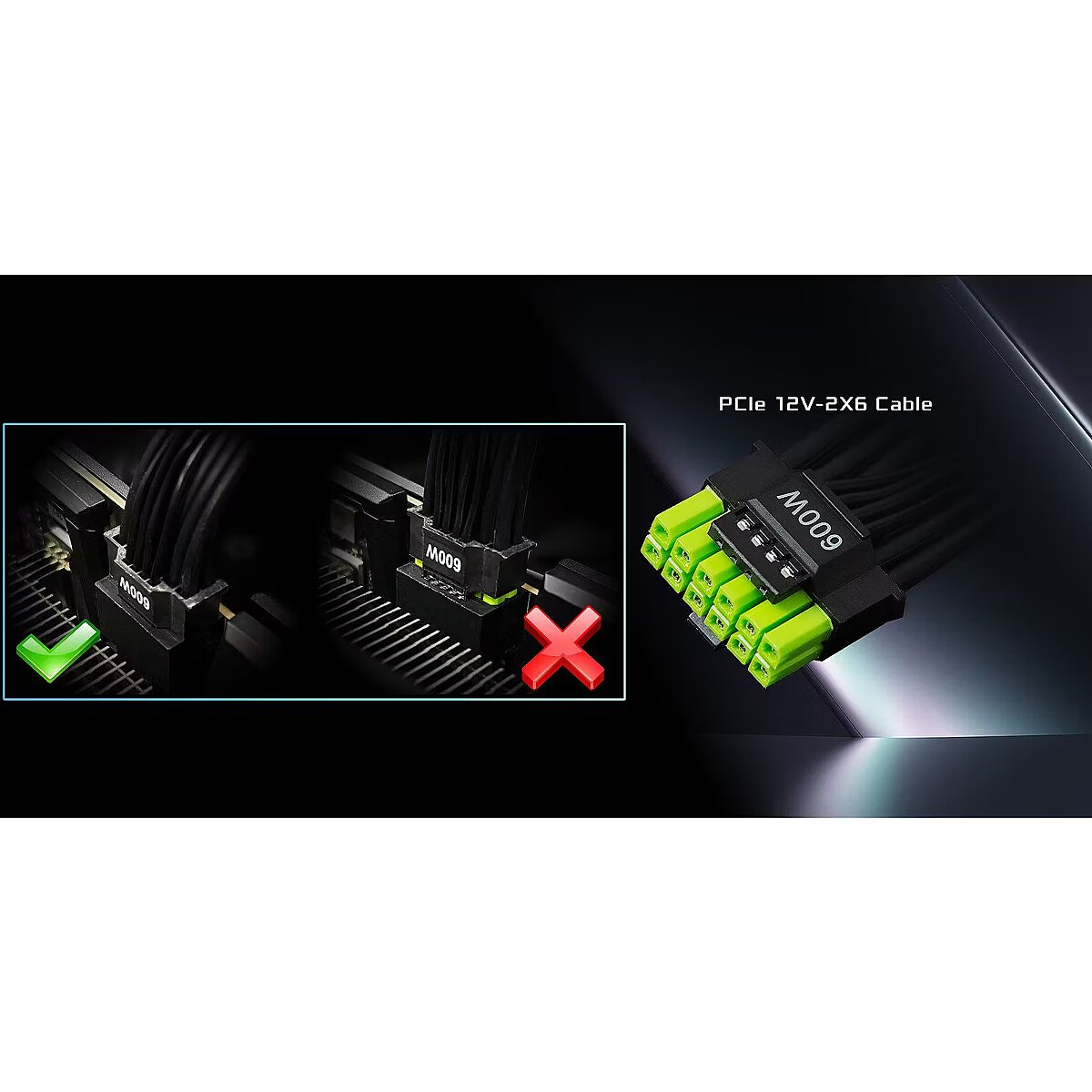

Number of power connectors 12VHPWR - 1
Number of power connectors PCI-E 16-pin Gen 5 - 0
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 2
Number of USB 10p connectors - 0
Other features -
PackageHeight - 100
PackageLength - 270
PackageWeight - 2575
PackageWidth - 197
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.1
Performance - Power supply unit (PSU) form factor - ATX
PFC - Active

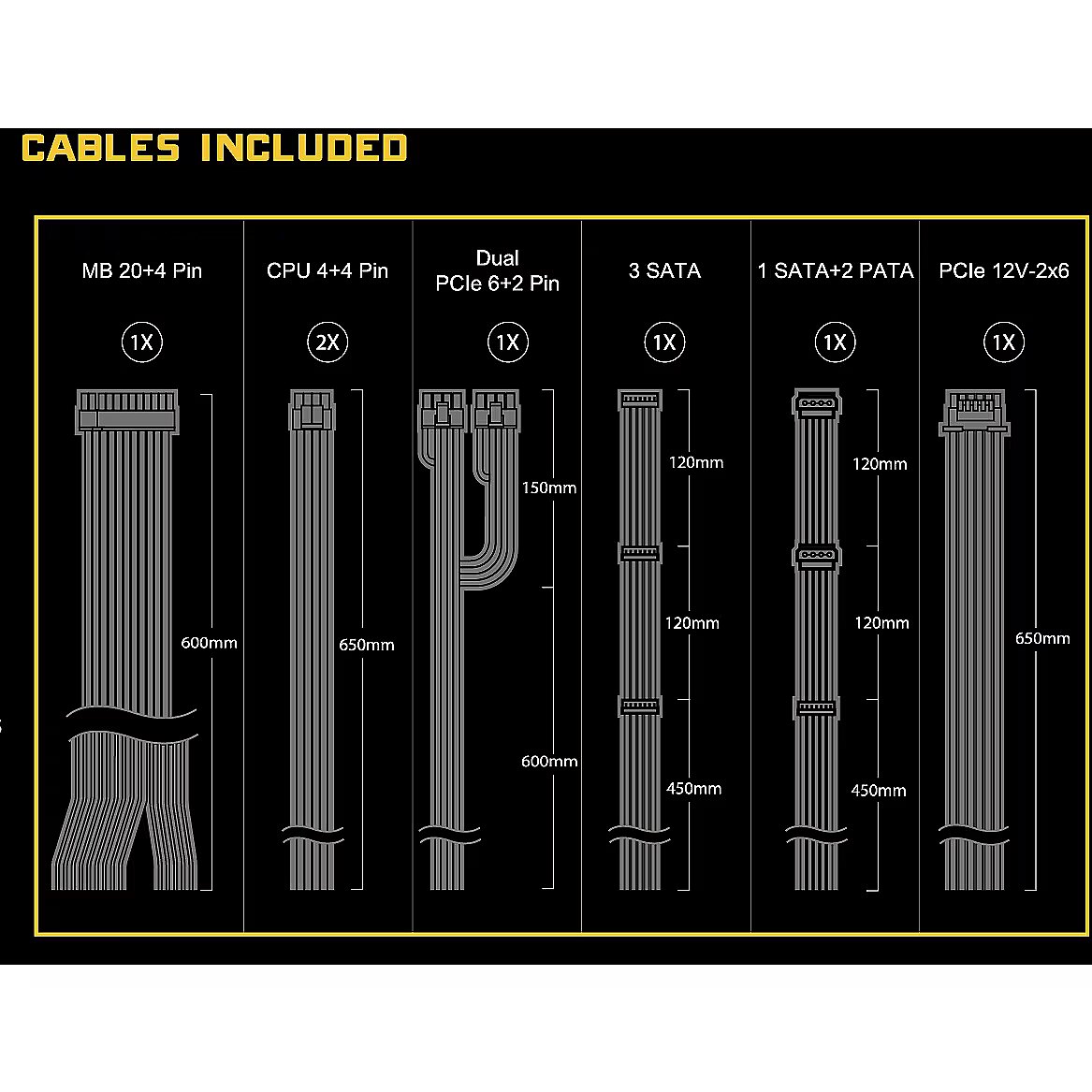

Ports & interfaces - EPS power connector (4+4 pin) - 2
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 4
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - PCI Express power connectors (12+4 pin) - 1
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - OCP (overcurrent protection)
Power - Power protection features - OPP (overload protection)
Power - Power protection features - OTP (overheat protection)
Power - Power protection features - OVP (overvoltage protection)
Power - Power protection features - SCP (short circuit protection)
Power - Power protection features - UVP (undervoltage protection)
Power - Total power - 750 W
Power supply - 750 W
producer - ASRock
producerCode - CL-750G
productName - Power supply ASRock Challenger Gold 750W (CL-750G)
productSize - Normal
Safety warning - Warnings - Do not open the case - risk of electric shock.
Safety warning - Warnings - The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.
SATA power connectors - 4
sizeX - 270
sizeY - 195
sizeZ - 97
vendpn - CL-750G
warrantyLength - 60
warrantyType - G
WEEE - DE83654239
Weight - 2,40
weight - 2300
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
