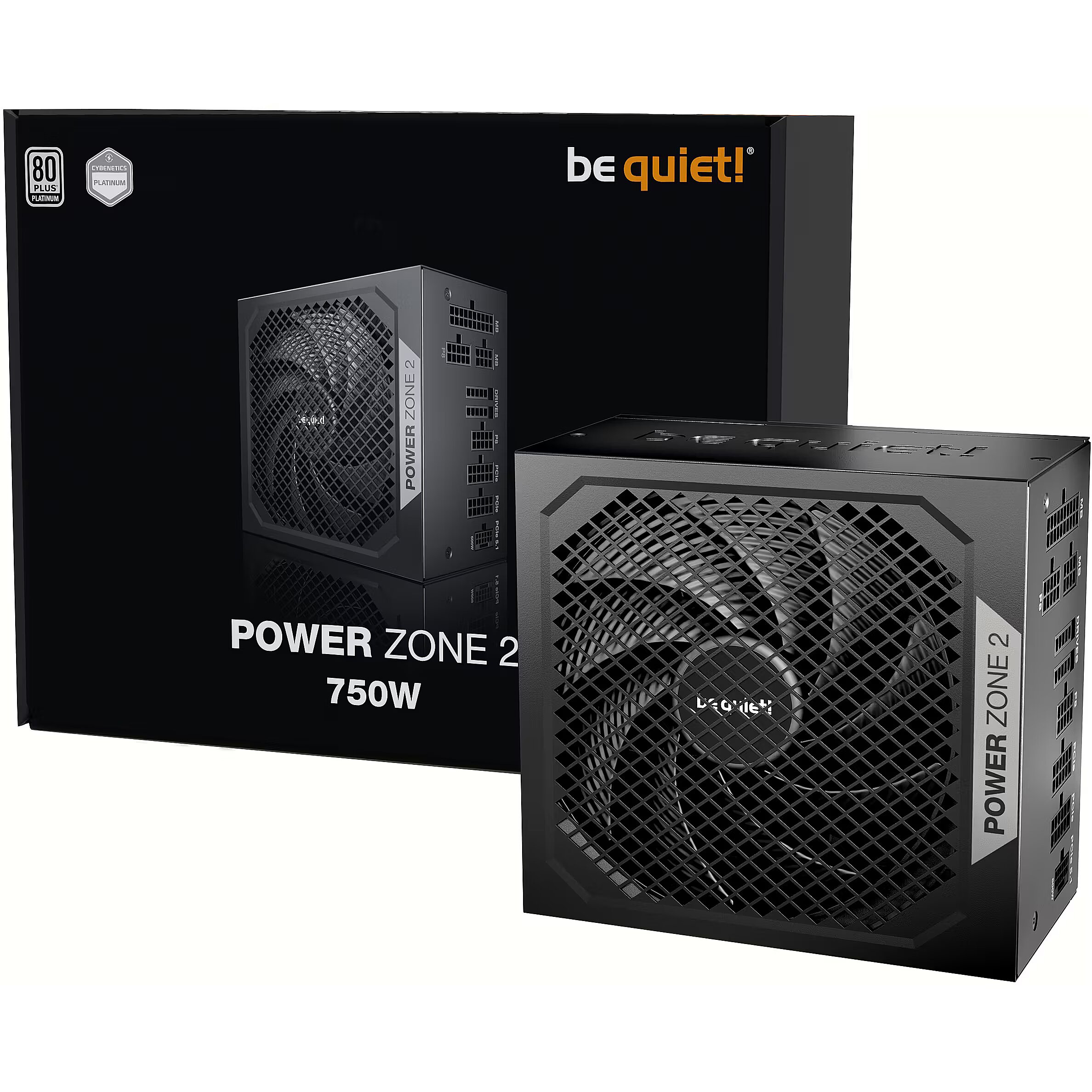

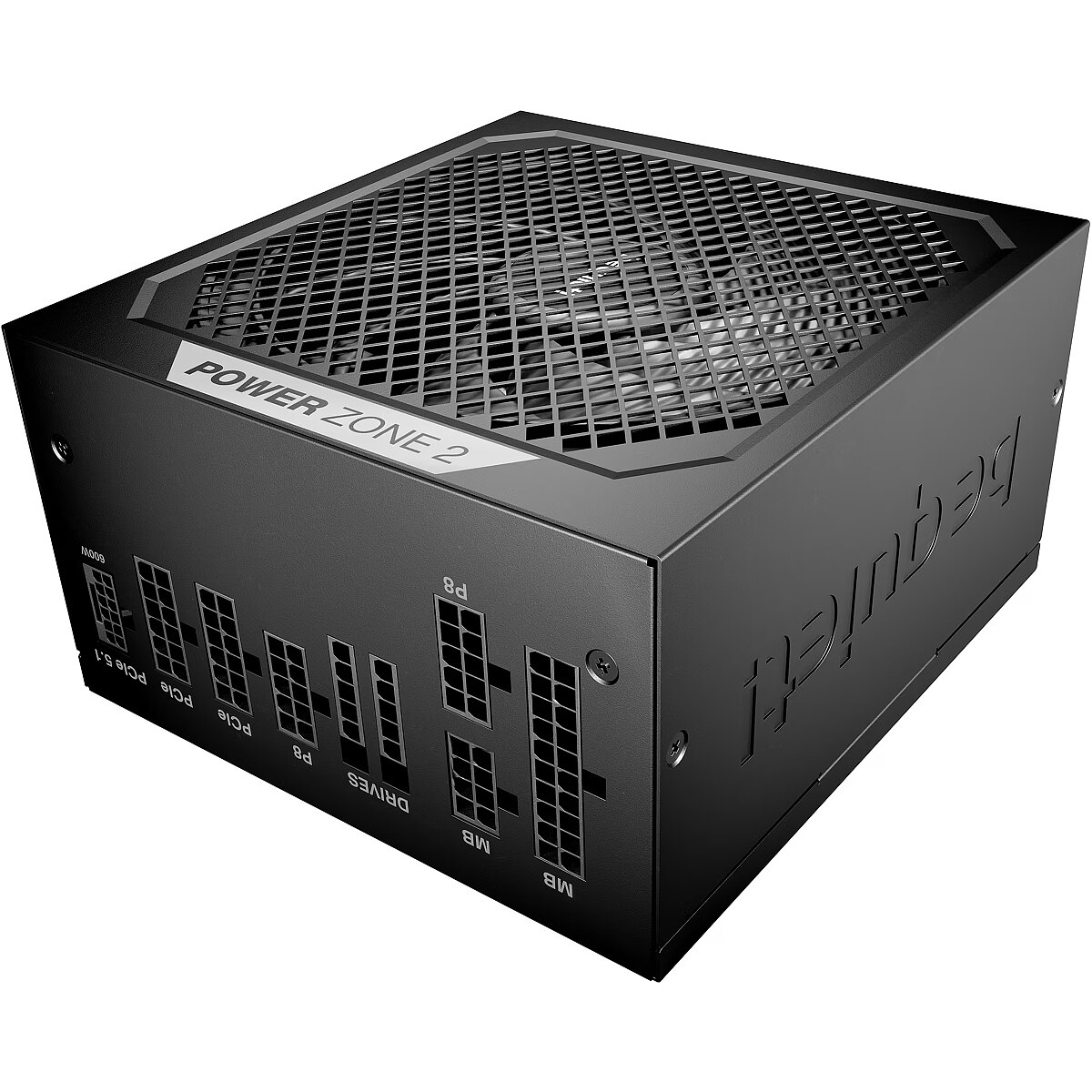

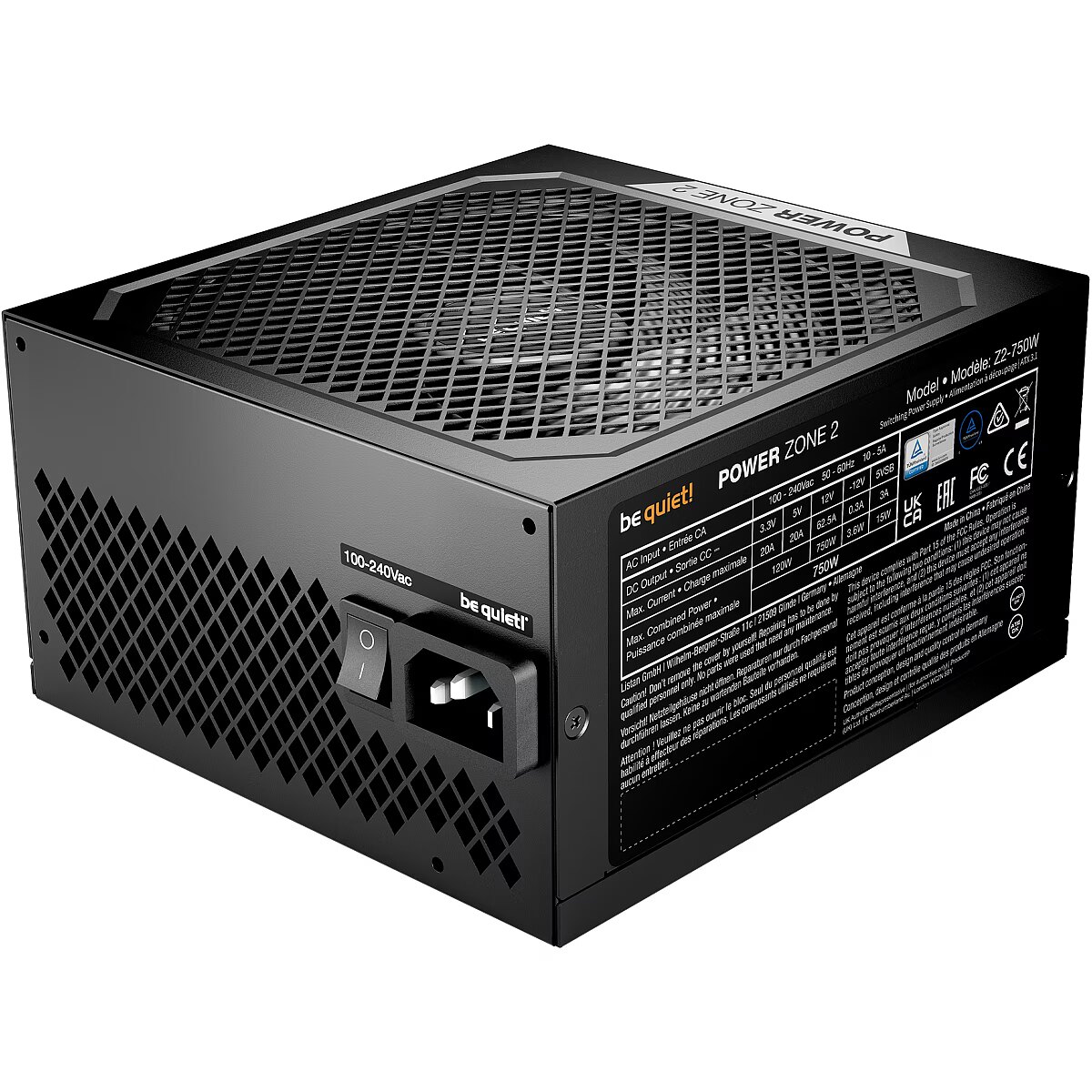

Be Quiet Power Zone 2, 750W, 80PLUS Platinum, ATX 3.1, PCIe 5.1

8-pin 12V power connectors - 1
80 PLUS certification Performance - 80 PLUS Platinum
Accessories included -
AC input frequency Power - 50/60 Hz
AC input voltage Power - 100 - 240 V
ARTIKEL1 - POWER ZONE 2 750W
ARTIKEL2 - 80 PLUS PLATINUM
ATX version - 3.1
ATX version Performance - 3.1
Bearing technology Performance - Rifle
Brand - be quiet!
BrandPartCode - BP006EU
Breite - 0.26
Cable ties included Other features - Yes
Cabling type Ports & interfaces - Fully-Modular
category - PC Components|Power Supplies|PSUs up to 800 Watts
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates - Compliance certificates - BSMI
Certificates - Compliance certificates - BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE
Certificates - Compliance certificates - CB
Certificates - Compliance certificates - CCC
Certificates - Compliance certificates - CE
Certificates - Compliance certificates - Federal Communications Commission (FCC)
Certificates - Compliance certificates - RCM
Certificates - Compliance certificates - RoHS
Certificates - Compliance certificates - TÜV mark
Certificates - Compliance certificates - UKCA
Certificates - Compliance certificates - WEEE
Certificates - Waste Electrical and Electronic Equipment (WEEE) compliance - Yes
Certificates 80+ - 80 PLUS Platinum
code - BP006EU
Combined power (+3.3V) Power - 120 W
Combined power (+5V) Power - 120 W
Combined power (+5Vsb) Power - 15 W
Combined power (+12V) Power - 750 W
Combined power (-12V) Power - 3.6 W
Compliance certificates Certificates - BSMI/CB/CCC/CE/Federal Communications Commission (FCC)/RCM/RoHS/TÜV mark/UKCA/WEEE
Cooling type Design - Active
CPU P4 connector (4-pin) Ports & interfaces - 1
CPU power cable length Ports & interfaces - 700 mm
CPU power connector (4+4 pin) Ports & interfaces - Yes
Dane techniczne: Certyfikat sprawności - 80 Plus Platinium
Dane techniczne: Dodatkowe informacje - pół-pasywny tryb chłodzenia
Dane techniczne: Filtry - dodatkowa stabilizacja napięcia
Dane techniczne: Filtry - przeciwprzeciążeniowy
Dane techniczne: Filtry - przeciwprzepięciowy
Dane techniczne: Filtry - przeciwzwarciowy
Dane techniczne: Filtry - zabezpieczenie termiczne
Dane techniczne: Grupa produktowa - Zasilacze do komputera be quiet!
Dane techniczne: Gwarancja - 5 lat w serwisie sprzedawcy
Dane techniczne: Głębokość - 160 mm
Dane techniczne: Ilość wentylatorów chłodzących - 1
Dane techniczne: Maks. głośność - 15.8 dB
Dane techniczne: Moc - 750 W
Dane techniczne: Modularne okablowanie - w pełni modularne
Dane techniczne: Monitoring obrotów wentylatorów - tak
Dane techniczne: MTBF - 100000 godz.
Dane techniczne: Natężenie przy napięciu +3.3V - 20 A
Dane techniczne: Natężenie przy napięciu +5V - 20 A
Dane techniczne: Natężenie przy napięciu +5VSB - 3 A
Dane techniczne: Natężenie przy napięciu +12V1 - 62.5 A
Dane techniczne: Natężenie przy napięciu -12V - 0.3 A
Dane techniczne: Odłączane przewody - tak
Dane techniczne: Producent - be quiet!
Dane techniczne: Rodzaj chłodzenia - wentylator
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 150 mm
Dane techniczne: Układ PFC - aktywny
Dane techniczne: Waga - 2.1 kg
Dane techniczne: Wersja standardu ATX - ATX 3.1
Dane techniczne: Wtyczka zasilania [pin] - 1 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 1 x 16-pin PCIe (12VHPWR)
Dane techniczne: Wtyczka zasilania [pin] - 1 x EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 1 x FAN
Dane techniczne: Wtyczka zasilania [pin] - 3 x 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 6 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 86 mm
Dane techniczne: Zabezpieczenia - OCP
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OTP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Zabezpieczenia - SIP
Dane techniczne: Zabezpieczenia - UVP
Dane techniczne: Średnica wentylatorów - 140 mm
Depth Weight & dimensions - 160 mm
Description - Exceptional efficiency for Gamers
Power Zone 2 750W is a power supply with 80 PLUS® Platinum certification and semi-passive zero-RPM cooling for both efficient and quiet gaming sessions. PLATINUM CERTIFIED
Highly efficient operation
Power Zone 2 750W is certified with 80 PLUS Platinum and Cybenetics Platinum, resulting in an energy efficiency rating of up to 94.2%. This results in lower power consumption, overall cooler and quieter operation, and many other benefits for your high-end system. SEMI-PASSIVE ZERO-RPM COOLING
Enjoy the silence
A large Pure Wings 3 140mm fan is keeping Power Zone 2 750W cool. While under low load, the fan turns off completely until its services are needed again for more demanding operations. This post-ventilation requires a short cooldown period of 2-5 minutes to avoid frequent and annoying starts and stops of the fan. Combined with the large fan for active cooling, this power supply is exceptionally silent in all load scenarios. PURE WINGS 3 FAN
Specially designed for Power Zone 2
No Power Supply is like the other. Hence, we have altered aspects of our renowned Pure Wings 3 140mm fan to make it the perfect match for Power Zone 2 750W. The fan offers outstanding reliability and makes for a long-lasting companion. Due to its large diameter, the fan cools the interior of the PSU efficiently and quietly. FUTURE-PROOF YOUR SYSTEM
With 90° angled 12V-2x6 connector in scope of delivery
Power Zone 2 750W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and 3 PCIe 6+2-pin connectors for support of current-gen GPUs. A 90° angled 12V-2x6 connector in the scope of delivery leaves no doubt that this PSU is here to stay. All of this makes Power Zone 2 750W extremely versatile and the perfect choice for powerful systems of today and the ones to come. THE NEW STANDARD OF POWER
For massive transient loads
Power Zone 2 offers 750W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Power Zone 2 750W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards. HIGH-CLASS TECHNOLOGIES
All packed in a stunning design
With its LLC topology, the Power Zone 2 750W offers best-in-class voltage regulation and efficiency. This makes it perfect for building very quiet systems or upgrading gaming and media creation PCs. The inner values are what everyone cares about most in a power supply but looks cannot be completely ignored. That is why the Power Zone 2 750W has a distinctive look with a newly designed mesh front. In addition, all cable designations are printed directly on the PSU’s case for a long-lasting impression and an unparalleled look and feel.80 PLUS® Platinum and Cybenetics Platinum efficiency rating (up to 94.2%)Semi-passive zero-RPM coolingFan runs on for 2-5 minutes to avoid frequent starting noisePure Wings 3 140mm fan for quiet and efficient cooling90° angled 12V-2x6 connector and PCIe 5.1/ATX 3.1 compatibilityAdvanced voltage regulation and stability thanks to LLC technologyUnique look with an unmistakable mesh designOne massive high-performance 12V-rail
Description - Zasilacz Power Zone 2 750W 80PLUS PLATINUM ATX 3.1 Power Zone 2 750W to zasilacz z certyfikatem 80 PLUS Platinum i półpasywnym chłodzeniem zero-RPM, zapewniający wydajne i ciche sesje gamingowe. Sprawność 80 PLUS Platinum i Cybenetics Platinum (do 94,2%) Półpasywne chłodzenie zero-RPM Wentylator pracuje przez 2-5 minut, aby uniknąć częstego odgłosu uruchamiania Wentylator Pure Wings 3 140 mm zapewnia ciche i wydajne chłodzenie Kątowe złącze 12V-2x6 90° i kompatybilność z PCIe 5.1/ATX 3.1 Zaawansowana regulacja napięcia i stabilność dzięki technologii LLC Unikalny wygląd z niepowtarzalnym wzorem siatki Jedna masywna, wysokowydajna linia 12 V
Design - Cooling type - Active
Design - Fan diameter - 14 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 1732
dimension depth - 105 mm
dimension height - 330 mm
Dimensions - 86 x 150 x 160 mm
dimension weight - 3300 g
dimension width - 250 mm
ean - 4260052191361
EAN - 4260052191361
EANCode - 4260052191361
Eans - 4260052191361
EAN_code - 4260052191361
Efficiency Power - 92.5 %
EPS power connector (8-pin) Ports & interfaces - Yes
EPS version Performance - 2.92
Fan - 14 cm
Fan diameter Design - 140 mm
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Protection against surges and surges
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Floppy power connectors - 0
Gewicht - 3.31
GRUPPE1 - Computer Systems
GRUPPE2 - Power Supplies
GTIN - 4260052191361
guarantee - 120
guarantee_type - normal
Height Weight & dimensions - 86 mm
HERSTELLER - BE QUIET
Hoehe - 0.11
Hold time Power - 24.5 ms
HSTNUMMER - BP006EU
Laenge - 0.33
Logistics data - Products per shipping (inner) case - 6 pc(s)
Logistics data - Shipping (inner) case gross weight - 19.3 kg
Logistics data - Shipping (inner) case height - 34.6 cm
Logistics data - Shipping (inner) case length - 65.1 cm
Logistics data - Shipping (inner) case width - 28.2 cm
LongDesc - Exceptional efficiency for GamersPower Zone 2 750W is a power supply with 80 PLUS® Platinum certification and semi-passive zero-RPM cooling for both efficient and quiet gaming sessions.PLATINUM CERTIFIEDHighly efficient operationPower Zone 2 750W is certified with 80 PLUS Platinum and Cybenetics Platinum, resulting in an energy efficiency rating of up to 94.2%. This results in lower power consumption, overall cooler and quieter operation, and many other benefits for your high-end system.SEMI-PASSIVE ZERO-RPM COOLINGEnjoy the silenceA large Pure Wings 3 140mm fan is keeping Power Zone 2 750W cool. While under low load, the fan turns off completely until its services are needed again for more demanding operations. This post-ventilation requires a short cooldown period of 2-5 minutes to avoid frequent and annoying starts and stops of the fan. Combined with the large fan for active cooling, this power supply is exceptionally silent in all load scenarios.PURE WINGS 3 FANSpecially designed for Power Zone 2No Power Supply is like the other. Hence, we have altered aspects of our renowned Pure Wings 3 140mm fan to make it the perfect match for Power Zone 2 750W. The fan offers outstanding reliability and makes for a long-lasting companion. Due to its large diameter, the fan cools the interior of the PSU efficiently and quietly.FUTURE-PROOF YOUR SYSTEMWith 90° angled 12V-2x6 connector in scope of deliveryPower Zone 2 750W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and 3 PCIe 6+2-pin connectors for support of current-gen GPUs. A 90° angled 12V-2x6 connector in the scope of delivery leaves no doubt that this PSU is here to stay. All of this makes Power Zone 2 750W extremely versatile and the perfect choice for powerful systems of today and the ones to come.THE NEW STANDARD OF POWERFor massive transient loadsPower Zone 2 offers 750W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Power Zone 2 750W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.HIGH-CLASS TECHNOLOGIESAll packed in a stunning designWith its LLC topology, the Power Zone 2 750W offers best-in-class voltage regulation and efficiency. This makes it perfect for building very quiet systems or upgrading gaming and media creation PCs. The inner values are what everyone cares about most in a power supply but looks cannot be completely ignored. That is why the Power Zone 2 750W has a distinctive look with a newly designed mesh front. In addition, all cable designations are printed directly on the PSU’s case for a long-lasting impression and an unparalleled look and feel.
LongProductName - 80 PLUS Platinum, 750W, PCIe 5.1/ATX 3.1, 160 x 150 x 86mm
LongSummaryDescription - be quiet! POWER ZONE 2 750W. Total power: 750 W, AC input voltage: 100 - 240 V, Peak power: 820 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 550,700,850,1000 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 14 cm. Compliance certificates: BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE
Manual languages Packaging data - English/French/German/Polish/Russian/Spanish/Ukrainian
Manual Packaging data - Yes
Manufacturer - Be quiet
Manufacturer - Be Quiet!
Manufacturer_code - BP006EU
Maximum input current (@110V) Power - 10 A
Maximum input current (@220V) Power - 5 A
Max output current (+3.3V) Power - 20 A
Max output current (+5V) Power - 20 A
Max output current (+5Vsb) Power - 3 A
Max output current (+12V) Power - 62.5 A
Max output current (-12V) Power - 0.3 A
MB power connector - 20 + 4 pin
Mean time between failures (MTBF) Performance - 100000 h
Model name - POWER ZONE 2
Modular power supply - Yes
MOLEX power connectors - 0
Motherboard power cable length Ports & interfaces - 600 mm
Motherboard power connector Ports & interfaces - 20+4 pin ATX
MPN - BP006EU
Name - 750W be quiet! Power Zone 2
name - be quiet! Power Zone 2 80 PLUS Platinum Netzteil, vollmodular, ATX 3.1, PCIe 5.1 - 750 Watt, schwarz
Name - be quiet! Power Zone 2 750W
Name - Be quiet POWER ZONE 2 750W (black, 1x 12 pin high power GPU, 3x PCIe, 750 watts)
name - Power supply Power Zone 2 750W 80PLUS PLATINUM ATX 3.1
Noise level Performance - 15.8 dB
Number of +12V rail(s) Power - 1
Number of connectors PATA - 1
Number of fans Design - 1 fan(s)
Number of power connectors 12VHPWR - 1
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 3
Number of SATA power connectors Ports & interfaces - 6
Number of USB 10p connectors - 0
On/off switch Design - Yes
Operating relative humidity (H-H) Operational conditions - 0 - 85 %
Operating temperature (T-T) Operational conditions - 0 - 40 °C
Operational conditions - Operating relative humidity (H-H) - 0 - 85%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Other features - Cable ties included - Yes
Other features - Screws included - Yes
Package depth Packaging data - 328 mm
Package height Packaging data - 102 mm
Package type Packaging data - Box
Package weight Packaging data - 3210 g
Package width Packaging data - 248 mm
Packaging data - Manual - Yes
Packaging data - Manual languages - English
Packaging data - Manual languages - French
Packaging data - Manual languages - German
Packaging data - Manual languages - German, English, Spanish, French, Polish, Russian, Ukrainian
Packaging data - Manual languages - Polish
Packaging data - Manual languages - Russian
Packaging data - Manual languages - Spanish
Packaging data - Manual languages - Ukrainian
Packaging data - Package depth - 328 mm
Packaging data - Package height - 102 mm
Packaging data - Package type - Box
Packaging data - Package weight - 3.21 kg
Packaging data - Package width - 248 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
PCI Express power cable length Ports & interfaces - 600 mm
PCI Express power connectors (6+2 pin) Ports & interfaces - 3
PCI Express power connectors (16-pin) Ports & interfaces - 1
Peak power Power - 820 W
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.1
Performance - Bearing technology - Rifle
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Noise level - 15.8 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Peripheral (Molex) power cable length Ports & interfaces - 850 mm
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 1
PFC - Active
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU P4 connector (4-pin) - 1
Ports & interfaces - CPU power cable length - 70 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 3
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 850 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Ports & interfaces - SATA power cable length - 550
Ports & interfaces - SATA power cable length - 550,700,850,1000 mm
Ports & interfaces - SATA power cable length - 700
Ports & interfaces - SATA power cable length - 850
Ports & interfaces - SATA power cable length - 1000 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 750 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 92.5%
Power - Hold time - 24.5 ms
Power - Maximum input current (@110V) - 10 A
Power - Maximum input current (@220V) - 5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62.5 A
Power - Max output current (-12V) - 0.3 A
Power - Number of +12V rail(s) - 1
Power - Peak power - 820 W
Power - Power factor - 0.98
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Surge & inrush
Power - Power protection features - Under voltage
Power - Total power - 750 W
Power factor Power - 0.98
Power protection features Power - Over current/Over power/Over voltage/Overheating/Short circuit/Surge & inrush/Under voltage
Power supply - 750 W
Power supply unit (PSU) form factor Performance - ATX
Producent: Nazwa producenta / importera - be quiet!
Listan GmbH
Wilhelm-Bergner-Str 11C
21509 Glinde / Hamburg

producer - Be quiet!
Producer - be quiet!
producerCode - BP006EU
ProducerCode - BP006EU
Product colour Design - Black
productName - be quiet! POWER ZONE 2 750W power supply unit 20+4 pin ATX ATX Black
ProductName - POWER ZONE 2 750W
productSize - Normal
Products per shipping (inner) case Logistics data - 6 pc(s)
Purpose Performance - PC
SATA power cable length Ports & interfaces - 1000/550/700/850 mm
SATA power connectors - 6
Screws included Other features - Yes
Shipping (inner) case gross weight Logistics data - 19260 g
Shipping (inner) case height Logistics data - 346 mm
Shipping (inner) case length Logistics data - 651 mm
Shipping (inner) case width Logistics data - 282 mm
ShortDescription - 750 | ATX | 135 mm | 20 + 4 pin | 150mm x 86mm x 160mm | 80 PLUS Platinum
ShortSummaryDescription - be quiet! POWER ZONE 2 750W, 750 W, 100 - 240 V, 820 W, 50/60 Hz, 10 A, 5 A
sizeX - 330
sizeY - 250
sizeZ - 105
Stck_Kart - 6
Stck_Pal - 6
Storage relative humidity (H-H) Operational conditions - 0 - 95 %
Storage temperature (T-T) Operational conditions - -40 - 70 °C
Storno - Y
Summary - be quiet! POWER ZONE 2 750W. Total power: 750 W, AC input voltage: 100 - 240 V, Peak power: 820 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 550,700,850,1000 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 14 cm. Compliance certificates: BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE
Sustainability certificates Technical details - ENERGY STAR/ErP/Triman
Technical details - Sustainability certificates - ENERGY STAR
Technical details - Sustainability certificates - ENERGY STAR, ErP, Triman
Technical details - Sustainability certificates - ErP
Technical details - Sustainability certificates - Triman
Title - be quiet! POWER ZONE 2 750W power supply unit 20+4 pin ATX ATX Black
Total power Power - 750 W
Unit Box Height - 0.25
Unit Box Length - 0.1
Unit Box Width - 0.33
Unit Calculated Volume - 0.00825 cubm
Unit Calculated Weight - 3.3 kg
Units per Shipping Box - 1
URL - https://www.bequiet.com/en/powersupply/5585
Vendor Homepage - https://www.bequiet.com/en/powersupply/5585
vendpn - BP006EU
Warranty - 24 months
WarrantyInfo - 10-year manufacturer’s warranty
warrantyLength - 120
warrantyType - G
Waste Electrical and Electronic Equipment (WEEE) compliance Certificates - Yes
Weight - 3,28
Weight - 3.273
weight - 3265
Weight & dimensions - Depth - 160 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
Width Weight & dimensions - 150 mm
