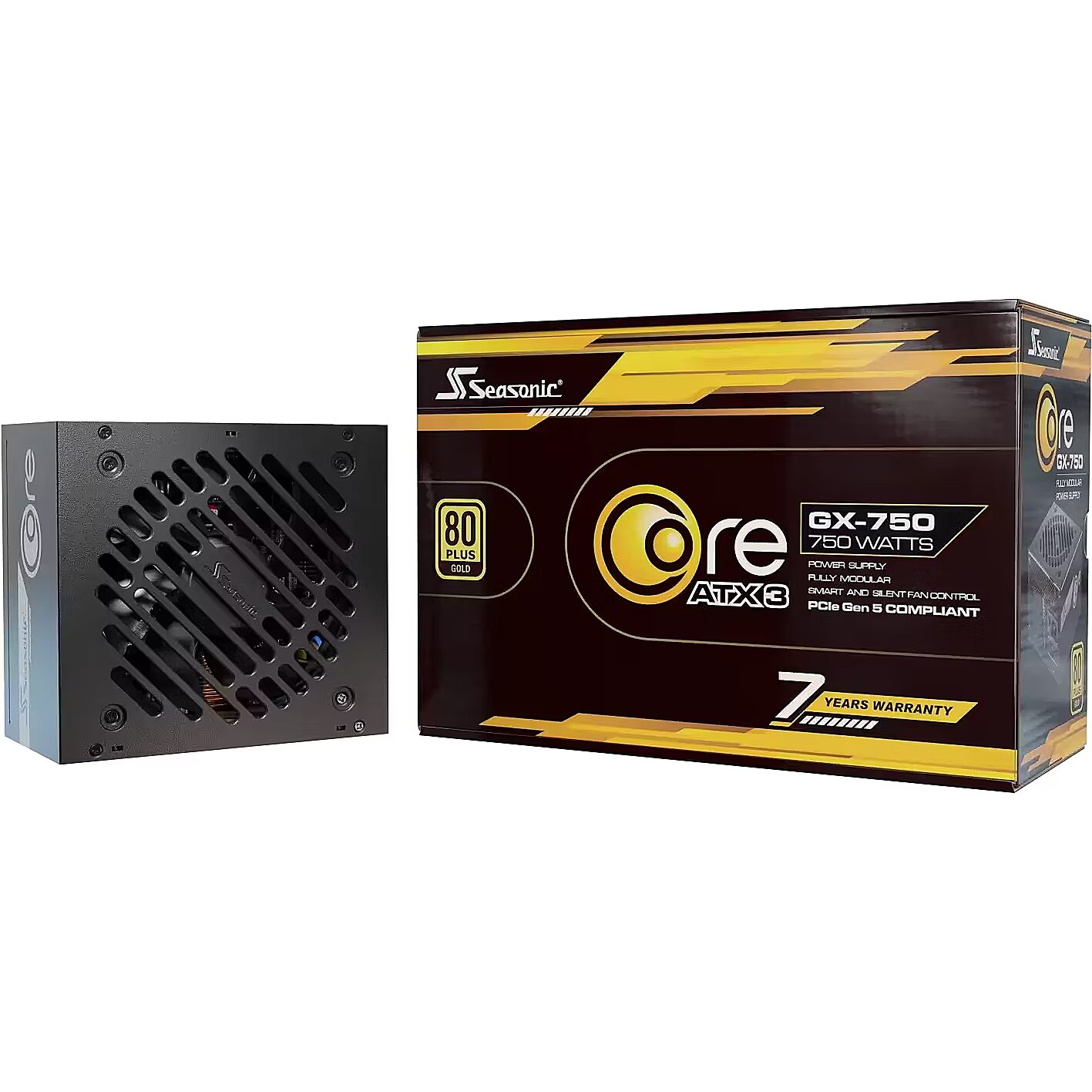

Seasonic Core, 750W, 80PLUS Gold, ATX 3.1

80 PLUS certification Performance - 80 PLUS Gold
AC input frequency Power - 50/60 Hz
AC input voltage Power - 100 - 240 V
ATX version Performance - 3.1
Cables included Packaging content - AC,Peripheral (Molex) to SATA 3.3,CPU,PCIe,SATA
Cabling type Ports & interfaces - Fully-Modular
category - PC Components|Power Supplies|PSUs up to 800 Watts
Category 1 - Netzteile
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Certification Certificates - BSMI, C-tick, CB, CCC, CE, cTUVus, EAC, FCC, TUV, UKCA
code - SRP-CGX751-A5A32SF
Combined power (+3.3V) Power - 100 W
Combined power (+5Vsb) Power - 15 W
Combined power (+12V) Power - 744 W
Combined power (-12V) Power - 3.6 W
Cooling type Design - Active
Depth Weight & dimensions - 140 mm
Description - The updated Seasonic CORE GX ATX3 series complies with the latest ATX 3.1 and PCIe 5.1 standards and includes four output ranges from 1000 W to 650 W in both black and white colors. Catering to a broad spectrum of PC enthusiasts and system builders, these power supplies provide a fine balance between cost and performance. The 80 PLUS® Gold certified Seasonic’s Core GX line is a fully modular design equipped with black cables featuring a braided pattern. These power supplies are solid performers for a large range of applications, where a 120 mm Hydro Dynamic Bearing fan is combined with Seasonic’s Smart and Silent Fan Control to ensure the optimal cooling performance at the lowest possible noise level. These quality power supplies are backed up by Sea Sonic’s 7-year worldwide manufacturer’s warranty. New Seasonic OptiSink Design
The overall quality and reliability of the new CORE GXATX 3 Series has been greatly improved by a brand-new PCB (Printed Circuit Board) layout and the implementation of automated surface mount technology during production, which minimizes human production errors. By using a redesigned PCB combined with smaller MOSFET and heat sink components, the internal space within the power supply was increased to enhance heat dissipation and airflow to result in better component cooling. Fully Modular Cables
In Sea Sonic’s patented design feature full modularity comes hand-in-hand with the extensive use of SMD technology to increase the overall performance and reliability of this power supply. The simple and inventive layout scheme helps to attain unsurpassed quality and performance, where efficiency is further enhanced by minimized line resistance, reduced voltage drop and lower impedance. Reduced component count and better space utilization facilitate optimal air flow inside the case and promote heat dissipation, proper cooling and ultimately longer product life.
ean - 4711173878469
EAN - 4711173878469
EAN_code - 4711173878469
Fan diameter Design - 120 mm
Height Weight & dimensions - 86 mm
Input current Power - 9 A
Manufacturer - Seasonic
Manufacturer - Sea Sonic
Manufacturer_code - SRP-CGX751-A5A32SF
Max output current (+3.3V) Power - 20 A
Max output current (+5Vsb) Power - 3 A
Max output current (+12V) Power - 62 A
Max output current (-12V) Power - 0.3 A
Mean time between failures (MTBF) Performance - 100000 h
Model name - CORE GX ATX 3.1
Model name - SRP-CGX751-A5A32SF
MPN - SRP-CGX751-A5A32SF
Name - 750W Seasonic Core SRP-CGX751-A5A32SF ATX 3.1 80+ Gold
Name - Seasonic Core GX-750-V2 750W ATX3.1 black
name - Seasonic Core GX 80 PLUS Gold Netzteil, modular, ATX 3.1, PCIe 5.1 - 750 Watt, schwarz
Number of fans Design - 1 fan(s)
Number of PATA power connectors Ports & interfaces - 2
On/off switch Design - Yes
Operating temperature (T-T) Operational conditions - 0 - 50 °C
Package type Packaging data - Box
Power protection features Power - Over current/Over power/Over total voltage/Over voltage/Short circuit/Under voltage
Power supply unit (PSU) form factor Performance - ATX
Product colour Design - Black
Purpose Performance - PC
Summary - Seasonic SRP-CGX751-A5A32SF. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, Peripheral (Molex) to SATA 3.3, CPU, PCIe, SATA
Total power Power - 750 W
Unit Box Height - 0.12
Unit Box Height - 0.19
Unit Box Length - 0.27
Unit Box Length - 0.275
Unit Box Width - 0.19
Unit Box Width - 0.115
Unit Calculated Volume - 0.00738 cubm
Unit Calculated Volume - 0.0077501 cubm
Unit Calculated Weight - 3.12 kg
Unit Calculated Weight - 3.13 kg
Units per Shipping Box - 5
Vendor Homepage - https://seasonic.com/core-gx-atx-3-2024/
Warranty - 24 months
Warranty - 84 months
Weight - 2,98
Weight - 2.988
Width Weight & dimensions - 150 mm
