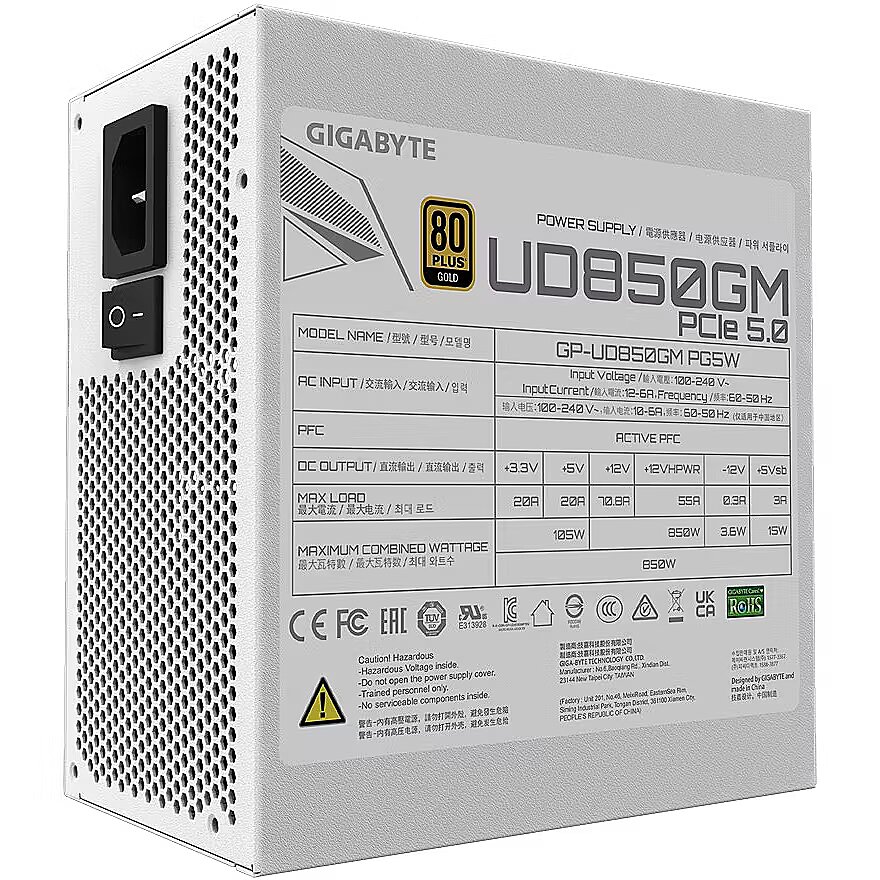

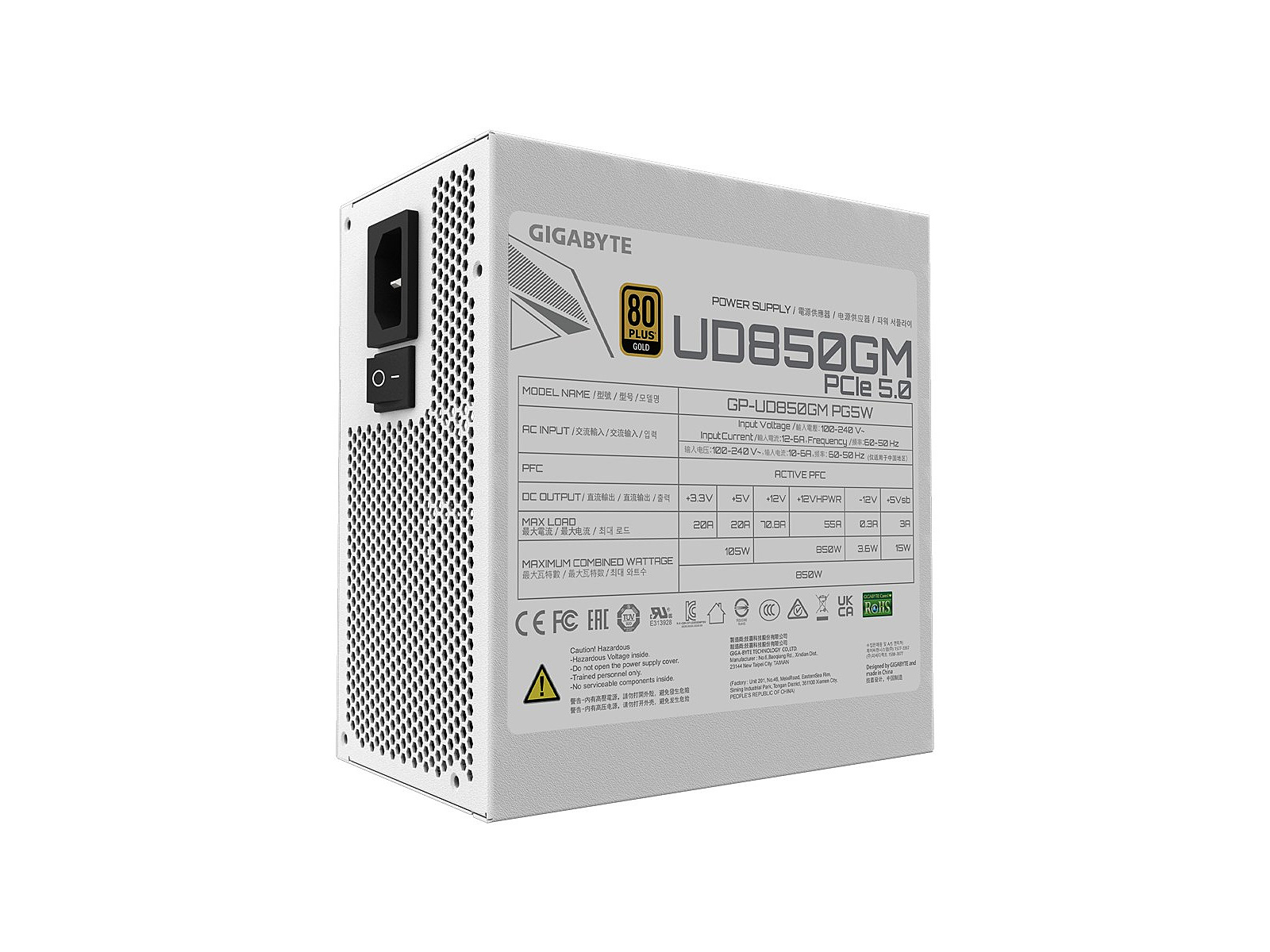

Gigabyte UD850GM PG5 White, 850W, 80PLUS Gold, PCIe 5.0

8-pin 12V power connectors - 0
80 PLUS certification Performance - 80 PLUS Gold
Accessories included -
AC input frequency Power - 50/60 Hz
AC input voltage Power - 100 - 240 V
ATX power connector (20+4 pin) Ports & interfaces - Yes
ATX version Performance - 3.0
Bearing technology Performance - HYB
Brand - GIGABYTE
BrandPartCode - GP-UD850GM PG5W EU
Cables included Packaging content - CPU,PCIe,Peripheral (Molex),SATA
Cabling type Ports & interfaces - Fully-Modular
Category - Datortehnika :: Datoru komponentes :: Barošanas bloki (PSU)
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
category_en - Computers & Components > Computer components > Universal power supplies PSU
category_lv - Datortehnika > Datoru komponentes > Barošanas bloki PSU
category_ru - Datortehnika > Datoru komponentes > Barošanas bloki PSU
Certificates 80+ - 80 PLUS Gold
Code - GP-UD850GMPG5W
Code - GP-UD850GM PG5W
Combined power (+3.3V) Power - 105 W
Combined power (+5V) Power - 105 W
Combined power (+5Vsb) Power - 15 W
Combined power (+12V) Power - 80 W
Combined power (-12V) Power - 3.6 W
Cooling type Design - Active
CPU power cable length Ports & interfaces - 600 mm
CPU power connector (4+4 pin) Ports & interfaces - Yes
Dane techniczne: Certyfikat sprawności - 80 Plus Gold
Dane techniczne: Funkcja PFC - tak
Dane techniczne: Gwarancja - 5 lat w serwisie zewnętrznym
Dane techniczne: Głębokość - 140 mm
Dane techniczne: Ilość wentylatorów chłodzących - 1
Dane techniczne: Moc - 850 W
Dane techniczne: Model - Gigabyte GP-UD
Dane techniczne: Modularne okablowanie - w pełni modularne
Dane techniczne: MTBF - 100000 godz.
Dane techniczne: Natężenie przy napięciu +3.3V - 20 A
Dane techniczne: Natężenie przy napięciu +5V - 20 A
Dane techniczne: Natężenie przy napięciu +5VSB - 3 A
Dane techniczne: Natężenie przy napięciu +12V1 - 70.8 A
Dane techniczne: Natężenie przy napięciu -12V - 0.3 A
Dane techniczne: Odłączane przewody - tak
Dane techniczne: Producent - Gigabyte
Dane techniczne: Rodzaj chłodzenia - wentylator
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 150 mm
Dane techniczne: Układ PFC - aktywny
Dane techniczne: Wersja standardu ATX - ATX 3.0
Dane techniczne: Wtyczka zasilania [pin] - 1 x 16-pin PCIe (12VHPWR)
Dane techniczne: Wtyczka zasilania [pin] - 1 x Floppy
Dane techniczne: Wtyczka zasilania [pin] - 2 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 2 x 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 3 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 8 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 86 mm
Dane techniczne: Zabezpieczenia - OCP
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OTP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Zabezpieczenia - UVP
Dane techniczne: Średnica wentylatorów - 120 mm
Depth Weight & dimensions - 140 mm
Desc - Jauda: 850W, Energoefektivitāte: 80 Plus Gold, PFC: Aktīvs, Ventilators: 120mm, SATA pieslēgumi: 8, MOLEX PATA pieslēgumi: 1, PCI-E: 4 x 6 + 2 PIN, Garantija: 2 gadi
Description -
Description - Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.Ultra Durable: Main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, OVP/OPP/SCP/UVP/OCP/OTP protectionSupport PCIe Gen 5.0 graphics cardsSupport Intel ATX 3.0 standard80 PLUS Gold certifiedFully modular designCompact design
description_en - Gigabyte GP‑UD850GM PG5 White — 850W, ATX 3.0, 80 PLUS Gold, Fully Modular
High-performance power supply in a sleek white finish. 80 PLUS Gold certification ensures up to 90% efficiency at mid-load, and ATX 3.0 compliance supports modern systems with high transient demands. Native PCIe 5.0 16-pin cable delivers up to 600W to top-tier GPUs.
Specifications: Power: 850W Efficiency: 80 PLUS Gold Standard: ATX 3.0 (PSDG compliant) Modularity: fully modular, white flat cables Fan: 120 mm hydraulic bearing, smart zero-RPM mode under low load Connectors: 1 × 20+4‑pin ATX 2 × 4+4‑pin EPS (CPU) 1 × PCIe 16‑pin (12VHPWR) – up to 600W 4 × 6+2‑pin PCIe 8 × SATA 3 × Molex, 1 × Floppy Protections: OVP, OPP, SCP, UVP, OCP, OTP Size: approx. 140×150×86 mm
description_lv - Gigabyte GP‑UD850GM PG5 White — 850 W, ATX 3.0, 80 PLUS Gold, pilnībā modulārs
Spēcīgs barošanas bloks baltā dizainā ar 80 PLUS Gold sertifikātu — nodrošina līdz 90 % efektivitāti vidējā slodzē. Atbalsta ATX 3.0 standartus un piedāvā Native PCIe 5.0 pieslēgvietu jaudīgiem grafikas risinājumiem (līdz 600 W).
Tehniskie parametri: Jauda: 850W Sertifikāts: 80 PLUS Gold Standarts: ATX 3.0 (PSDG saderīgs) Modulārs: jā, ar baltām platām kabeļu vadu Dzesētājs: 120 mm ar hidro‑gultni, automātiska apstāšanās pie zemas slodzes Savienojumi: 1 × 20+4‑pin ATX 2 × 4+4‑pin EPS (CPU) 1 × 16‑pin PCIe 12VHPWR — līdz 600 W 4 × 6+2‑pin PCIe 8 × SATA 3 × Molex, 1 × floppy Aizsardzība: OVP, OPP, SCP, UVP, OCP, OTP Izmēri: aptuveni 140 × 150 × 86 mm
description_ru - Gigabyte GP‑UD850GM PG5 White — 850 Вт, ATX 3.0, 80 PLUS Gold, полностью модульный
Высокопроизводительный блок питания в стильном белом оформлении. Сертификация 80 PLUS Gold обеспечивает до 90 % эффективности при средней нагрузке, а стандарт ATX 3.0 поддерживает современные системы с высокими пиковыми нагрузками. Благодаря Native PCIe 5.0 16‑контактному кабелю можно подключать суперсовременные видеокарты, потребляющие до 600 Вт.
Технические характеристики: Мощность: 850W Сертификат: 80 PLUS Gold Стандарт: ATX 3.0, совместим с PSDG Модульность: полностью модульный, белые плоские кабели Вентилятор: 120 мм с гидравлическим подшипником, «умный» режим (останавливается при низкой нагрузке) Коннекторы: 1 × 20+4‑pin ATX 2 × 4+4‑pin EPS (CPU) 1 × PCIe 16‑pin (12VHPWR) — до 600 Вт 4 × 6+2‑pin PCIe 8 × SATA 3 × Molex, 1 × Floppy Защита: OVP, OPP, SCP, UVP, OCP, OTP Размеры: приблизительно 140 × 150 × 86 мм
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Illumination - No
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Design - Product colour - White
Designation - CE+WEEE
dimensionalWeight - 1360
dimension depth - 120 mm
dimension height - 255 mm
Dimensions - 86 x 150 x 140 mm
dimension weight - 2665 g
dimension width - 205 mm
EAN - 810075657838
EAN - 4719331553470
ean - 4719331553470
Eans - 4719331553470
EAN_code - 4719331553470
Efficiency Power - 90 %
EPS power connector (4+4 pin) Ports & interfaces - Yes
Fan - 12 cm
Fan diameter Design - 120 mm
Fan location Design - Top
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Floppy disk drive connector Ports & interfaces - Yes
Floppy drive power connector Ports & interfaces - 1
Floppy power connectors - 1
Form Factor - ATX
gross_weight - 2.55 kg
GTIN - 4719331553470
guarantee - 60
guarantee_type - normal
Height Weight & dimensions - 86 mm
Hold time Power - 16 ms
Input current Power - 12 A
LargeDescHTML -
Logistics data - Warranty period - 5 year(s)
LongDesc - Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
LongProductName - UD850GM PG5W Power Supply - PCIe 5.0, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.0 compatible, EU Plug
LongSummaryDescription - GIGABYTE UD850GM PG5W Power Supply - PCIe 5.0, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.0 compatible, EU Plug. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA
Manufacturer - GigaByte
Manufacturer_code - GP-UD850GM PG5W
Max output current (+3.3V) Power - 20 A
Max output current (+5V) Power - 20 A
Max output current (+5Vsb) Power - 3 A
Max output current (+12V) Power - 0.3 A
Max output current (-12V) Power - 0.3 A
MB power connector - 20 + 4 pin
Mean time between failures (MTBF) Performance - 100000 h
Model - GP-UD850GM PG5
Modular power supply - Yes
MOLEX power connectors - 3
Motherboard power cable length Ports & interfaces - 610 mm
Motherboard power connector Ports & interfaces - 20+4 pin ATX
Name - Barošanas bloks Gigabyte GP-UD850GM PG5 White 850W
Name - Gigabyte GP-UD850GM PG5W
Name - GIGABYTE GP-UD850GM PG5W 850W, PC power supply (white, 1x 12VHPWR, 3x PCIe, cable management, 850 watts)
Name - Gigabyte PG5W/PSU | GP-UD850GM | 850 W
name - Power supply UD850GM PG5 850W 80PLUS GOLD PFC ATX white
Number of connectors PATA - 0
Number of fans Design - 1 fan(s)
Number of power connectors PCI-E 16-pin Gen 5 - 1
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Number of SATA power connectors Ports & interfaces - 8
Number of USB 10p connectors - 0
On/off switch Design - Yes
Other features -
Package depth Packaging data - 206 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 255.00 mm
Package features > Gross height (mm) - 208.00 mm
Package features > Gross width (mm) - 118.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 138 pc(s)
Package features > Paper/Pasteboard - 240.00 g
Package features > Plastic (No PET) - 60.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Package height Packaging data - 117 mm
Package type Packaging data - Box
Package weight Packaging data - 4500 g
Package width Packaging data - 254 mm
Packaging content - Cables included - CPU, PATA, Peripheral (Molex), SATA
Packaging content - Cables included - CPU, PCIe, Peripheral (Molex), SATA
Packaging content - Cable tie(s) included - Yes
Packaging data - Package depth - 206 mm
Packaging data - Package height - 117 mm
Packaging data - Package type - Box
Packaging data - Package weight - 4.5 kg
Packaging data - Package width - 254 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
PCI Express power cable length Ports & interfaces - 600 mm

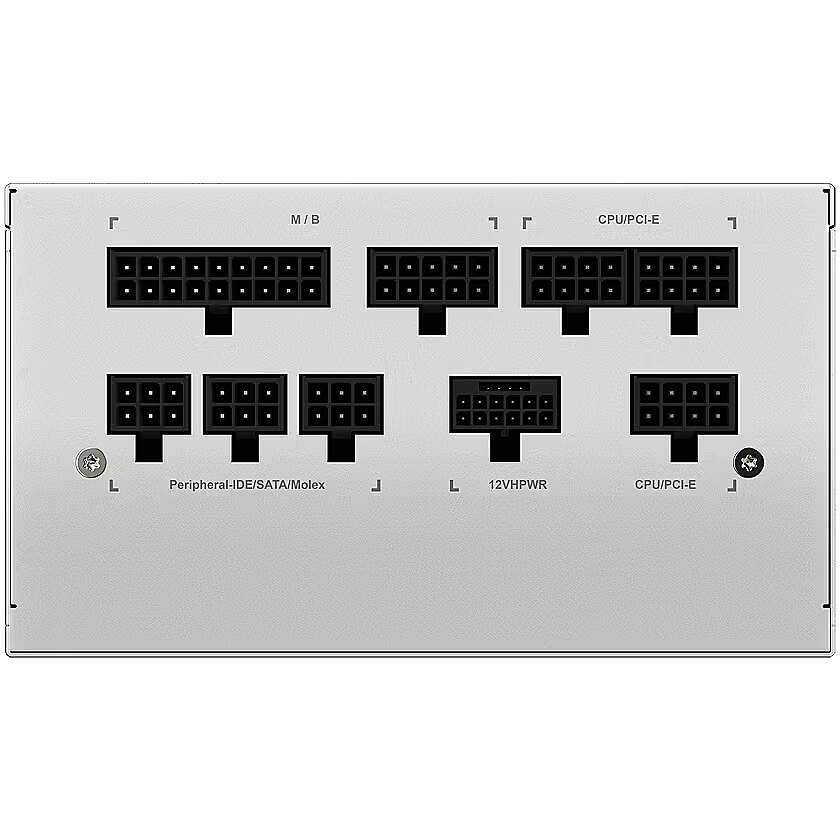

PCI Express power connectors (6+2 pin) Ports & interfaces - 4
PCI Express power connectors (16-pin) Ports & interfaces - 1
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.0
Performance - Bearing technology - HYB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Noise level - 40 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 2
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 60 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 3
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power cable length - 70 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 200
Ports & interfaces - Peripheral (Molex) power cable length - 600 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Ports & interfaces - SATA power cable length - 150
Ports & interfaces - SATA power cable length - 150,600 mm
Ports & interfaces - SATA power cable length - 600 mm
Power - AC input frequency - 50 - 60 Hz
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 105 W
Power - Combined power (+5V) - 105 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 80 W
Power - Combined power (+12V) - 850 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Hold time - 16 ms
Power - Input current - 12 - 6 A
Power - Input current - 12 A
Power - Maximum input current (@110V) - 6 A
Power - Maximum input current (@220V) - 12 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 0.3 A
Power - Max output current (+12V) - 70.8 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power Good signal delay range - 100 - 150 ms
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 850 W
Power > Nominal power - 850 W
Power Factor Correction (PFC) type Power - Active
Power factor Power - 0.9
Power Good signal delay range Power - 100 - 150 ms
Power protection features Power - Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Power supply - 850 W
Power supply unit (PSU) form factor Performance - ATX
Producent: Nazwa producenta / importera - GigabyteGiga-Byte Technology BVSteenoven 245626 EindhovenHolandiaEmail: EU.grp@gigabyte.com
producer - Gigabyte
Producer - Gigabyte
producerCode - GP-UD850GM PG5W
ProducerCode - GP-UD850GM PG5W
Product colour Design - Black
productName - Gigabyte power supply GP-UD850GM PG5W 850W 80+ Gold
ProductName - UD850GM PG5W Power Supply - PCIe 5.0, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.0 compatible, EU Plug
productSize - Normal
Purpose Performance - PC
SATA power cable length Ports & interfaces - 150/600 mm
SATA power connectors - 8
ShortDescription - 850 | ATX | 120 mm | 20 + 4 pin | 150mm x 86mm x 140mm | modularny |80 PLUS Gold |
ShortSummaryDescription - GIGABYTE UD850GM PG5W Power Supply - PCIe 5.0, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.0 compatible, EU Plug, 850 W, 100 - 240 V, 50/60 Hz, 12 A, Active, 105 W
sizeX - 255
sizeY - 228
sizeZ - 117
Summary - GIGABYTE UD850GM PG5W Power Supply - PCIe 5.0, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.0 compatible, EU Plug. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA
Technical details - Sustainability certificates - CCC
Technical details - Sustainability certificates - CE
Technical details - Sustainability certificates - Federal Communications Commission (FCC)
Technical details - Sustainability certificates - RoHS
Technical details - Warranty period - 5 year(s)
Technical details > Gross weight - 2.55 kg
Technical details > Net weight - 2.25 kg
Technical details > Producer - Gigabyte
Technical details > Producer product family - PG5W/PSU
Technical details > Producer product name - GP-UD850GM
Title - GIGABYTE UD850GM PG5W Power Supply - PCIe 5.0, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.0 compatible, EU Plug
title_en - Gigabyte GP-UD850GM PG5 Power Supply 850W
title_lv - Gigabyte GP-UD850GM PG5 Barošanas Bloks 850W
title_ru - Gigabyte GP-UD850GM PG5 Блок Питания 850W
Total power Power - 850 W
Unit Box Height - 0.21
Unit Box Length - 0.255
Unit Box Width - 0.12
Unit Calculated Volume - 0.008128 cubm
Unit Calculated Weight - 2.83 kg
Units per Shipping Box - 5
URL - https://www.gigabyte.com/
Vendor Homepage - https://www.gigabyte.com/
vendpn - GP-UD850GM PG5W
Warranty - 36 months
Warranty - 60
Warranty - 60 month(s)
WarrantyInfo - 5 years
warrantyLength - 60
Warranty period Logistics data - 5 year(s)
warrantyType - G
Weight - 2,69
weight - 2.25 kg
weight - 2685
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 4.17 kg
Weight & dimensions - Width - 150 mm
Weight Weight & dimensions - 4170 g
Width Weight & dimensions - 150 mm
