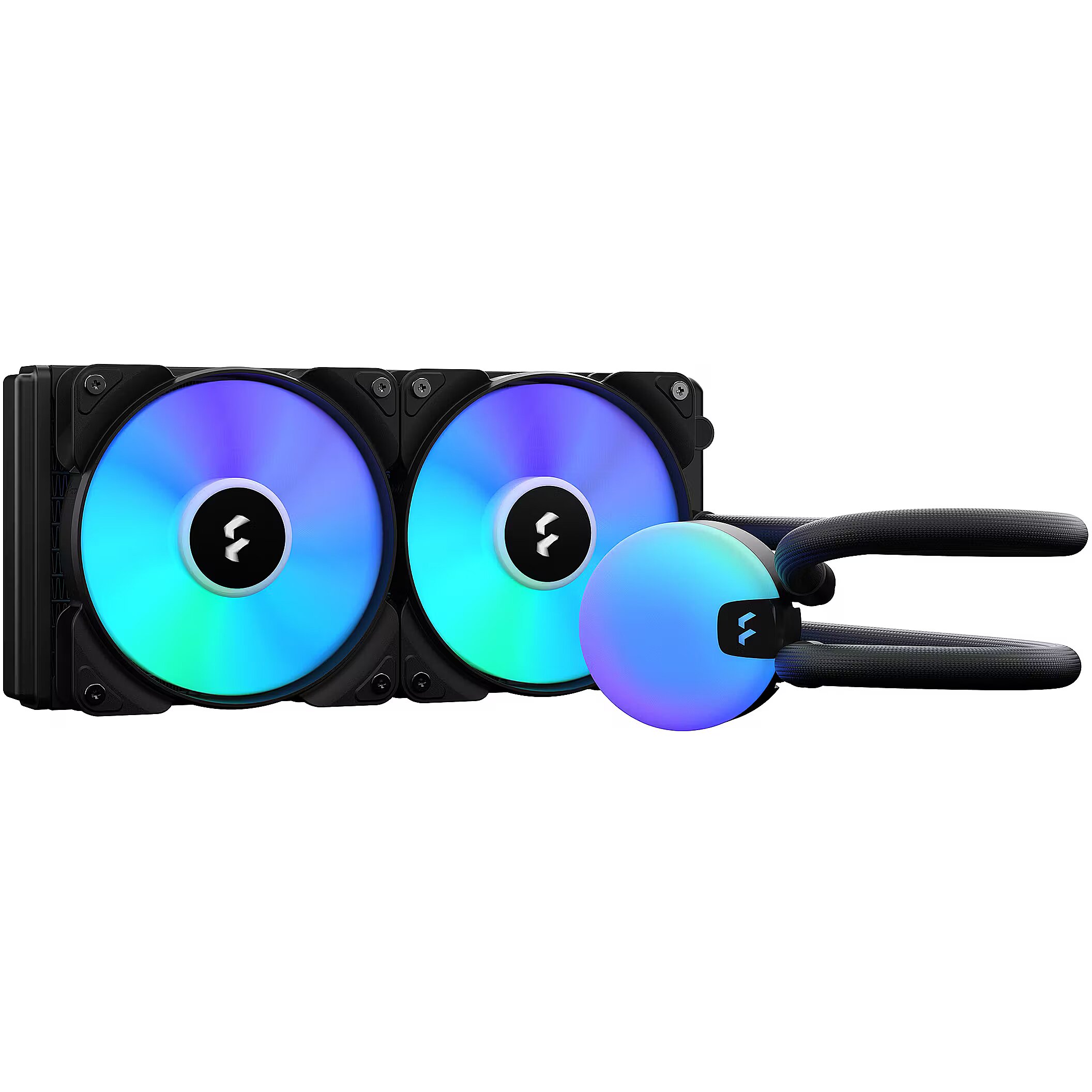

Fractal Design Lumen S24 RGB V2

Accessories included - CPU cooler assembly 2 Aspect 12 RGB fans User manual 4x Wing screw 8x 6-32 mounting bolt (short/long) Bracket for Intel 4x Placemat 4x Spacer Intel 115X backplate 4x Intel 115X mounting bracket 4x Intel 2011 mounting bracket 2x AMD mounting spacer Holder for AMD 5V ARGB cable
Air flow rates - 56 cfm
Category_1 - Computer Cases and Cooling
Category_2 - Watercooling
Code - FD-W-L1-S2412
Cooling technology - Liquid
CPU socket - LGA1150
CPU socket - LGA1151
CPU socket - LGA1155
CPU socket - LGA1156
CPU socket - LGA1200
CPU socket - LGA1366
CPU socket - LGA2011
CPU socket - LGA2011-3
CPU socket - LGA2066
CPU socket - Socket AM2
CPU socket - Socket AM2+
CPU socket - Socket AM3
CPU socket - Socket AM3+
CPU socket - Socket AM4
CPU socket - Socket FM1
CPU socket - Socket FM2
CPU socket - Socket FM2+
Description - Lumen S24 RGB CPU Cooler Customize your CPU water cooling from subtle to stunning with six addressable Lumen LEDs that can be controlled via the motherboard or controller. Compatible with most popular Intel/AMD sockets, including LGA1700 and AM5, and industry-standard certified RGB, Lumen offers high-end cooling performance and premium ARGB effects for both new and experienced builders. The dual design provides both a discreet and illuminated look, controlled from the motherboard's RGB interface The six ARGB LEDs can be controlled via the motherboard or controller Removable tabletop can be rotated in 90-degree increments to keep the logo horizontal regardless of mounting orientation Compatible with LGA 1700 and AM5 Low permeability rubber tubing with braided nylon sleeves From subtle to stunning The dual design provides both a discreet and illuminated look, controlled from the motherboard's RGB interface The six ARGB LEDs can be controlled via the motherboard or controller
Design - Base plate material - Copper
Design - Fins material - Aluminium
Design - Illumination colour - Multi
Design - Illumination LED - Yes
Design - Number of fans - 2 fan(s)
Design - Number of LEDs - 6
Design - Product colour - Black
Design - Radiator material - Aluminum
Design > Radiator material - Aluminum
dimensionalWeight - 1986
dimension depth - 320 mm
dimension height - 205 mm
Dimensions - 4-pin fan - cable length: 500 mm aRGB fan 5V, 3-pin - cable length: 500 mm Block height: 43mm Block dimensions (with fittings): 79 x 67 mm Block diameter (main block body): 67 mm Radiator dimensions: 272 x 120 x 27 mm Tube length: 400mm Pump cable length: 775 mm aRGB 5V, 3-pin cable: 500mm
dimension weight - 1780 g
dimension width - 135 mm
EAN - 7340172705932
ean - 7340172705932
EAN_code - 7340172705932
Fan - 12 cm
Fan speed (max) - 500 rpm
Fan speed (min) - 2000 rpm
guarantee - 60
guarantee_type - normal
Link - https://www.fractal-design.com/products/water-cooling/lumen/lumen-s24-rgb/lumen-s24-rgb/
Manufacturer - Fractal Design
Manufacturer_code - FD-W-L1-S2412
name - FDE Lumen S24 Water Coo ling Unit v2 RGB
Name - Fractal Design Lumen S24 v2 RGB FD-W-L1-S2412
Name - Fractal Design | Water Cooling Unit | Lumen S24 V2 RGB | Intel, AMD | CPU Liquid Cooler
Noise - 33.2 dB
Number of fans - 2
Number of Heatpipe tubes - 0
Other features -
Other features > Air pressure - 1.8 mmH2O (Max)
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 332.00 mm
Package features > Gross height (mm) - 137.00 mm
Package features > Gross width (mm) - 205.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 185 pc(s)
Package features > Paper/Pasteboard - 150.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Mounting kit - Yes
Packaging content - Package type - Box
Performance - Fan's mean time to failure (MTTF) - 90000 h
Performance - Fan bearing technology - Rifle bearing
Performance - Fan diameter - 12 cm
Performance - Maximum airflow - 56 cfm
Performance - Maximum air pressure - 2.34 mmH2O
Performance - Minimum airflow (imperial) - 13 cfm
Performance - Minimum air pressure - 0.23 mmH2O
Performance - Noise level (high speed) - 33.2 dB
Performance - Noise level (low speed) - 10 dB
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Pump's mean time to failure (MTTF) - 50000 h
Performance - Pump bearing technology - Ceramic bearing
Performance - Pump motor speed - 4000 RPM
Performance - Pump noise level - 22 dB
Performance - Quantity per pack - 1 pc(s)
Performance - Rotational speed (max) - 2000 RPM
Performance - Rotational speed (min) - 500 RPM
Performance - Suitable location - Processor
Performance - Supported processor sockets - LGA 1150 (Socket H3)
Performance - Supported processor sockets - LGA 1151 (Socket H4)
Performance - Supported processor sockets - LGA 1155 (Socket H2)
Performance - Supported processor sockets - LGA 1156 (Socket H)
Performance - Supported processor sockets - LGA 1200 (Socket H5)
Performance - Supported processor sockets - LGA 1366 (Socket B)
Performance - Supported processor sockets - LGA 1700
Performance - Supported processor sockets - LGA 2011 (Socket R)
Performance - Supported processor sockets - LGA 2011-v3 (Socket R)
Performance - Supported processor sockets - LGA 2066
Performance - Supported processor sockets - Socket AM2
Performance - Supported processor sockets - Socket AM2+
Performance - Supported processor sockets - Socket AM3
Performance - Supported processor sockets - Socket AM3+
Performance - Supported processor sockets - Socket AM4
Performance - Supported processor sockets - Socket AM5
Performance - Supported processor sockets - Socket FM1
Performance - Supported processor sockets - Socket FM2
Performance - Supported processor sockets - Socket FM2+
Performance - Type - All-in-one liquid cooler
Performance > Maximum airflow - 56 cfm
Performance > Supported processor sockets - Intel: LGA 1700/1150/1151/1155/1156/1200 LGA 1366/2011/2011-3/2066; AMD: AM5 / AM4/FM2+/FM2/ FM1/AM3+/AM3/AM2+/AM2
Performance > Type - CPU Liquid Cooler
Power - Fan current - 0.37 A
Power - Fan voltage - 12 V
Power - Pump current - 340 mA
Power - Pump voltage - 12 V
Power > Pump voltage - 12 V
producer - Fractal Design
producerCode - FD-W-L1-S2412
Producer product family - Water Cooling Unit
Producer product name - Lumen S24 V2 RGB
productName - Fractal Design Lumen S24 v2 RGB Processor All-in-one liquid cooler 12 cm Black 1 pc(s)
productSize - Normal
Radiator - Aluminium
sizeX - 330
sizeY - 215
sizeZ - 140
Stand / CPU block - Copper
Technical details > Fan speed (max) - 2000 RPM
Technical details > Fan speed (min) - 500 RPM
Technical details > Gross weight - 1.40 kg
Technical details > Net weight - 1.20 kg
Technical details > Noise level (max) - 33.2 dB
Technical details > Processor brand name - Intel, AMD
Technical details > Producer - Fractal Design
Type of cooling - Active
vendpn - FD-W-L1-S2412
Warranty - 24
Warranty - 24 month(s)
warrantyLength - 12
warrantyType - G
Weight - 1,80
weight - 1850
Weight & dimensions - Package depth - 332 mm
Weight & dimensions - Package height - 205 mm
Weight & dimensions - Package weight - 1.77 kg
Weight & dimensions - Package width - 137 mm
Weight & dimensions - Radiator depth - 27.2 cm
Weight & dimensions - Radiator height - 2.7 cm
Weight & dimensions - Radiator width - 12 cm
Weight & dimensions - Tube length - 40 cm
