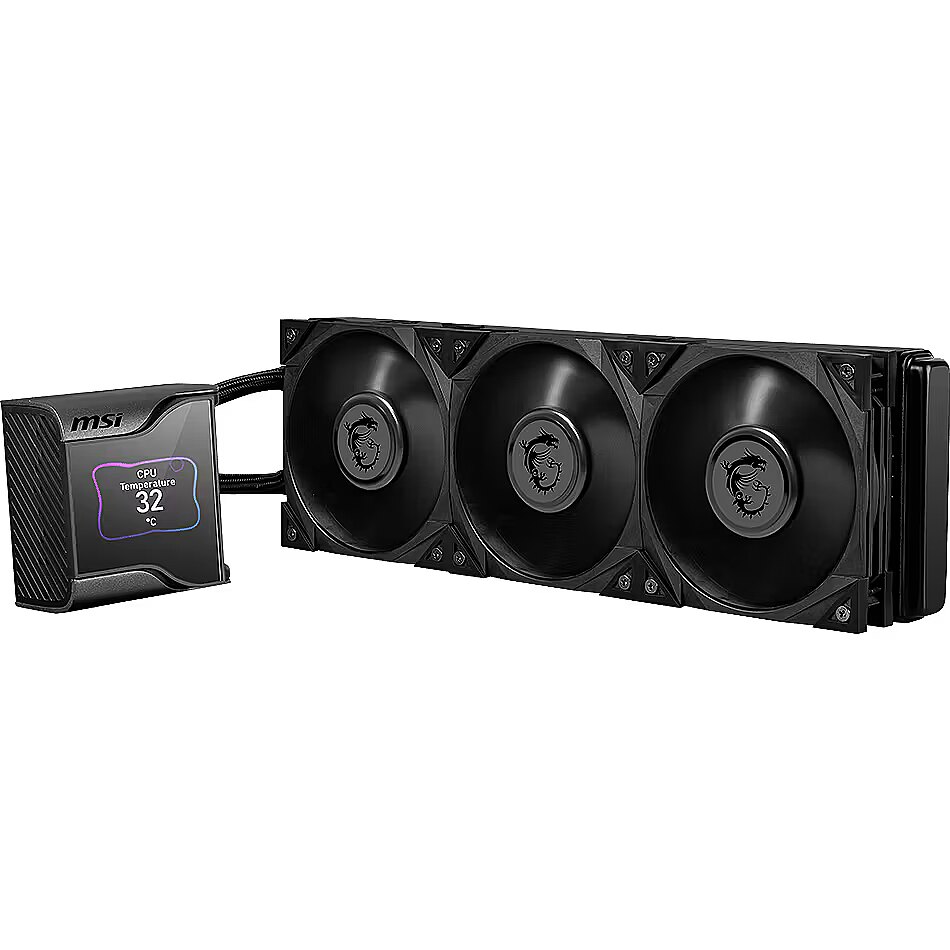

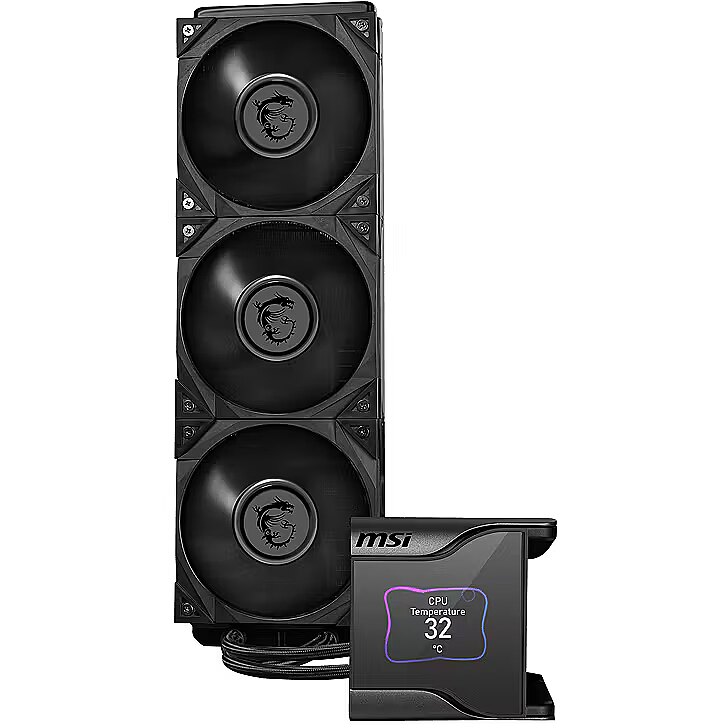

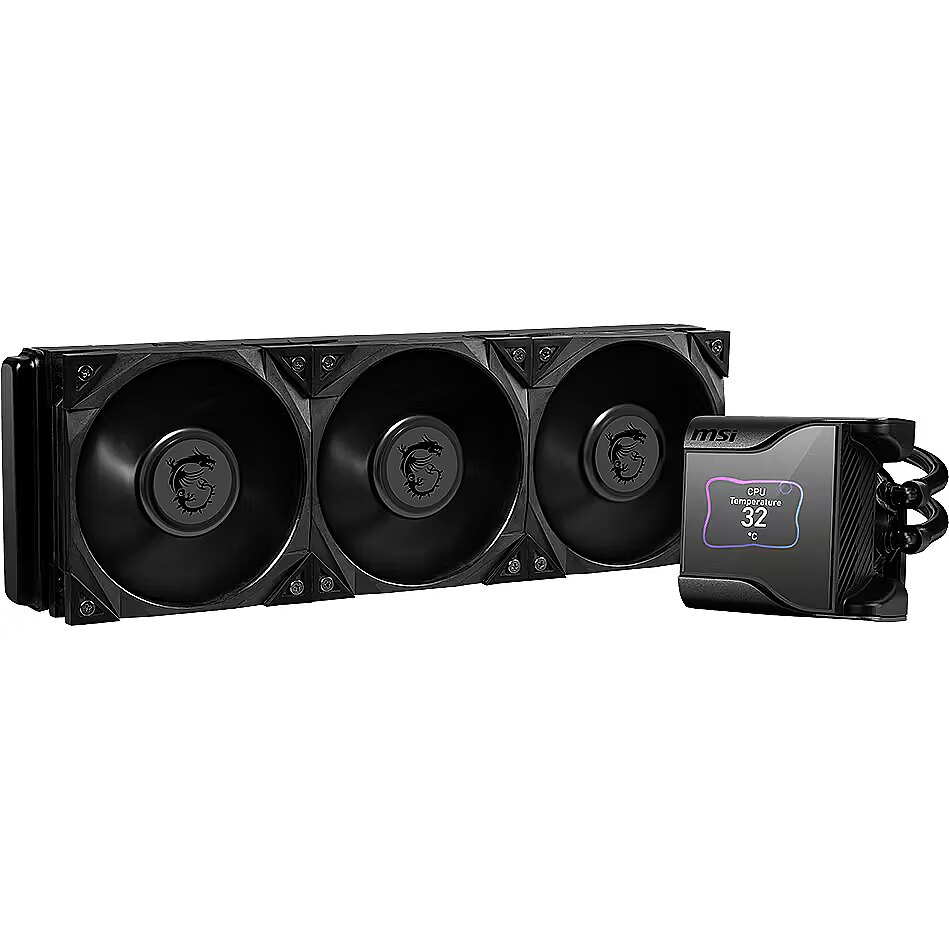

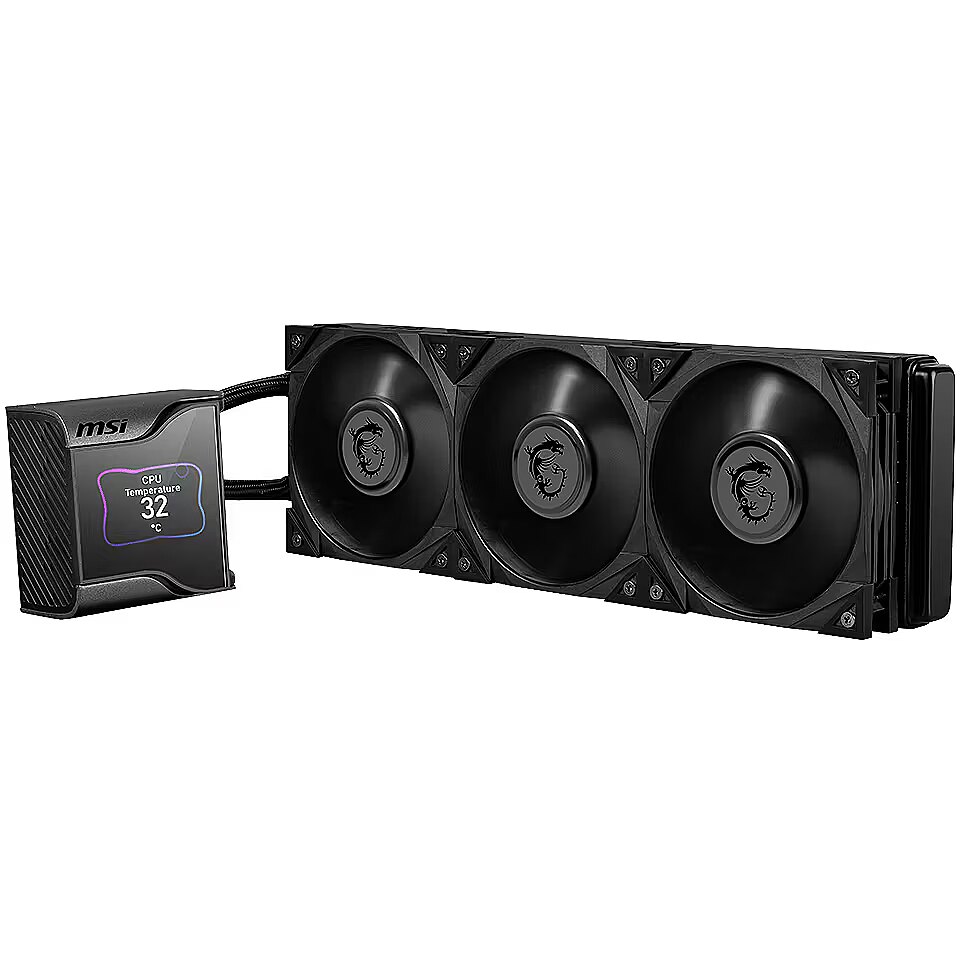

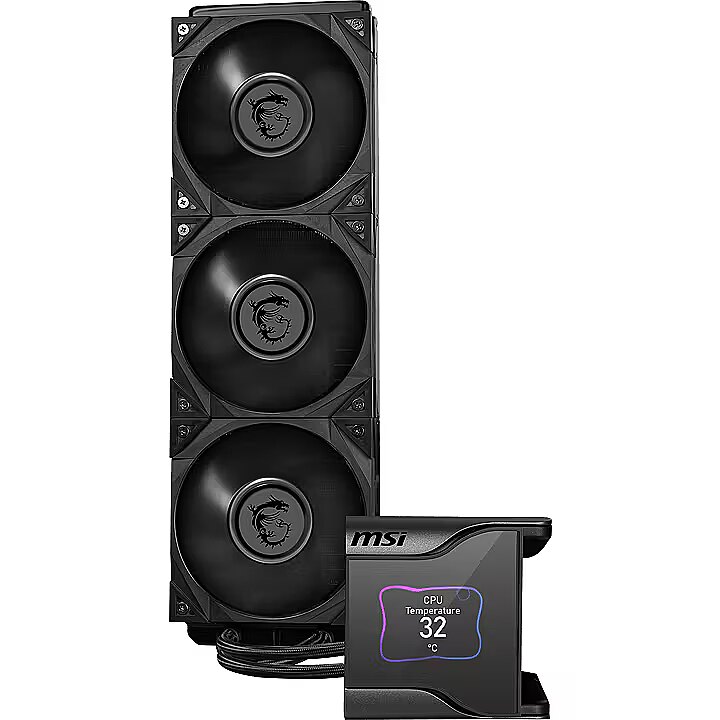

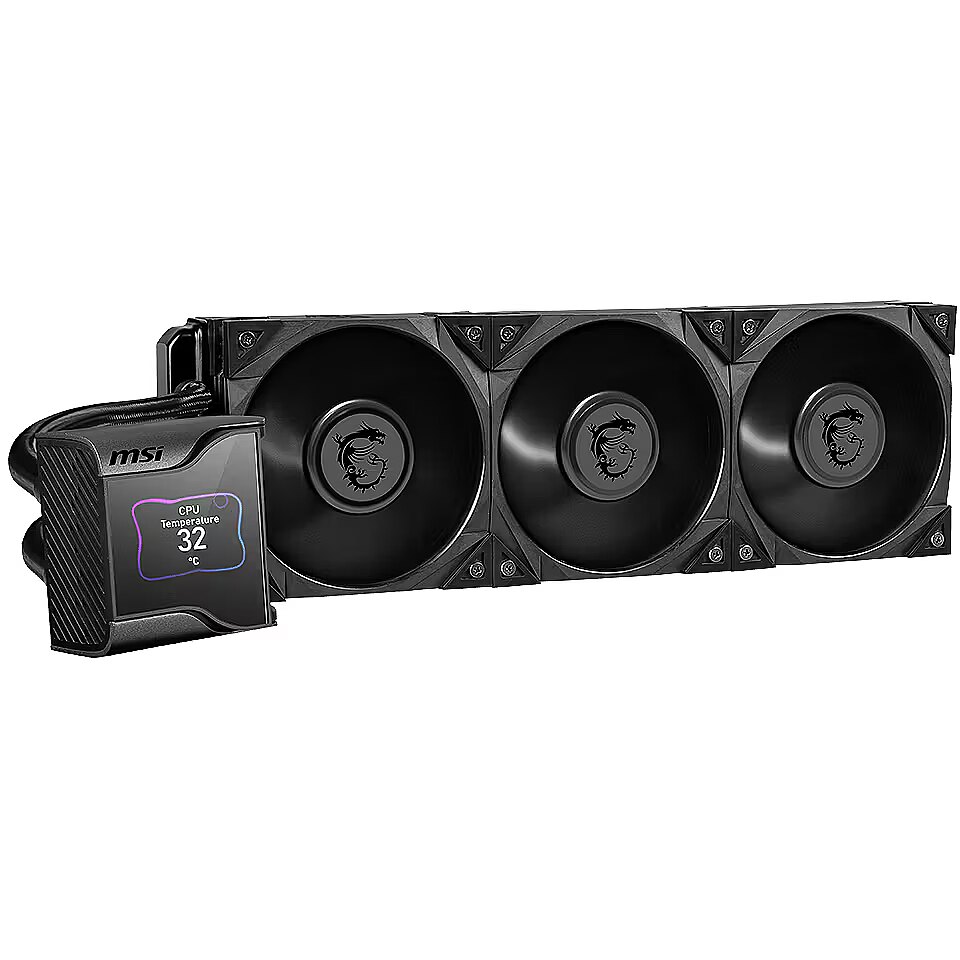

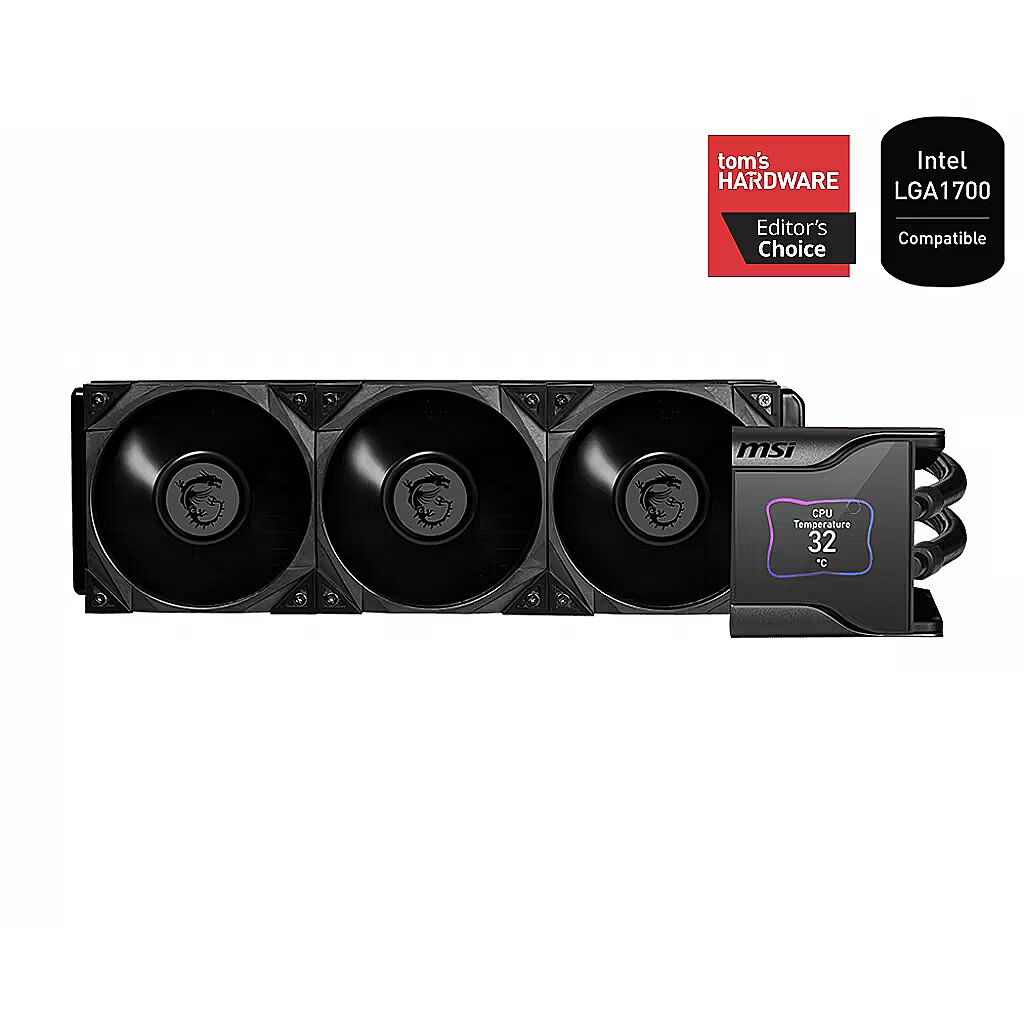

MSI MEG CoreLiquid S360

Air flow - 56.2 cfm
Air flow rates - 56.2 cfm
Brand - MSI
BrandPartCode - MEG CORELIQUID S360
Category - Computer Cooling Systems
Category - Root/Electronics/PC parts/Cooling/Processor fans
category - Watercooling All in One Sets - internal
Category Code - COC
code - 9S6-6A0521-001
Cooler type - Liquid
Cooling technology - Liquid
CPU socket - LGA1150
CPU socket - LGA1151
CPU socket - LGA1155
CPU socket - LGA1156
CPU socket - LGA1200
CPU socket - LGA1700
CPU socket - LGA2011
CPU socket - LGA2011-3
CPU socket - LGA2066
CPU socket - Socket AM2
CPU socket - Socket AM2+
CPU socket - Socket AM3
CPU socket - Socket AM3+
CPU socket - Socket AM4
CPU socket - Socket FM1
CPU socket - Socket FM2
CPU socket - Socket FM2+
CPU socket - Socket SP3
CPU socket - Socket sTRX4
CPU socket - Socket TR4
Description - MEG SILENT GALE P12 FAN The MEG SILENT GALE P12 is an innovatively quiet fan from MSI that is designed to generate the least noisy airflow possible. CONCENTRATED COOLING PERFORMANCE A 60mm fan is housed in the water block assembly to help dissipate heat from the M.2 SSD drives, the VRMs powering the CPU, and other components on the motherboard and installed PC components. 2.4-INCH CUSTOMISABLE IPS DISPLAY The MEG CORELIQUID S series water-cooling system features a 2.4-inch customisable IPS display that can show hardware information, play GIFs, MP4 files, display photos, text and continuously updated weather information. FULL CONTROL IN YOUR HANDS Everything from the fan speed of the MEG CORELIQUID S series water cooling system to the IPS display can be set and adjusted from the MSI Center app. LGA 1700 COMPATIBLE The MAG CORELIQUID S series water cooling system is factory compatible with the new LGA 1700 CPU socket standard.
Description - MSI LIQUID COOLING MAG CORELIQUID S360
Design - Material - Aluminium
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
Design - Type - Internal
dimensionalWeight - 2866
dimension depth - 150 mm
dimension height - 205 mm
Dimensions - Fan dimensions: 120 x 120 x 25 mm Heatsink dimensions (L x W x H): 394 x 120 x 27 mm Dimensions of cooling block (L x W x H): 95 x 95 x 54 mm
dimension weight - 2700 g
dimension width - 440 mm
ean - 4719072859466
Eans - 4719072859466
Fan - 12 cm
Fan size group - 120mm
Fan speed - 0 ~ 2000 RPM
Fan speed (max) - 2000 rpm
Full Description Line - MAG CORELIQUID S360|Liquid|LGA1150/LGA1151/LGA1155/LGA1156/LGA1200/LGA1700/LGA2011/LGA2011-3/LGA2066/SAM2/SAM2+/SAM3/SAM3+/SAM4/SFM1/SFM2/SFM2+|Fan speed 0 ~ 2000 RPM|Air flow 56.2 cfm|Noise level, max 22.7 dB|Weight 1.96 kg
GTIN - 4719072859466
guarantee - 60
guarantee_type - normal
Logistics data - Harmonized System (HS) code - 84733080
LongDesc - The MEG CORELIQUID S Series is here to provide the ultimate silence cooling. It is equipped with MSI's innovative MEG SILENT GALE P12 silent gaming fan and supports 0 rpm fan mode. The 2.4” IPS display can also help you see a conglomerate of hardware information or customizable graphics and videos. The MEG CORELIQUID S Series descends from the top, and you just can’t hear it coming.SILENT COOLINGMSI’s MEG SILENT GALE P12 provides sufficient airflow to the radiator for cooling while maintaining low noise levels.MEG SILENT GALE P12The MEG SILENT GALE P12 is MSI’s innovative silent fan designed to generate the most silent airflow.CONCENTRATED COOLING PERFORMANCEA 60mm fan is placed within the water block to help dissipate heat for the M.2 SSD, CPU VRMs, and surrounding components.FAN 0 RPMThe MEG SILENT GALE P12 and the water block fan support 0% RPM to ensure zero noise under low temperatures.2.4” CUSTOMIZABLE IPS DISPLAYThe MEG CORELIQUID S Series comes with a 2.4” IPS display capable of displaying hardware information, GIF, MP4, photos, texts, and live weather information.TOTAL CONTROL IN YOUR HANDSEverything ranging from MEG CORELIQUID S Series’ fan speed to the IPS display can be adjusted through the MSI Center.LGA 1700 COMPATIBLEThe MEG CORELIQUID S Series liquid cooler provides out of box support for LGA 1700.EVAPORATION PROOF TUBINGConstructed with three layers of netted plastic tubing and a reinforced mesh exterior.
LongProductName - MSI MEG CORELIQUID S360 Liquid CPU Cooler '360mm Radiator, 2.4'' IPS Display with fan, 2x 140mm Silent PWM Fan, MSI Center, Supports Intel and AMD Platforms, Latest LGA 1700 ready, Cooled by ASETEK'
LongSummaryDescription - MSI MEG CORELIQUID S360 Liquid CPU Cooler '360mm Radiator, 2.4'' IPS Display with fan, 2x 140mm Silent PWM Fan, Center, Supports Intel and AMD Platforms, Latest LGA 1700 ready, Cooled by ASETEK'. Type: All-in-one liquid cooler, Fan diameter: 14 cm, Maximum airflow: 56.2 cfm. Product colour: Black
Model name - MAG CORELIQUID S360
name - MEG CORELIQUID S360 360 MM IPS LCD CPU COOLER
Name - MSI MEG CORELIQUID S360
name - MSI MEG CoreLiquid S360 Komplett-Wasserkühlung - 360mm
Noise - 22.7 dB
Noise level, max - 22.7 dB
Number of fans - 3
Other features - Fan specifications Pressure of the air discharged by the fan: 2.21 mm-H2O Fan bearing: Hydrodynamic bearing (HDB) Expected fan service life: 50,000 hours, 40°C Rated fan current: 0.4 A (max.) Fan power consumption: 4.8 W (max.) PWM mode: Yes Cable length (PWM cable): 350 mm; 13.78 in.
Other features - Country of origin - China
Other features - Noise level - 21.2 dB
Performance - Bearing technology - Hydro Dynamic Bearing (HDB)
Performance - Built-in fan - Yes
Performance - Fan's mean time to failure (MTTF) - 50000 h
Performance - Fan bearing technology - Hydro Dynamic Bearing (HDB)
Performance - Fan diameter - 14 cm
Performance - Fan noise level (max) - 22.7 dB
Performance - Fan noise level (min) - 21.2 dB
Performance - Fan speed (max) - 2000 RPM
Performance - Fan static pressure - 2.2 mmH2O
Performance - Fan static pressure - 2.21 mmH2O
Performance - Maximum airflow - 56.2 cfm
Performance - Noise level - 21.2 dB
Performance - Number of fans - 3 fan(s)
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Pump motor speed - 2800 RPM
Performance - Purpose - Processor
Performance - Radiator - Y
Performance - Suitable location - Processor
Performance - Supported processor sockets - LGA 1150 (Socket H3)
Performance - Supported processor sockets - LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R)
Performance - Supported processor sockets - LGA 1151 (Socket H4)
Performance - Supported processor sockets - LGA 1155 (Socket H2)
Performance - Supported processor sockets - LGA 1156 (Socket H)
Performance - Supported processor sockets - LGA 1200 (Socket H5)
Performance - Supported processor sockets - LGA 1700
Performance - Supported processor sockets - LGA 2011 (Socket R)
Performance - Supported processor sockets - Socket AM2
Performance - Supported processor sockets - Socket AM2+
Performance - Supported processor sockets - Socket AM3
Performance - Supported processor sockets - Socket AM3+
Performance - Supported processor sockets - Socket AM4
Performance - Supported processor sockets - Socket FM1
Performance - Supported processor sockets - Socket FM2
Performance - Supported processor sockets - Socket FM2+
Performance - Supported processor sockets - Socket SP3
Performance - Supported processor sockets - Socket sTRX4
Performance - Supported processor sockets - Socket TR4
Performance - Type - All-in-one liquid cooler
Power - Fan current - 0.4 A
Power - Fan power consumption - 4.8 W
Power - Pump current - 0.33 mA
Power - Pump current - 330 mA
Power - Pump power consumption - 4 W
producer - MSI
Producer - MSI
producerCode - 9S6-6A0521-001
ProducerCode - 9S6-6A0521-005
productName - MSI MEG CORELIQUID S360 computer liquid cooling
ProductName - MSI MEG CORELIQUID S360 Liquid CPU Cooler '360mm Radiator, 2.4'' IPS Display with fan, 2x 140mm Silent PWM Fan, MSI Center, Supports Intel and AMD Platforms, Latest LGA 1700 ready, Cooled by ASETEK'
productSize - Normal
Radiator - Aluminium
Radiator material - Aluminum
Shipping Box Depth Shipping/Package Box Dimensions - 44.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 14.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.738 kg
Shipping Box Width Shipping/Package Box Dimensions - 21 cm
ShortDescription - wentylator CPU - chłodzenie wodne |
ShortSummaryDescription - MSI MEG CORELIQUID S360 Liquid CPU Cooler '360mm Radiator, 2.4'' IPS Display with fan, 2x 140mm Silent PWM Fan, Center, Supports Intel and AMD Platforms, Latest LGA 1700 ready, Cooled by ASETEK', All-in-one liquid cooler, 14 cm, 56.2 cfm, Black
sizeX - 455
sizeY - 150
sizeZ - 210
Socket - LGA1150/LGA1151/LGA1155/LGA1156/LGA1200/LGA1700/LGA2011/LGA2011-3/LGA2066/SAM2/SAM2+/SAM3/SAM3+/SAM4/SFM1/SFM2/SFM2+
Title - MSI MEG CORELIQUID S360 Liquid CPU Cooler '360mm Radiator, 2.4'' IPS Display with fan, 2x 140mm Silent PWM Fan, Center, Supports Intel and AMD Platforms, Latest LGA 1700 ready, Cooled by ASETEK'
Type of cooling - Active
Unit Box Height - 0.145
Unit Box Length - 0.445
Unit Box Width - 0.21
Unit Brutto Volume - 0.01355 cubm
Unit Gross Weight - 2.74 kg
Unit Net Weight - 1.96 kg
URL - https://www.msi.com/Liquid-Cooling/MEG-CORELIQUID-S360/Overview
Vendor Homepage - www.msi.com/Liquid-Cooling/MEG-CORELIQUID-S360/Specification
vendpn - MEG CORELIQUID S360
Warranty - 24 months
WarrantyInfo - 3 years
warrantyLength - 24
warrantyType - G
weight - 2700
Weight & dimensions - Fan dimensions (W x D x H) - 120 x 120 x 25 mm
Weight & dimensions - Radiator depth - 2.7 cm
Weight & dimensions - Radiator depth - 12 cm
Weight & dimensions - Radiator height - 2.7 cm
Weight & dimensions - Radiator height - 12 cm
Weight & dimensions - Radiator width - 39.4 cm
Weight & dimensions - Tube length - 40 cm
Weight & dimensions - Waterblock depth - 5.4 cm
Weight & dimensions - Waterblock height - 9.5 cm
Weight & dimensions - Waterblock width - 9.5 cm
