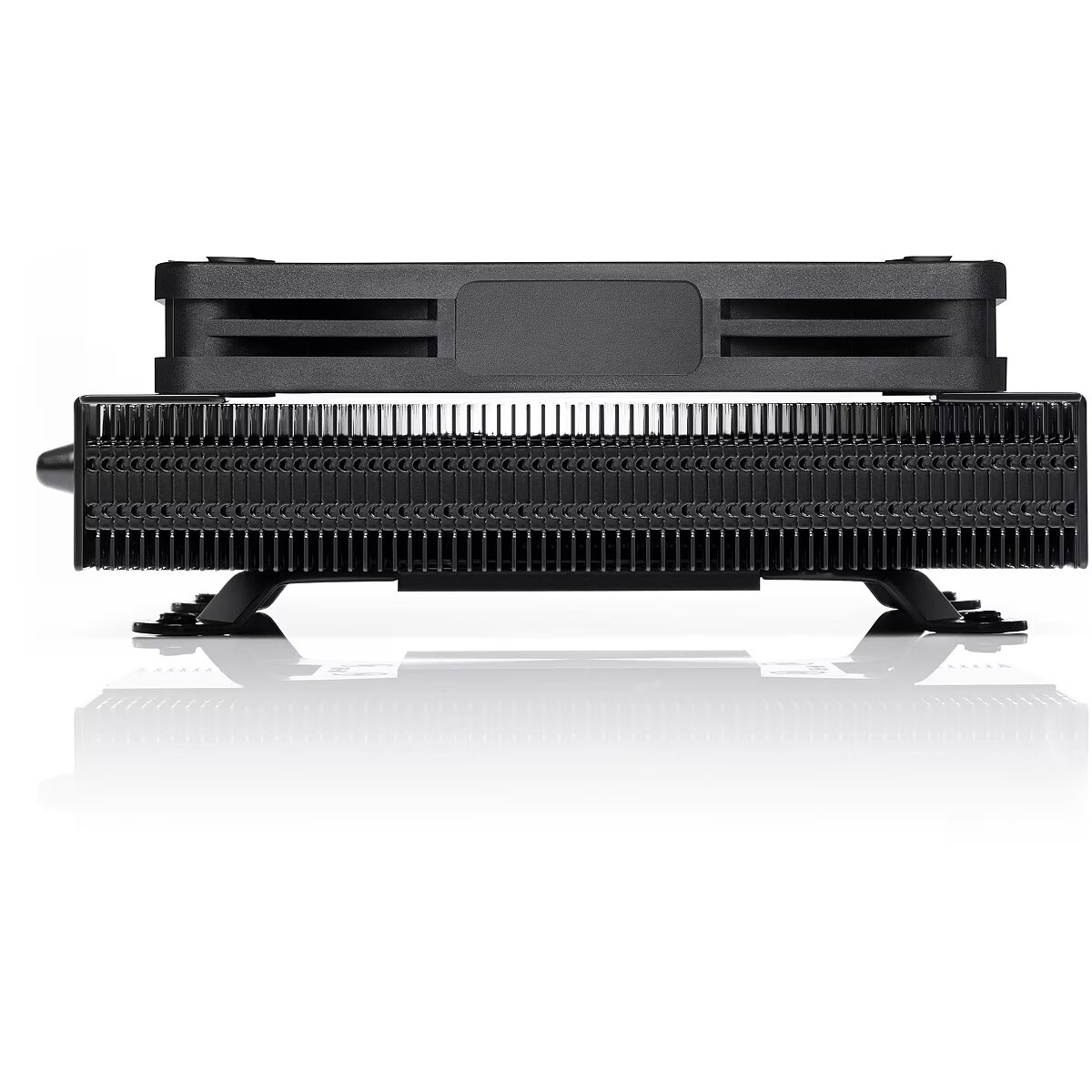

Noctua NH-L9a-AM4 chromax.black, Low Profile

Additional fan mounting - no
Approved for - active air flow
category - Air Cooling CPU-Cooler
Category - Root/Electronics/PC parts/Cooling/Processor fans
Category_1 - Computer Cases and Cooling
Category_2 - Coolers for CPU
code - NH-L9a-AM4 CH.BK
CPU cooler depth - 90 to 99 mm
CPU cooler depth (accurate) - 95 mm
CPU cooler fan(s) included - 1x 92 mm
CPU cooler height - 30 bis 39 mm
CPU cooler height (accurate) - 37 mm
CPU cooler type - Top Blower
CPU cooler width - 90 to 99 mm
CPU cooler width (accurate) - 95 mm
CPU socket - AM4
Design - Base plate material - Copper
Design - Fins material - Aluminium
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 328
ean - 9010018000214
Eans - 9010018000214
EAN_code - 9010018000214
Fan colour - black
Fan connector - 4 Pin (PWM)
Heat sink colour - black
Lighting - no
Manufacturer - Noctua
Manufacturer_code - NH-L9a-AM4 chromax.b
Material base plate - copper
Material heat sink - aluminium
max. Air volume - 50 - 74 m³/h
max. Air volume (exact) - 57,5 m³/h
max. Noise level - 20 - 24 dB(A)
max. Noise level (exact) - 23,6 dB(A)
max. RPM - 2,500 - 2,999 rpm
max. RPM (exact) - 2.500 U/min
name - Noctua NH-L9a-AM4 chromax.black Low Profile CPU-Kühler - 92mm
Name - Noctua NH-L9A-AM4 chromax.black (black)
Name - Noctua NH-L9a-AM4 Chromax Black
No. of Heatpipes - 2
Packaging content - Package type - Hanging box
Performance - Airflow - 57.5 m³/h
Performance - Compatible processor series - AMD Ryzen
Performance - Fan diameter - 9.2 cm
Performance - Maximum air pressure - 2.11 mmH2O
Performance - Mean time between failures (MTBF) - 150000 h
Performance - Minimum air pressure - 1.06 mmH2O
Performance - Noise level (high speed) - 23.6 dB
Performance - Noise level (low speed) - 14.8 dB
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Rotational speed (max) - 2500 RPM
Performance - Rotational speed (min) - 600 RPM
Performance - Suitable for - Processor
Performance - Supported processor sockets - Socket AM4
Performance - Type - Cooler
Power - Power supply - 2.52 W
Power - Voltage - 12 V
Producer - Noctua
producerCode - NH-L9A-AM4 CH.BK
ProducerCode - NH-L9A-AM4 CH.BK
productName - Noctua NH-L9a-AM4 chromax.black Processor Cooler 9.2 cm
productSize - Normal
ShortDescription - Low Profile 37mm
sizeX - 150
sizeY - 51
sizeZ - 215
TDP - keine Angabe
warrantyLength - 72
warrantyType - F
Weight - 0,77
weight - 777
Weight & dimensions - Depth - 92 mm
Weight & dimensions - Fan dimensions (W x D x H) - 92 x 92 x 14 mm
Weight & dimensions - Height - 37 mm
Weight & dimensions - Package depth - 52 mm
Weight & dimensions - Package height - 213 mm
Weight & dimensions - Package weight - 773 g
Weight & dimensions - Package width - 147 mm
Weight & dimensions - Weight - 465 g
Weight & dimensions - Width - 114 mm
Weight in g - 300 - 400 g
Weight in g (exact) - 380
