Accessories included -
Brand - ICY BOX
BrandPartCode - 60389
Category - Laptop Docks & Port Replicators
Category - Root/Accessories | Exploitation/Cables and adapters/adapter/USB
Category 1 - Notebooks & Zubehör
Category 2 - Zubehör Notebooks
Category 3 - Dockingstations
Category_1 - Computers and Laptops
Category_2 - Laptop - Accessories
Color - Anthracite
Color - Black
Compatible with - Universal

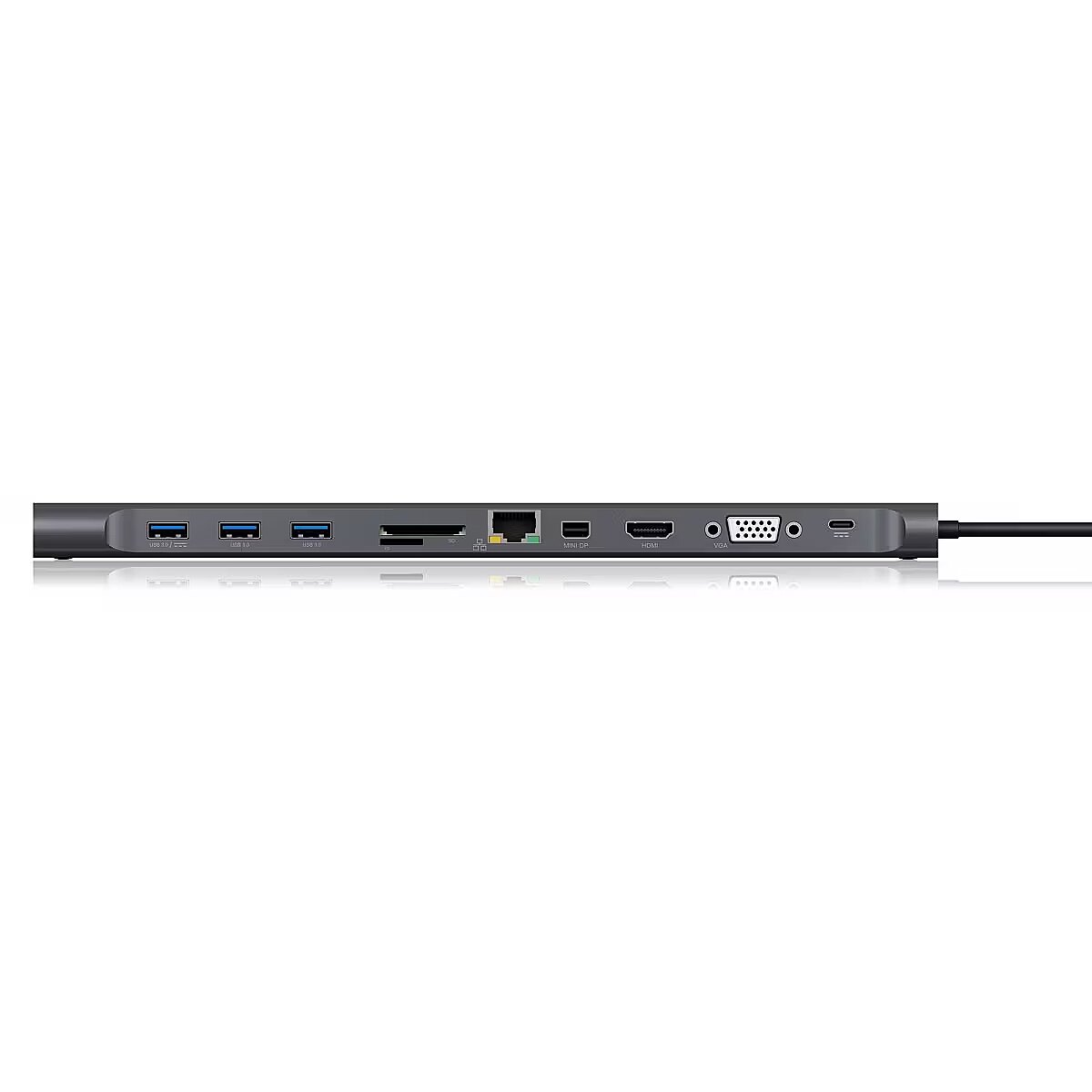

Description - ICY BOX IB-DK2102-C
USB Type-C DockingStation with a triple video output Features Premium aluminium enclosure
Three video interfaces (HDMI, Mini DP and VGA)
Supports 4k@30 Hz resolution (single mode, HDMI or mini DP)
Dual monitor function - connect two extended monitors at the same time (only Windows)
Three USB 3.0 Type-A interfaces, data transfer rate up to 5 Gbit/s
One Type-C charge port for Power Delivery up to 100 W (20 V@5 A)
SD and microSD (UHS-I) card reader for most common card specifications
3.5 mm stereo combo jack (microphone in / audio out)
Gigabit LAN RJ45 interface supports 10/100/1000 Mbit/s bandwidth
dimension depth - 30 mm
dimension height - 375 mm
Dimensions - 80 x 280 x 18 mm
dimension weight - 400 g
dimension width - 135 mm
Docking connector - Thunderbolt 3
ean - 4250078167129
EAN - 4250078167129
Eans - 4250078167129
EAN_code - 4250078167129
GTIN - 4250078167129
guarantee - 24
guarantee_type - normal
I/O ports - 1 x 3,5 mm minijack (Headphones)
I/O ports - 1 x D-Sub
I/O ports - 1 x HDMI Type A
I/O ports - 1 x Mini DisplayPort
I/O ports - 1 x USB power
I/O ports - 2 x Card reader
I/O ports - 3 x USB 2.0 Type A
Logistics data - Harmonized System (HS) code - 84733020
Logistics data - Master (outer) case gross weight - 8.5 kg
Logistics data - Master (outer) case height - 300 mm
Logistics data - Master (outer) case length - 420 mm
Logistics data - Master (outer) case width - 280 mm
Logistics data - Products per master (outer) case - 20 pc(s)
LongDesc - Connection desiresNotebooks and other mobile computers are getting ever smaller but this comes at the expense of connectivity. The DockingStation IB-DK2102-C can permanently alleviate the lack of connection. 3x USB 3.0, 1x Gigabit LAN, 1x DisplayPort™, 1x HDMI®,1x VGA, 1x USB Type-C™ PD 2.0, 1x SD & microSD card reader and a headphone combo jack are provided.Totally visualThree different video interfaces are available, where two monitors can be operated at the same time. They enable you to connect a Mini DP and HDMI® or Mini DP and VGA device simultaneously.The perfect positionThe perfect symbiosis of stylish appearance, the latest technology, and compact size. The high-grade aluminum housing is not only appealing, but also offers comfortable access to the most important expansion ports and, thanks to its shape, at the same time, can serve as a riser for the notebook.
LongProductName - 11-in-1 USB Type-C
LongSummaryDescription - ICY BOX IB-DK2102-C. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Anthracite, Black, Compatible memory cards: MicroSD (TransFlash), SD, Data transfer rate: 5 Gbit/s. Power source type: USB, Output voltage: 5 V, Output current: 1.5 A. Windows operating systems supported: Windows 10
Manufacturer - Icy Box
Manufacturer - RaidSonic
Manufacturer_code - 60389
MPN - IB-DK2102-C
Name - D ICY BOX IB-DK2102-C USB-C 11-in-1 PD 100W DockingStation
name - Docking Station IB-DK2102-C USB TYPE C
Name - ICY BOX IB-DK2102-C - Docking Station - HDMI, USB-C, VGA, Mini DisplayPort
Name - ICYBOX IB-DK2102-C 11 w 1
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Other features - Premium aluminium enclosure Three video interfaces (HDMI, Mini DP and VGA) Supports 4k@30 Hz resolution (single mode, HDMI or mini DP) Dual monitor function - connect two extended monitors at the same time (only Windows) Three USB 3.0 Type-A interfaces, data transfer rate up to 5 Gbit/s One Type-C charge port for Power Delivery 2.0 up to 60 W (20 V@3 A) SD and microSD (UHS-I) card reader for most common card specifications 3.5 mm stereo combo jack (microphone in / audio out) Gigabit LAN RJ45 interface supports 10/100/1000 Mbit/s bandwidth
Other features - Cable length - 0.15 m
Other features - Chipset - VL100, VL812, RLT8153, STDP4320
Packaging content - Manual - Yes
Packaging data - Package depth - 25 mm
Packaging data - Package height - 340 mm
Packaging data - Package weight - 370 g
Packaging data - Package width - 130 mm
Packaging data - Quantity per pack - 1 pc(s)
Performance - Card reader integrated - Yes
Performance - Compatible memory cards - MicroSD (TransFlash), SD
Performance - Country of origin - China
Performance - Data transfer rate - 5 Gbit/s
Performance - HD type - 4K Ultra HD
Performance - Housing material - Aluminium, Plastic
Performance - LED indicators - Yes
Performance - Maximum analog resolution - 1920 x 1200 pixels
Performance - Maximum digital resolution - 3840 x 2160 pixels
Performance - Number of displays supported - 3
Performance - Product colour - Anthracite, Black
Performance - Rubber feet - Yes
Performance - UASP support - Yes
Ports & interfaces - Combo headphone/mic port - Yes
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Headphone connectivity - 3.5 mm
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Host interface - USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Ports & interfaces - Microphone in - No
Ports & interfaces - Mini DisplayPorts quantity - 1
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Ports & interfaces - USB Power Delivery - Yes
Ports & interfaces - USB Power Delivery up to - 100 W
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Power - Output current - 1.5 A
Power - Output voltage - 5 V
Power - Power source type - USB
producer - IcyBox
Producer - ICY Box
ProducerCode - IB-DK2102-C
ProductName - IB-DK2102-C
ShortDescription -
ShortSummaryDescription - ICY BOX IB-DK2102-C, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 100 W, 3.5 mm, 10,100,1000 Mbit/s, Anthracite, Black
Software - Mac operating systems supported - Yes
Software - Windows operating systems supported - Windows 10
System Requirements - Computer with USB Type-C enabled with Windows / macOS, no MST support for MacOS (dual-output mirroring) DisplayPort Alt and Power Delivery 2.0 mode!
Title - ICY BOX IB-DK2102-C Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Anthracite, Black
URL - https://icybox.de/en/product.php?id=33
vendpn - IB-DK2102-C
WarrantyInfo -
Weight - 0,39
Weight - 0.25 kg
Weight - 0.38
Weight & dimensions - Depth - 80 mm
Weight & dimensions - Height - 18 mm
Weight & dimensions - Weight - 250 g
Weight & dimensions - Width - 280 mm
