Club3D NB ACC DOCKING STATION/USB-C 120W CSV-1568

Brand - CLUB3D
BrandPartCode - CSV-1568
Category - Laptop Docks & Port Replicators
Category Code - NBK
Colour - Silver

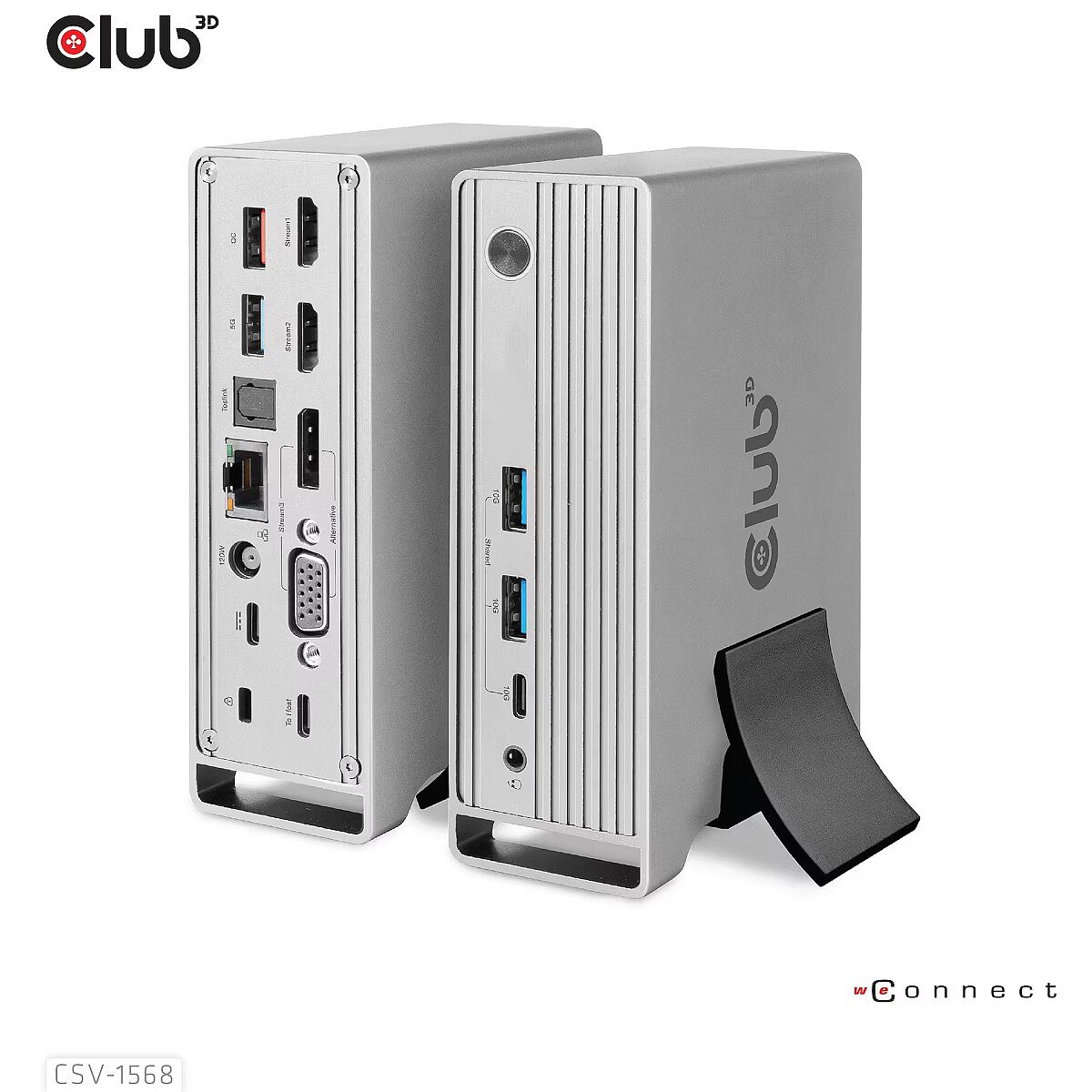

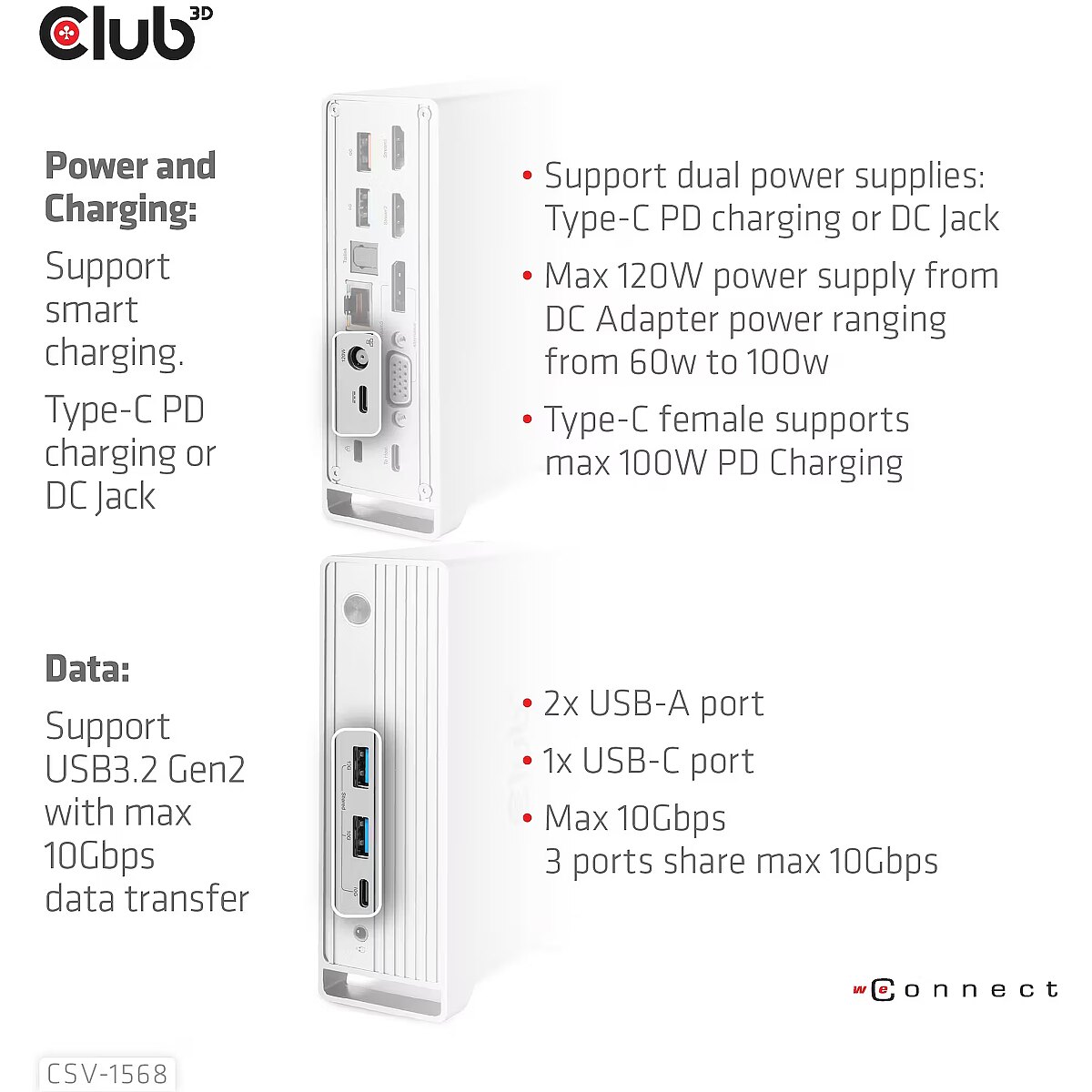

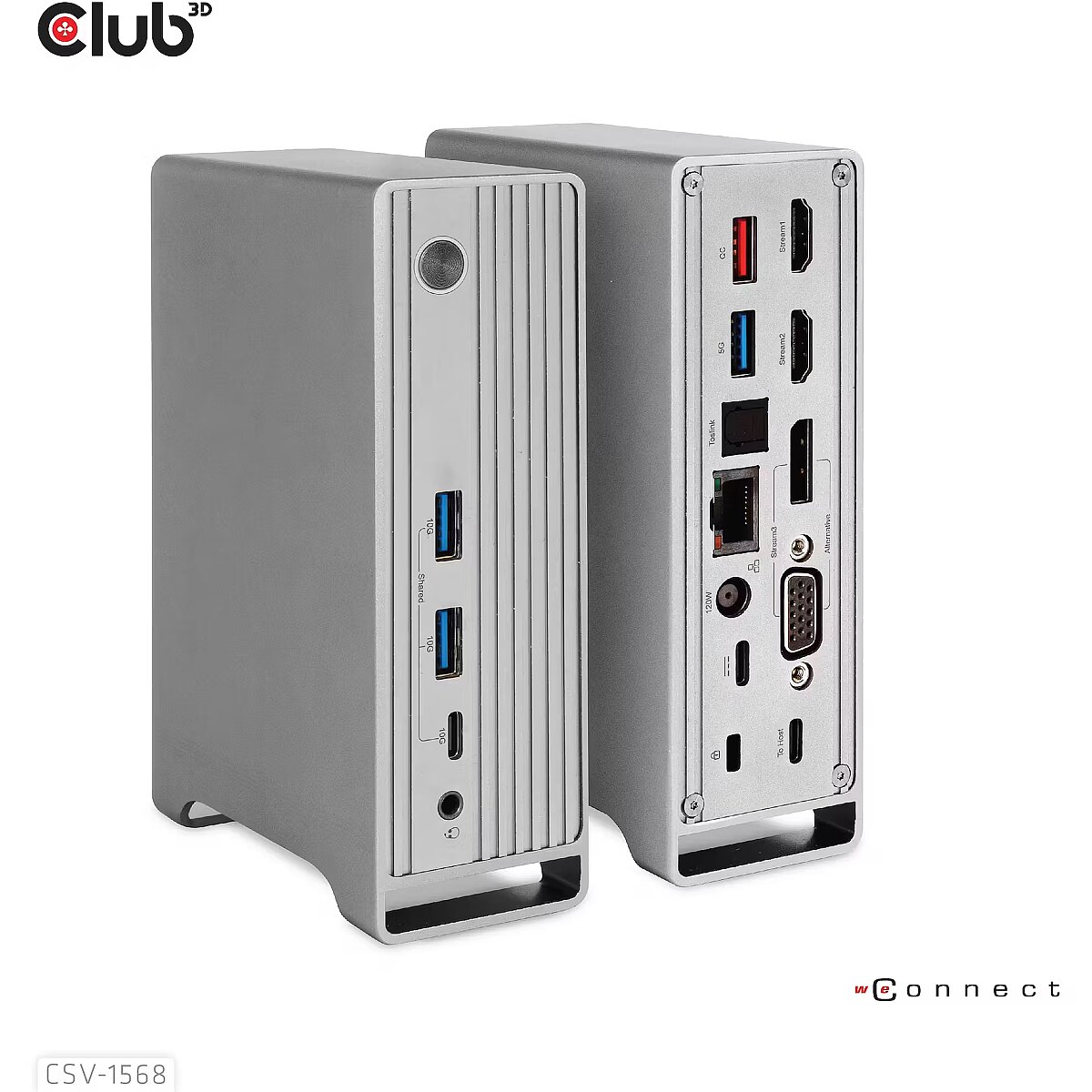

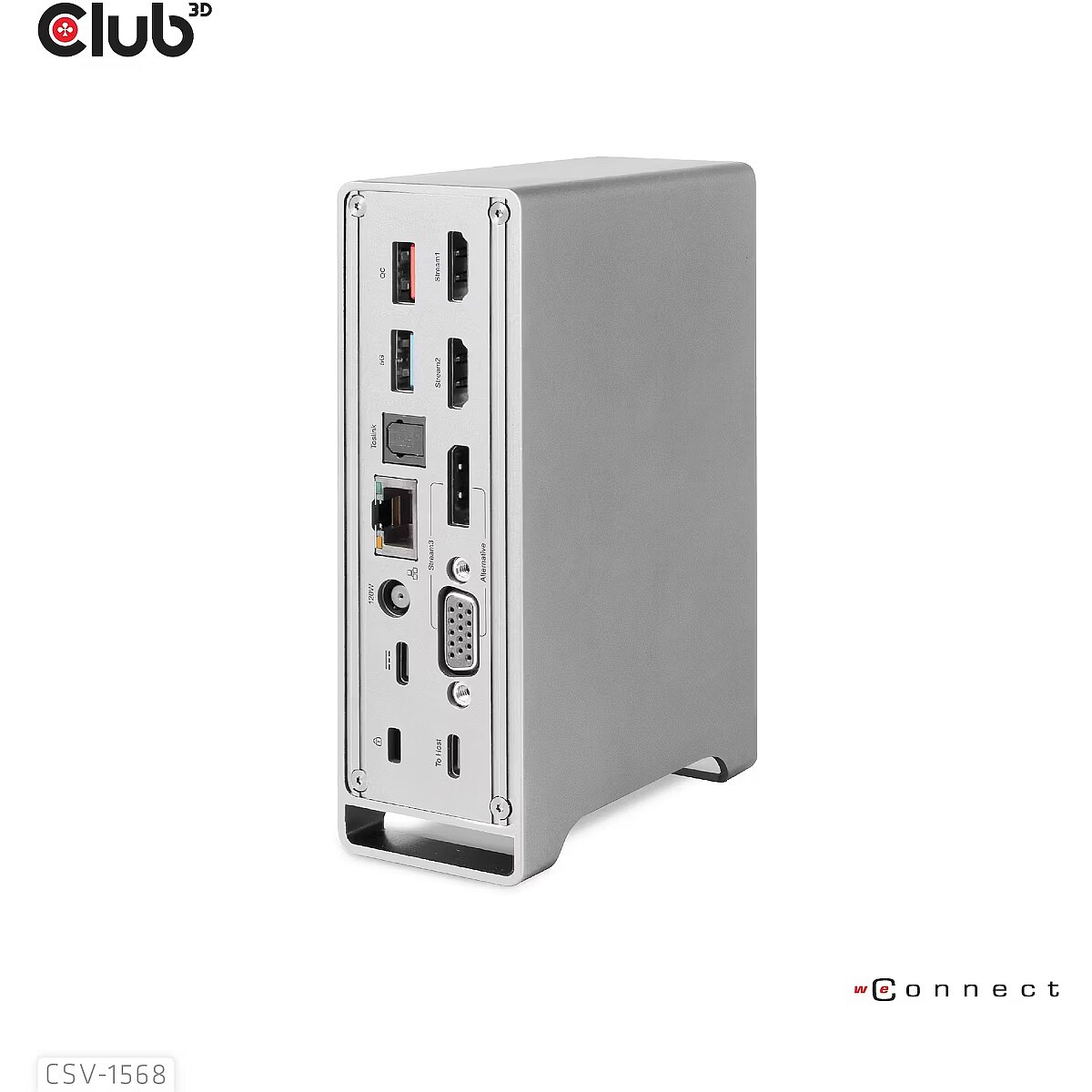

Description - USB Gen2 Type-C Triple Display DP 1.4 Alt mode Smart PD Charging Dock with 120 Watt PSU The Club 3D CSV-1568 USB Gen2 Type-C Triple Display DP™ Alt mode + Smart PD Charging Dock with 120 Watt PSU, is an integrated solution combining Video, Data, Power, Ethernet and Audio. It has 4 videos (output 3 videos simultaneously under MST mode) for video transmission, 4 USB data ports (2 USB-A 10G, 1 Type-C 10G, 1 USB-A 5G) for data transmission, 1 USB-A smart charging port for quick charging, 1 Gigabit Ethernet for super fast Ethernet, 2 audio ports (3.5mm audio, Toslink) for enjoying music. Besides, this dock is equipped with dual power jack (Type-C PD Charging or 120W DC power supply). It supports all DP Alt mode1.4/1.2 supported Type-C and Thunderbolt™ 3 host (PC, laptop, mobile phone, etc.) under Windows and under MacOS X based on Intel you will only get limited SST Function or Single display Only.
Dimensions - 13.9 x 9 x 4.4 cm
DisplayPort Input/Output connectors - 1
GTIN - 0841615102334
GTIN - 841615102334
GTIN - 8719214472115
HDMI Input/Output connectors - 2
Headphones jack Input/Output connectors - 1

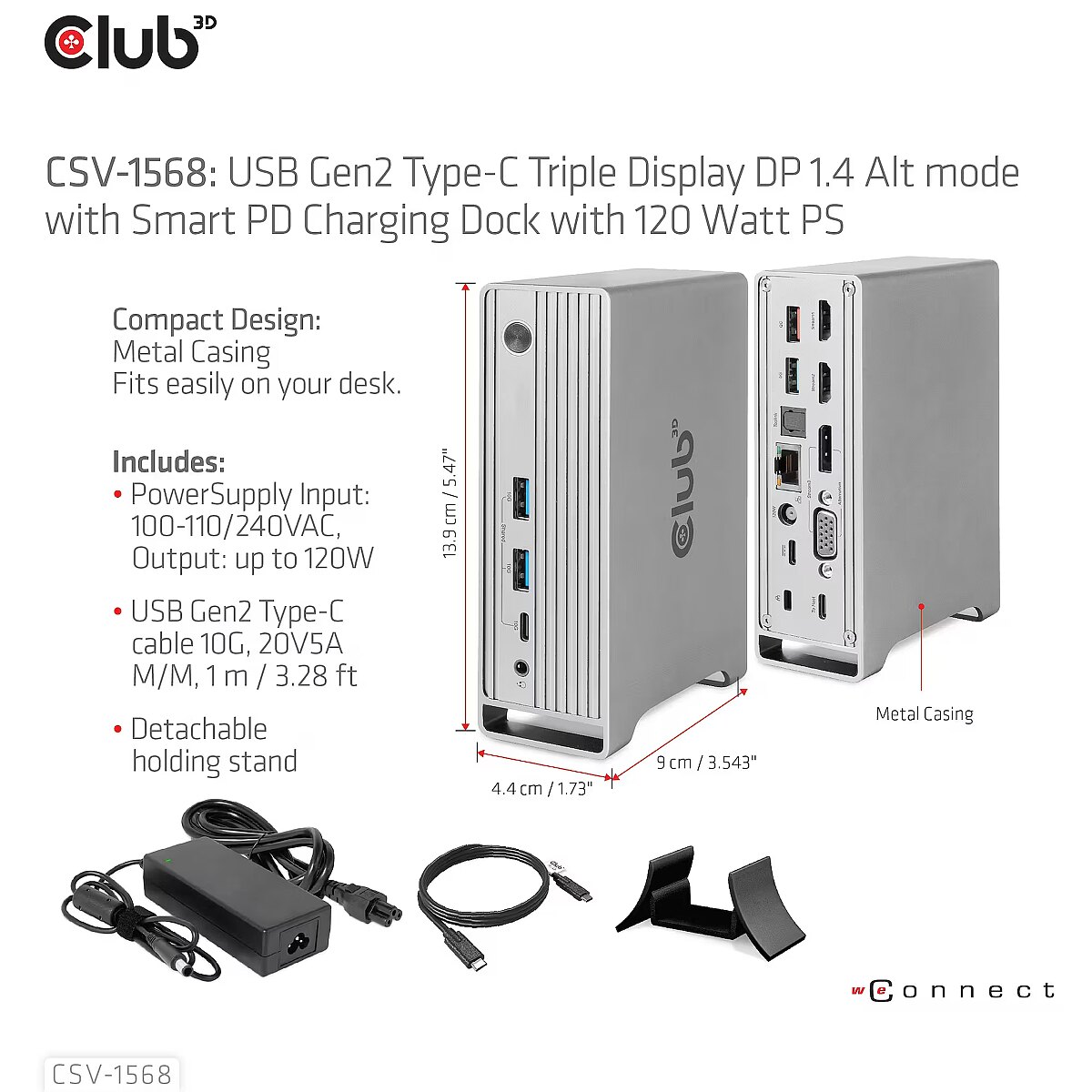

Included Accessories - • CSV-1568 Docking Station
• PowerSupply Input:100-110/240VAC, Output: up to 120W
• USB Gen2 Type-C cable 20G, 20V5A M/M, 1 m / 3.28 ft

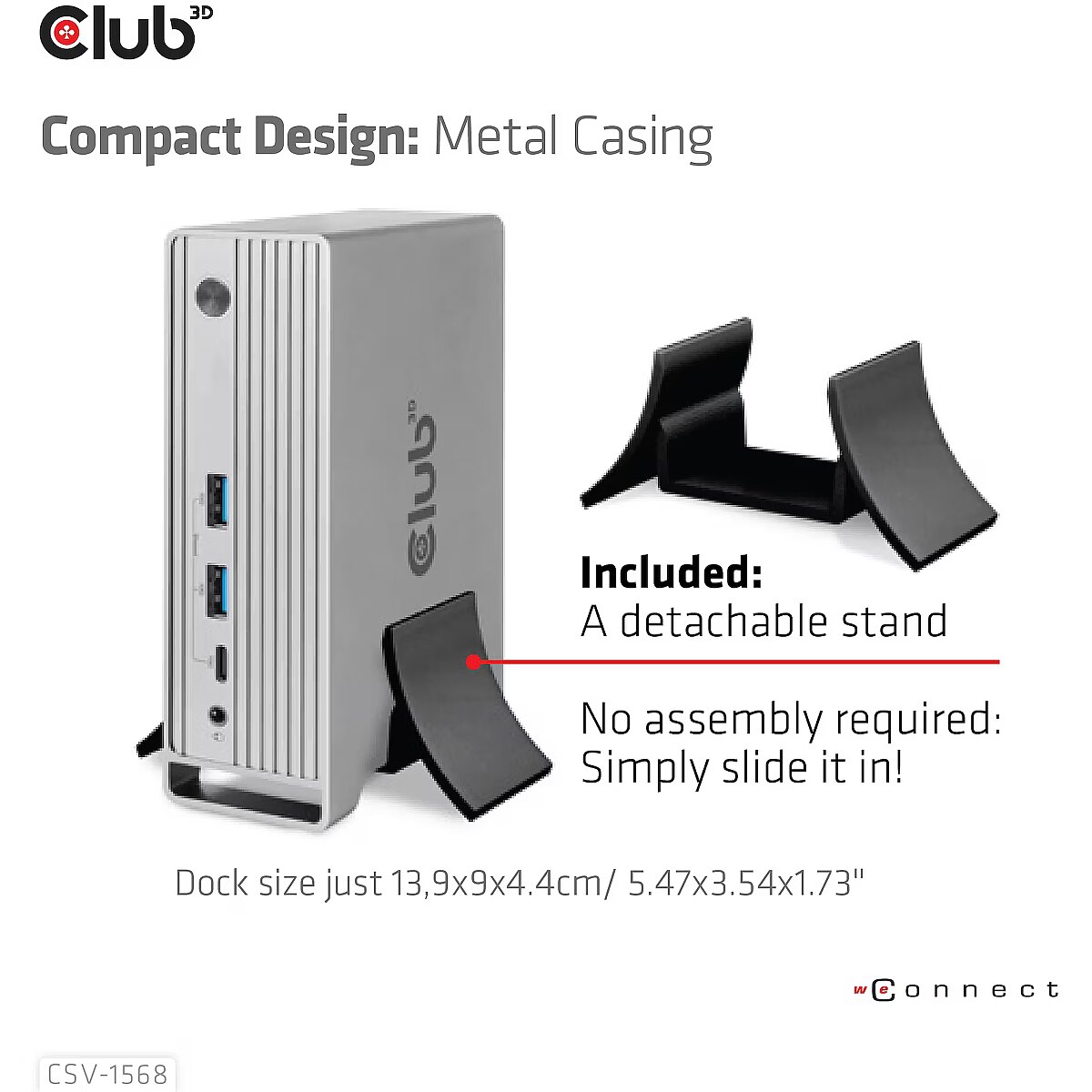

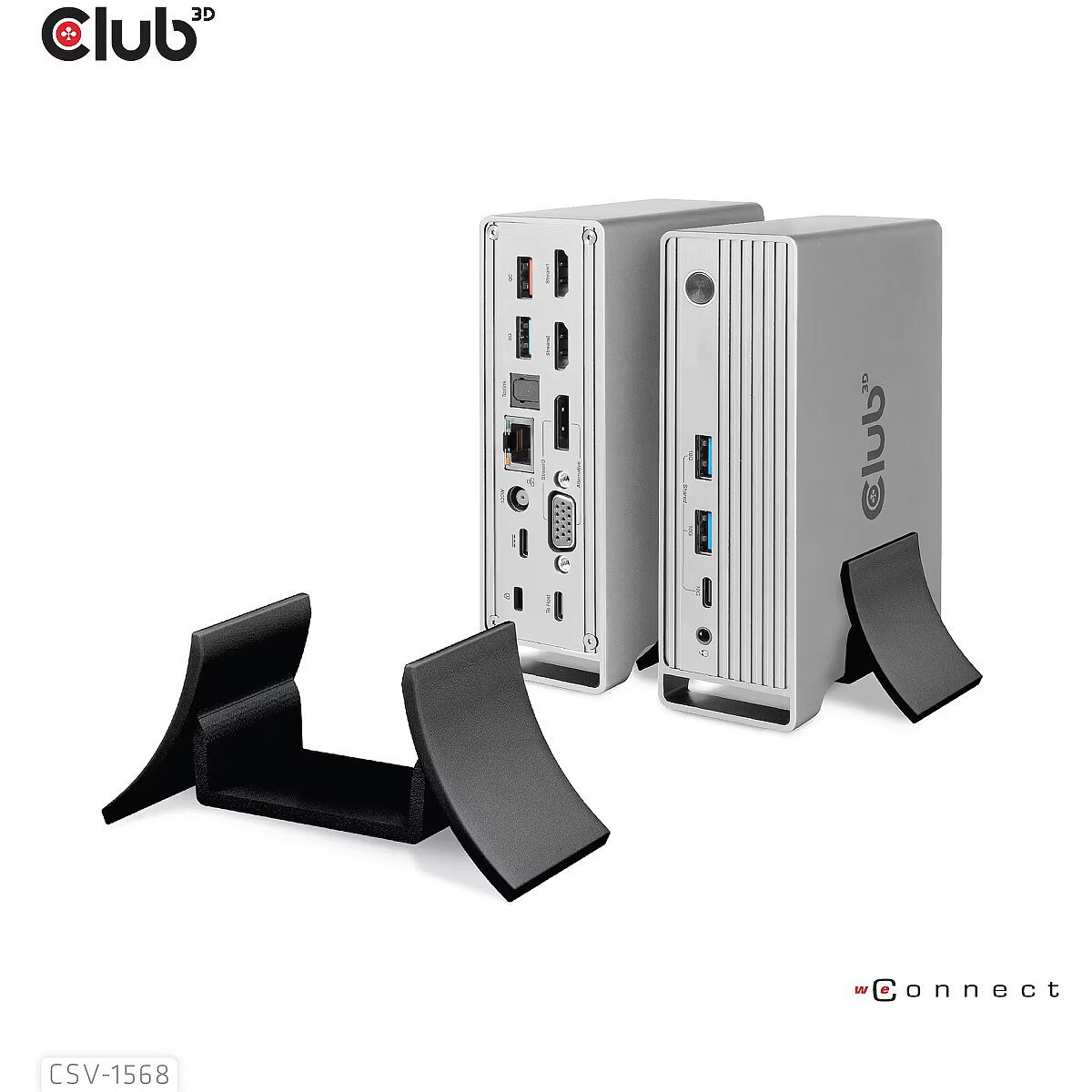

• Detachable stand

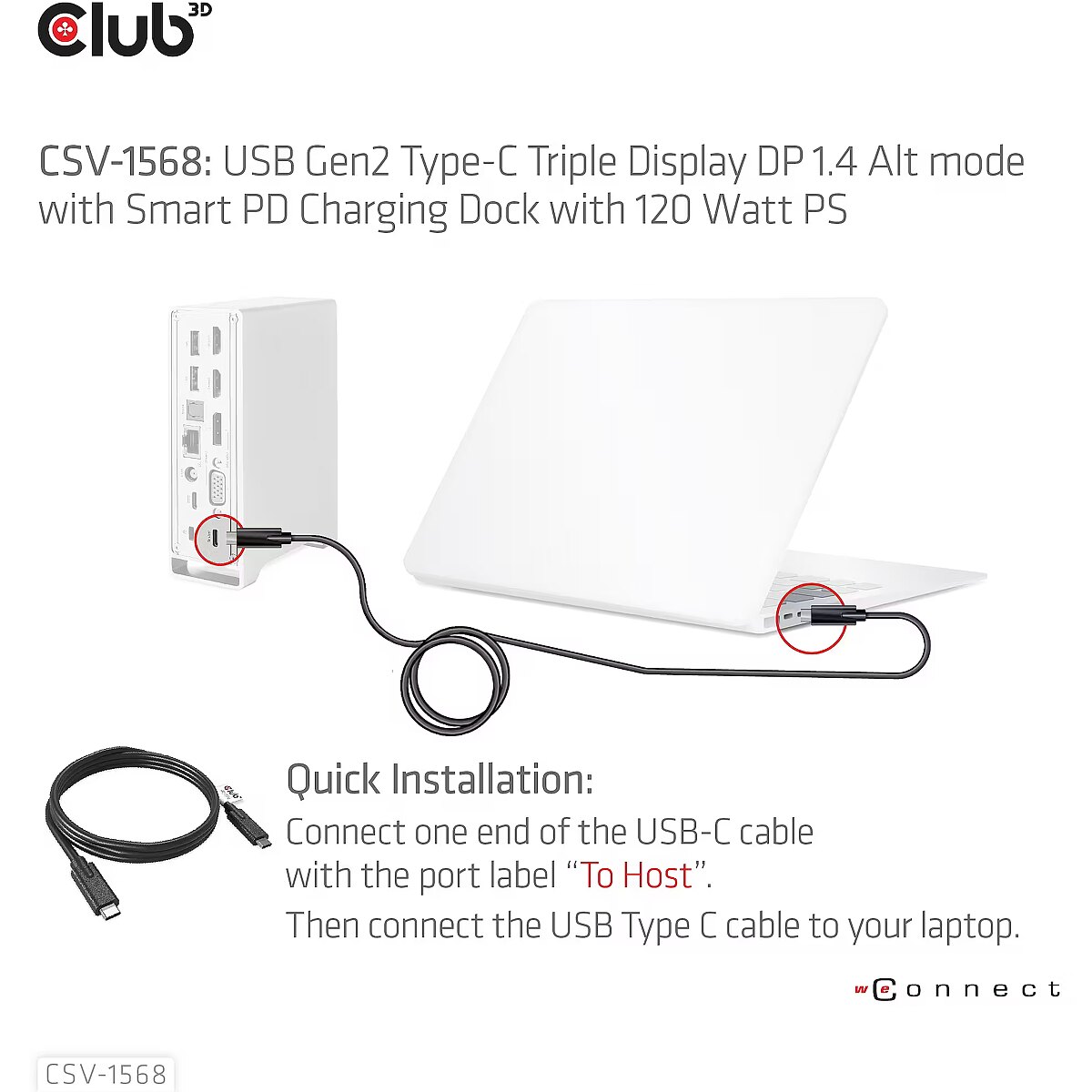

• Quick Install Guide
Logistics data - Harmonized System (HS) code - 8473 3020
LongDesc - The Club 3D CSV-1568 USB Gen2 Type-C Triple Display DP™ Alt mode + Smart PD Charging Dock with 120 Watt PSU, is an integrated solution combining Video, Data, Power, Ethernet and Audio. It has 4 videos (output 3 videos simultaneously under MST mode) for video transmission, 4 USB data ports (2 USB-A 10G, 1 Type-C 10G, 1 USB-A 5G) for data transmission, 1 USB-A smart charging port for quick charging, 1 Gigabit Ethernet for super fast Ethernet, 2 audio ports (3.5mm audio, Toslink) for enjoying music. Besides, this dock is equipped with dual power jack (Type-C PD Charging or 120W DC power supply). It supports all DP Alt mode1.4/1.2 supported Type-C and Thunderbolt™ 3 host (PC, laptop, mobile phone, etc.) under Windows and under MacOS X based on Intel you will only get limited SST Function or Single display Only.
LongProductName - USB Gen2 Type-C Triple Display DP 1.4 Alt mode Smart PD Charging Dock with 120 Watt PSU

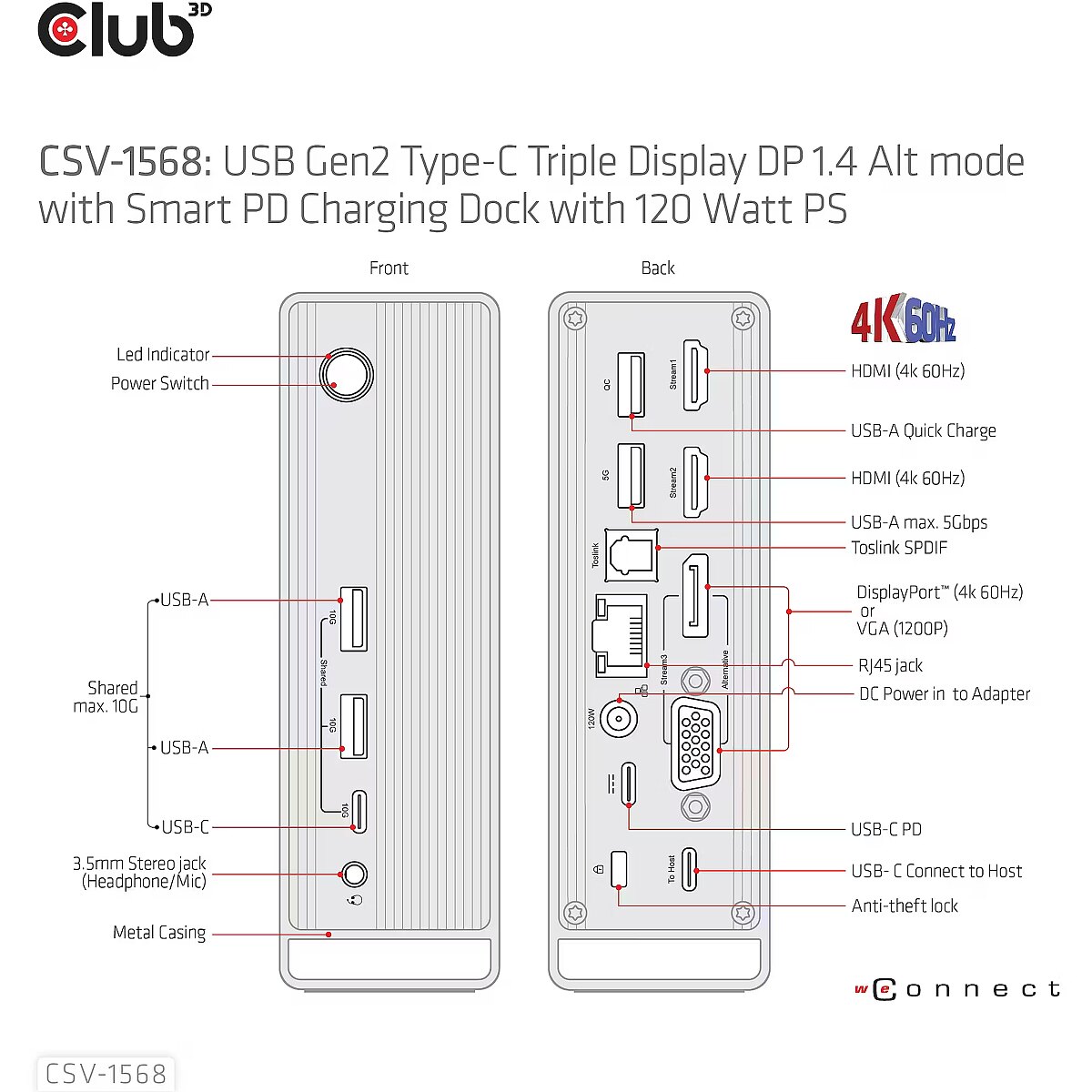

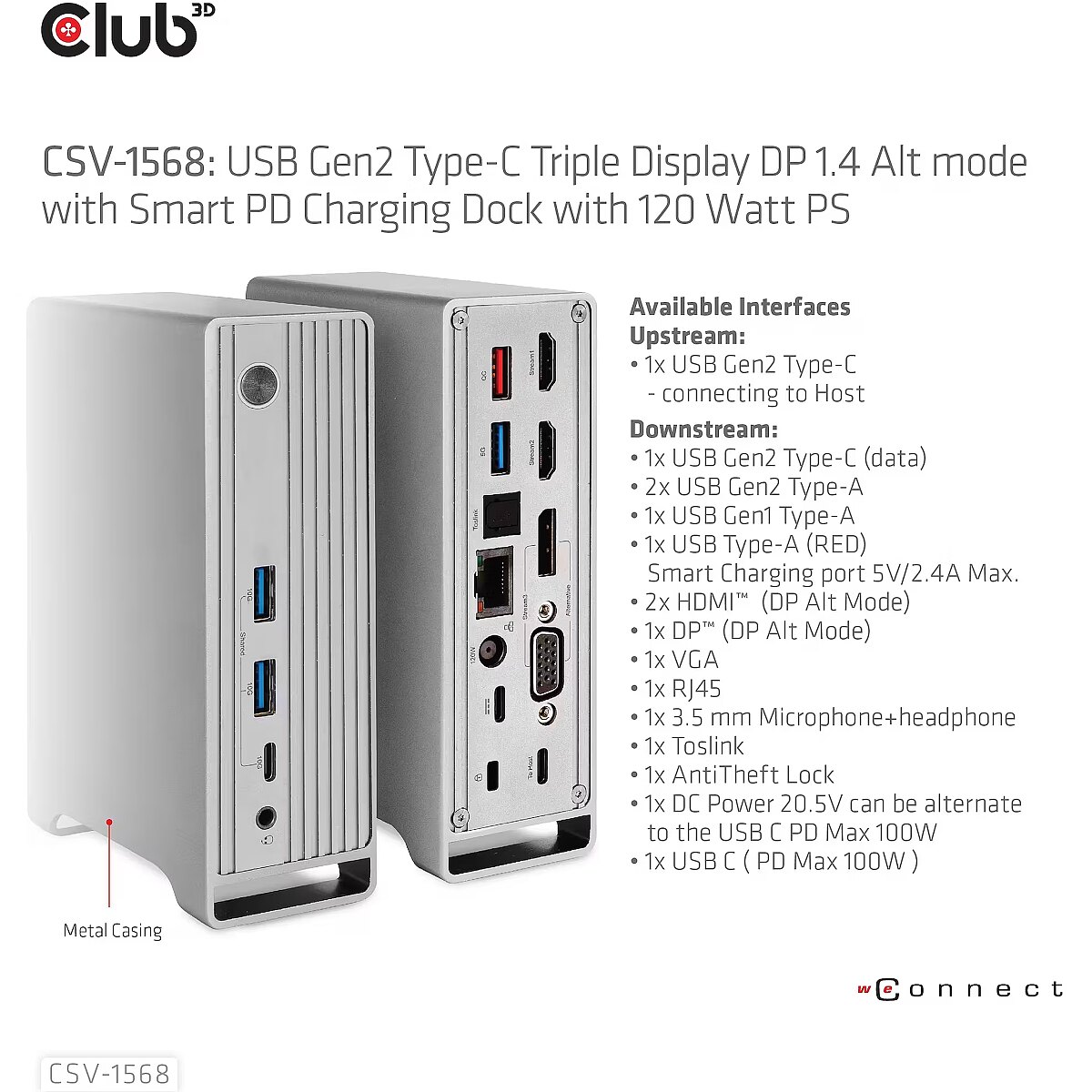

LongSummaryDescription - CLUB3D Docking station(Metal casing)1x USB Gen2 Type-C Female (data) 2x USB Gen2 Type-A Female 1x USB Gen1 Type-A Female 1x USB Type-A (RED) Smart Charging port 5V/2.4A Max. • 2x HDMI™ (DP Alt Mode) 1x DP™ (DP Alt Mode) hdr 1x VGA 1x RJ45 1 + 120 Watt. Connectivity technology: Docking, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Product colour: Metallic, Data transfer rate: 16.2 Gbit/s, Maximum refresh rate: 60 Hz. Power source type: DC, Power connector: USB Type-C, AC input voltage: 100 - 240 V. Width: 139 mm, Depth: 90 mm, Height: 44 mm. Quantity per pack: 1 pc(s), Package width: 225 mm, Package depth: 155 mm
Model - CSV-1568
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Other features - Special features - In the box:
CSV-1568 Docking Station
PowerSupply Input:100-110/240VAC, Output: up to 120W
USB Gen2 Type-C cable 10G, 20V5A M/M, 1 m / 3.28 ft
Detachable stand
Quick Install Guide
Other features - Voltage - 20.5 V
Packaging composition - Paper/cardboard packaging weight - 168 g
Packaging composition - Plastic packaging weight - 5 g
Packaging content - AC adapter included - Yes
Packaging content - Quick start guide - Yes
Packaging content - Stand included - Yes
Packaging data - Package depth - 155 mm
Packaging data - Package height - 97 mm
Packaging data - Package weight - 1.36 kg
Packaging data - Package width - 225 mm
Packaging data - Quantity per pack - 1 pc(s)
Performance - Brand compatibility - Apple
Performance - Card reader integrated - Yes
Performance - Certification - Meets ROHS, FCC, and CE EMI requirements
Performance - Compatibility - Lenovo
Dell
Acer
Asus
MSI
Toshiba
Apple
HP
Razer
Performance - Country of origin - China
Performance - Data transfer rate - 16.2 Gbit/s
Performance - High Dynamic Range (HDR) supported - Yes
Performance - Key lock - Yes
Performance - Maximum refresh rate - 60 Hz
Performance - Plug and Play - Yes
Performance - Product colour - Metallic
Ports & interfaces - Combo headphone/mic port - Yes
Ports & interfaces - Connectivity technology - Docking
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DisplayPort version - 1.4
Ports & interfaces - HDCP - Yes
Ports & interfaces - HDCP version - 1.4/2.2
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - Headphone connectivity - 3.5 mm
Ports & interfaces - Host interface - USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Ports & interfaces - Thunderbolt 3 Power Delivery - Yes
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Ports & interfaces - USB Power Delivery (USB PD) - Yes
Ports & interfaces - USB Power Delivery revision - 3.0
Ports & interfaces - USB Power Delivery up to - 100 W
Ports & interfaces - USB Type-C DisplayPort Alternate Mode - Yes
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Power - AC input voltage - 100 - 240 V
Power - Power cable length - 1 m
Power - Power connector - USB Type-C
Power - Power consumption (max) - 120 W
Power - Power source type - DC
Power - Power supply - 120 W
ProductName - Docking station(Metal casing)1x USB Gen2 Type-C Female (data) 2x USB Gen2 Type-A Female 1x USB Gen1 Type-A Female 1x USB Type-A (RED) Smart Charging port 5V/2.4A Max. • 2x HDMI™ (DP Alt Mode) 1x DP™ (DP Alt Mode) hdr 1x VGA 1x RJ45 1 + 120 Watt
Product Net Weight - 0.563 kg
RJ45 Input/Output connectors - 1
ShortSummaryDescription - CLUB3D Docking station(Metal casing)1x USB Gen2 Type-C Female (data) 2x USB Gen2 Type-A Female 1x USB Gen1 Type-A Female 1x USB Type-A (RED) Smart Charging port 5V/2.4A Max. • 2x HDMI™ (DP Alt Mode) 1x DP™ (DP Alt Mode) hdr 1x VGA 1x RJ45 1 + 120 Watt, Docking, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, 100 W, 3.5 mm, 1.4/2.2, Metallic
Software - Mac operating systems supported - Yes
Software - Windows operating systems supported - Yes
Title - CLUB3D Docking station(Metal casing)1x USB Gen2 Type-C Female (data) 2x USB Gen2 Type-A Female 1x USB Gen1 Type-A Female 1x USB Type-A (RED) Smart Charging port 5V/2.4A Max. • 2x HDMI™ (DP Alt Mode) 1x DP™ (DP Alt Mode) hdr 1x VGA 1x RJ45 1 + 120 Watt
Unit Box Height - 0.095
Unit Box Length - 0.225
Unit Box Width - 0.16
Unit Calculated Volume - 0.00342 cubm
Unit Calculated Weight - 1.39 kg
Units per Pallet - 0
Units per Shipping Box - 1
URL - https://www.club-3d.com/en/detail/2580/usb_gen2_type_c_triple_display_dp_1.4_alt_mode_smart_pd_charging_dock_with_120_watt_psu/
USB-C Input/Output connectors - 2
USB 2.0 Input/Output connectors - 2
USB 3.2 Input/Output connectors - 2
Vendor Homepage - www.club-3d.com/en/detail/2580/usb_gen2_type_c_triple_display_dp_1.4_alt_mode_smart_pd_charging_dock_with_120_watt_psu/
VGA Input/Output connectors - 1
Warranty - 24 months
WarrantyInfo -
Weight & dimensions - Depth - 90 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Weight - 563 g
Weight & dimensions - Width - 139 mm
