AI software frameworks supported by NPU Neural processor unit (NPU) - DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
Antenna type Network - 2x2
Audio chip Performance - Realtek ALC3204
Audio system Performance - High Definition Audio
Bluetooth Network - Yes
Cable lock slot Design - Yes
Cable lock slot type Design - Kensington
Cabling technology Network - 10/100/1000Base-T(X)
Category Code - DT
Chassis type Design - Micro PC
Combo headphone/mic port Ports & interfaces - Yes
DC-in jack Ports & interfaces - Yes
Depth Weight & dimensions - 178 mm
Desktop Computer Family name - Pro Max Micro
Discrete graphics card Graphics - Yes
Discrete graphics card memory Graphics - 4 GB
Discrete graphics card model Graphics - NVIDIA RTX A400
Discrete graphics memory type Graphics - GDDR6
Display included Display - No
DisplayPorts quantity Ports & interfaces - 3
DisplayPort version Ports & interfaces - 1.4a
Efficient-core base frequency Processor - 1.7 GHz
Efficient-core Max Turbo Frequency Processor - 4.2 GHz
Efficient cores Processor - 8
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN data rates Network - 10/100/1000 Mbit/s
Ethernet LAN Network - Yes
Graphics card Mini DisplayPort ports quantity Graphics - 4
Height Weight & dimensions - 206 mm
Intel® vPro™ Platform Eligibility Design - Yes
Internal memory Memory - 16 GB
Internal memory type Memory - DDR5-SDRAM
KB language - ENG
LAN controller Network - Intel® I219-LM
Low Power Efficient-core Base Frequency Processor - 700 MHz
Low Power Efficient-core Max Turbo Frequency Processor - 2.4 GHz
Low Power Efficient-cores Processor - 2
M.2 SSD size Storage - 2280 (22 x 80 mm)
Market positioning Performance - Business
Maximum internal memory Memory - 64 GB
Maximum turbo power Processor - 57 W
Memory channels Memory - Single-channel
Memory data transfer rate Memory - 5600 MT/s
Memory layout (slots x size) Memory - 1 x 16 GB
Memory slots Memory - 2x SO-DIMM
Motherboard chipset Performance - Intel W880
Neural processor unit (NPU) Neural processor unit (NPU) - Intel AI Boost
Non-ECC Memory - Yes
Non-operating altitude Operational conditions - -15.2 - 10668 m
Non-operating shock Operational conditions - 160 G
Non-operating vibration Operational conditions - 1.3 G
Number of discrete graphics cards Graphics - 1
Number of front audio ports Ports & interfaces - 1
Number of front USB ports Ports & interfaces - 3
Number of processors installed Processor - 1
Number of rear USB ports Ports & interfaces - 5
Number of SSDs installed Storage - 1
Number of storage drives installed Storage - 1
Number of storage drives supported Storage - 2
NVMe Storage - Yes
On-board GPU manufacturer Graphics - Intel
On-board graphics card family Graphics - Intel Graphics
On-board graphics card Graphics - Yes
On-board graphics card model Graphics - Intel Graphics
Operating altitude Operational conditions - -15.2 - 3048 m
Operating relative humidity (H-H) Operational conditions - 10 - 90 %
Operating shock Operational conditions - 110 G
Operating system architecture Software - 64-bit
Operating system installed Software - Windows 11 Pro
Operating temperature (T-T) Operational conditions - 0 - 35 °C
Operating vibration Operational conditions - 0.66 G
Optical drive type Storage - No
Performance-core base frequency Processor - 2.1 GHz
Performance-core Max Turbo Frequency Processor - 5.3 GHz
Performance cores Processor - 2
Power supply input frequency Power - 50 / 60 Hz
Power supply input voltage Power - 100 - 240 V
Power supply Power - 280 W
Processor base power Processor - 15 W
Processor boost frequency Processor - 5.3 GHz
Processor cache Processor - 12 MB
Processor cores Processor - 12
Processor family Processor - Intel Core Ultra 7
Processor generation Processor - Intel Core Ultra (Series 2)
Processor manufacturer Processor - Intel
Processor model Processor - 265U
Processor threads Processor - 14
Product colour Design - Black
Product type Performance - PC
Sparsity support Neural processor unit (NPU) - Yes
SSD capacity Storage - 512 GB
SSD form factor Storage - M.2
SSD interface Storage - PCI Express 4.0
SSD memory type Storage - TLC
Storage media Storage - SSD
Storage relative humidity (H-H) Operational conditions - 0 - 95 %
Storage temperature (T-T) Operational conditions - -40 - 65 °C

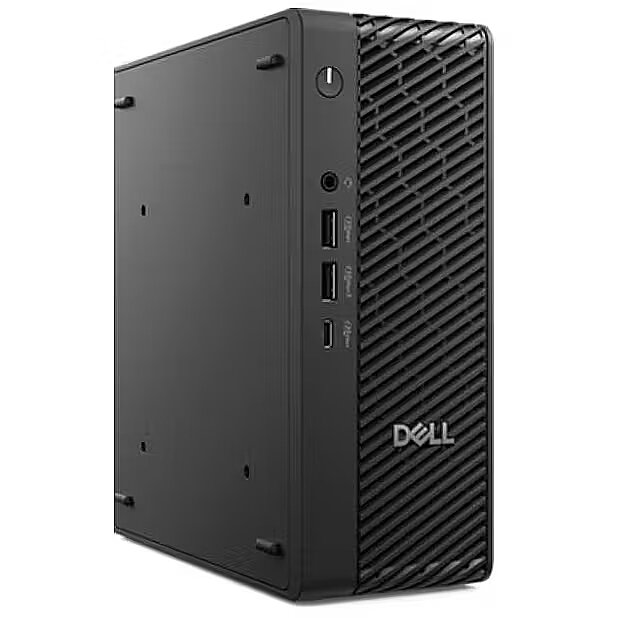

Summary - DELL Pro Max FCM2250. Processor family: Intel Core Ultra 7, Processor model: 265U. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Graphics, Discrete graphics card model: NVIDIA RTX A400. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 280 W. Chassis type: Micro PC. Product type: PC. Weight: 2.54 kg. Product colour: Black
Sustainability certificates Sustainability - ENERGY STAR/EPEAT Climate +/EPEAT Gold
Top Wi-Fi standard Network - Wi-Fi 7 (802.11be)
Total SSDs capacity Storage - 512 GB
Total storage capacity Storage - 512 GB
Trial software Software - McAfee Business Protection 1-year,No Microsoft Office License included (Fed and Premier, Exception Only)
Trusted Platform Module (TPM) Performance - Yes
Trusted Platform Module (TPM) version Performance - 2.0
Unit Box Height - 0.213
Unit Box Length - 0.597
Unit Box Width - 0.27
Unit Calculated Volume - 0.03433 cubm
Unit Calculated Weight - 4.67 kg
Units per Pallet - 0
Units per Shipping Box - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Ports & interfaces - 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity Ports & interfaces - 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Ports & interfaces - 1
USB 3.2 Gen 2x2 Type-C ports quantity Ports & interfaces - 1
Vendor Homepage - www.dell.com/en-us/shop/desktop-computers/dell-pro-max-micro-desktop/spd/dell-pro-max-fcm2250-micro/xcto_fcm2250_usx
Warranty - 36 months
Weight Weight & dimensions - 2540 g
Wi-Fi Network - Yes
Wi-Fi standards Network - 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
Width Weight & dimensions - 79.3 mm
Windows Studio effects support Neural processor unit (NPU) - Yes
WLAN controller manufacturer Network - Intel
WLAN controller model Network - Intel Wi-Fi 7 BE200
