Audio - Built-in speaker(s) - No
Bluetooth Wireless connections - Yes
Brand - ASUS
BrandPartCode - 90AR00Q2-M00050
Category - PC/Workstation Barebones
Category Code - COK
CPU Family name - Intel Core Ultra
CPU Model Number - u5-225H
Description - AI-Enabled Mini PC Powered by Intel® Core™ Ultra processors (Series 2). Designed as the best compact choice for the AI-driven future. Powered by Intel® Core™ Ultra processors (Series 2), delivering up to 99 Platform TOPS and an 18% boost in performance gen-on-gen. Supports up to 96GB dual-channel DDR5-6400 memory for seamless multitasking and high-speed workloads. Features Intel® Arc™ Graphics for AI acceleration and stunning visual performance, with Intel® vPro® for enterprise-grade security and management. Includes PCIe Gen5 NVMe SSD and Gen4 expansion slots for ultra-fast storage and flexibility. Connects up to four 4K displays via dual HDMI 2.1 and Thunderbolt™ 4 with DisplayPort 2.1 and USB4 compatibility. Offers advanced connectivity with Intel® Wi-Fi 7, Bluetooth® 5.4, and multiple high-speed USB 3.2 Gen2 ports. Compact 0.48L design with tool-less chassis enables quick upgrades and effortless deployment. Built for reliability with MIL-STD-810H certification, efficient cooling, and eco-friendly packaging for sustainability.
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - On/off switch - Yes
Design - Product colour - Black
Design - Product type - Mini PC barebone
Dimensions - 117 x 112 x 54mm
Graphics - Graphics card family - Intel
Graphics - On-board graphics card - Yes
Graphics - On-board graphics card model - Intel Arc 130T
GTIN - 4711387949955
HDMI Input/Output connectors - 2
Integrated LAN - Gigabit
LongDesc - AI-Enabled Mini PC Powered by Intel® Core™ Ultra processors (Series 2). Designed as the best compact choice for the AI-driven future.ASUS NUC 15 ProBest Compact Choice for the AI-Driven Future.Experience the future of computing with ASUS NUC 15 Pro – a sleek mini PC that’s perfect for office and edge computing. Powered by the latest Intel® Core™ Ultra processor with DDR5 6400MHz memory and Intel Arc™ graphics, ASUS NUC 15 Pro delivers unmatched speed and efficiency in a scratch-resistance matte texture chassis
LongProductName - Intel Core Ultra 5, 2 x SO-DIMM DDR5, M.2, Intel Arc 130T, 2.5G Ethernet, Intel WiFi 7, Bluetooth 5.4, no OS
LongSummaryDescription - ASUS NUC 15 Pro RNUC15CRHU500002. Product type: Mini PC barebone. Supported memory types: DDR5-SDRAM, Number of memory slots: 2, Maximum internal memory: 96 GB. Supported storage drive types: SSD, Storage drive interface: M.2. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: Wi-Fi 7 (802.11be), Bluetooth version: 5.4. Power supply: 120 W
Memory - Maximum internal memory - 96 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - SO-DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 6400 MHz
Memory - Supported memory types - DDR5-SDRAM
Model - NUC 15 Pro
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
NUC series - Kits
Operating System - None
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.1
Ports & interfaces - Thunderbolt 4 ports quantity - 2
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 3
Ports & interfaces - USB4 Gen 2x2 ports quantity - 1
Power - AC adapter output current - 6.32 A
Power - AC adapter output voltage - 19 V
Power - Power supply - 120 W
Processor - Built-in processor - Yes
Processor - Efficient-core base frequency - 1.3 GHz
Processor - Efficient-core Max Turbo Frequency - 4.3 GHz
Processor - Efficient cores - 8
Processor - Performance-core base frequency - 1.7 GHz
Processor - Performance-core Max Turbo Frequency - 4.9 GHz
Processor - Performance cores - 4
Processor - Processor boost frequency - 4.9 GHz
Processor - Processor cache - 18 MB
Processor - Processor cores - 14
Processor - Processor family - Intel Core Ultra 5
Processor - Processor generation - Intel Core Ultra (Series 2)
Processor - Processor manufacturer - Intel
Processor - Processor model - 225H
Processor - Processor threads - 14
Product model code - NUC15CRH
ProductName - RNUC15CRHU500002
Product Net Weight - 0.618 kg
RJ45 Input/Output connectors - 1
ShortSummaryDescription - ASUS NUC 15 Pro RNUC15CRHU500002, Mini PC barebone, DDR5-SDRAM, M.2, Ethernet LAN, Wi-Fi 7 (802.11be), 120 W
Software - Operating system installed - No
Storage - NVMe - Yes
Storage - SSD form factor - M.2
Storage - Storage drive interface - M.2
Storage - Storage drive sizes supported - M.2
Storage - Supported storage drive types - SSD

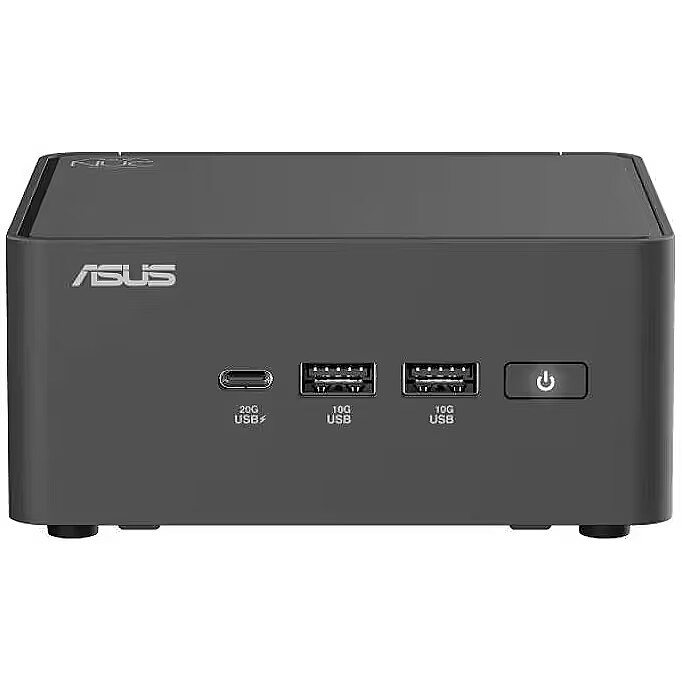

Title - ASUS NUC 15 Pro RNUC15CRHU500002 Black 225H
Unit Box Height - 0.13
Unit Box Length - 0.185
Unit Box Width - 0.155
Unit Calculated Volume - 0.005995 cubm
Unit Calculated Weight - 1.63 kg
Units per Shipping Box - 5
URL - https://www.asus.com/displays-desktops/nucs/nuc-mini-pcs/asus-nuc-15-pro/
USB-C w/Thunderbolt Input/Output connectors - 2
USB 3.2 Input/Output connectors - 4
Vendor Homepage - www.asus.com/displays-desktops/nucs/nuc-mini-pcs/asus-nuc-15-pro/
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth - 112 mm
Weight & dimensions - Height - 54 mm
Weight & dimensions - Weight - 600 g
Weight & dimensions - Width - 117 mm
Wireless LAN Wireless connections - 802.11be
