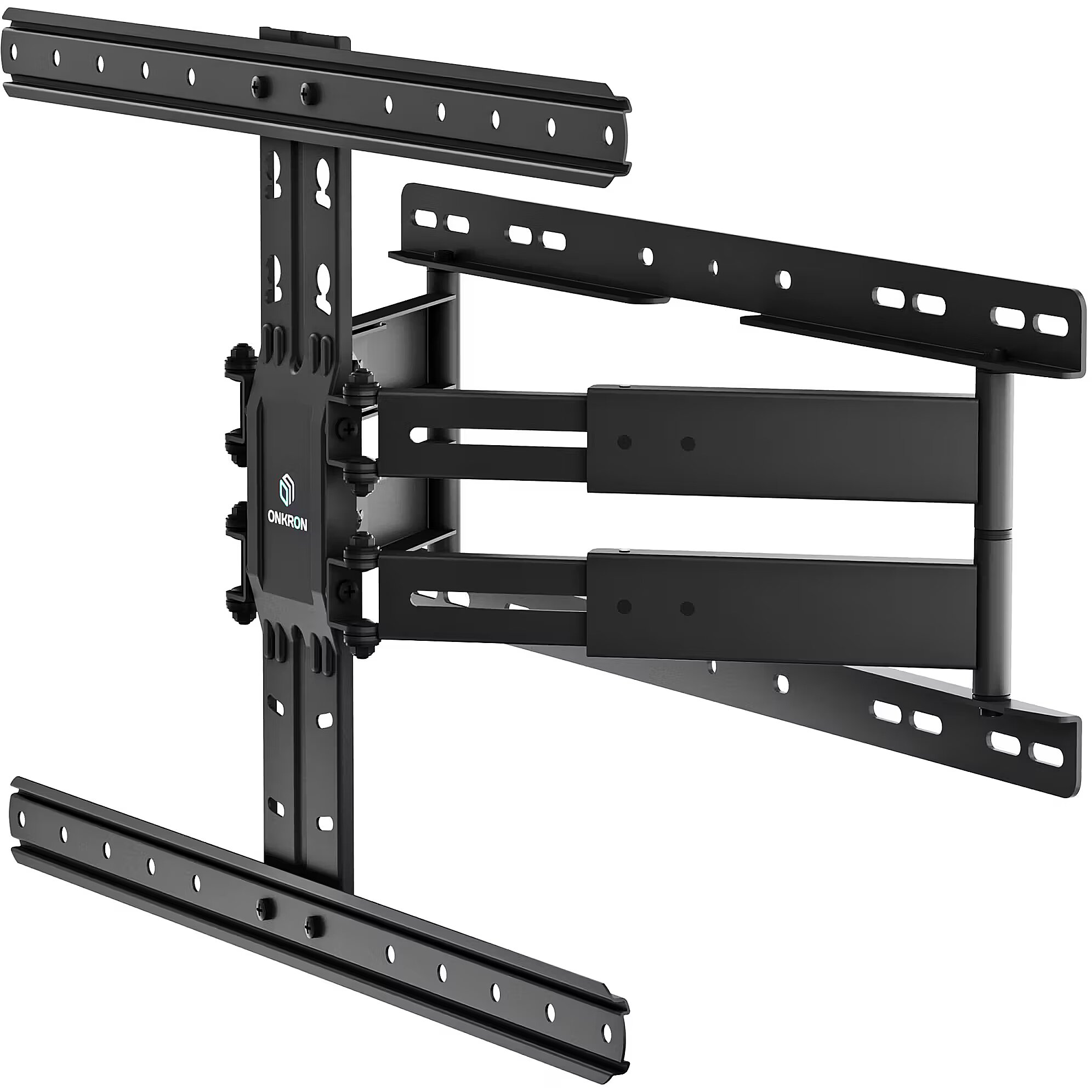

Onkron TV wall mount, 32-75"

Angle of rotation Ergonomics - 4°
Category Code - TMS
CnCode - 83021000
Distance to the wall (max) Ergonomics - 24.5 cm
Distance to the wall (min) Ergonomics - 2 cm
Housing material Design - Steel
Maximum screen size Mounting - 190.5 cm (75")
Maximum VESA mount Mounting - 600 x 400 mm
Maximum weight capacity (per display) Mounting - 40 kg
Maximum weight capacity Mounting - 40 kg
Minimum screen size Mounting - 81.3 cm (32")
Minimum VESA mount Mounting - 200 x 200 mm
Model - SM2
Mounting type Mounting - Wall
Number of displays supported Mounting - 1
Package 1 dimensions (WxDxH) Packaging data - 705 x 500 x 55 mm
Package 1 weight Packaging data - 5.6 kg
Package 2 dimensions (W x D x H) Packaging data - 770 x 393 x 77 mm
Panel mounting interface Mounting - 200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,300 x 400,400 x 200,400 x 300,400 x 400,500 x 200,500 x 400,600 x 200,600 x 300,600 x 400
Product colour Design - Black
Rotating Ergonomics - Yes
Summary - ONKRON SM2-B. Maximum weight capacity: 40 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 190.5 cm (75"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -10 - 10°, Swivel angle range: -30 - 30°, Angle of rotation: 4°, Distance to the wall (min): 2 cm, Distance to the wall (max): 24.5 cm. Product colour: Black
Swivel angle range Ergonomics - -30 - 30°
Swivelling Ergonomics - Yes
Tilt adjustment Ergonomics - Yes
Tilt angle range Ergonomics - -10 - 10°
Unit Box Height - 0.05
Unit Box Length - 0.7
Unit Box Width - 0.495
Unit Calculated Volume - 0.02052 cubm
Unit Calculated Weight - 6.85 kg
Units per Pallet - 0
Units per Shipping Box - 3
Vendor Homepage - onkron-uk.co.uk/products/sm2-b?_pos=2&_sid=ed0b6d66d&_ss=r
Warranty - 60 months
