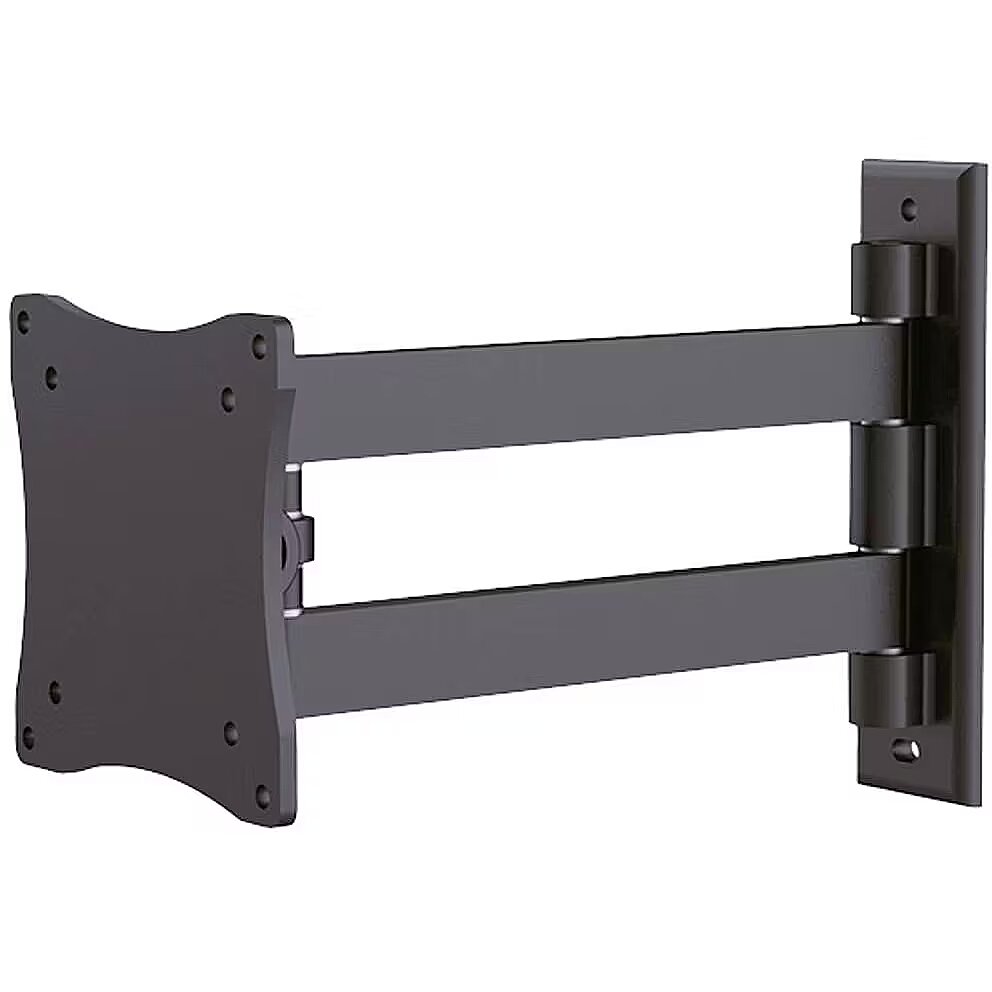

Newstar TV/Monitor Wall Mount, 10-27"

75 mm x 75 mm VESA mounting interface - Yes
100 mm x 100 mm VESA mounting interface - Yes
Accessories included -
Brand - Neomounts
BrandPartCode - FPMA-W820BLACK
Category - Televizori un piederumi :: TV Stiprinājumi / Kronšteini
Category - TV Mounts & Stands
Category Code - MAS
CnCode - 83021000
Code - FPMA-W820BLACK
Color - Black
Colour - Black
Corner mount - No
Desc - Ekrāna minimālais izmērs: 10", Ekrāna maksimālais izmērs: 27", Maksimālais svars: 12 kg, Garantija: 2 gadi
Description - FPMA-W820BLACK Wall Mount for 10-27-inch Screens
This mount is an excellent choice for maximum viewing flexibility on a flat screen.
Neomounts' tilt (90°) and swivel (180°) technology allows you to change the viewing angle of the mount to fully utilize the capabilities of your flat screen. The mount's depth can be easily adjusted from 5 to 25 centimeters.
The Neomounts FPMA-W820BLACK has two pivot points and is suitable for screens up to 27 inches (69 cm). This product has a load capacity of 15 kg (33 lbs). The mount is compatible with screens with VESA hole patterns of 75x75 and 100x100 mm.
All installation materials are included with the product.
Description - NEWSTAR FLAT SCREEN WALL MOUNT (2 PIVOTS & TILTABLE) 10-27" BLACK
Description - The NewStar wall mount, model FPMA-W820BLACK is a tilt- and swivel wall mount for flat screens up to 24”. This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Effortless pull the display out from the wall, position it in almost any direction, turn it around corners and then smoothly return it to the wall when finished. NewStars’ tilt (20°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily depth adjustable from 4 to 24 centimetres. NewStar FPMA-W820BLACK has two pivot points and is suitable for screens up to 24" (60 cm). The weight capacity of this product is 12 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 75x75 and 100x100mm. Different hole patterns can be covered using NewStar VESA adapter plates. Create a clean design ambiance for your flat screen TV in the living room, bedroom or home cinema. All installation material is included with the product. Screens: 1 Screen size: 10-24" Max. weight:12 kg Distance to wall: 4-24cm VESA minimum: 75x75mm VESA maximum: 100x100mm Tilt: 20° Swivel: 180°
Design - Housing material - Aluminium
Design - Product colour - Black
Designation - CE+WEEE

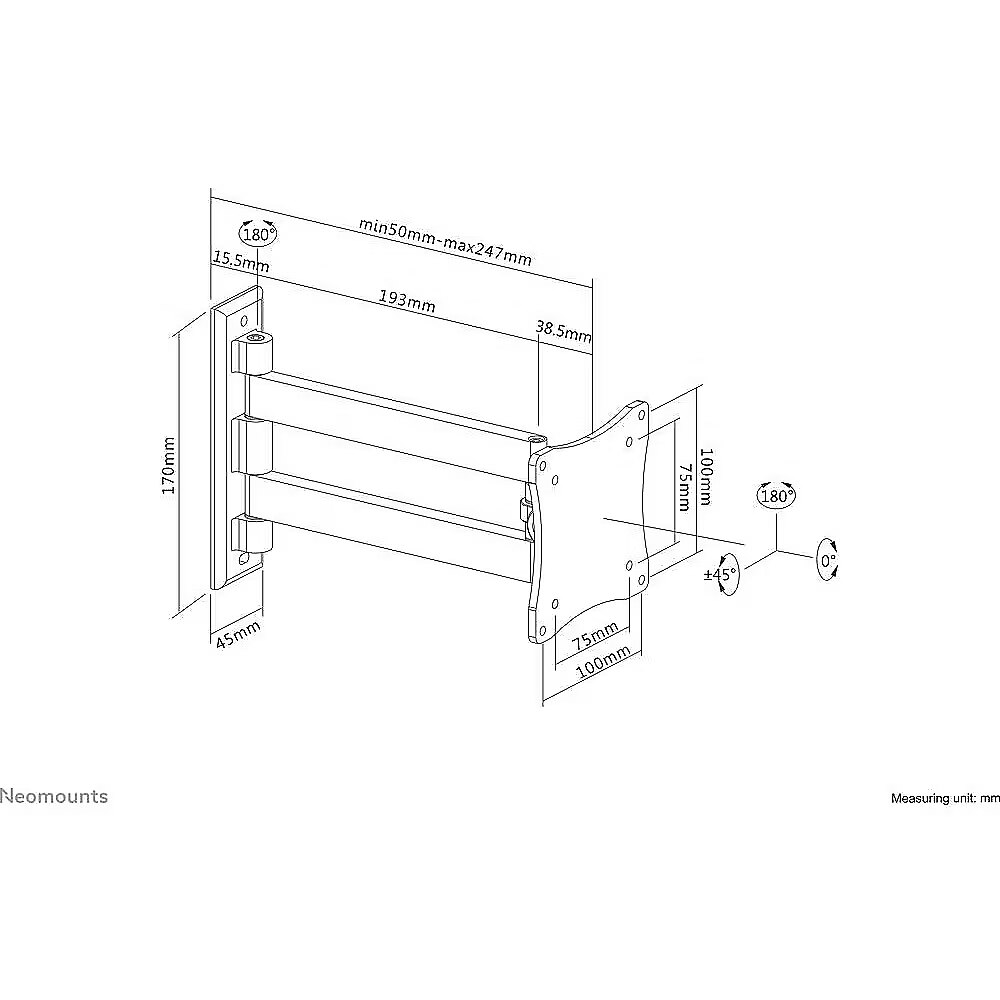

dimension depth - 50 mm
dimension height - 180 mm
Dimensions -
dimension weight - 84 g
dimension width - 290 mm
EAN - 8717371444006
ean - 8717371444006
Ergonomics - Distance to the wall (max) - 25 cm
Ergonomics - Distance to the wall (min) - 5 cm
Ergonomics - Rotating - Yes
Ergonomics - Swivel angle - 180°
Ergonomics - Swivel angle range - 0 - 180°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - 0 - 90°
Ergonomics - Type - Full motion
Fits screens sized - 10-24"
GTIN - 8717371444006
guarantee - 60
guarantee_type - normal
Height - 50.000000
Height adjustment - No
Horizontal adjustment - 180 °
LargeDescHTML -
Length - 285.000000
Load (max) - 15 kg
Logistics data - Harmonized System (HS) code - 7326909890
Logistics data - Master (outer) case gross weight - 13 kg
Logistics data - Master (outer) case height - 310 mm
Logistics data - Master (outer) case length - 340 mm
Logistics data - Master (outer) case net weight - 21 kg
Logistics data - Master (outer) case width - 375 mm
Logistics data - Products per master (outer) case - 12 pc(s)
Logistics data - Products per pallet (EU) - 360 pc(s)
LongDesc - The Neomounts wall mount, model FPMA-W820BLACK is a tilt- and swivel wall mount for flat screens up to 27" (69 cm). This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Effortless pull the display out from the wall, position it in almost any direction, turn it around corners and then smoothly return it to the wall when finished. Neomounts' tilt (90°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily depth adjustable from 5 to 25 centimetres. Neomounts FPMA-W820BLACK has two pivot points and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 15 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 75x75 and 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.Create a clean design ambiance for your flat screen TV in the living room, bedroom or home cinema. All installation material is included with the product.
LongProductName - Neomounts FPMA-W820BLACK Full motion Monitor/TV mount wall - 10-27" - max 15 kg - VESA 75x75-100x100 - d 5-25 cm - black
LongSummaryDescription - Neomounts FPMA-W820BLACK Monitor/TV mount wall 10-27" - full motion. Maximum weight capacity: 15 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Tilt angle range: 0 - 90°, Swivel angle range: 0 - 180°, Distance to the wall (min): 5 cm, Distance to the wall (max): 25 cm. Product colour: Black
Manufacturer - Neomounts
ManufacturerPartNumber - FPMA-W820BLACK
Max. weight - 12 kg
Maximum weight (capacity), kg - 12
Motorized - No
Mounting - Maximum screen size - 68.6 cm (27")
Mounting - Maximum VESA mount - 100 x 100 mm
Mounting - Maximum weight capacity - 15 kg
Mounting - Maximum weight capacity (per display) - 15 kg
Mounting - Minimum screen size - 25.4 cm (10")
Mounting - Minimum VESA mount - 75 x 75 mm
Mounting - Mounting type - Wall
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 100 x 100,75 x 75 mm
Name - NewStar FPMA-W820BLACK
name - Wall mount for 10-27 inches FPMA-W820BLACK
Other features -
Packaging data - Package depth - 50 mm
Packaging data - Package height - 285 mm
Packaging data - Package weight - 1 kg
Packaging data - Package width - 178 mm
PeriodofWarranty - 5 Y
producer - Neomounts
ProductName - Neomounts FPMA-W820BLACK Monitor/TV mount wall 10-27" - full motion
Product Net Weight - 0.9 kg
Range (max) - 25 cm
Range (min) - 5 cm
Range adjustment - Yes
Screen size (max) - 27 ''
Screen size (min) - 10 ''
Short summary - Neomounts FPMA-W820BLACK Full motion Monitor/TV mount wall - 10-27" - max 15 kg - VESA 75x75-100x100 - d 5-25 cm - black
ShortSummaryDescription - Neomounts FPMA-W820BLACK Monitor/TV mount wall 10-27" - full motion, 75 x 75 mm, 100 x 100 mm, 0 - 90°, 0 - 180°, Aluminium, Black
Stand/mount type - Wall
Stuff - Aluminum
Technical details - Country of origin - China
Technical details - Package net weight - 1 kg
Tilt - Yes
Title - Neomounts FPMA-W820BLACK Monitor/TV mount wall 10-27" - full motion
Turn - No
Type - Wall
Unit Box Height - 0.05
Unit Box Length - 0.285
Unit Box Width - 0.18
Unit Calculated Volume - 0.002565 cubm
Unit Calculated Weight - 0.941 kg
Units per Shipping Box - 1
URL - https://www.neomounts.com/default.asp?pageid=44&artdetail=FPMA-W820BLACK
Usage - Monitors
Usage - TV
Vendor Homepage - http://en.newstar.eu/av-mounts/flat-screen-mounts/wall-mounts/newstar-flat-screen-wall-mount-57/?alstart=0
vendpn - FPMA-W820BLACK
Vertical adjustment - 90 °
VESA - 75 x 75
VESA - 100 x 100
VESA-standard, mm - 75 x 75
VESA-standard, mm - 100 x 100
Warranty - 60 months
WarrantyInfo - 5 year
Weight - 0.910000
Weight & dimensions - Weight - 830 g
Wheels - No
Width - 181.000000
