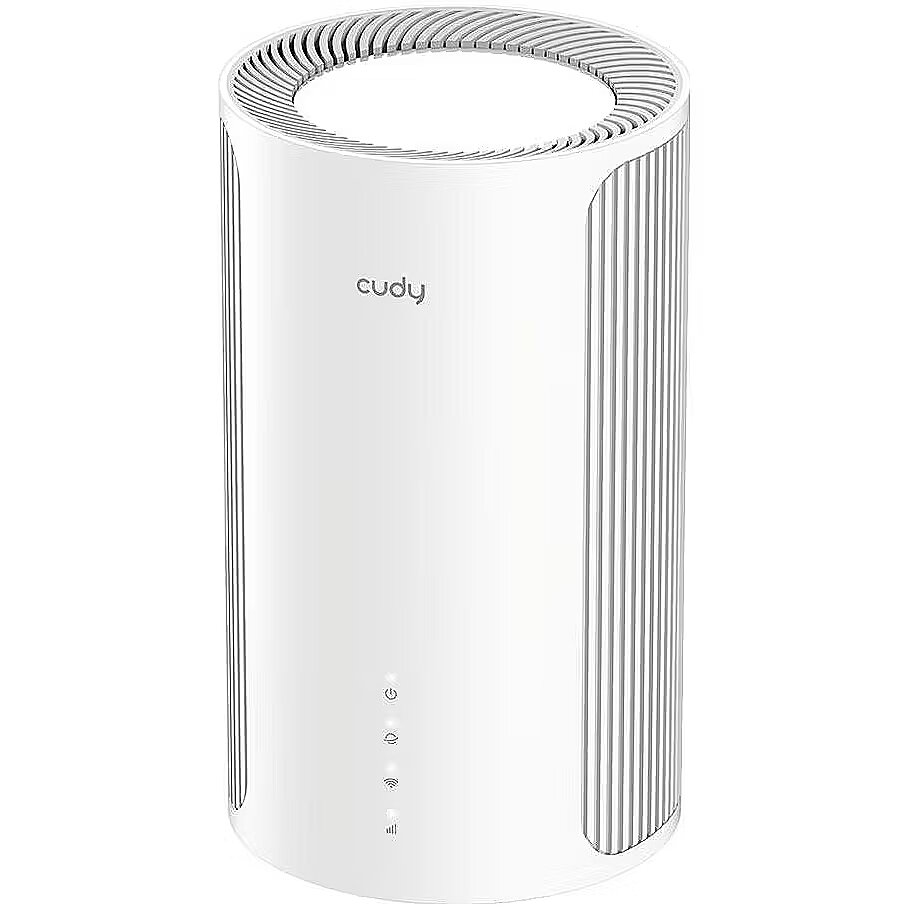

Cudy P4

Accessories included - P4 Odłączane anteny Zasilacz Kabel Ethernet Instrukcja instalacji
Antenna - Built-in
Certificates - FCC CE
Color - White
Description - Router Wi-Fi 6 5G SA/NSA AX3000 Router 5G WiFi 6 wykorzystujący standard 3GPP Release 16, zapewniający maksymalną prędkość pobierania 3,4 Gb/s. Posiada dwa chipsety Qualcomm, dwa gniazda SIM i kartę AX3000 WiFi 6 o dużej pojemności. 5G Rel. 16 with Max 3.4 Gbps DL UL/DL 4CA, 4×4 MIMO 4-strumieniowe dwuzakresowe Wi-Fi 6 2402 Mbps + 574 Mbps Wi-Fi 1 3× Gigabit Ethernet Ports 1× Nano SIM Slot Cudy Mesh, VPN Server and Client Cudy App, Cloud Control
Design - Antennas quantity - 6
Design - Antenna type - Internal
Design - Product colour - White
Design - Reset button - Yes
Designation - CE+WEEE
dimensionalWeight - 1282
dimension depth - 135 mm
dimension height - 315 mm
Dimensions - 116 × 202 mm
dimension weight - 1100 g
dimension width - 155 mm
ean - 6971690793562
Environment requirements - Temperatura pracy: 0 °C~ 40°C Temperatura przechowywania: -40°C ~ 70°C Wilgotność pracy: 10% ~ 90% bez kondensacji Wilgotność przechowywania: 5% ~ 90% bez kondensacji
Features - BeamForming - Yes
Features - Built-in processor - Yes
Features - DHCP client - Yes
Features - DHCP server - Yes
Features - Flash memory - 128 MB
Features - Internal memory - 512 MB
Features - Processor cores - 2
Features - Processor frequency - 1 GHz
Features - Universal Plug and Play (UPnP) - Yes
guarantee - 24
guarantee_type - normal

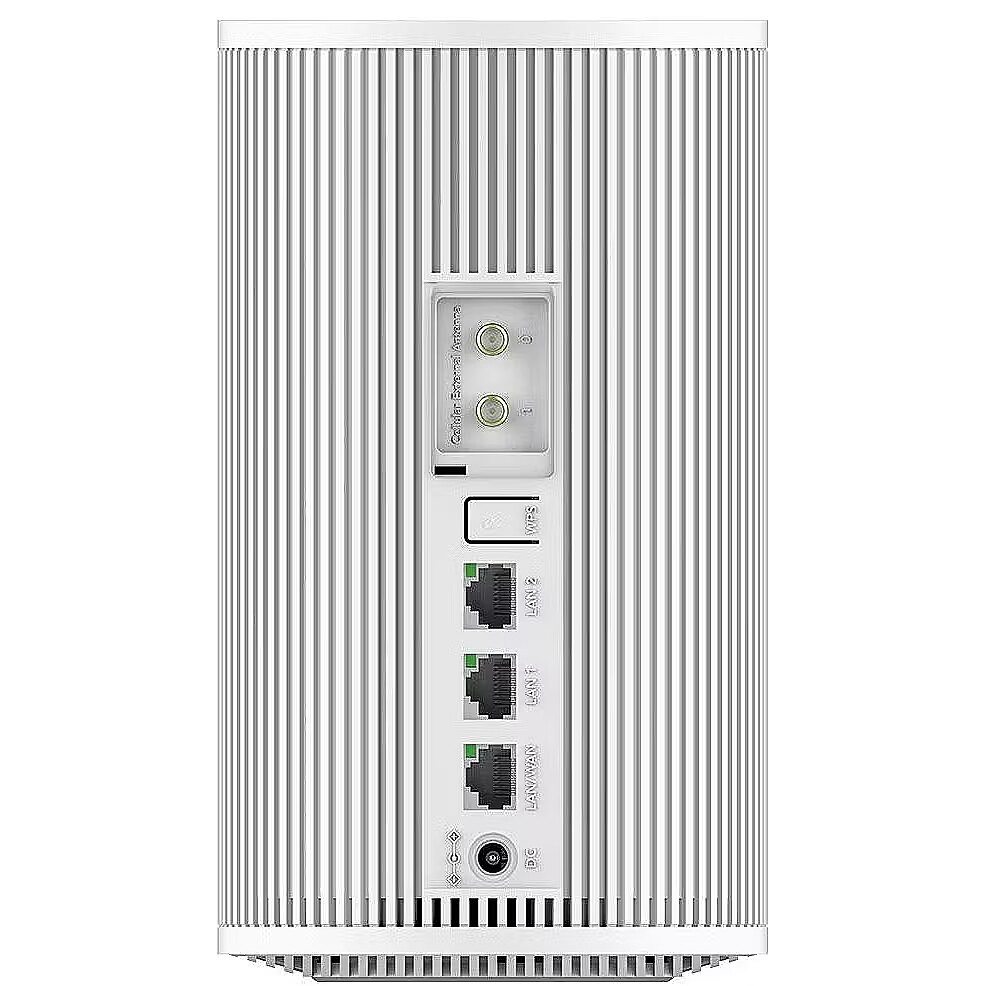

I/O ports - 1 x 10/100/1000 Mbit/s LAN / WAN (Combo)
I/O ports - 1 x SIM card slot
I/O ports - 2 x 10/100/1000 Mbit/s
Management, monitoring, configuration - QoS Per-User Rate Limiting DHCP Address Reservation DHCP Client List Server IP Versions IPv4/IPv6 IPv6 Protocols Relay Dynamic (SLAAC/DHCPv6) Staic (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite IPTV/VLAN Bridge Tag VLAN TTL Customization Extend Spoof Custom IGMP IGMP Proxy IGMP Snooping Forwarding Port Forwarding Port Triggering UPnP DMZ Firewall SPI Firewall DoS Protection Block PING Application Layer Gateway IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough
Model -  P4 1.0
name - P4 Router Mesh Gig abit 5G WiFi 6 AX3000
Network architecture - GigabitEthernet
Number of antennas - 6
Number of antennas - Two connectors
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Other features -
Packaging content - AC adapter included - Yes
Packaging content - Ethernet cable - Yes
Packaging content - Number of products included - 1 pc(s)
Ports & interfaces - Ethernet LAN (RJ-45) ports - 3
Ports & interfaces - Ethernet WAN - Yes
Power - Current - 2,5 A
Power - DC output voltage - 12 V
Power - Power consumption (max) - 21.7 W
Power supply - Wejście: 100 ~ 240 V, 50/60 Hz AC Wyjście: 12 V 2,5 A DC
producer - Cudy
producerCode - P4 1.0
productName - CUDY P4 Wi-Fi 6 5G SA/NSA AX3000 Router
productSize - Normal
Safety warning - Warnings - Avoid contact with liquids as this may cause electric shock.
Safety warning - Warnings - Do not open the appliance housing - risk of electric shock.
Safety warning - Warnings - The product may emit radio waves that may interfere with other electronic devices.
Security - WPA/WPA2/WPA3
sizeX - 311
sizeY - 133
sizeZ - 155
Software - Sterowanie LED
Metoda sterowania lokalnego Strona internetowa konfiguracji Kontrola aplikacji Metoda zdalnego sterowania Strona konfiguracji przez HTTPS Kontrola aplikacji TR069/TR098/TR111/TR181 Aktualizacja oprogramowania układowego Aktualizacja lokalna Aplikacja (bezprzewodowo) Aktualizacja online Narzędzia diagnostyczne Diagnostyka Ping Traceroute NSLookup Dziennik systemowy
Special functions -
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11ax
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
Standards - IPv4
Standards - IPv6
System Requirements -
Type - ADSL
vendpn - P4_EU
warrantyLength - 24
warrantyType - G
weight - 1144
Weight & dimensions - Height - 202 mm
Weight & dimensions - Product diameter - 116 mm
Weight & dimensions - Weight - 656 g
Wireless LAN features - Security algorithms - WPA
Wireless LAN features - Security algorithms - WPA2
Wireless LAN features - Security algorithms - WPA3
Wireless LAN features - Static IP - Yes
Wireless LAN features - Top Wi-Fi standard - Wi-Fi 6 (802.11ax)
Wireless LAN features - Wi-Fi band - Dual-band (2.4 GHz / 5 GHz)
Wireless LAN features - WLAN data transfer rate (first band) - 574 Mbit/s
Wireless LAN features - WLAN data transfer rate (second band) - 2402 Mbit/s
