ARTIKEL1 - QX4302 43IN LFD UHD 4K
ARTIKEL2 - 3840X2160 450CD 5MS
Brand - AG Neovo
BrandPartCode - QX4302
Breite - 0
Category - Surveillance Monitors
Design - Certification - CE, LVD, WEEE, RoHS, REACH
Design - Housing material - Metal
Design - IK code - IK08, IK10
Design - Mounting type - Freestanding/Wall-mounted
Design - Product colour - Black
Design - Product type - CCTV monitor
Display - Contrast ratio (typical) - 1200:1
Display - Digital horizontal frequency - 15 - 136 kHz
Display - Digital vertical frequency - 23 - 76 Hz
Display - Display aspect ratio - 16:9
Display - Display brightness - 450 cd/m²
Display - Display diagonal - 109.2 cm (43")
Display - Display resolution - 3840 x 2160 pixels
Display - Display type - LED
Display - Native refresh rate - 60 Hz
Display - Response time - 5 ms
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
EANCode - 4710739598810
Gewicht - 21.76
GRUPPE1 - Displays
GRUPPE2 - Lcd Large Format
GTIN - 4710739598810
HERSTELLER - AG NEOVO TECHNOLOGY
Hoehe - 0
HSTNUMMER - QX432011E0000
Laenge - 1.12

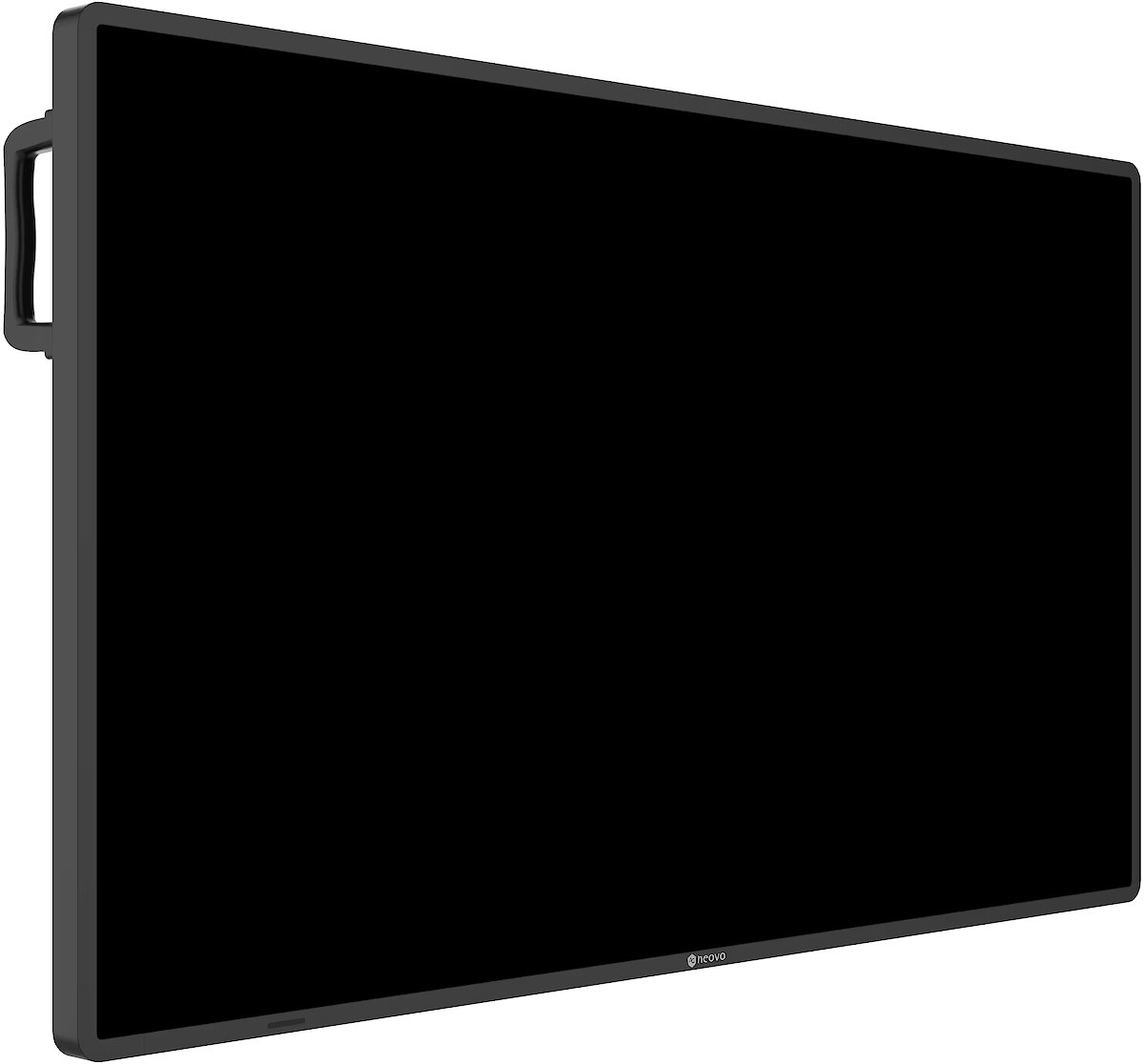

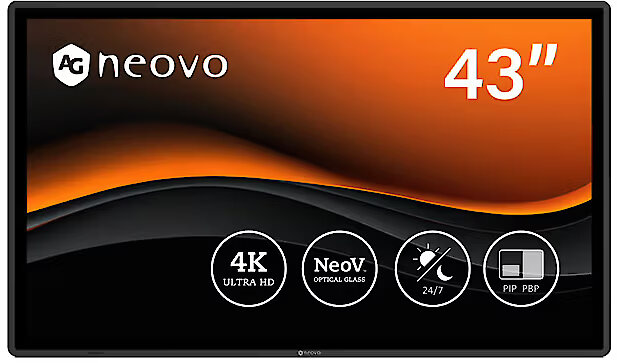

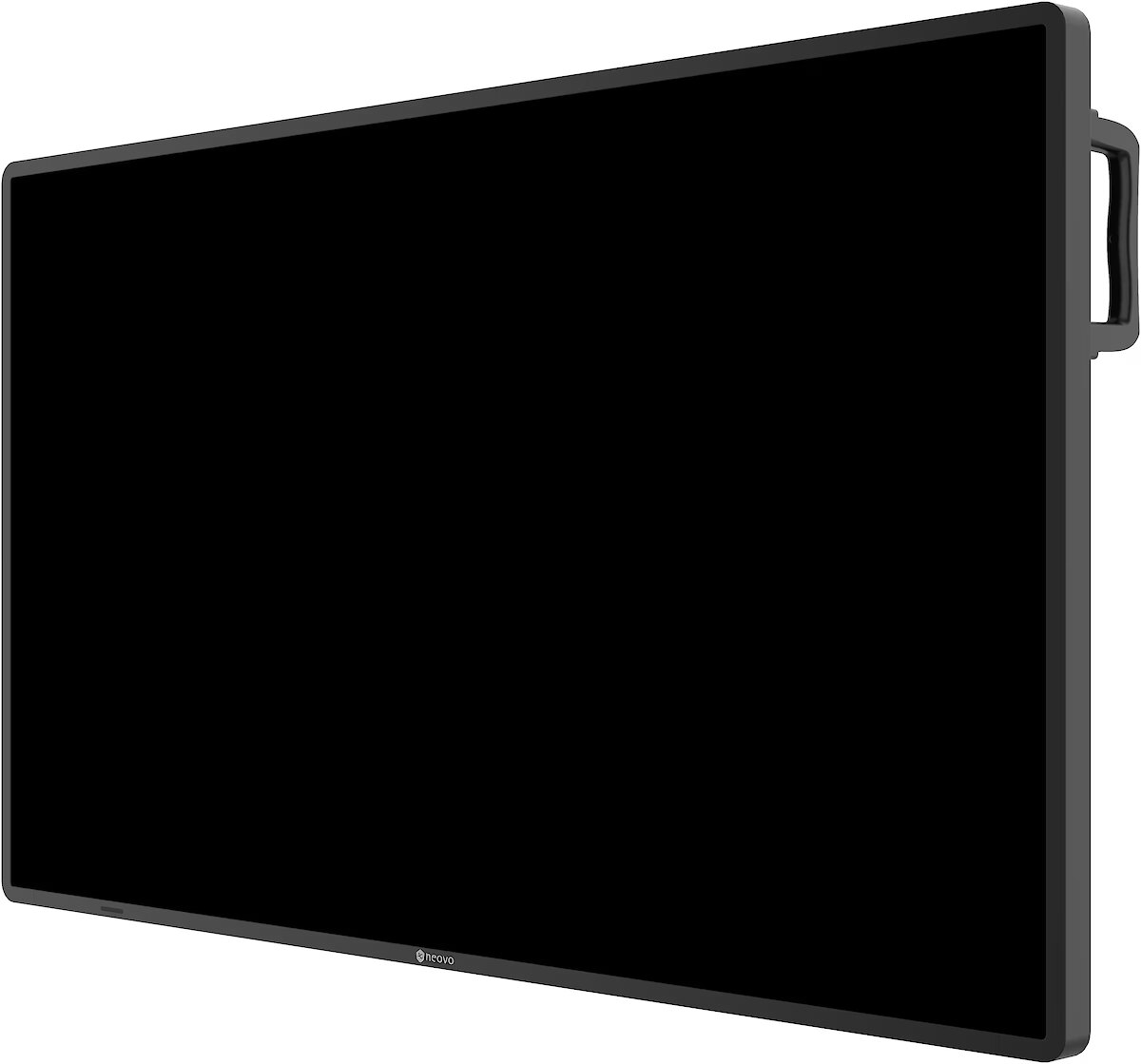

LongDesc - Clarity, Control, and Confidence for Mission-Critical Monitoring The AG Neovo QX4302 is a 43-inch 4K display purpose-built for environments where precision, control, and uptime are paramount. With 4× HDMI and native quad-view capabilities, also DP inputs, it allows operators to monitor up to four video sources simultaneously, eliminating the need for external switchers. The display supports remote management via RS232 and LAN, enabling seamless integration into control room systems. Combined with blackout mode for low-light conditions, industrial-grade durability, and optional custom keypad shortcuts, the QX4302 empowers system integrators to simplify installations while ensuring long-term operational stability.Native 4K Display for Detailed Multi-Source Monitoring The QX Series features native 4K UHD resolution (3840 × 2160), delivering exceptional image clarity and detail. Each input port supports 4K signal sources, allowing multiple feeds to be displayed simultaneously with sharp, accurate visuals. Ideal for monitoring security footage, data dashboards, and real-time operations where clarity is critical.Quad-view, PIP, and PBP Modes With Flexible Monitor Layout Display up to four HDMI sources simultaneously with quad-view, PIP, or PBP layouts, and adjust each window’s aspect ratio independently. This allows operators to keep priority feeds prominent while maintaining visibility of supporting sources, delivering a clear, adaptable viewing setup for dynamic, multi-system environments.Optimised for Dark or Sensitive EnvironmentsDesigned for operators who work in low-light control rooms, night-shift environments, and situations requiring absolute discretion.Ultra-Low 2 cd/m² BrightnesReduce backlight all the way down to 2 cd/m²—far below the 50–100 cd/m² limit of standard displays—ensuring glare-free, comfortable visibility without affecting situational awareness.Instant Blackout ModeBlank the screen immediately without powering down, keeping systems running while maintaining full discretion during sensitive moments.Streamlined Multi-System Integration With four native HDMI and DisplayPort inputs, the QX Series eliminates the need for external matrix switchers or complex cabling. Connect up to four systems directly and manage them through built-in quad-view or PIP/PBP modes—saving installation time and reducing failure points.Scalable Expansion and Centralised ControlDisplayPort Daisy-ChainThe DisplayPort daisy-chain function allows one QX display to share its active on-screen sources with the following unit, enabling scalable visual configurations with minimal cabling.Centralised Management & ControlControl multiple displays as one through RS232 loop-through, keeping key settings aligned across units. When remote access is required, LAN control enables configuration over IP. Fully compatible with Neovo Controller for simple, unified management.Personalised Display SettingsSave and recall up to five customised configurations, ensuring fast adaptation to different operators, shifts, or operational scenarios.Direct Hardware ControlA standard 15-pin D-sub port enables connection to a pre-defined keypad for instant access to essential functions, including blackout, backlight, volume, power, input source, and screen layout.A dedicated dimming port supports an optional control knob, allowing precise and intuitive adjustment of display brightness for fast, reliable operation.Failover FunctionAutomatically switches to a backup input when the primary signal fails, with input priority set by user preference or default order.Proactive Alerts and MonitoringRS232 feedback provides real-time notifications for signal loss and thermal issues. These alerts enable immediate response, helping reduce downtime and maintain continuous visibility. By identifying potential problems early, proactive alerts support smoother operations and more efficient maintenance in mission-critical environments.Flexible Orientation for Ceiling-Mounted InstallationsBuilt-in image rotation ensures correct orientation when mounted upside-down, supporting ceiling-mounted setups often required in tight spaces or above operator consoles. No need for external processors or video flipping software. Suitable to use with Ceiling Mount CMP-01 + LMK-01.Durable BuildBuilt with AG Neovo’s signature NeoV™ Optical Glass with Anti-glare, AG coating and rugged metal housing, it protects against scratches and impacts.24/7 Operations with Anti-Burn-In™ TechnologyAG Neovo patented Anti-Burn-in™ technology ensures stable long-term performance with static images and increases the panel’s life cycle.
LongProductName - 43", LED-Backlit TFT LCD, 3840 x 2160, 450 cd/m², 12000:1, 5 ms, 178°/178°
LongSummaryDescription - AG Neovo QX4302. Product type: CCTV monitor, Mounting type: Freestanding/Wall-mounted, Product colour: Black. Display diagonal: 109.2 cm (43"), Display resolution: 3840 x 2160 pixels, Display type: LED. Speaker power: 12 W, Panel mounting interface: 400 x 200 mm. Power source type: AC, Power supply type: Internal, Power consumption (typical): 80 W. Weight: 1.7 kg, Height: 591.6 mm, Depth: 84.7 mm
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Packaging content - Cables included - HDMI, AC
Packaging content - Quantity - 1
Packaging content - Quick start guide - Yes
Packaging content - Remote control included - Yes
Performance - Number of built-in speakers - 2

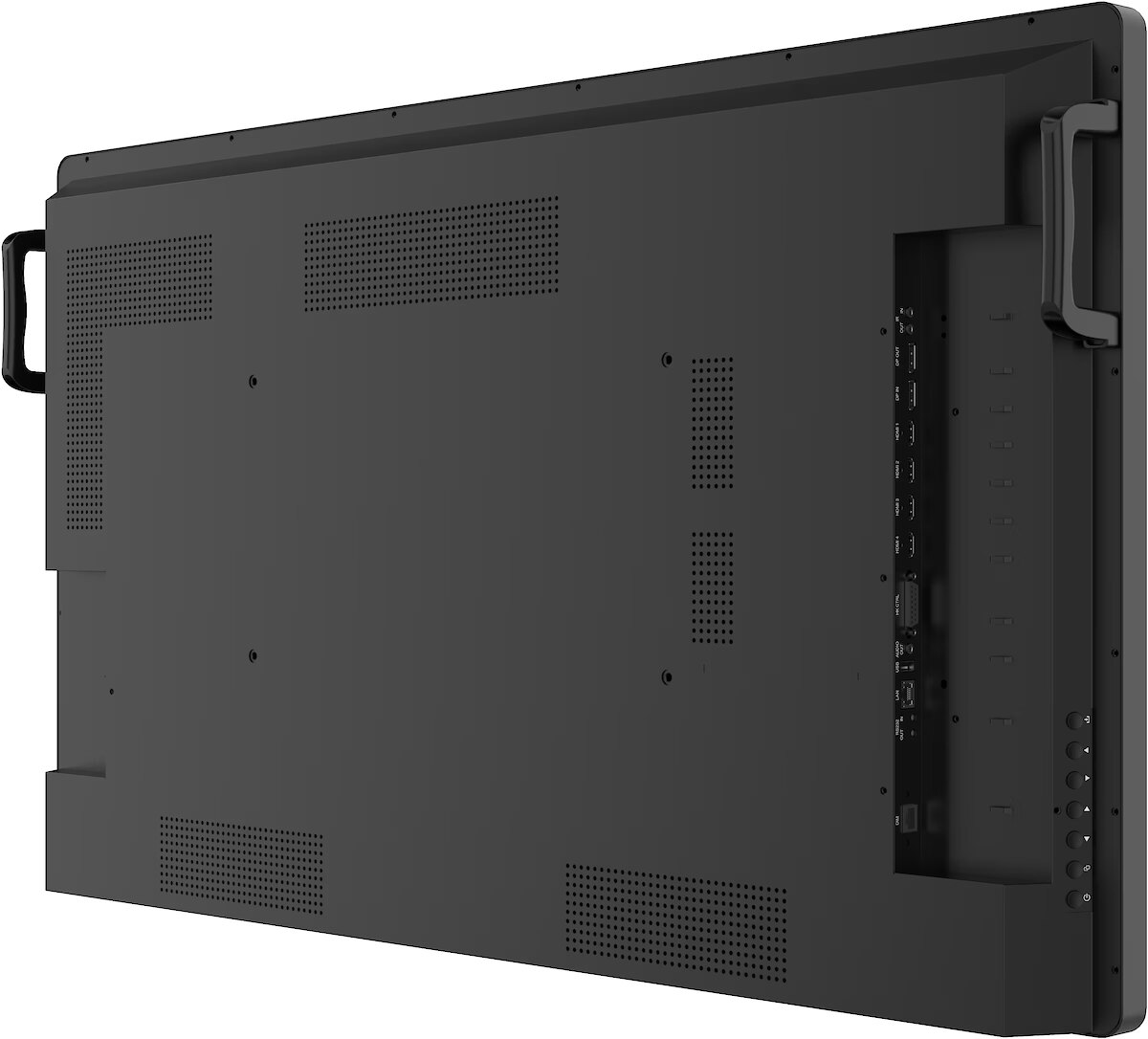

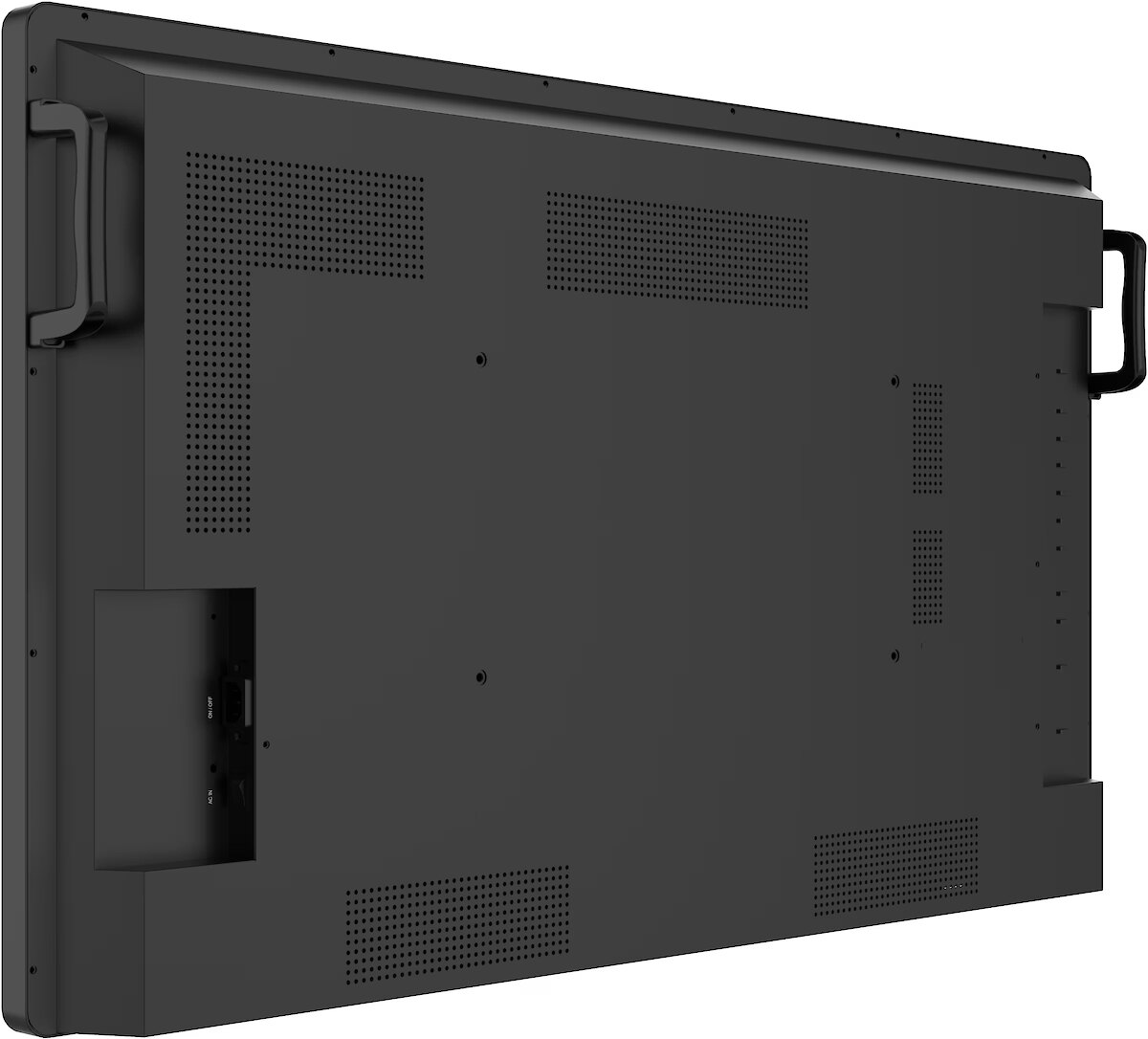

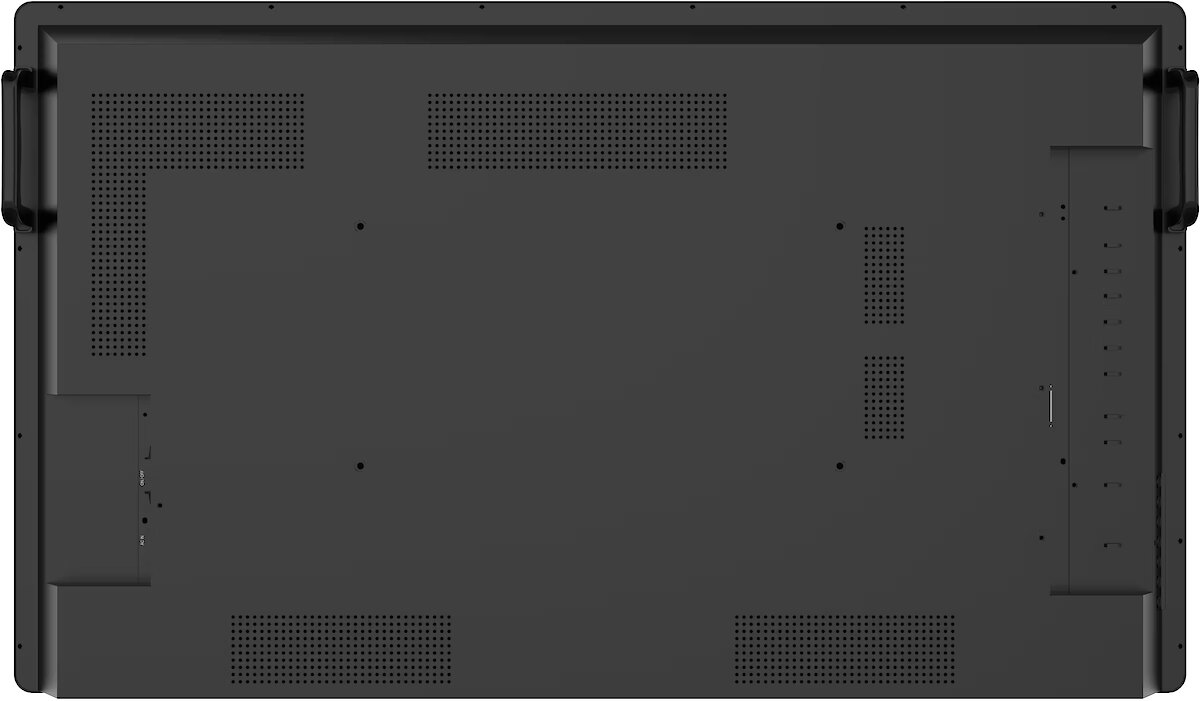

Performance - Panel mounting interface - 400 x 200 mm
Performance - Speaker power - 12 W
Performance - VESA mounting - Yes

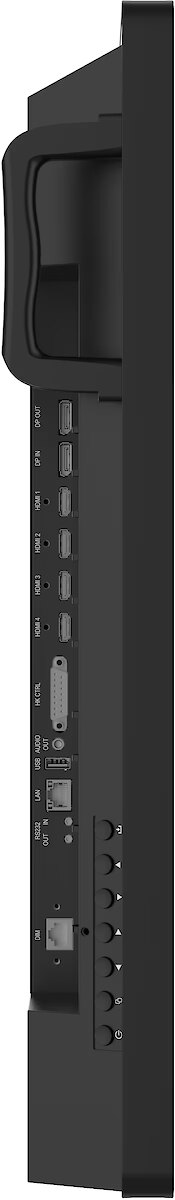

Ports & interfaces - 3.5 mm (1/8-inch) out - Yes
Ports & interfaces - Audio output - 1
Ports & interfaces - DisplayPorts in - 1
Ports & interfaces - DisplayPorts out - 1
Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - DisplayPort version - 1.2
Ports & interfaces - Ethernet LAN - Yes
Ports & interfaces - HDMI input ports quantity - 4
Ports & interfaces - HDMI ports quantity - 4
Ports & interfaces - HDMI version - 2.0
Ports & interfaces - RJ-45 ports quantity - 1
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - USB port - Yes
Power - AC input voltage - 100 - 240 V
Power - Energy efficiency class (HDR) - Not available
Power - Energy efficiency class (SDR) - G
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 80 W
Power - Power source type - AC
Power - Power supply type - Internal
ProductName - QX4302
ShortSummaryDescription - AG Neovo QX4302, CCTV monitor, Freestanding/Wall-mounted, Black, Metal, IK08, IK10, CE, LVD, WEEE, RoHS, REACH
Stck_Kart - 1
Stck_Pal - 0
Storno - N
Title - AG Neovo QX4302 surveillance monitor CCTV monitor 109.2 cm (43") 3840 x 2160 pixels
URL - https://www.agneovo.com/global/products/qx4302
WarrantyInfo -
Weight & dimensions - Bezel width (bottom) - 1.28 cm
Weight & dimensions - Bezel width (side) - 1.28 cm
Weight & dimensions - Bezel width (top) - 1.28 cm

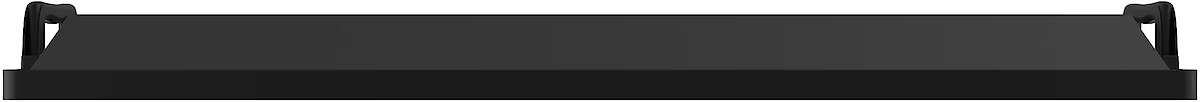

Weight & dimensions - Depth - 84.7 mm
Weight & dimensions - Height - 591.6 mm
Weight & dimensions - Package depth - 174 mm
Weight & dimensions - Package height - 704 mm
Weight & dimensions - Package type - Box
Weight & dimensions - Package weight - 21.5 kg
Weight & dimensions - Package width - 1114 mm
Weight & dimensions - Weight - 1.7 kg
Weight & dimensions - Width - 1002 mm
