Audio - Built-in speaker(s) - No
Auto Pivot - Yes
Bluetooth - Yes
Brand - Samsung
BrandPartCode - LH46OHDEBGBXEN
Brightness - 350 cd/m²
Category - Signage Displays
Certificates - EMC
Color - Black
Computer system - Built-in processor - No
Computer system - Computer system - No
Computer system - Operating system installed - Tizen
Computer system - Operating system version - 8.0
Curved - 0 R
Data Act - Link
Depth - 69 mm

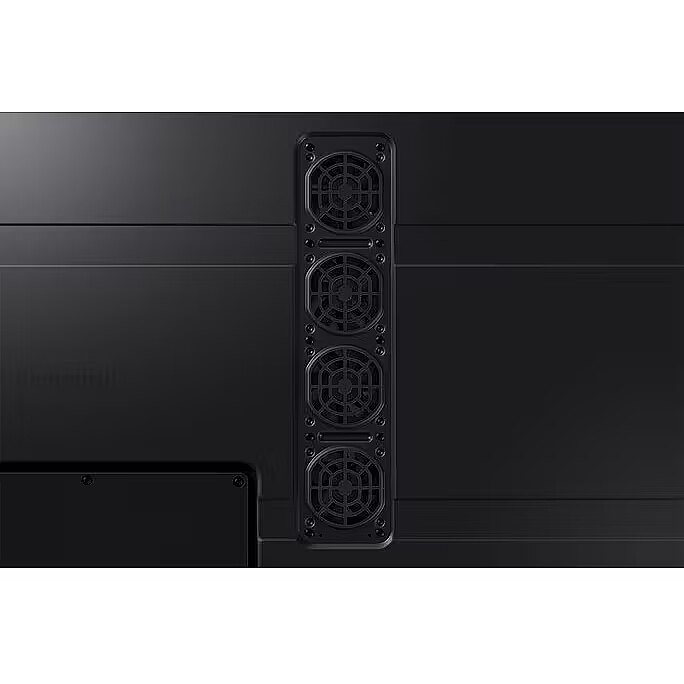

Description - Exceptional Durability and Stunning Image Quality in Outdoor Conditions The Samsung OHDX display series is designed for challenging environments, effectively capturing attention even outside store windows. Regardless of weather conditions, the OHDX outdoor display ensures strong brand presence by presenting dynamic content to customers. Maintaining Optimal Temperature in Harsh Outdoor Conditions Heat Dissipation System An advanced built-in system for efficient air circulation and heat dissipation prevents damage common to high-brightness outdoor devices. Effective cooling solutions help the display maintain stable and reliable performance in demanding outdoor environments. Additional Glass Layer Optional Second Protective Glass Panel The exceptionally durable OHDX display can be further protected with an additional layer of glass. Equipped with an enhanced heat dissipation system, the screen ensures reliable operation even with the extra protective layer installed. Designed for All Weather Conditions IP56 Certification OHDX displays with IP56 certification are resistant to water, dust, and physical damage. This guarantees reliable operation and consistent performance in a variety of outdoor conditions. Robust Durability for Screen Safety IK10 The OHDX series features IK10-class durability, providing advanced protection against vandalism, impacts, and physical damage. Maximum Impact Even in Limited Spaces Slim Design The lightweight and slim OHDX display can be easily adapted to different outdoor environments, eliminating the need for a separate enclosure. Enhance Your Business with Smart Solutions SmartThings Pro Samsung SmartThings enters the business environment. SmartThings Pro connectivity increases convenience, security, and energy efficiency in various business settings, from small retail stores to large companies and hotels. Transform Display Management Samsung VXT Samsung VXT is a cloud-based solution that combines content and device management. It allows users to remotely adjust hardware settings and troubleshoot issues. Creating and deploying content is simple, intuitive, and requires no prior training.
Design - Bezel width (bottom) - 2.49 cm
Design - Bezel width (side) - 2.49 cm
Design - Bezel width (top) - 2.49 cm
Design - Panel mounting interface - 995 x 500 mm
Design - Placement supported - Outdoor
Design - Product colour - Black
Design - Product design - Digital signage flat panel
Design - Screen shape - Flat
Design - VESA mounting - Yes
Designation - CE+WEEE
dimension depth - 1200 mm
dimension height - 720 mm
dimension weight - 32500 g
dimension width - 180 mm
Display - Colour gamut - 72%
Display - Contrast ratio (typical) - 6000:1
Display - Display brightness - 3500 cd/m²
Display - Display diagonal - 116.8 cm (46")
Display - Display resolution - 1920 x 1080 pixels
Display - Display technology - LCD
Display - Dynamic contrast ratio marketing name - Mega Contrast
Display - Glass film - AG/AR Film
Display - Glass thickness - 3 mm
Display - Haze rate - 0%
Display - HD type - Full HD
Display - Horizontal scan range - 15 - 135 kHz
Display - Native aspect ratio - 16:9
Display - Panel type - VA
Display - Pixel frequency (max) - 594 MHz
Display - Pixel pitch - 0.53 x 0.53 mm
Display - Response time - 6 ms
Display - Touchscreen - No
Display - Vertical scan range - 24 - 75 Hz
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Display surface - Glare
Dot pitch - 0.53 mm
Dynamic contrast - Mega Contrast
ean - 8806095845395
Energy class - not applicable
Environment requirements - Temperature: -30 ~ 50°C Humidity: 10 ~ 80%, non-condensing
Frequency, horizontal max. - 135 kHz
Frequency, horizontal min. - 15 kHz
Frequency, vertical max. - 75 Hz
Frequency, vertical min. - 24 Hz
GTIN - 8806095845395
guarantee - 36
guarantee_type - external
Height - 623.6 mm
Height adjustment - No
I/O connectors - 1 x 3,5 mm minijack
I/O connectors - 1 x RJ-45 LAN
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 2 x HDMI
I/O connectors - 2 x USB 2.0
Kensington Security Slot - Nie
LongSummaryDescription - Samsung OH46DX. Product design: Digital signage flat panel. Display diagonal: 116.8 cm (46"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 3500 cd/m², HD type: Full HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Tizen. Product colour: Black
Matrix type - VA
Microphone - Nie
Model - OH46DX
name - Monitor 46 inches 1920x1080 VA Tizen 8.0 WiFi/BT OH46DX LH46OHDEBGBXEN
Network - Ethernet LAN - Yes
Network - Wi-Fi - Yes
Operational conditions - Operating relative humidity (H-H) - 10 - 80%
Operational conditions - Operating temperature (T-T) - -30 - 50 °C
Other features - Glass Thickness: 3T Glass Film: AG, AR/IR, SRF Operating System Version: Tizen 8.0 Flash Memory: 8GB
Other features - Bluetooth - Yes
Other features - Display brightness (peak) - 4000 cd/m²
Other features - Flash memory - 8000 MB
Other features - RS-232 input ports - 1
Other features - RS-232 output ports - 1
Packaging data - Package depth - 186 mm
Packaging data - Package height - 735 mm
Packaging data - Package weight - 33.7 kg
Packaging data - Package width - 1190 mm
Performance - HDCP - Yes
Performance - HDCP version - 2.2
Performance - International Protection (IP) code - IP56
Performance - Operating hours (hours/days) - 24/7
Performance - Purpose - Retail
Ports & interfaces - DVI port - No
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - HDBaseT input ports - 1
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.0
Ports & interfaces - RS-232 interface - Yes
Ports & interfaces - USB port - Yes
Ports & interfaces - USB ports quantity - 2
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 480 W
Power consumption - 480 W
producer - Samsung
ProductName - OH46DX
Resolution - 1920 x 1080 (FHD 1080)
Response time - 6 ms
Screen size (diag.) - 46"
ShortSummaryDescription - Samsung OH46DX, Digital signage flat panel, 116.8 cm (46"), LCD, 1920 x 1080 pixels, Wi-Fi, 24/7
Speakers built-in - No
Static contrast - 6 000:1
Technical details - Audio out (mini jack) - 1
Technical details - Compliance certificates - Electromagnetic Compatibility (EMC)
Title - Samsung OH46DX Digital signage flat panel 116.8 cm (46") LCD Wi-Fi 3500 cd/m² Full HD Black Tizen 24/7
Touch screen - No
Transreflective technology - LED
TV tuner built-in - No
vendpn - LH46OHDEBGBXEN
VESA - 995 x 500
Viewing angle, horizontal - 178 °
Viewing angle, vertical - 178 °
Web camera - None
Weight - 28.2 kg
Weight & dimensions - Display depth - 69 mm
Weight & dimensions - Display height - 623.6 mm
Weight & dimensions - Display weight - 28.2 kg
Weight & dimensions - Display width - 1069 mm
Width - 1069 mm
WiFi - Yes
