ARTIKEL1 - OTF2216MC-B1 22IN PCAP
ARTIKEL2 - 215IN PCAP BEZEL FREE 10P TOUCH
Brand - iiyama
BrandPartCode - OTF2216MC-B1
Category - Computer Monitors
Design - Front bezel colour - Black
Design - Glass thickness - 3.15 mm
Design - Market positioning - Office
Design - Product colour - Black
Display - Colour depth - 8 bit
Display - Contrast ratio (typical) - 5000:1
Display - Digital horizontal frequency - 31.8 - 82 kHz
Display - Display brightness - 935 cd/m²
Display - Display brightness (peak) - 1100 cd/m²
Display - Display brightness (typical) - 1100 cd/m²
Display - Display diagonal - 54.6 cm (21.5")
Display - Display diagonal (metric) - 54.6 cm
Display - Display number of colours - 16.7 million colours
Display - Display resolution - 1920 x 1080 pixels
Display - Display technology - LCD
Display - HD type - Full HD
Display - Horizontal scan range - 31.4 - 82 kHz
Display - Maximum refresh rate - 60 Hz
Display - Native aspect ratio - 16:9
Display - Number of simultaneous touchpoints - 10
Display - Panel type - VA
Display - Pixel pitch - 0.248 x 0.248 mm
Display - Response time - 25 ms
Display - Screen shape - Flat
Display - Surface hardness - 7H
Display - Touchscreen - Yes
Display - Touchscreen technology - Projected capacitive system
Display - Touch technology - Multi-touch
Display - Viewable size, horizontal - 47.7 cm
Display - Viewable size, vertical - 26.9 cm
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
EANCode - 4948570123735
Ergonomics - Cable management - Yes
Ergonomics - Number of OSD languages - 7
Ergonomics - On Screen Display (OSD) - Yes
Ergonomics - On Screen Display (OSD) languages - Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Ergonomics - Panel mounting interface - 100 x 100 mm
Ergonomics - VESA mounting - Yes
GRUPPE1 - Displays
GRUPPE2 - Lcd Touchscreen
GTIN - 4948570123735
HERSTELLER - IIYAMA CONSIGNMENT
HSTNUMMER - OTF2216MC-B1

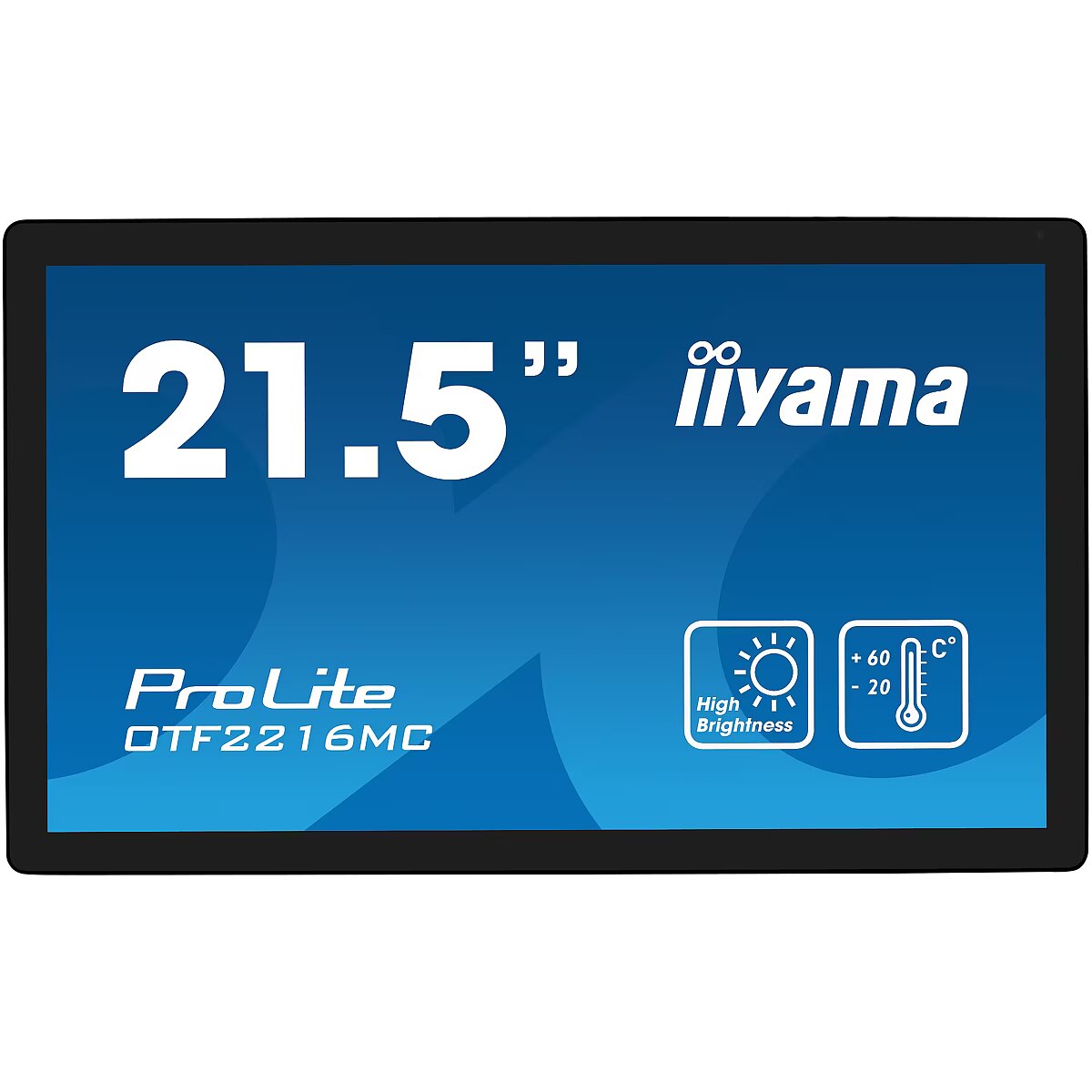

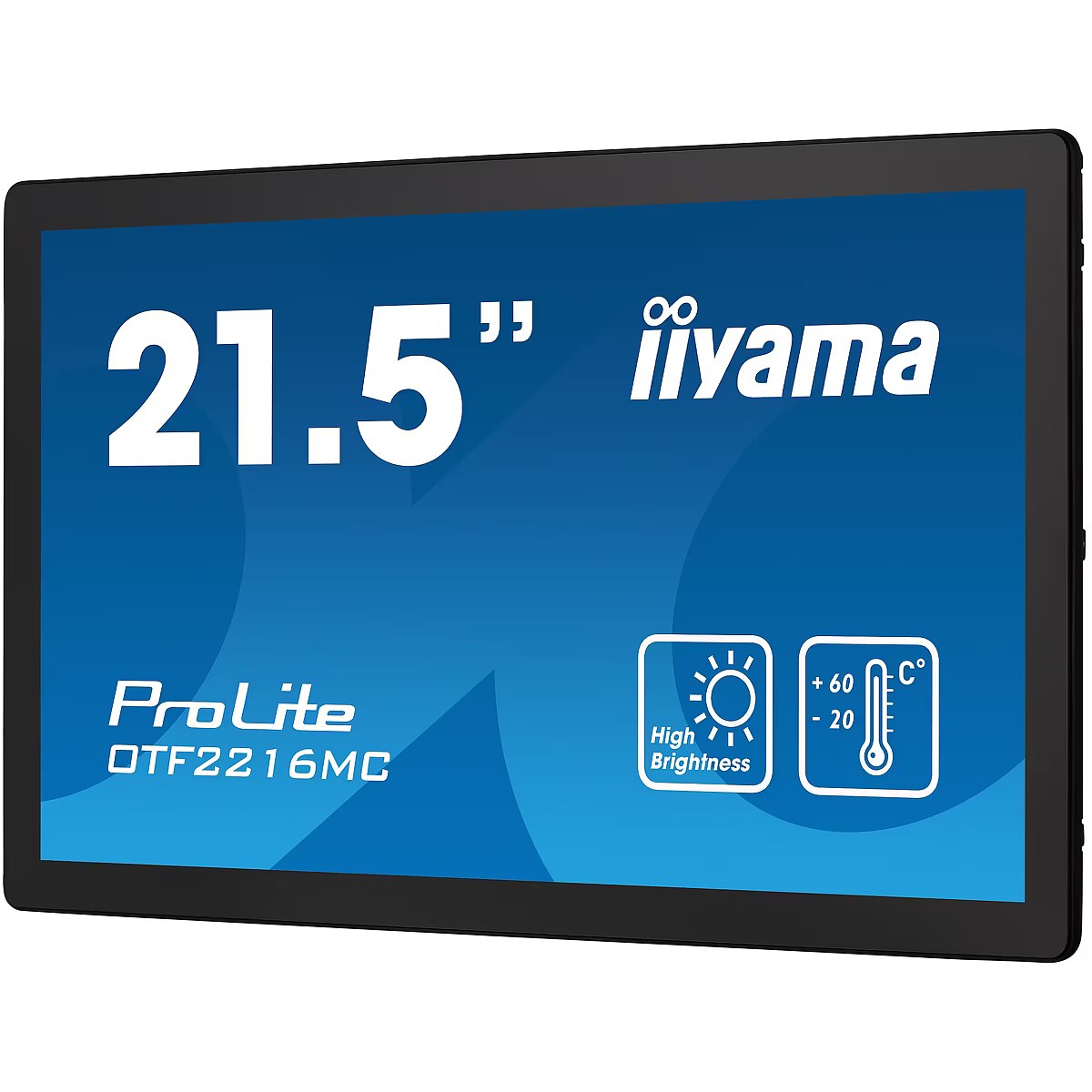

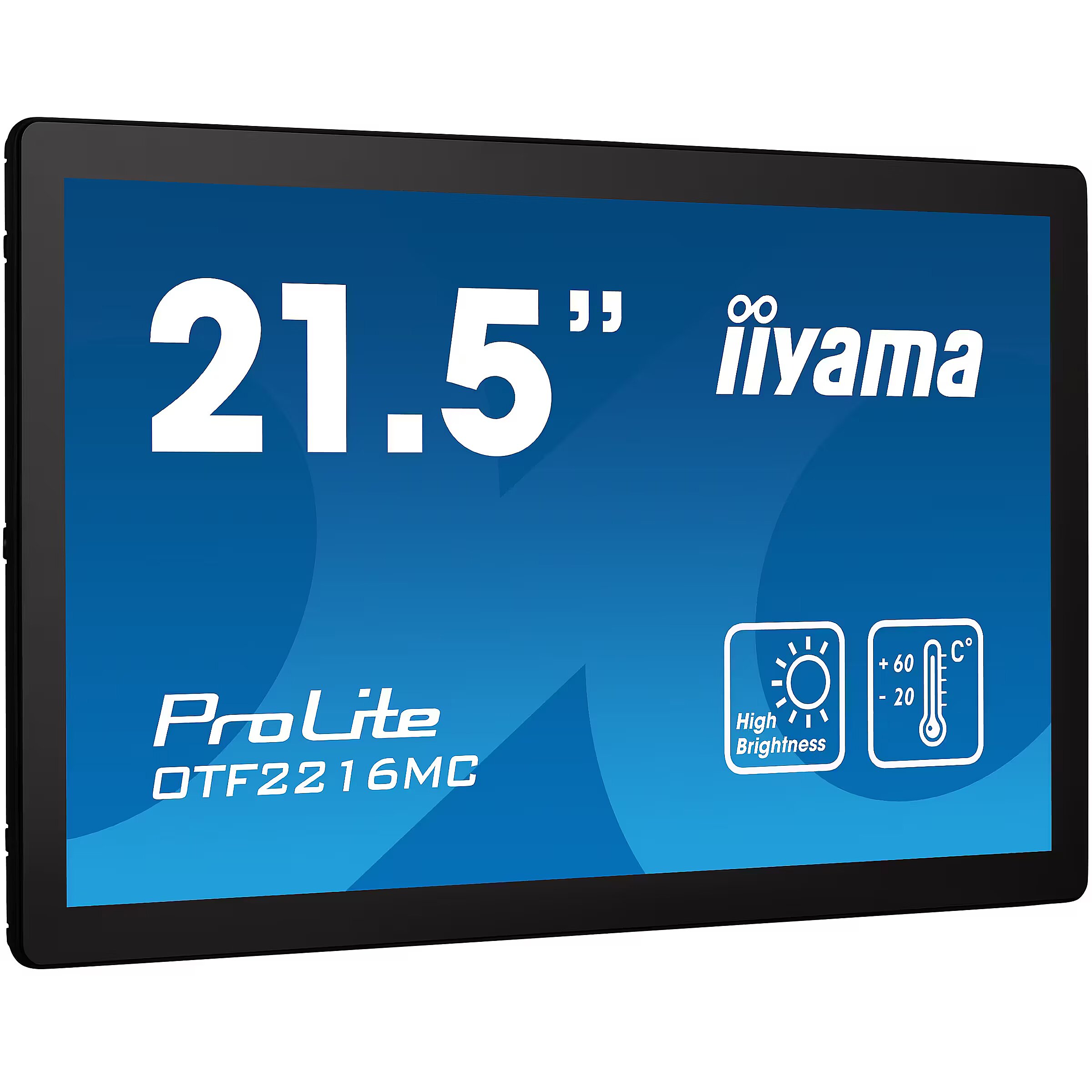

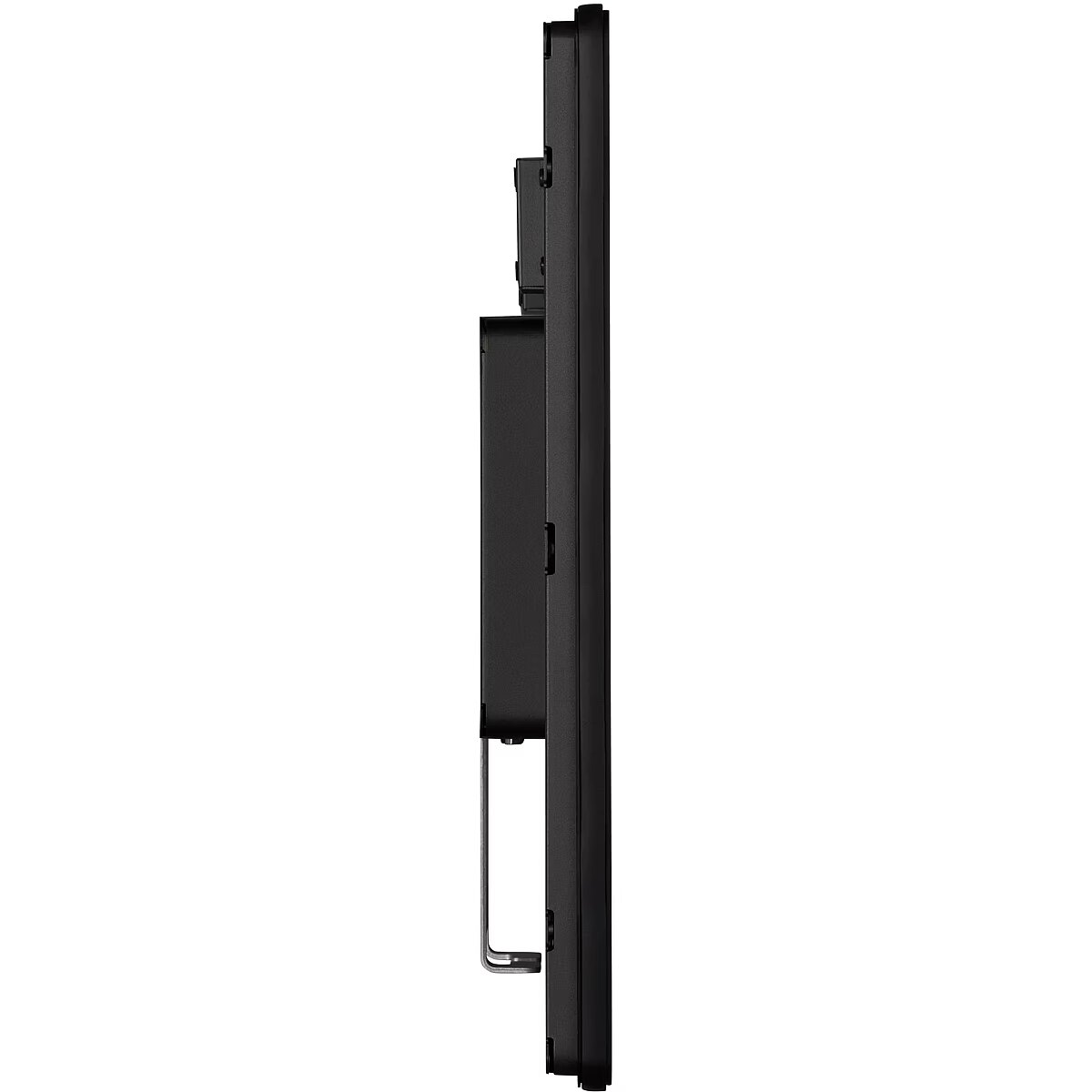

LongDesc - Built into a rugged, edge-to-edge glass bezel the ProLite OTF2216MC-B1 guarantees high durability and scratch-resistance, making it perfect for high use public facing applications. Landscape, portrait and face-up orientation ensure flexibility in any type of installation. It offers a brightness of up to 935 cd/m², the content displayed will be visible even in very bright environments. The anti-glare display is UV resistant and IP65 protected, ensuring durability against sunlight, dust and water resistance from the front, additionally it can operate in temperatures ranging from -20˚C up to +60˚C. The anti-fingerprint coating ensures a smoother touch. A reliable solution for pick-up points and kiosks. A proximity sensor turns off the screen when no one is present, an ambient light sensor adjusts screen brightness, and a temperature sensor controls fan speed for cooling, resulting in energy savings and extended product durability. For ease of integration, the ProLite OTF2216MC-B1 can be equipped with optional external mounting brackets ( OMK3-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
LongProductName - 21.5" high-brightness touchscreen with 10 touch points PCAP touch technology for outdoor applications
LongSummaryDescription - iiyama OTF2216MC-B1. Display diagonal: 54.6 cm (21.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 25 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Operational conditions - Operating temperature (T-T) - -20 - 60 °C
Other features - AC adapter included - Yes
Other features - Active display area (W x H) - 477 x 269 mm
Other features - Brightness - 935 cd/m²
Other features - Certification - CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Other features - Compatible operating systems - All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Other features - Compliance certificates - CE, cULus, EAC, REACH, RoHS, UKCA, WEEE
Other features - Control panel - Menu, Scroll up / Brightness, Scroll down / Contrast, Select, Power
Other features - Depth - 42.5 mm
Other features - Ethernet LAN (RJ-45) ports - 1
Other features - Height - 315 mm
Other features - International Protection (IP) code - IP65
Other features - Mean time between failures (MTBF) - 60000 h
Other features - Packaging content - AC adapter
Other features - Placement supported - Indoor
Other features - Touch method - finger, glove (latex)
Other features - User controls - picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H. position, OSD V. position, touch switch, factory), option (reset, language, source select, display mode, fan control, presence sensor, ambient light sensor)
Other features - Weight - 4.6 kg
Other features - Width - 520 mm
Packaging content - Cables included - AC, USB, HDMI, DisplayPort
Packaging content - Quick start guide - Yes
Packaging content - Remote control included - Yes
Packaging data - Package depth - 150 mm
Packaging data - Package height - 400 mm
Packaging data - Package weight - 4.5 kg
Packaging data - Package width - 608 mm
Performance - Palm rejection - Yes
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DVI port - No
Ports & interfaces - HDCP - Yes
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Headphone out - Yes
Ports & interfaces - USB Touch port - Yes
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Power - AC adapter output voltage - 12 V
Power - Energy consumption (SDR) per 1000 hours - 16 kWh
Power - Energy efficiency class (HDR) - Not available
Power - Energy efficiency class (SDR) - E
Power - Energy efficiency scale - A to G
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.6 W
Power - Power consumption (typical) - 43 W
Power - Power supply type - External
ProductName - OTF2216MC-B1
ShortSummaryDescription - iiyama OTF2216MC-B1, 54.6 cm (21.5"), 1920 x 1080 pixels, Full HD, LCD, 25 ms, Black
Stck_Kart - 1
Stck_Pal - 0
Storno - Y
Sustainability - Sustainability certificates - ErP
Title - iiyama OTF2216MC-B1 computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LCD Touchscreen Black
URL - https://iiyama.com/
WarrantyInfo -
Weight & dimensions - Depth (without stand) - 42.5 mm
Weight & dimensions - Depth (with stand) - 42.5 mm
Weight & dimensions - Height (without stand) - 315 mm
Weight & dimensions - Height (with stand) - 315 mm
Weight & dimensions - Weight (without stand) - 4.6 kg
Weight & dimensions - Weight (with stand) - 4.6 kg
Weight & dimensions - Width (without stand) - 520 mm
Weight & dimensions - Width (with stand) - 520 mm
