ARTIKEL1 - TF1534MC-B7X 38CM 15IN
ARTIKEL2 - 330CD 4:3 8MS USB VGA HDMI
Brand - iiyama
BrandPartCode - TF1534MC-B7X
Category - Computer Monitors
Category 1 - Displays
Category 2 - Monitore
Design - Front bezel colour - Black
Design - Product colour - Black
Display - Contrast ratio (typical) - 700:1
Display - Display brightness - 330 cd/m²
Display - Display brightness (typical) - 370 cd/m²
Display - Display diagonal - 38.1 cm (15")
Display - Display diagonal (metric) - 38 cm
Display - Display number of colours - 16.2 million colours
Display - Display resolution - 1024 x 768 pixels
Display - Display technology - LED
Display - HD type - XGA
Display - Horizontal scan range - 31.4 - 60 kHz
Display - Native aspect ratio - 4:3
Display - Number of simultaneous touchpoints - 10
Display - Panel type - TN
Display - Pixel pitch - 0.297 x 0.297 mm
Display - Response time - 8 ms
Display - Screen shape - Flat
Display - Surface hardness - 7H
Display - Touchscreen - Yes
Display - Touchscreen technology - Projected capacitive system
Display - Touchscreen type - Multi-user
Display - Touch technology - Multi-touch
Display - Viewable size, horizontal - 30.4 cm
Display - Viewable size, vertical - 22.8 cm
Display - Viewing angle, horizontal - 170°
Display - Viewing angle, vertical - 160°
EAN - 4948570118380
EANCode - 4948570118380
Ergonomics - Number of OSD languages - 7
Ergonomics - On Screen Display (OSD) - Yes
Ergonomics - On Screen Display (OSD) languages - Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Ergonomics - Panel mounting interface - 100 x 100 mm
Ergonomics - VESA mounting - Yes
Ergonomics - Wall mountable - Yes
GRUPPE1 - Displays
GRUPPE2 - Lcd Touchscreen
GTIN - 4948570118380
HERSTELLER - IIYAMA CONSIGNMENT
HSTNUMMER - TF1534MC-B7X
Logistics data - Harmonized System (HS) code - 85285210
Logistics data - Pallet net height - 114 cm
Logistics data - Pallet net length - 198.7 cm
Logistics data - Pallet net width - 91 cm
Logistics data - Products per pallet - 78 pc(s)
LongDesc - The ProLite TF1534MC-B7X uses 10 pt Projective Capacitive touch technology built into an eye catching bezel with edge-to-edge glass, which guarantees high durability, scratch-resistance and perfect picture performance. The screen is IP65 rated which means it is dust and water resistant from the front. Together with the Touch-Through-Glass technology which delivers a seamless and accurate touch response, this makes the monitor an ideal solution for kiosk integrators, Instore Retail and behind-glass-retail. For ease of integration, the monitor can be equipped with optional external mounting brackets ( OMK1-1 ).
LongProductName - 15’’ 10pt touch Open Frame monitor with Touch Through-Glass function
LongSummaryDescription - iiyama TF1534MC-B7X. Display diagonal: 38.1 cm (15"), Display resolution: 1024 x 768 pixels, HD type: XGA, Display technology: LED, Response time: 8 ms, Native aspect ratio: 4:3, Viewing angle, horizontal: 170°, Viewing angle, vertical: 160°. VESA mounting. Product colour: Black
Manufacturer - iiyama
MPN - TF1534MC-B7X
Name - IIYAMA 38.0cm (15") TF1534MC-B7X 4:3 M-Touch HDMI+DP
Other features - AC adapter included - Yes
Other features - Active display area (W x H) - 304 x 228 mm
Other features - Brightness - 330 cd/m²
Other features - Compatible operating systems - All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Other features - Compliance certificates - CE, cULus, EAC, REACH, RoHS, WEEE
Other features - Control panel - Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Other features - Depth - 44.5 mm
Other features - Display viewable area (HxV) - 304 x 228 mm
Other features - Height - 265.5 mm
Other features - International Protection (IP) code - IP65
Other features - Packaging content - AC adapter
Other features - Touch method - stylus, finger, glove (latex)
Other features - User controls - picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory)
Other features - Weight - 2.7 kg
Other features - Width - 337.5 mm

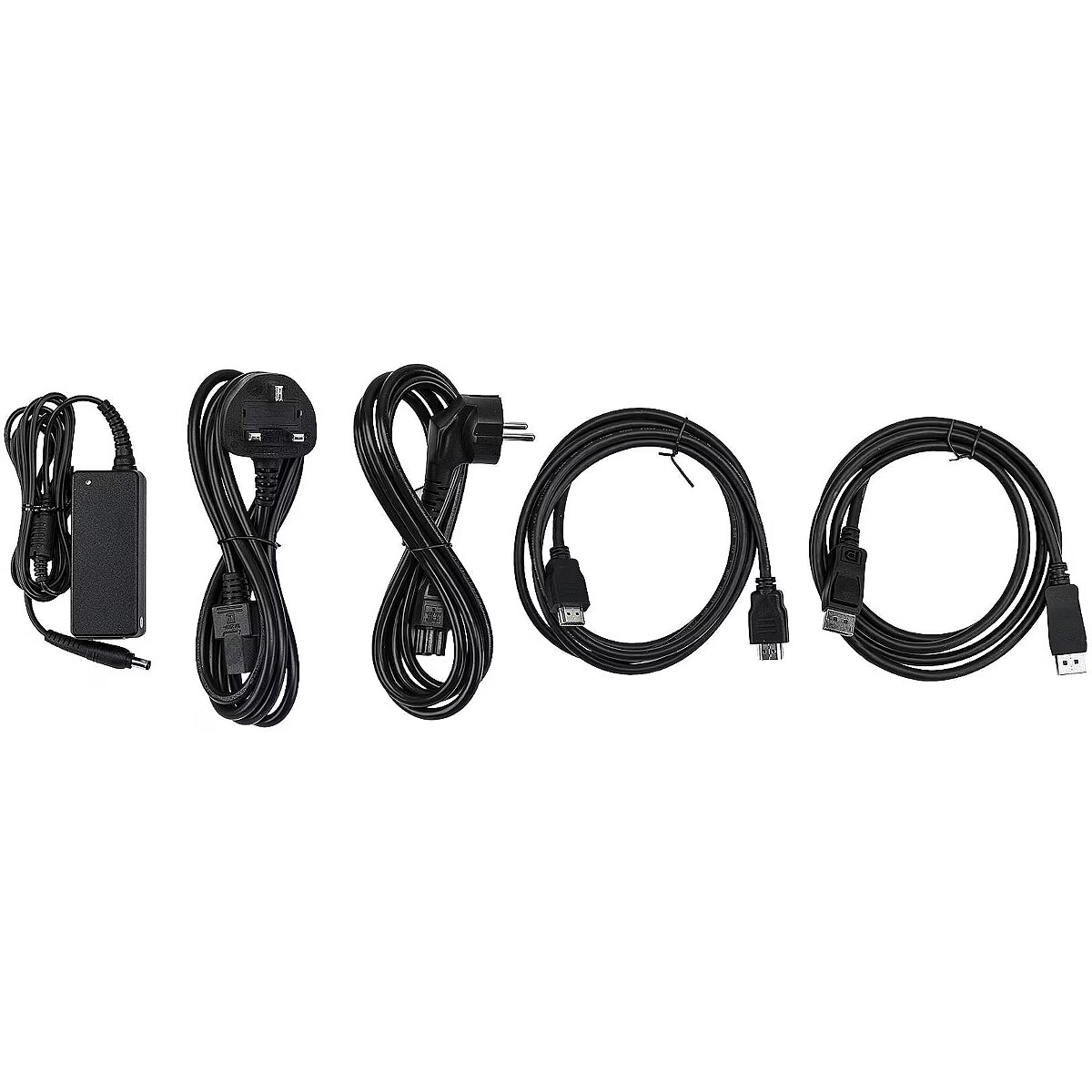

Packaging content - Cables included - AC, USB, HDMI, DisplayPort
Packaging content - Quick start guide - Yes
Packaging data - Package depth - 165 mm
Packaging data - Package height - 335 mm
Packaging data - Package weight - 4 kg
Packaging data - Package width - 435 mm
Performance - AMD FreeSync - No
Performance - NVIDIA G-SYNC - No
Performance - Palm rejection - Yes
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - HDCP - Yes
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - USB Touch port - Yes
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Power - AC adapter output voltage - 12 V
Power - Energy consumption (SDR) per 1000 hours - 10 kWh
Power - Energy efficiency class (HDR) - Not available
Power - Energy efficiency class (SDR) - E
Power - Energy efficiency scale - A to G
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.7 W
Power - Power consumption (typical) - 9 W
Power - Power supply type - External
ProductName - TF1534MC-B7X
ShortSummaryDescription - iiyama TF1534MC-B7X, 38.1 cm (15"), 1024 x 768 pixels, XGA, LED, 8 ms, Black
Stck_Kart - 1
Stck_Pal - 2
Storno - Y
Sustainability - Sustainability certificates - ErP
Title - iiyama TF1534MC-B7X computer monitor 38.1 cm (15") 1024 x 768 pixels XGA LED Touchscreen Multi-user Black
URL - https://iiyama.com/
WarrantyInfo -
Weight - 4.58
Weight & dimensions - Depth (without stand) - 44.5 mm
Weight & dimensions - Depth (with stand) - 44.5 mm
Weight & dimensions - Height (without stand) - 265.5 mm
Weight & dimensions - Height (with stand) - 265.5 mm
Weight & dimensions - Weight (without stand) - 2.7 kg
Weight & dimensions - Weight (with stand) - 2.7 kg
Weight & dimensions - Width (without stand) - 337.5 mm
Weight & dimensions - Width (with stand) - 337.5 mm
