Incase PS/2 VGA 17" LCD Console

Brand - ATEN
BrandPartCode - CL1000M-ATA-XG
Category - Rack Consoles
Code - CL1000M-ATA-AG
Design > Material - Metal+Plastic
Display - Contrast ratio (typical) - 1000:1
Display - Display - TFT-LCD
Display - Display brightness - 250 cd/m²
Display - Display diagonal - 43.2 cm (17")
Display - Display number of colours - 16.78 million colours
Display - Display resolution - 1280 x 1024 pixels
Display - Pixel pitch - 0.264 x 0.264 mm
Display - Viewing angle, horizontal - 170°
Display - Viewing angle, vertical - 160°
EAN - 4719264642395
Features > Connector 1 - 1 x SPHD Female (Yellow)
Features > Connector 2 - 1 x 3-prong AC Socket
GTIN - 4719264642395
Keyboard - Built-in touchpad - Yes
Keyboard - Hot keys - Yes
Logistics data - Master (outer) case gross weight - 14.6 kg
Logistics data - Master (outer) case height - 130 mm
Logistics data - Master (outer) case length - 604 mm
Logistics data - Master (outer) case net weight - 12 kg
Logistics data - Master (outer) case width - 650 mm
Logistics data - Products per master (outer) case - 1 pc(s)
LongDesc - The CL1000 is a LCD KVM console that serves as the front-end for standard KVM switches. The CL1000 features an integrated 17" or 19" LED-backlit LCD panel, full keyboard, and touchpad in a 1U, rack-mountable, Slideaway™ housing.1x CL1000M or CL1000N with Standard Rack Mount Kit1x 2L-5202UP Custom KVM Cable (VGA, USB; 1.8m/6ft)1x LIN2-418K-E12G Power Cord1x User Instructions
LongProductName - 17" LCD Console (USB - PS/2 VGA)
LongSummaryDescription - ATEN 17" LCD Console (USB - PS/2 VGA). Display diagonal: 43.2 cm (17"), Display resolution: 1280 x 1024 pixels, Display: TFT-LCD. Keyboard port type: PS/2, Mouse port type: PS/2. Power consumption (typical): 21.3 W, AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50 - 60 Hz. Width: 538.3 mm, Height: 44 mm, Depth: 480 mm. Package weight: 14.6 kg, Package width: 650 mm, Package depth: 604 mm
Name - Aten PS/2 VGA 17" LCD Console Aten | PS/2 VGA LCD Console
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Operational conditions > Temperature range (T-T) - 0 - 50˚C °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 48.00 mm
Package features > Gross height (mm) - 4.40 mm
Package features > Gross weight - 14.82 kg
Package features > Gross width (mm) - 53.83 mm
Package features > Packing quantity - 1 pc(s)
Package features > Palette Qty - 67 pc(s)
Package features > Paper/Pasteboard - 500 g
Package features > Plastic (No PET) - 100 g
Package features > Tare weight (kg) - 2.80 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - AC, KVM
Packaging content - Quick installation guide - Yes
Packaging content - Rack mount kit - Yes
Packaging data - Package depth - 604 mm
Packaging data - Package height - 130 mm
Packaging data - Package weight - 14.6 kg
Packaging data - Package width - 650 mm
Ports & interfaces - Keyboard port type - PS/2
Ports & interfaces - Mouse port type - PS/2
Power - AC adapter frequency - 50 - 60 Hz
Power - AC adapter input voltage - 100 - 240 V
Power - Input current - 1 A
Power - Power consumption (typical) - 21.3 W
Producer product name - PS/2 VGA LCD Console
ProductName - 17" LCD Console (USB - PS/2 VGA)
ShortSummaryDescription - ATEN 17" LCD Console (USB - PS/2 VGA), 43.2 cm (17"), 1280 x 1024 pixels, TFT-LCD, 250 cd/m², 1000:1, 170°
System requirements - Linux operating systems supported - Yes
System requirements - Mac operating systems supported - Yes
System requirements - Windows operating systems supported - Yes
Technical details - Connector type - SPHD
Technical details - LED indicators - Yes
Technical details - Material - Metal, Plastic
Technical details - Maximum resolution - 1920 x 1200 pixels
Technical details - Number of computers controlled - 1
Technical details - Operating relative humidity (H-H) - 0 - 80%
Technical details - Product colour - Black
Technical details - Rack capacity - 1U
Technical details - Rack mounting - Yes
Technical details - Sustainability certificates - RoHS
Technical details > Net weight - 12.02 kg

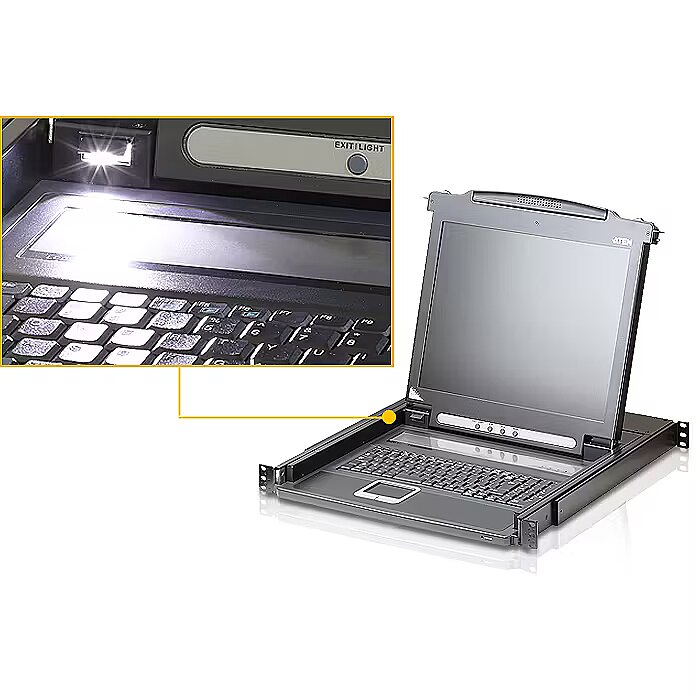

Technical details > Other features - Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions. Integrated KVM console with 17" or 19” LED-backlit LCD monitor – in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack. Supports input video resolutions up to 1920 x 1200@60 Hz. LEDs 1 x KVM Console (Dark Green) 1 x LCD (Orange), 1 x NumLock (Green) 1 x CapsLock (Green) 1 x ScrollLock (Green)
Technical details > Producer - Aten
Title - ATEN 17" LCD Console (USB - PS/2 VGA)
URL - https://www.atten.eu/
Warranty - 24
Warranty - 24 month(s)
WarrantyInfo -
Weight & dimensions - Depth - 480 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Weight - 12 kg
Weight & dimensions - Width - 538.3 mm
